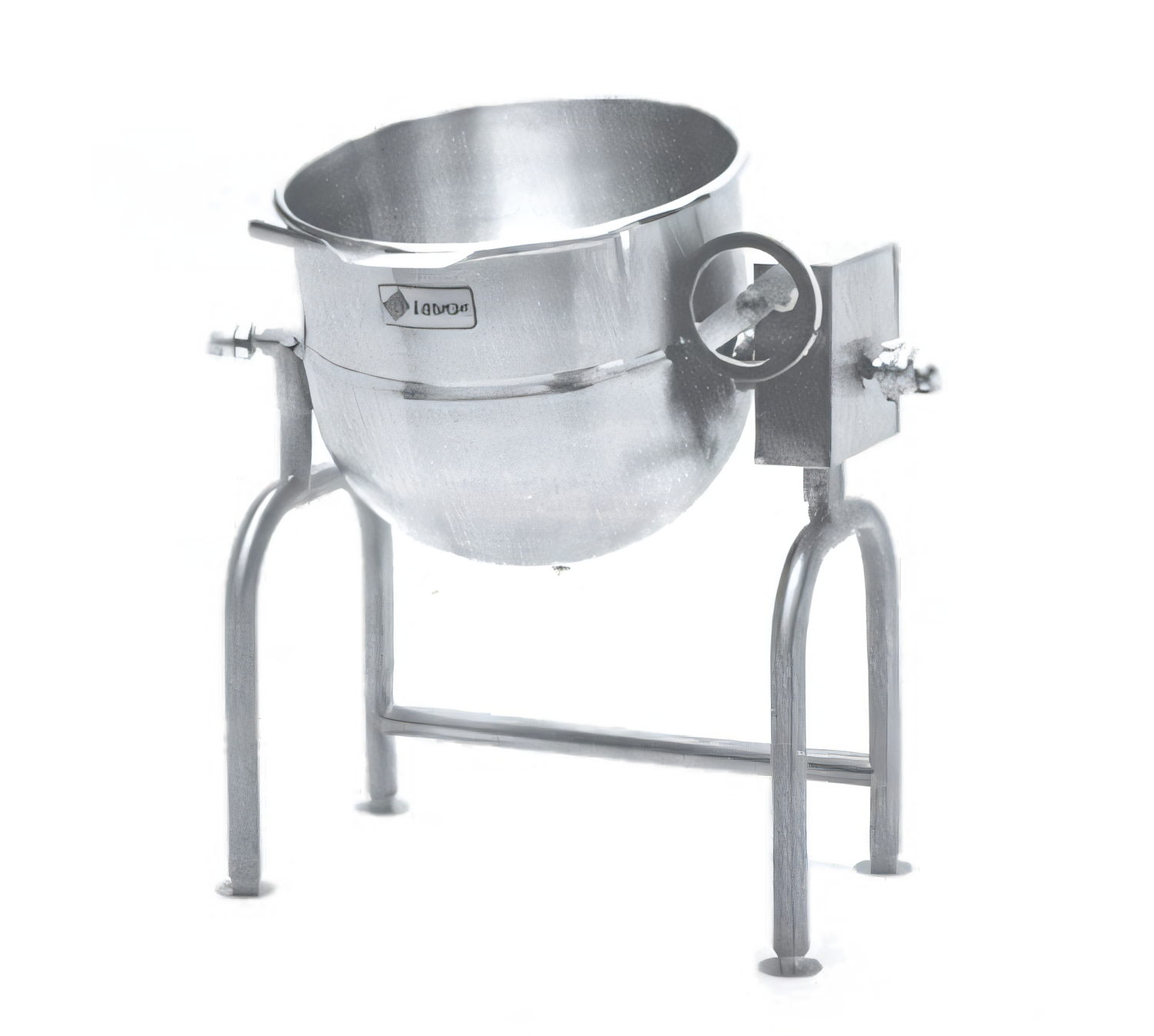

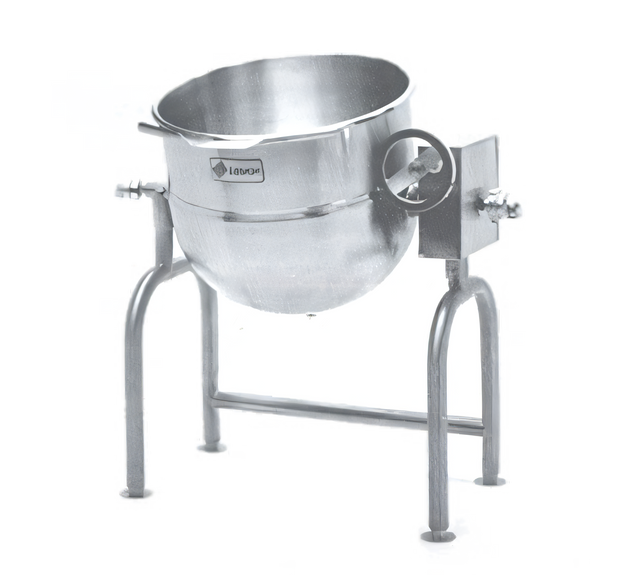

Legion TWU-20 Direct Steam Tilting Kettle with MV Mixer – 20 Gal.
Deep-drawn 304 SS • 2/3 Steam Jacket • Made in USABuilt for demanding commercial kitchens, the 20-gallon Legion TWU-20 couples a rugged direct-steam kettle with a powerful twin-shaft MV mixer. From scratch soups to delicate sauces, you’ll enjoy consistent results, faster cook times, and easy, controlled pouring.
Key Kettle Features
- Seamless deep-drawn 304 SS kettle liner for maximum sanitation and effortless cleaning.
- 304L seamless 2/3 jacket (side & bottom) delivers rapid, even heat transfer.
- Self-locking worm-gear tilt mechanism—smooth 90° pour with positive hold at any angle.
- Reinforced stainless gear box and control console for years of trouble-free service.
- Heavy-duty 2″ tubular U-frame with adjustable flanged feet for secure floor mounting.
- Rated 30 psi operating pressure; ASME stamped and NSF listed.
Integral MV Twin-Shaft Mixer
- Two-speed, totally-enclosed gear motor (1 HP high / ½ HP low).
- Anchor-style main agitator in 304 SS hugs kettle contour; counter-rotating beater maintains perfect product circulation.
- Removable nylon scraper blades continuously clean the kettle wall to prevent scorching.
- Bayonet-mount agitator & beater remove without tools for quick sanitation or kettle-only use.
- Actuator-assisted lift raises the agitator and bridge clear for tilting or batch change-over.
- Safety interlock prevents high-speed starts when mixer is out of position.
Technical Specifications
| Capacity | 20 gal. / 76 L |
|---|---|
| Operating Pressure | 30 psi (207 kPa) steam jacket |
| Jacket Coverage | 2/3 (side & bottom) |
| Construction | 304 SS food contact surface, 304L jacket, 304 SS frame & pedestal |
| Tilt | Manual, self-locking worm gear – 90° pour path |
| Agitator Speeds | High: 46 RPM main / 120 RPM secondary Low: 23 RPM main / 60 RPM secondary |
| Motor Power | 1 HP (high) / ½ HP (low), two-speed, TEFC |
| Steam Inlet | ¾″ NPT |
| Condensate Outlet | ½″ NPT |
| Overall Height (F) | 40.8″ (1 037 mm) |
| Overall Width (A) | 22.0″ (559 mm) |
| Overall Depth (C) | 39.0″ (991 mm) |
| Shipping Origin | Waynesboro, Georgia — USA |
| Warranty | 12-month parts & labor (extended coverage available) |
Installation & Utilities
- Requires direct steam supply at 30 psi (max.).
- Standard electrical for mixer: 208/230 V, 3 ph, 60 Hz (other voltages available).
- Provide floor drain and condensate return per local code.
Legion continually improves products; specifications are subject to change without notice.
Product Weight:
593.0 lbFrequently Asked Questions
