Legion TWU-20 Steam Kettles
Description

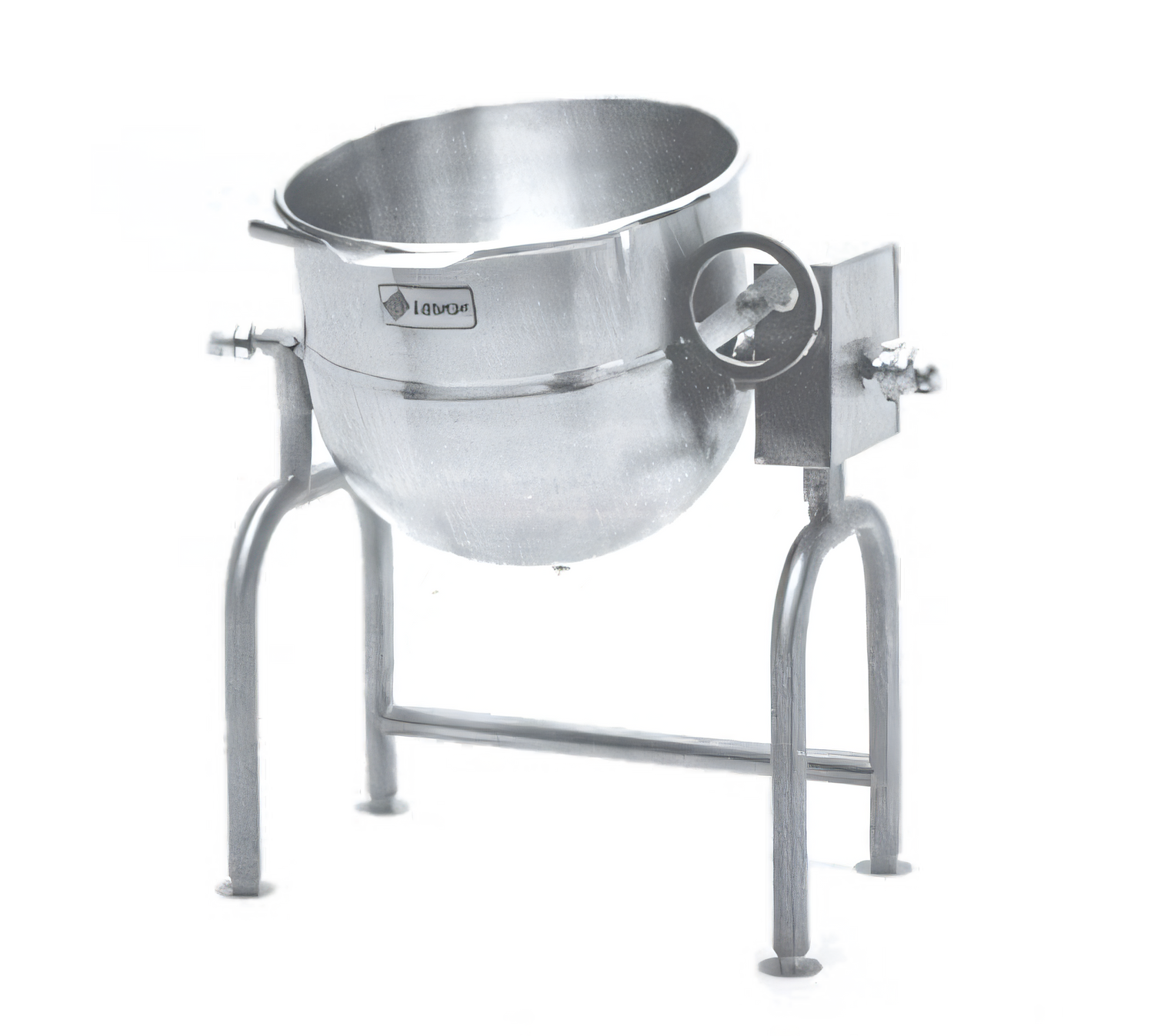

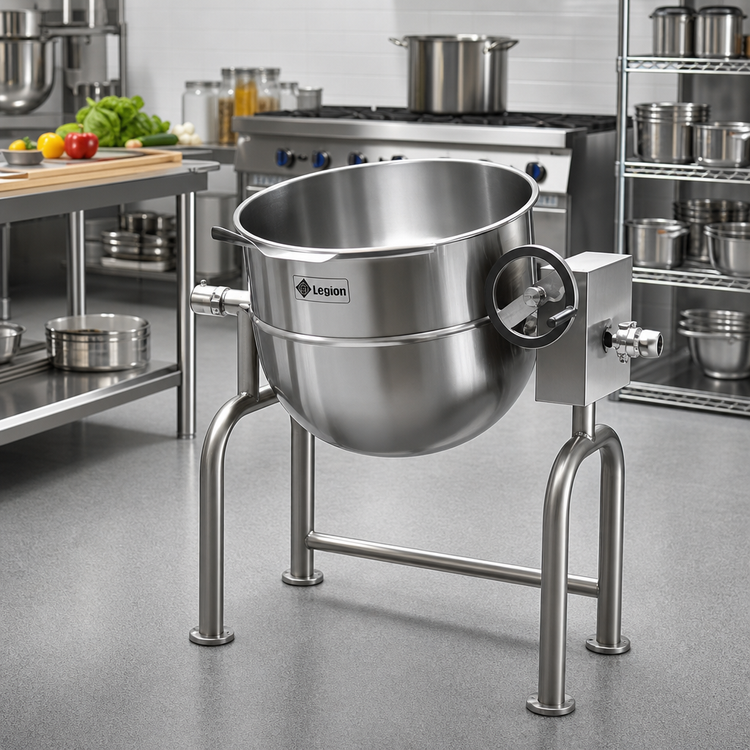

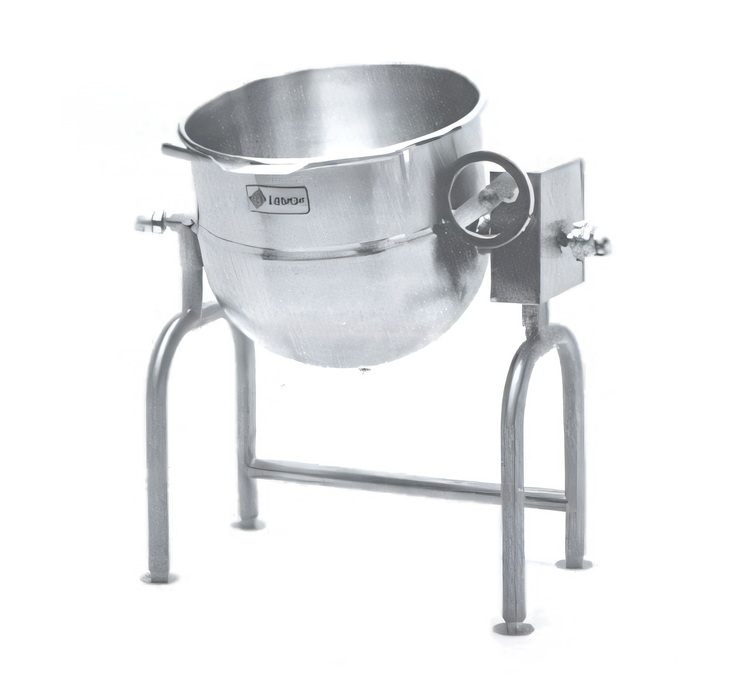

Legion TWU-20 Direct Steam Tilting Kettle – 20 Gallon
2/3-Jacketed • 304 Stainless Steel • 30 psi Operating PressureEngineered for demanding commercial kitchens, the Legion TWU-20 brings rapid, even steam-powered heating together with the control of a self-locking tilt mechanism. The result is faster batch cooking, effortless pour-off, and decades of dependable service—all in a compact 20-gallon footprint.
Standard Features & Benefits
- 20 gal (76 L) working capacity—ideal for soups, sauces, and small-batch production
- Seamless 304 stainless steel, deep-drawn liner for maximum sanitation and easy clean-up

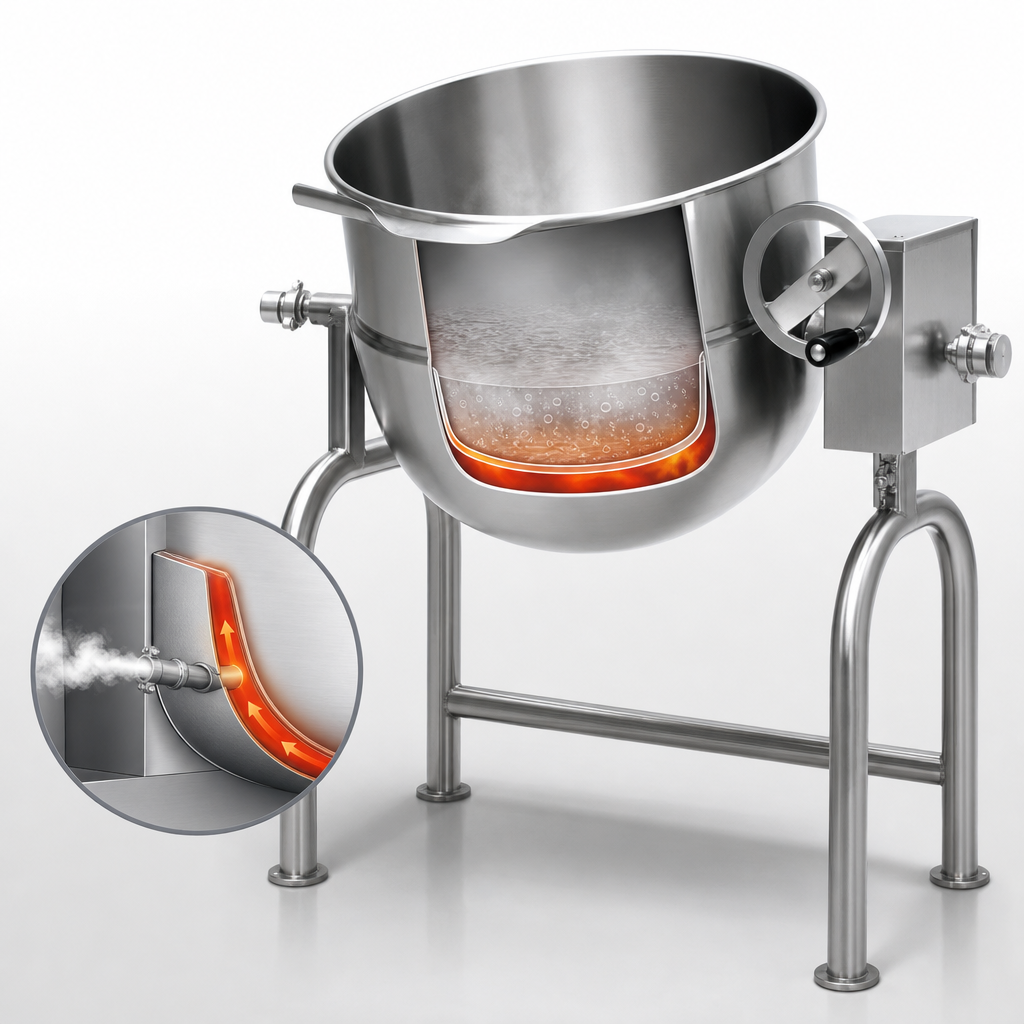

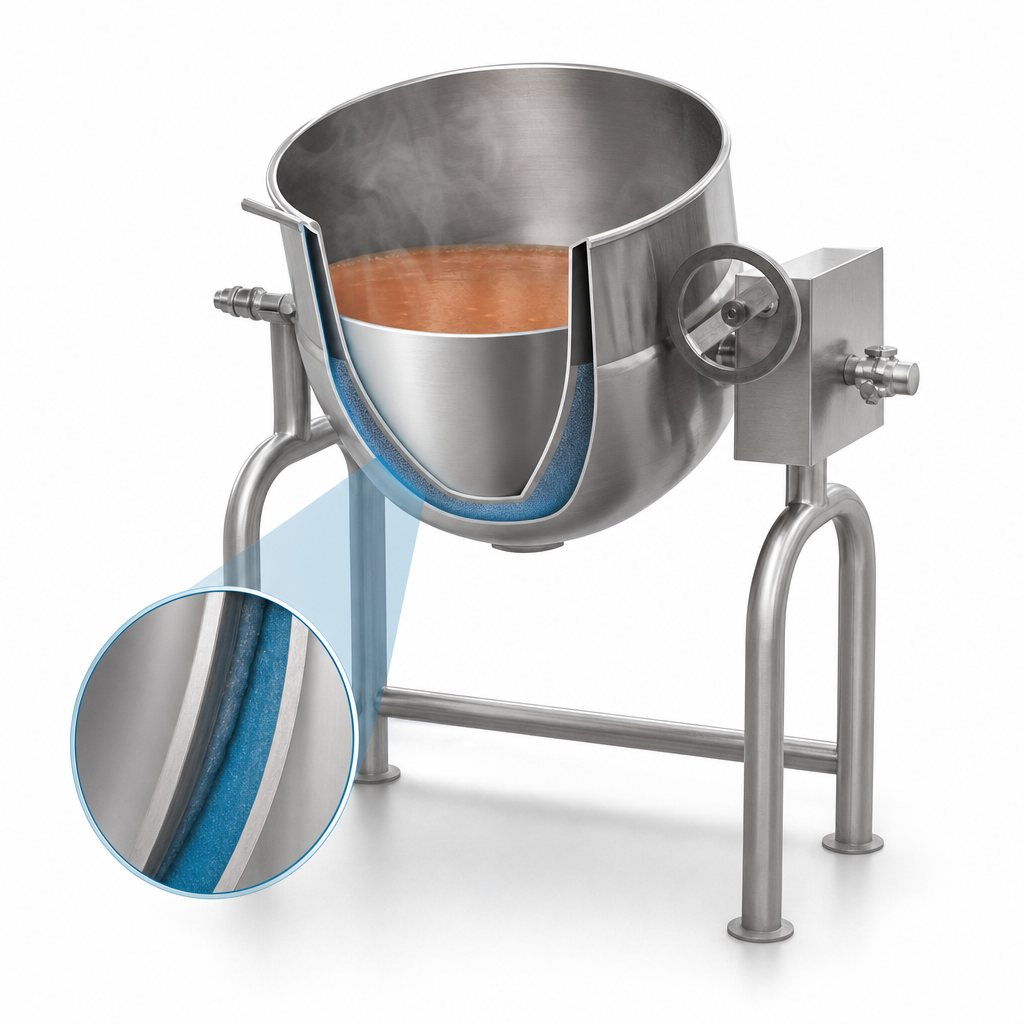

- 2/3 steam jacket (304L stainless) delivers fast, uniform heat with no hot spots
- Self-locking worm-gear tilt lets one operator safely pour precise portions
- Reinforced 304 stainless gear box built to withstand daily commercial use
- Rugged 2" tubular U-frame support with adjustable flanged feet for quick leveling
- 30 psi ASME-rated operating pressure for higher cooking temperatures and shorter cook times
- Made in the USA and manufactured to comply with NSF, ASME and other applicable standards
Technical Specifications
| Model | TWU-20 (Direct Steam, Tilting, U-Frame Mounted) |
|---|---|
| Capacity | 20 gal | 76 L |
| Interior Liner | Seamless 304 stainless steel |
| Jacket Coverage | 2/3 jacket, 304L stainless |
| Operating Pressure | 30 psi (2.1 bar) max. |
| Tilt Mechanism | Self-locking worm gear with reinforced 304 stainless gear box |
| Steam Connections | 3/4" NPT inlet | 1/2" NPT condensate outlet |
| Overall Dimensions* | 40.8" H × 28.9" W × 39.0" D (to pour path) |
| Mounting | 2" tubular stainless U-frame with adjustable flanged feet |
| Origin | Made in Waynesboro, Georgia, USA |
*Dimensions taken from manufacturer drawing; allow additional clearance for plumbing and tilting radius.
Popular Accessories (Sold Separately)
- Single or double fill faucets with 12" or 18" swing nozzle
- 48" flexible spray hose assembly (vinyl or stainless)
- Lift-off or actuator-assisted hinged cover
- Perforated basket/strainer inserts & measuring strip kits
- 2" or 3" draw-off valves and drain hoses
- Higher-pressure jacket, air eliminator or pressure-reducing valves
Warranty
Legion backs each TWU kettle with a 12-month parts & labor warranty. Extended coverage up to three years is available—ask your sales representative for details.
