Legion TWU-100MV Steam Kettles
Description

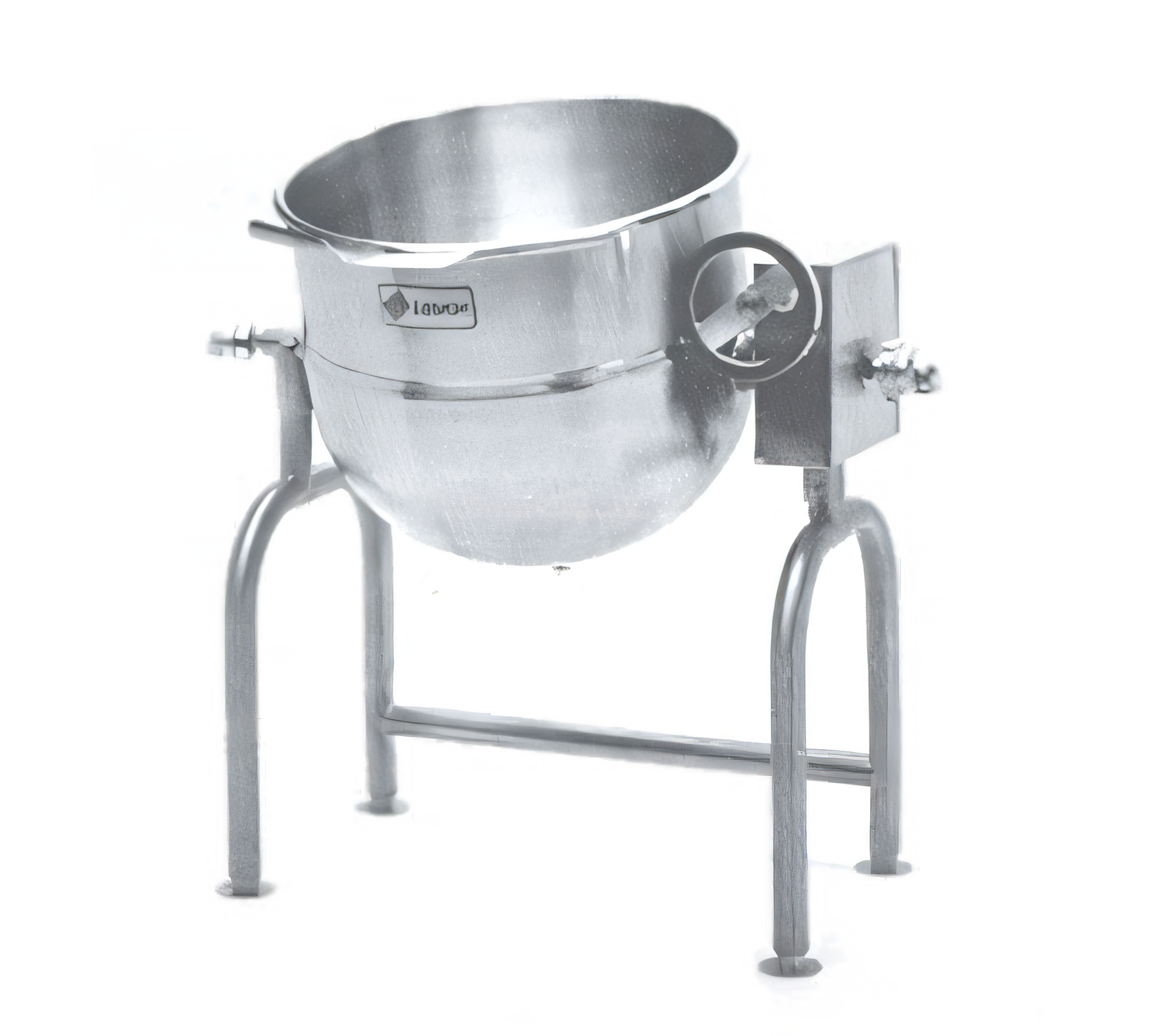

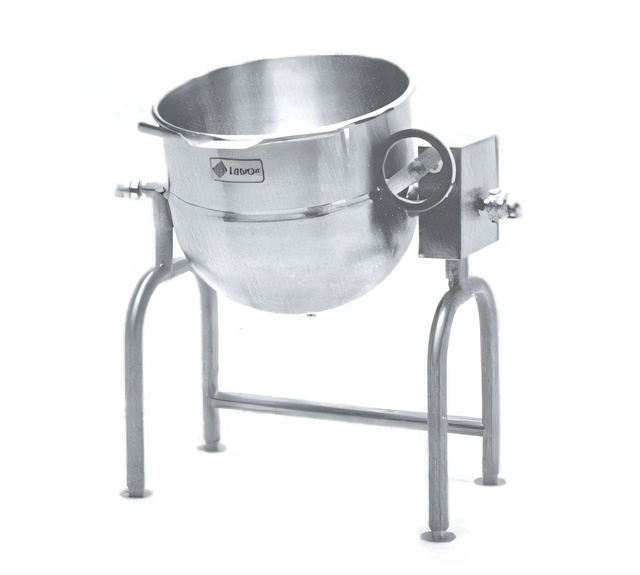

Legion 100-Gallon Direct Steam Tilting Kettle with 2-Speed Mixer
Model TWU-100 + MV Twin-Shaft Agitator | 2⁄3-Jacketed • 304 Stainless • Made in USAEngineered for demanding, high-volume kitchens, the Legion TWU-100 combines a 100-gallon seamless 304 stainless kettle with an integrated twin-shaft mixer and a rock-solid, self-locking worm-gear tilt drive. From creamy chowders to thick chilis and confectionery fillings, you’ll cook, mix and pour faster, safer and more consistently than ever.
Key Features & Benefits
- Huge 100 gal (379 L) working capacity for batch cooking or re-therm.
- Seamless, deep-drawn 304 stainless liner and 304L stainless 2⁄3 jacket for maximum durability and sanitation.
- 25 psi steam jacket rating delivers rapid, even heat with no hot spots.
- Self-locking worm-gear tilt mechanism provides smooth, controlled pouring at any angle.
- 2-speed MV mixer:
- Anchor-style main agitator contours the kettle wall.
- Counter-rotating stainless beater keeps product moving through the center.
- Removable nylon scraper blades sweep the entire surface—no burn-on.
- High-speed safety interlock prevents accidental starts.
- Reinforced 304 stainless 2″ tubular U-frame with adjustable flanged feet for rock-steady installation.
- Quick-release, bayonet-mounted agitator and beater for rapid cleaning or for kettle-only operation.
- Totally-enclosed gear motor—built for continuous commercial duty.
- ASME & NSF compliant; proudly made in Waynesboro, GA, USA.
Perfect For
- Soups, chowders & stocks
- Chili, curry & pasta sauces
- Pudding, custard & confectionery fillings
- Re-thermalizing chilled or bagged product
- Any high-viscosity recipe that demands constant agitation
Technical Specifications
| Model | TWU-100 Kettle with MV Mixer |
|---|---|
| Capacity | 100 gal / 379 L |
| Jacket | 2⁄3 coverage, 304L stainless, 25 psi operating pressure |
| Kettle Interior | Seamless 304 stainless, satin finish |
| Tilt Mechanism | Self-locking worm gear, manual crank |
| Support Frame | 304 stainless 2″ tubular U-frame, adjustable flanged feet |
| Agitator Type | Twin-shaft: anchor agitator + counter-rotating beater |
| Agitator Speeds* | Low 23 rpm / 60 rpm (beater) | High 46 rpm / 120 rpm (beater) |
| Motor | Low 1 HP | High 2 HP; TEFC gear motor |
| Steam Connections | ¾″ NPT inlet & outlet |
| Overall Dimensions** | 46.0 in L × 41.3 in W × 58.8 in H |
| Compliance | ASME, NSF, UL, ETL |
*Based on standard 15 : 1 gear head ratio. **Height can vary slightly with optional draw-off valve.
Popular Factory Options
- 2″ or 3″ sanitary draw-off valve with perforated disk strainer
- Single or double water-fill faucet with 12″ / 18″ swing nozzle
- 48″ flexible rinse-down spray hose (vinyl or stainless)
- Lift-off or lockable lid; actuator-assisted cover
- Tri-basket insert, measuring strip, pour-lip pan holder & more
Peace-of-Mind Warranty
Every Legion kettle is backed by a 12-month parts & labor warranty with optional extensions up to 3 years.
