Legion TWU-100 Steam Kettles
Description

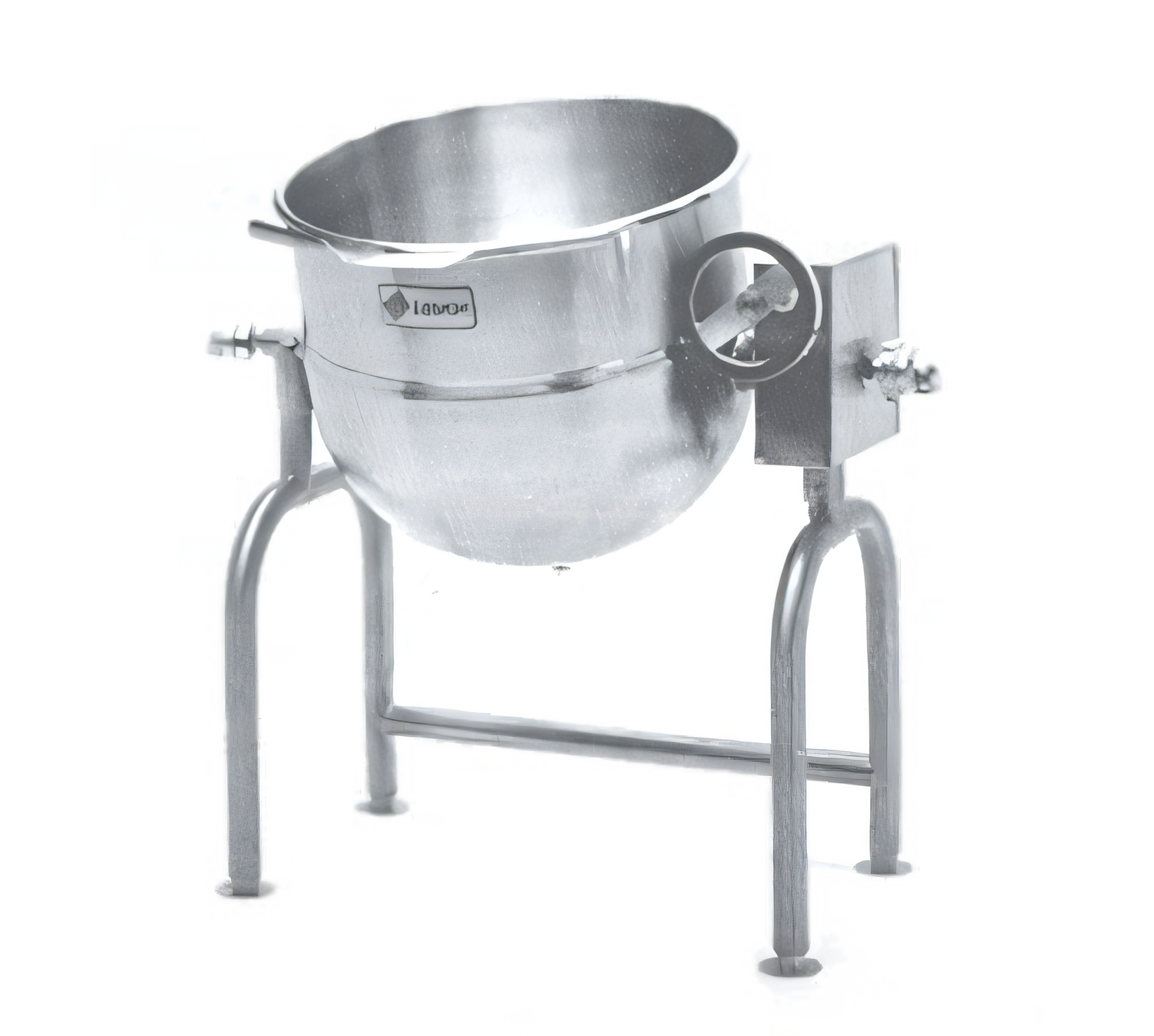

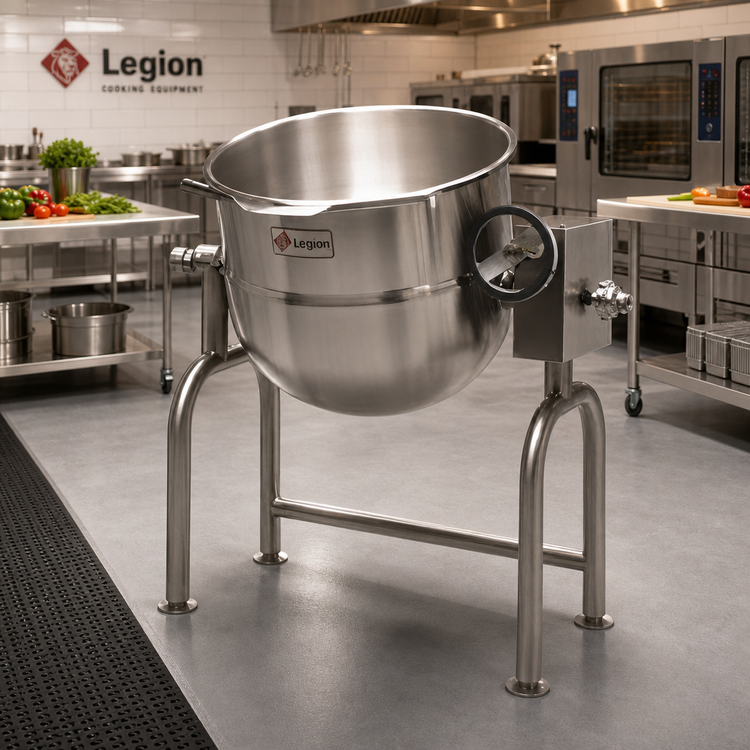

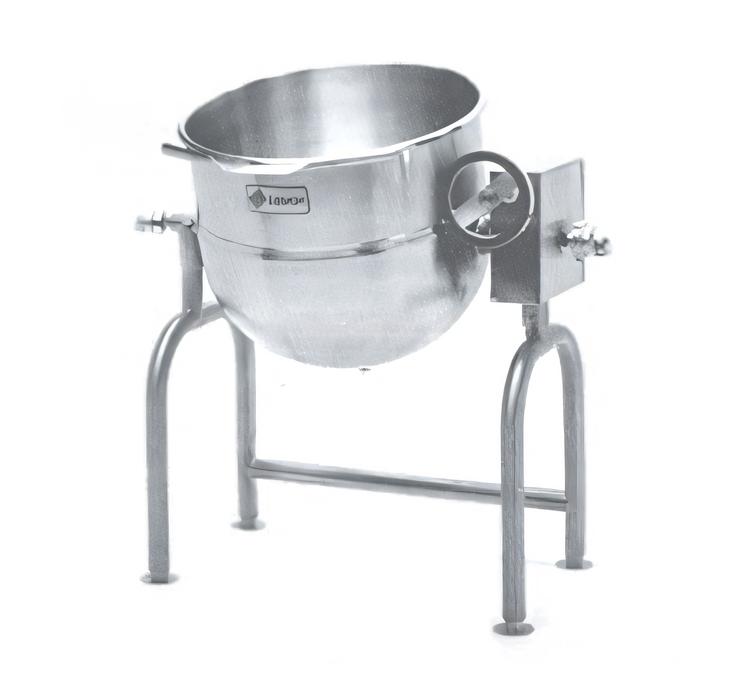

Legion 100-Gallon Direct Steam Tilting Kettle
Model TWU-100 | 2/3 Jacketed • U-Frame Mounted • Made in USABuilt for high-volume kitchens that demand speed, consistency, and durability, the Legion TWU-100 brings 100 gallons (379 L) of true cooking capacity to your line. A seamless 304 stainless liner, reinforced worm-gear tilt, and rock-solid U-frame support deliver years of dependable, NSF-compliant service while a 2/3 steam jacket slashes cook times and boosts batch yields.
Why You’ll Love It

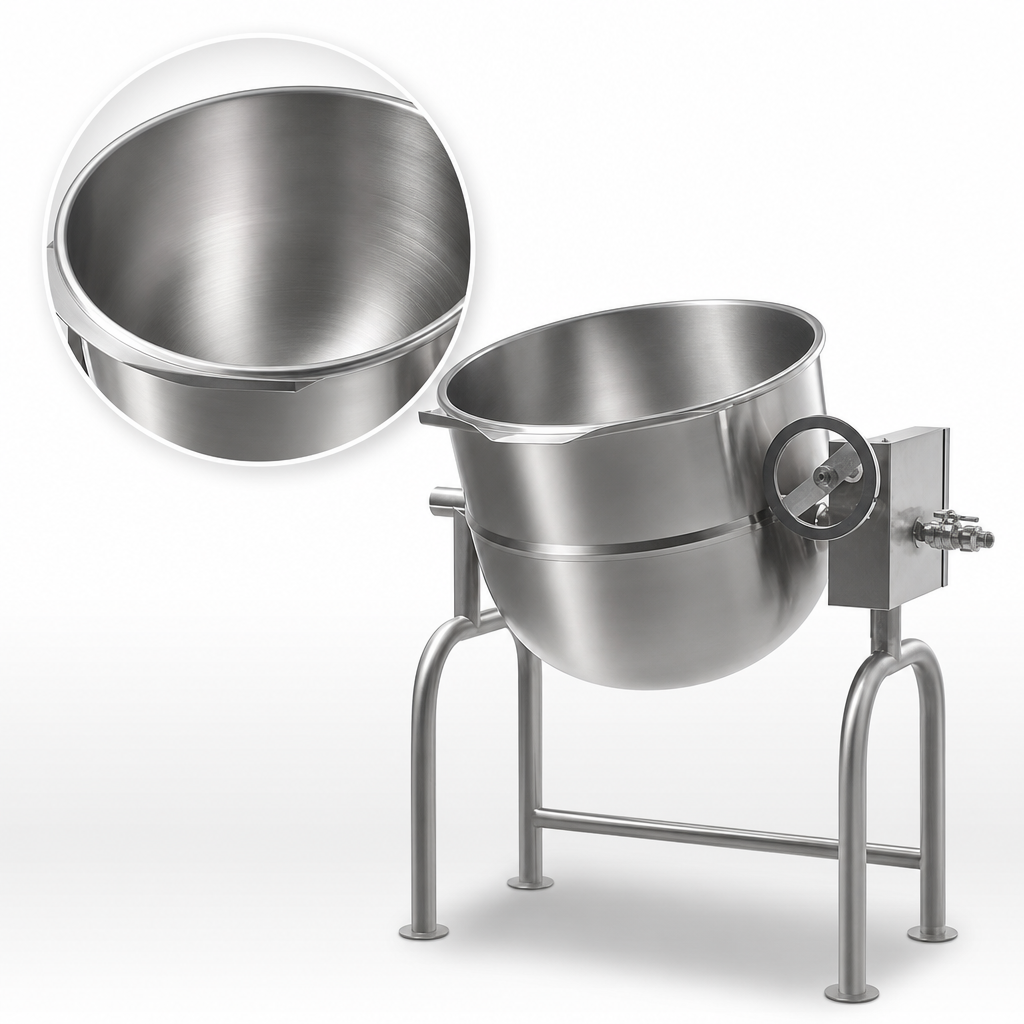

- Seamless 304 stainless kettle liner prevents pitting and simplifies sanitation.

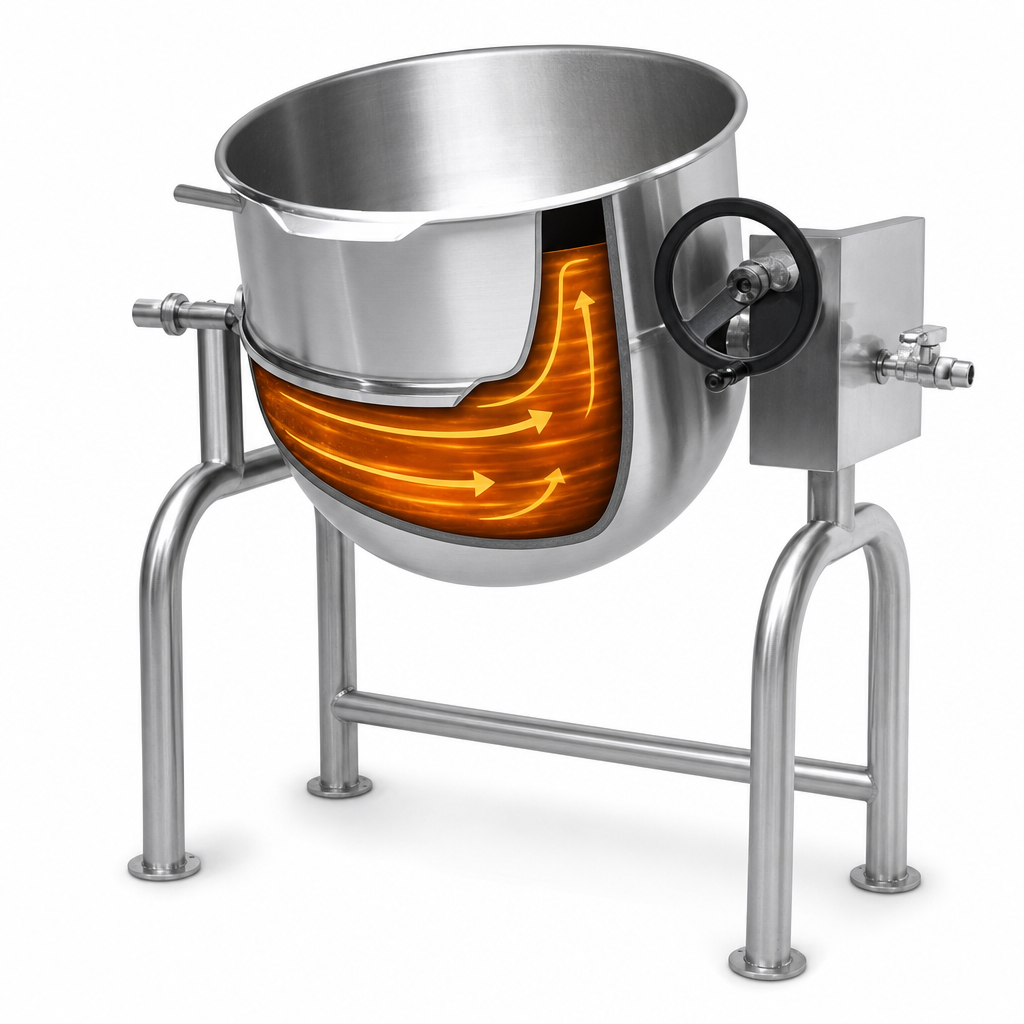

- 2/3 jacket design heats sidewalls and bottom evenly for faster, scorch-free cooking.
- Self-locking worm gear tilt holds any position and provides smooth, controlled pouring.
- Reinforced 304 stainless gear box—no cast iron to corrode in steamy environments.
- Rugged 2" tubular U-frame with adjustable flanged feet for rock-solid floor anchoring.
- Direct steam connection rated to 25 psi for rapid heat-up and recovery.
- Factory-approved to ASME & NSF standards and proudly manufactured in Waynesboro, GA.
Technical Specifications
| Working Capacity | 100 gal | 379 L |
|---|---|
| Heat Source | Direct steam (customer-supplied) |
| Operating Pressure | 25 psi (172 kPa) max. |
| Jacket Coverage | 2/3 (sidewalls & bottom) |
| Liner Material | Seamless 304 stainless steel |
| Jacket Material | Seamless 304L stainless steel |
| Tilt Mechanism | Self-locking worm gear, manual crank |
| Mounting | 2″ tubular stainless U-frame with adjustable flanged feet |
| Steam Inlet / Outlet | ¾″ NPT |
| Dimensions (WxDxH) | 46.0″ × 41.3″ × 58.8″ (see drawing) |
| Agency Approvals | ASME, NSF (others on request) |
| Country of Origin | USA |
Common Add-Ons
- Single or double fill faucet with 12″ or 18″ swing nozzle
- 48″ flexible spray hose (vinyl or stainless)
- Draw-off valve (2″ or 3″) with optional perforated strainer
- Lift-off or actuator-assisted cover
- Two-speed mixer/agitator assembly
- Automatic water-fill meter
- Security package: lockable lid, reinforced bar rim, fastener kit
Contact us for the full price list or to configure factory-installed options with your order.
