Legion TWT-80 Steam Kettles
Description

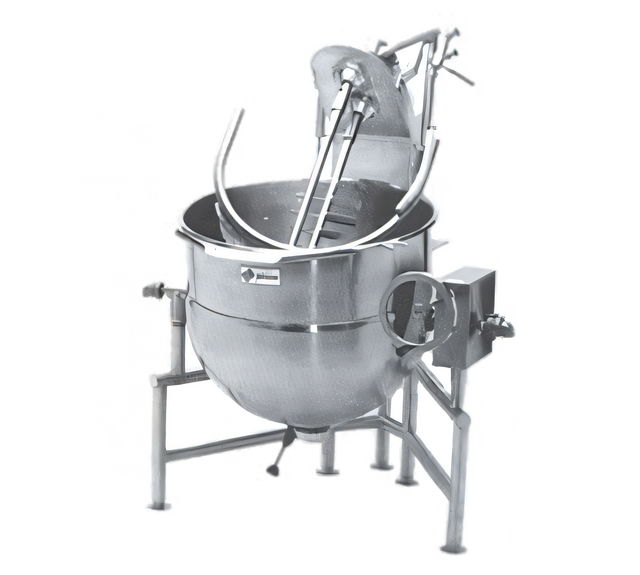

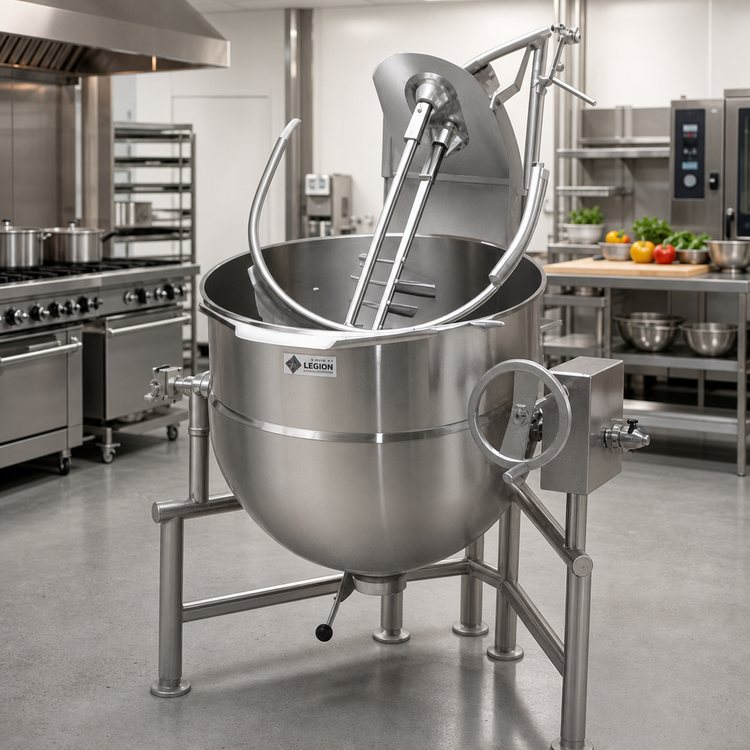

Legion TWT-80 Direct Steam Tilting Kettle – 80 Gal.
2/3-Jacketed • Deep-Drawn 304 Stainless • Floor-Mounted Tri-LegBuilt in the USA for continuous, heavy-duty production, the Legion TWT-80 combines an 80-gallon cooking capacity with the precise, even heating of a 2/3 steam jacket. A self-locking worm-gear tilt and rugged stainless construction keep crews safe and productive while turning out large-batch soups, sauces, stocks and more.
Why you’ll love it
- Seamless deep-drawn 304 SS kettle liner – no internal weld seams to trap food soil.

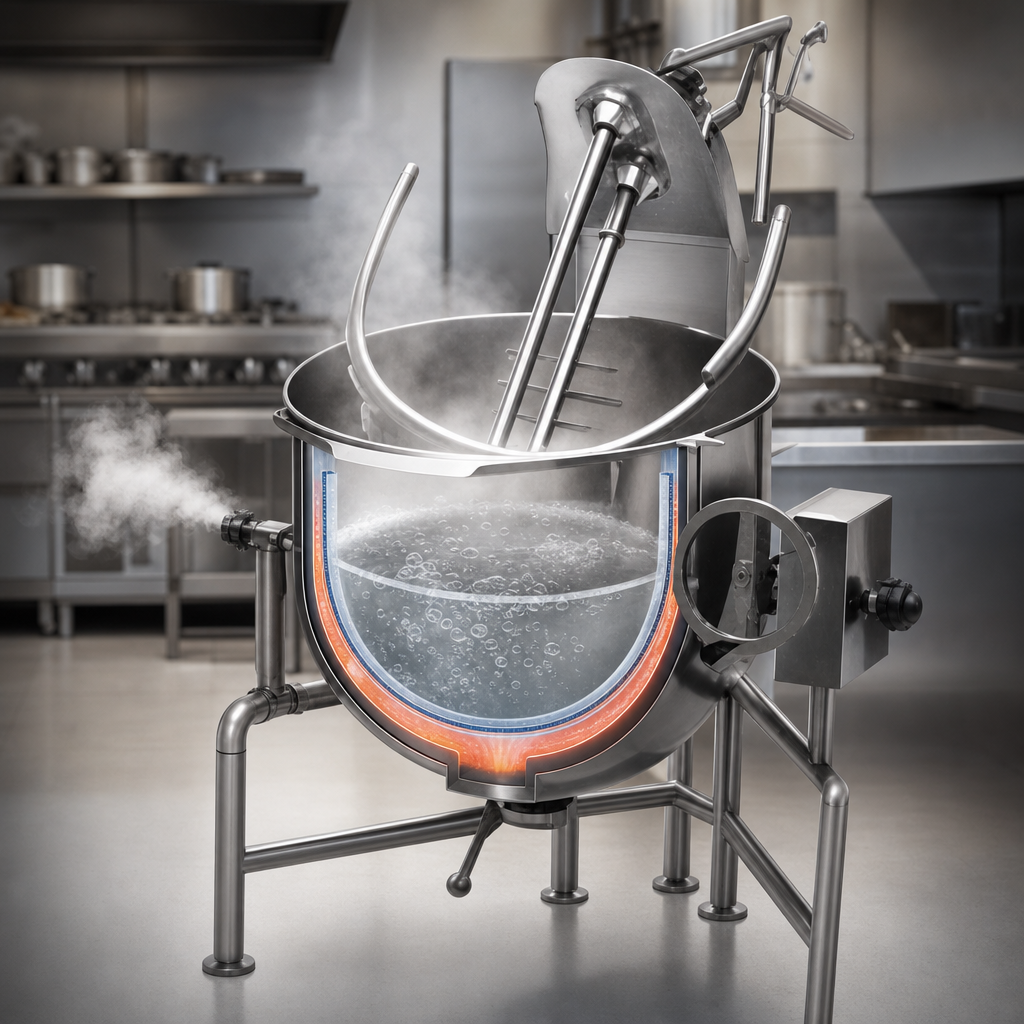

- 304L seamless 2/3 jacket delivers fast, even heat transfer up to 30 psi (250 °F).
- Self-locking worm-gear tilt with chunky hand wheel for smooth, controlled pouring.
- Reinforced 304 SS gear box engineered for years of high-volume service.
- Tri-Leg 2" tubular frame with adjustable flanged feet – rock-solid on any floor.
- Compact control console keeps steam inlet/outlet connections protected and organized.
- NSF, ASME & other applicable approvals for commercial foodservice installations.
Technical specifications
| Model | TWT-80 |
|---|---|

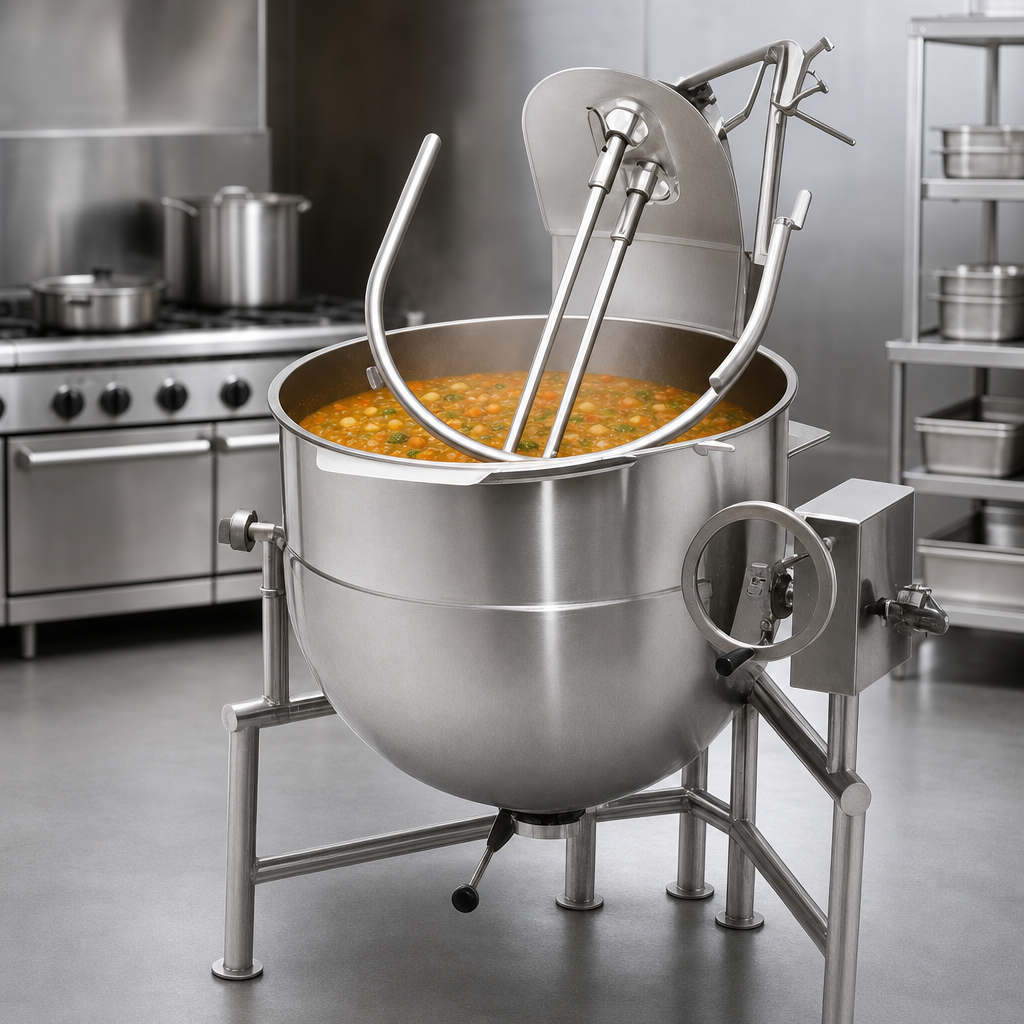

| Capacity | 80 gal | 303 L |
| Heating source | Direct steam (customer-supplied) |
| Jacket coverage | 2/3 – side & lower bowl |
| Operating pressure | 30 psi maximum |
| Tilt mechanism | Manual hand-wheel, self-locking worm gear |
| Body & jacket material | 304 / 304L stainless steel |
| Support frame | 304 SS, 2" tubular, floor-mounted tri-leg |
| Steam connections | ¾" NPT inlet & outlet |
| Overall length (F) | 53.3 in | 135 cm |
| Overall width (G) | 38.3 in | 97 cm |
| Height to rim (C) | 43.4 in | 110 cm |
| Minimum pour path (X) | 31.6 in | 80 cm |
Perfect for
- Central kitchens & commissaries
- University and hospital dining services
- Sauce, gravy & stock production lines
- Batch cooking for canning or freezing operations
Popular factory options
- 2" or 3" draw-off valve kits (compression or ball-type)
- Single / dual water faucet with 12" or 18" swing nozzle
- 48" flexible spray hose assembly (PVC or stainless)
- Automatic water-fill meter
- Perforated or solid strainers, basket inserts & nylon bag kits
- Steam trap kits – standard or bright nickel-plated finish
Contact us for pricing, lead-time and installation requirements for any optional accessories.
The TWT-80 operates on direct steam and must be connected to a regulated, clean steam supply not to exceed 30 psi. Installation should be performed by licensed professionals in accordance with local codes and ASME guidelines.
Every Legion kettle is covered by a limited twelve (12) month parts & labor warranty from the date of installation. Extended coverage is available — ask your sales rep for details.
