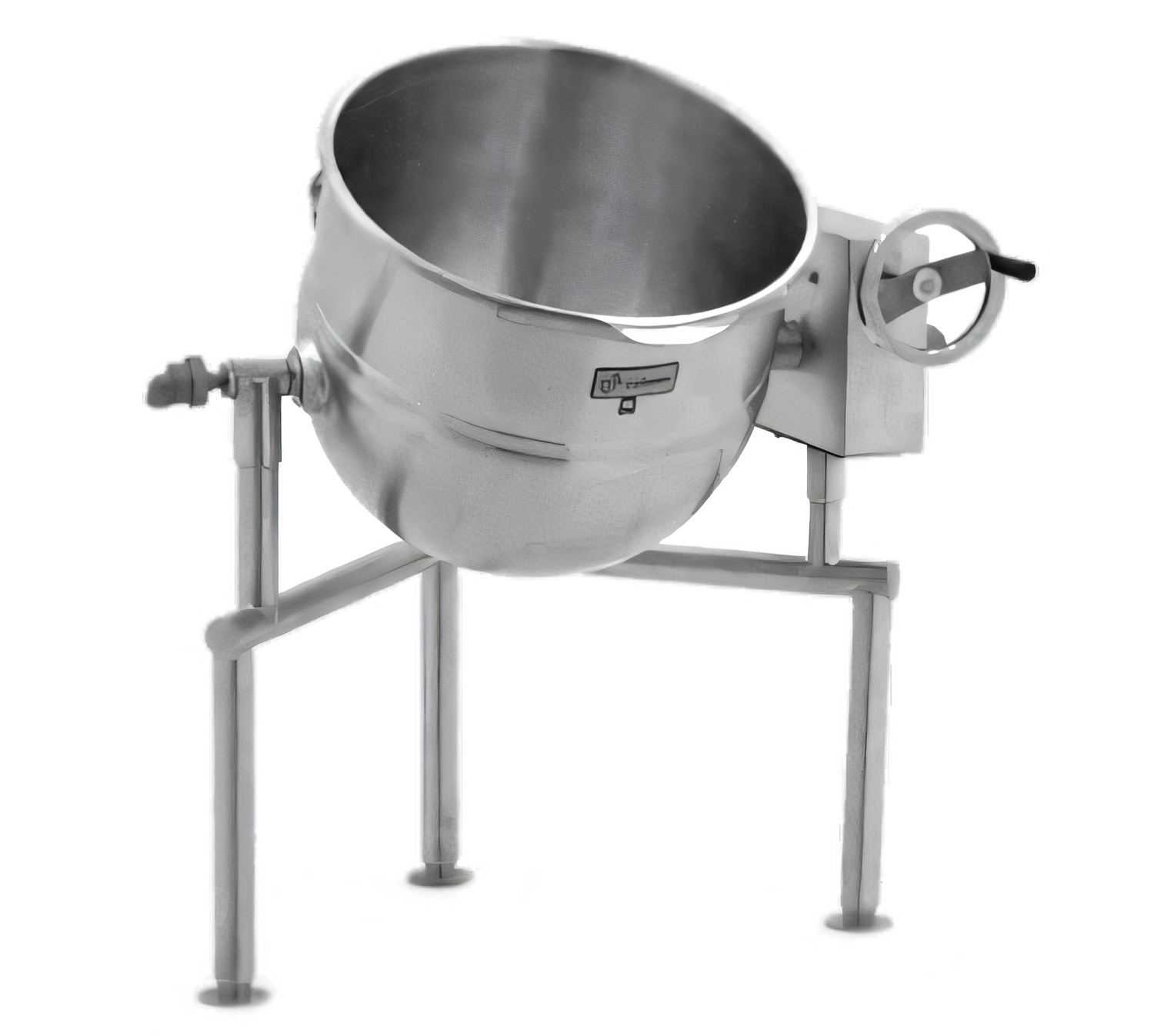

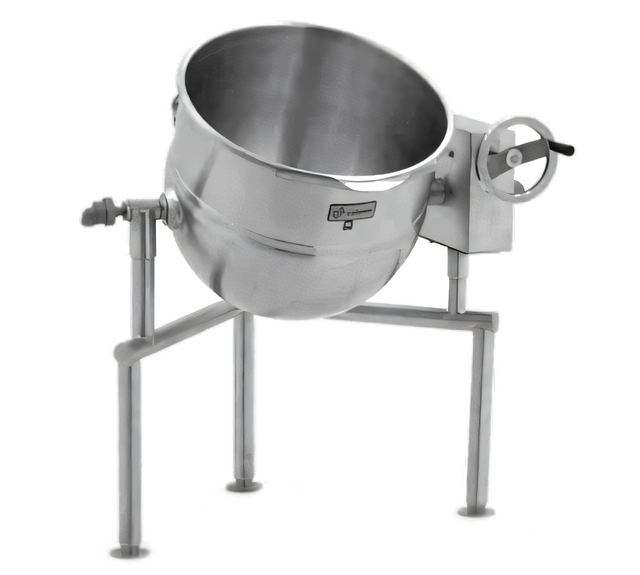

Legion 60-Gallon Direct Steam Tilting Kettle with Integrated Mixer
Model TWT-60-MV | 2/3 Jacketed | Made in the USAGet faster, more consistent batch production with one all-inclusive workhorse. Legion’s 60-gallon direct steam kettle teams a seamless 304 stainless vessel with a two-speed twin-shaft agitator, giving high-volume kitchens the power to cook, mix and pour—all from a single, rock-solid floor mount.
Key Performance Features
- 60 gal (227 L) capacity handles soups, sauces, fillings & stews for hundreds of servings.
- Seamless 304 stainless steel liner and 304L stainless 2/3 steam jacket for even heat transfer and easy sanitation.
- Self-locking worm-gear tilt provides smooth, controlled pouring with zero backlash.
- Reinforced 304 stainless gear box and 2″ tubular Tri-Leg frame withstand daily commercial abuse.
- Adjustable flanged feet bolt to the floor for level, code-compliant installation.
- 30 psi operating pressure; built and stamped to current ASME & NSF standards.
Integrated Twin-Shaft Mixer
- Anchor-style main agitator hugs the kettle wall to keep product moving and prevent scorching.
- Counter-rotating secondary beater breaks up particulates for consistent texture.
- Nylon scraper blades continuously wipe the entire kettle surface.
- Two-speed gear motor (Low 23 RPM / High 46 RPM on main shaft) adapts to delicate or high-viscosity recipes.
- Bayonet-mount agitator & beater remove in seconds for cleaning or open-kettle operation.
- Actuator lift raises mixer bridge clear of the rim; safety interlock blocks high-speed starts when lifted.
Specifications
| Capacity | 60 gal | 227 L |
|---|---|
| Jacket Type | Direct steam, 2/3 coverage |
| Operating Pressure | 30 psi (206 kPa) |
| Construction | Seamless 304 SS liner & jacket, SS control console |
| Tilt Mechanism | Self-locking worm gear with hand wheel |
| Frame | 304 SS, 2″ tubular Tri-Leg, adjustable flanged feet |
| Steam Inlet / Outlet | ¾″ NPT inlet | ½″ NPT outlet |
| Agitator Motor | Two-speed, 2 HP (high) / 1 HP (low) |
| Electrical (Mixer) | 208-230/460 V, 3-phase, 60 Hz (other voltages on request) |
| Overall Width (A) | 29.5 in (750 mm) |
| Overall Depth (B) | 25.0 in (635 mm) |
| Rim Height (C) | 41.5 in (1 054 mm) |
| Pour Path Clearance (X) | 28.1 in (714 mm) minimum |
Ideal Applications
- Central & commissary kitchens
- Correctional facilities and schools
- Catering and banqueting production
- Craft sauce, soup, chili, custard and confection operations
Looking for automatic water metering, draw-off valves or other accessories? Contact us—Legion offers a full range of factory-installed options to tailor the kettle to your kitchen.
Product Weight:
763.0 lbFrequently Asked Questions
