Legion TWT-60 Steam Kettles
Description

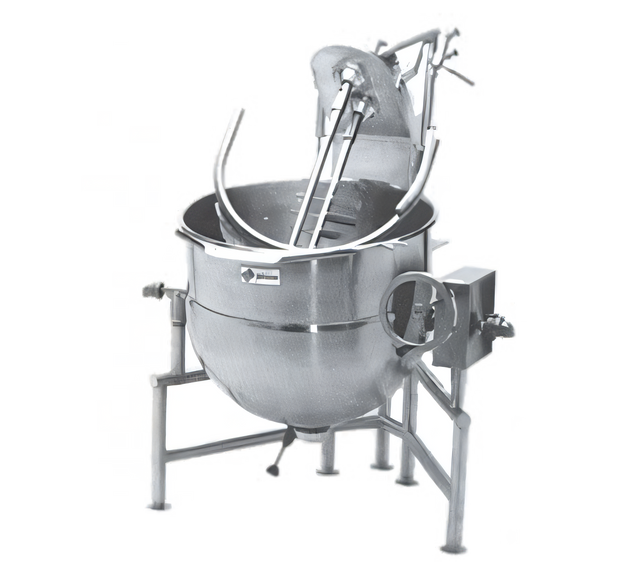

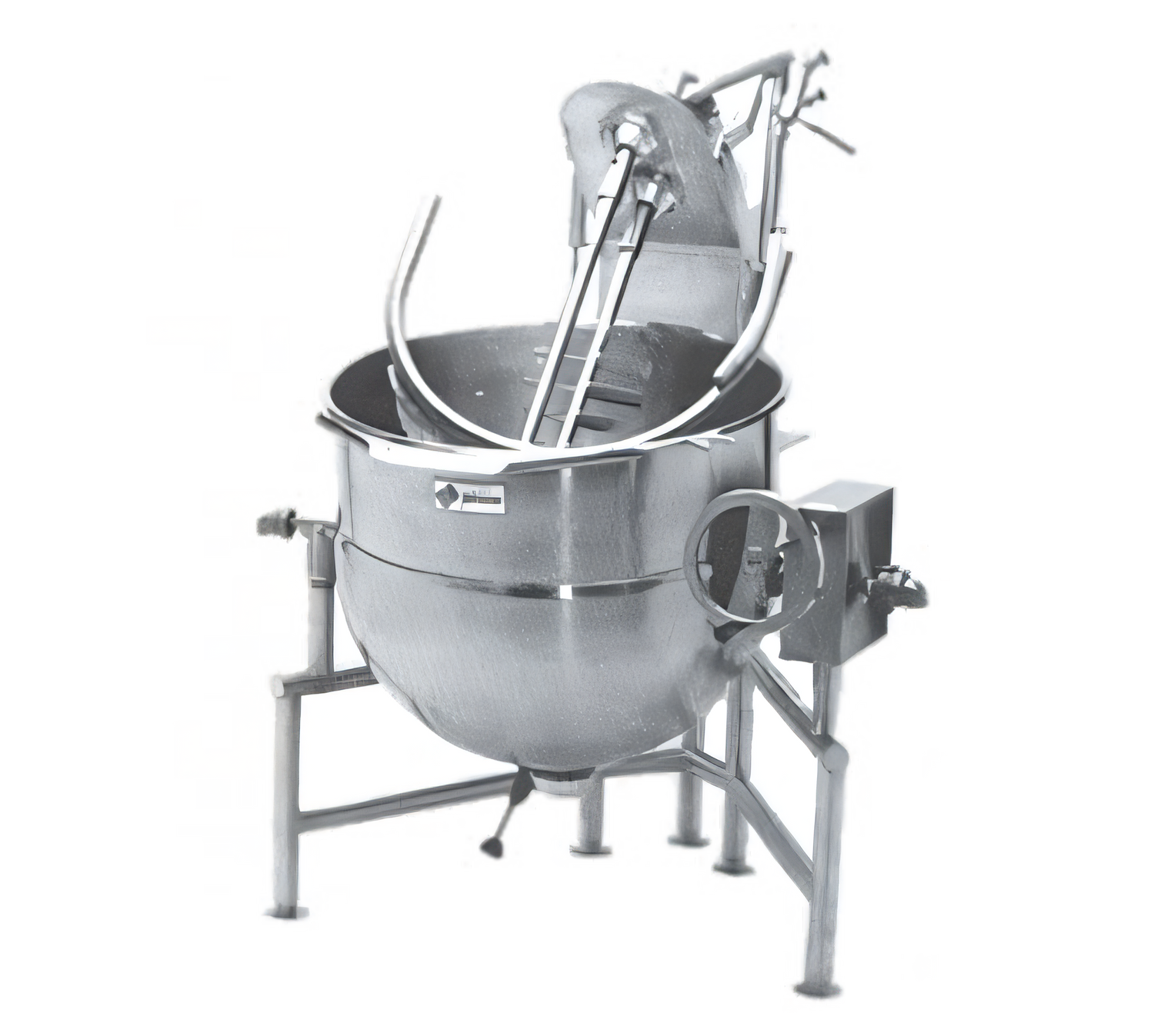

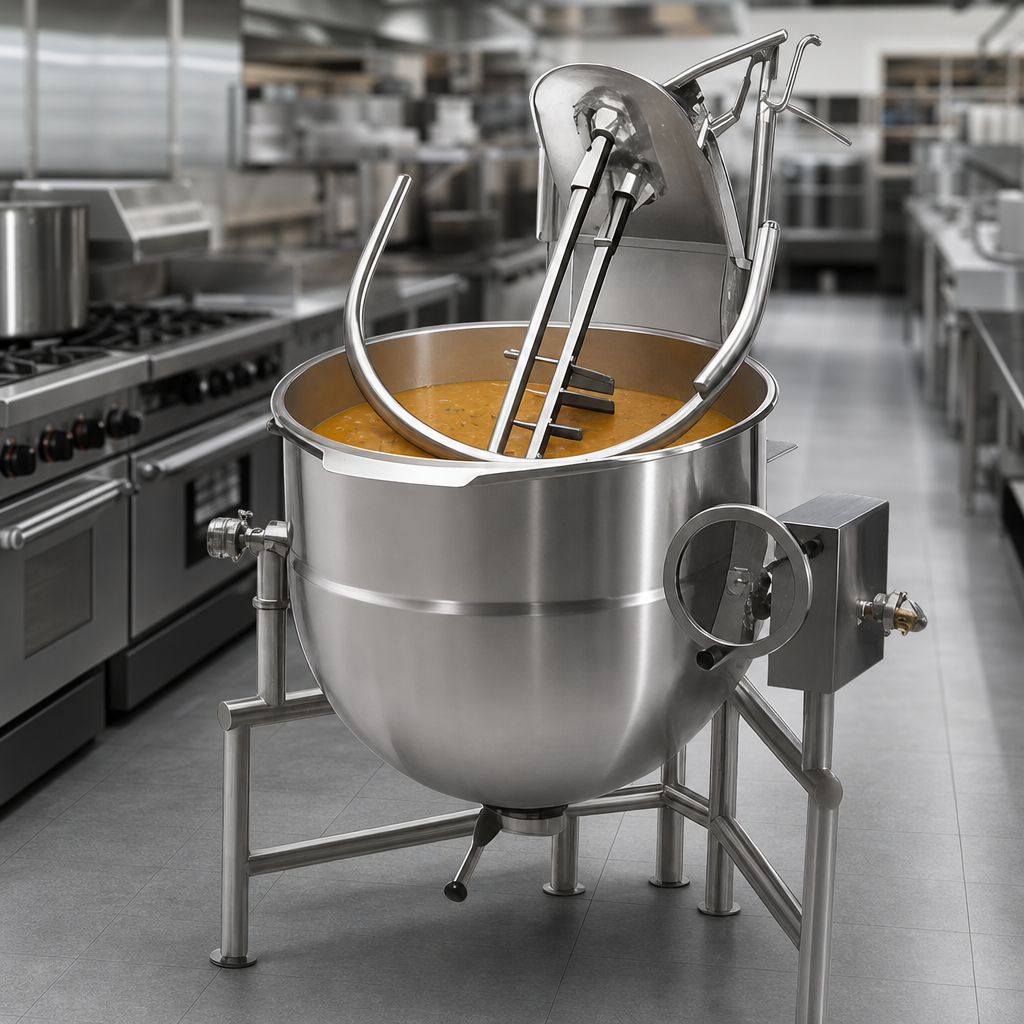

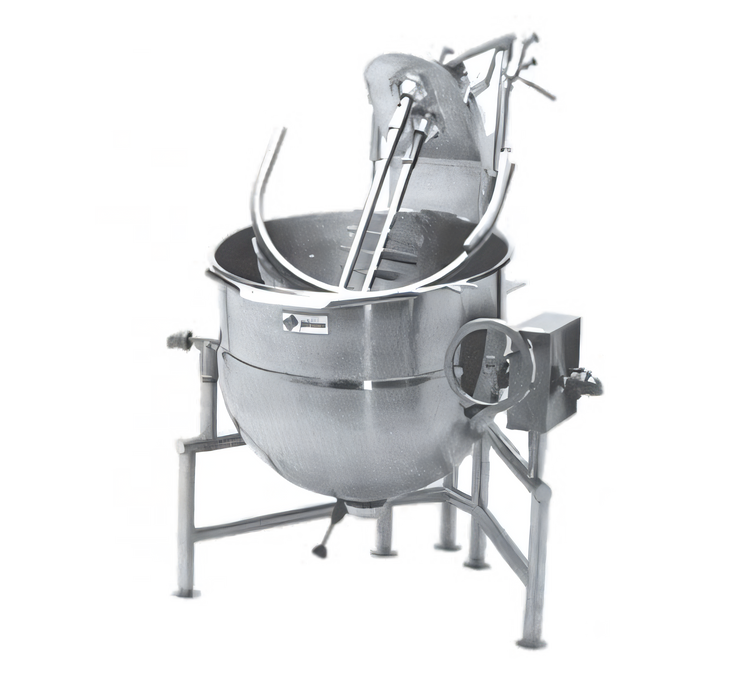

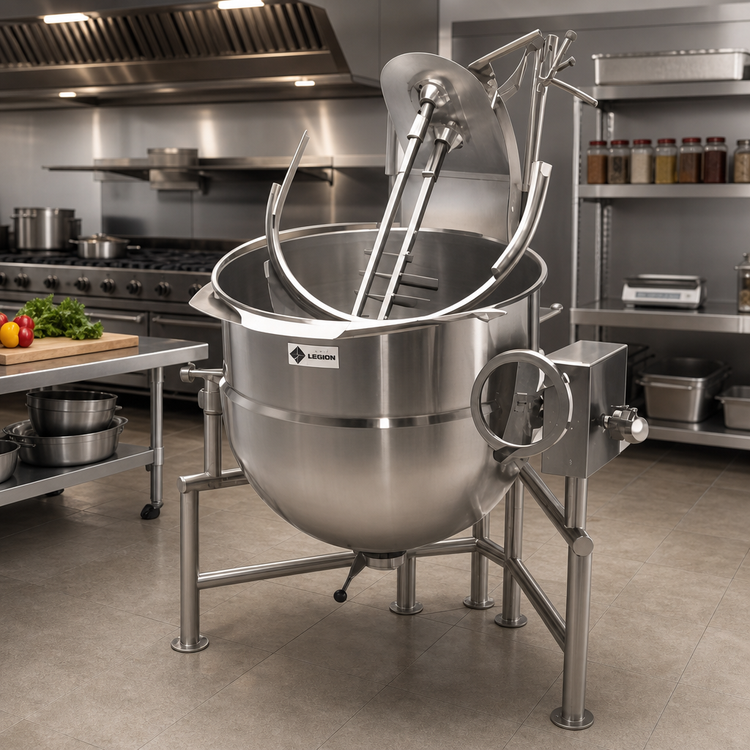

Legion TWT-60 Direct Steam Tilting Kettle – 60 gal
Deep-Drawn 2/3 Jacket • Floor-Mounted Tri-Leg Frame • Made in USARamp up your production line with the Legion TWT-60—an industrial-grade, 60-gallon tilting kettle that delivers rapid, uniform heating and fingertip pouring control. Engineered from seamless 304 stainless steel and built around a self-locking worm-gear tilt system, this powerhouse is ready for sauces, soups, stocks and high-viscosity batches day in, day out.
Key Features
- Seamless 304 stainless steel kettle liner for maximum sanitation and easy clean-up.

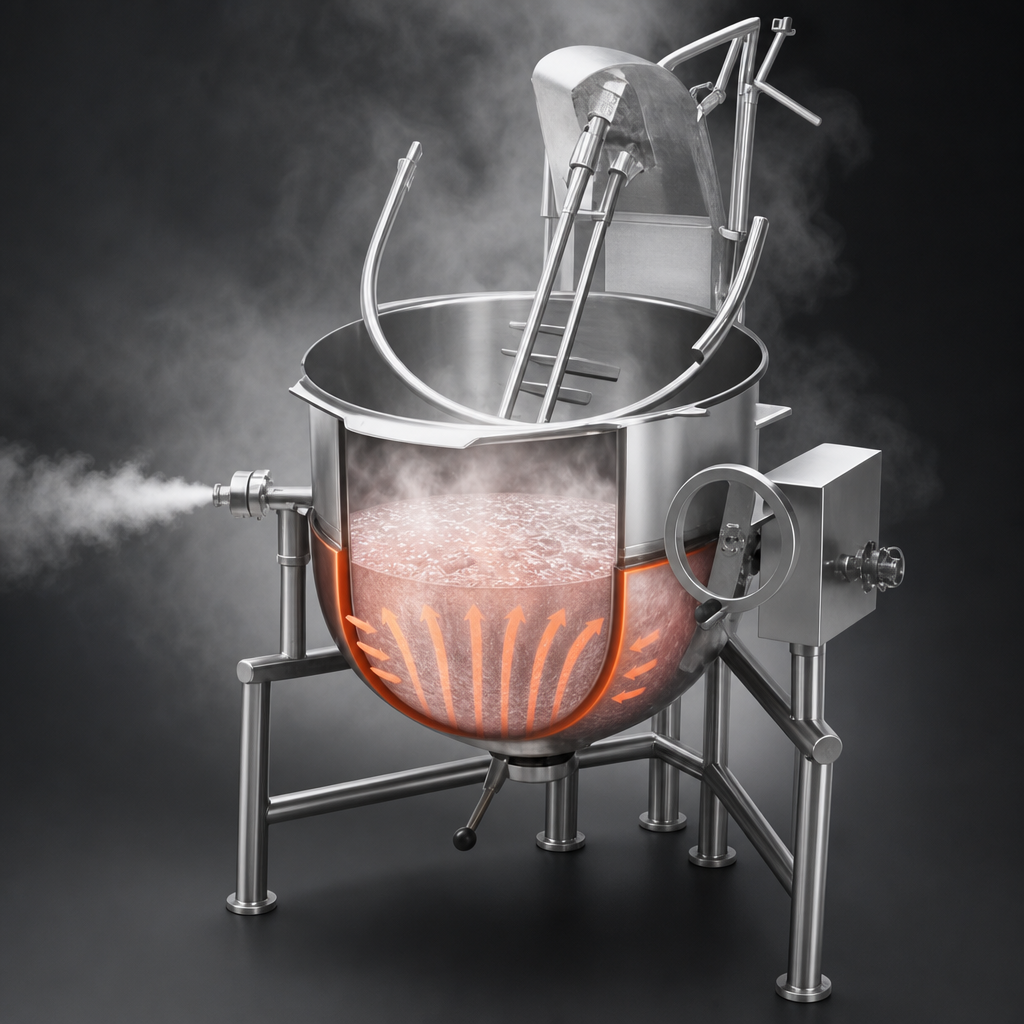

- 2/3 jacketed body accepts direct steam up to 30 psi for rapid, even heat distribution.
- Self-locking worm-gear tilt mechanism—smooth, precise and safe to operate.
- Reinforced 304 stainless gear box and separate control console for long-term reliability.
- Rugged 2″ tubular tri-leg frame with adjustable flanged feet for rock-solid installation.
- Complies with ASME, NSF, UL, ETL, AGA, CSA and other applicable agency standards.
- Proudly Made in the USA.
Technical Specifications
| Model | TWT-60 |
|---|---|
| Capacity | 60 gal | 227 L |
| Operating Pressure | 30 psi maximum (direct steam) |
| Kettle Liner | Seamless 304 stainless steel |
| Jacket Construction | Seamless deep-drawn 304L stainless, 2/3 coverage |
| Tilting System | Manual crank, self-locking worm gear |
| Mounting | Floor mounted, 2″ tubular stainless tri-leg |
| Feet | Adjustable, flanged, stainless steel |
| Steam Inlet / Outlet | ¾″ NPT / ½″ NPT |
| Overall Width (F) | 49.6″ (126 cm) |
| Overall Height (C) | 41.5″ (105 cm) |
| Minimum Pour Path (X) | 28.1″ (71 cm) |
Dimensions taken from Legion drawing revision 113. Allow additional clearance for service access and full-tilt pouring.
Popular Options & Accessories
- 2″ or 3″ draw-off valve (compression or ball type)
- Single or dual rinse faucet with 12″ / 18″ swing nozzle & mounting bracket
- 48″ flexible spray hose assembly (PVC or stainless)
- Automatic water-fill meter
- Perforated or solid strainers, basket & nylon bag inserts
- Lift-off or actuator-assisted cover
- Steam trap kits (standard or bright nickel-plated)
- Higher operating pressure, pressure-reducing valve, air eliminator valve
- 2-speed mixer/agitator package
Warranty
Every TWT-60 ships with a 12-month parts & labour warranty from installation (15 months from ship date). Extended coverage up to three years is available—ask your sales rep for details.
