Legion TWT-50MV Steam Kettles
Description
50-Gallon Direct Steam Tilting Kettle with 2-Speed Mixer
Legion Model TWT-50-MV | 2/3 Jacketed • 30 psi • Made in USABuilt for high-volume kitchens that demand speed, consistency and reliability, Legion’s 50-gallon TWT-50 tilting kettle with integrated twin-shaft agitator delivers rapid, even heating and hands-free mixing in one rock-solid, floor-mounted package.
Performance & Productivity
- 2/3 jacket design transfers heat efficiently for faster batch times and uniform results.
- Factory-set 30 psi operating pressure handles stocks, sauces, fillings and stews with ease.
- Twin-shaft, 2-speed agitator keeps even the thickest products moving—no scorching, no hotspots.
- Scraper blades continuously sweep the kettle wall to maximise heat exchange and reduce manual labour.
- Self-locking worm gear mechanism enables smooth, controlled tilting for precise portioning.
MV Series Mixer Highlights
- 304 SS anchor-type main agitator contoured to the kettle interior.
- Counter-rotating 304 SS beater improves product turnover.
- Removable nylon scraper blades—tool-free cleanup.
- Bayonet-mount shafts let you convert to a standard tilting kettle in seconds.
- Actuator-assisted lift raises the agitator and bridge for full kettle access.
- Built-in safety lockout prevents high-speed starts when agitator is raised.
Built to Last
- Seamless deep-drawn 304 stainless steel kettle liner—no internal welds to pit or corrode.
- 304L stainless steel jacket certified to ASME code.
- Heavy-duty, reinforced gear box housed in stainless for long service life.
- 2" tubular Tri-Leg frame with adjustable flanged feet levels quickly on any floor.
- Polished, easy-clean exterior meets NSF food-zone requirements.
Technical Specifications
| Capacity | 50 gal. (189 L) |
|---|---|
| Operating Pressure | 30 psi (207 kPa) max jacket pressure |
| Jacket Coverage | 2/3 (side & bottom) |
| Material | 304 SS liner & 304L SS jacket |
| Tilting Mechanism | Self-locking worm gear with manual crank |
| Mixer Agitator Speeds* | Low 23 rpm | High 46 rpm (main agitator) |
| Motor Power* | 2 HP, TEFC gear motor (two-speed) |
| Approx. Dimensions (in) | L 37.8 × W 29.5 × H 49.6 (tilt-down) See drawing for full dimensional data. |
| Steam Connections | ¾" NPT inlet • ½" NPT outlet |
| Country of Origin | USA |
*Based on standard gear-head ratio 15 : 1 and main/secondary beater ratio 2.6 : 1.
Popular Factory Options
- 2" or 3" draw-off valve assemblies (compression or ball type)
- Single or dual rinse-down faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (PVC or stainless)
- Pressure-reducing valve or higher pressure jacket
- Perforated or solid product strainers
- Lift-off or actuator-assisted cover
- Steam trap kits (standard or bright nickel finish)
- Security fasteners & tamper-resistant hardware for correctional use

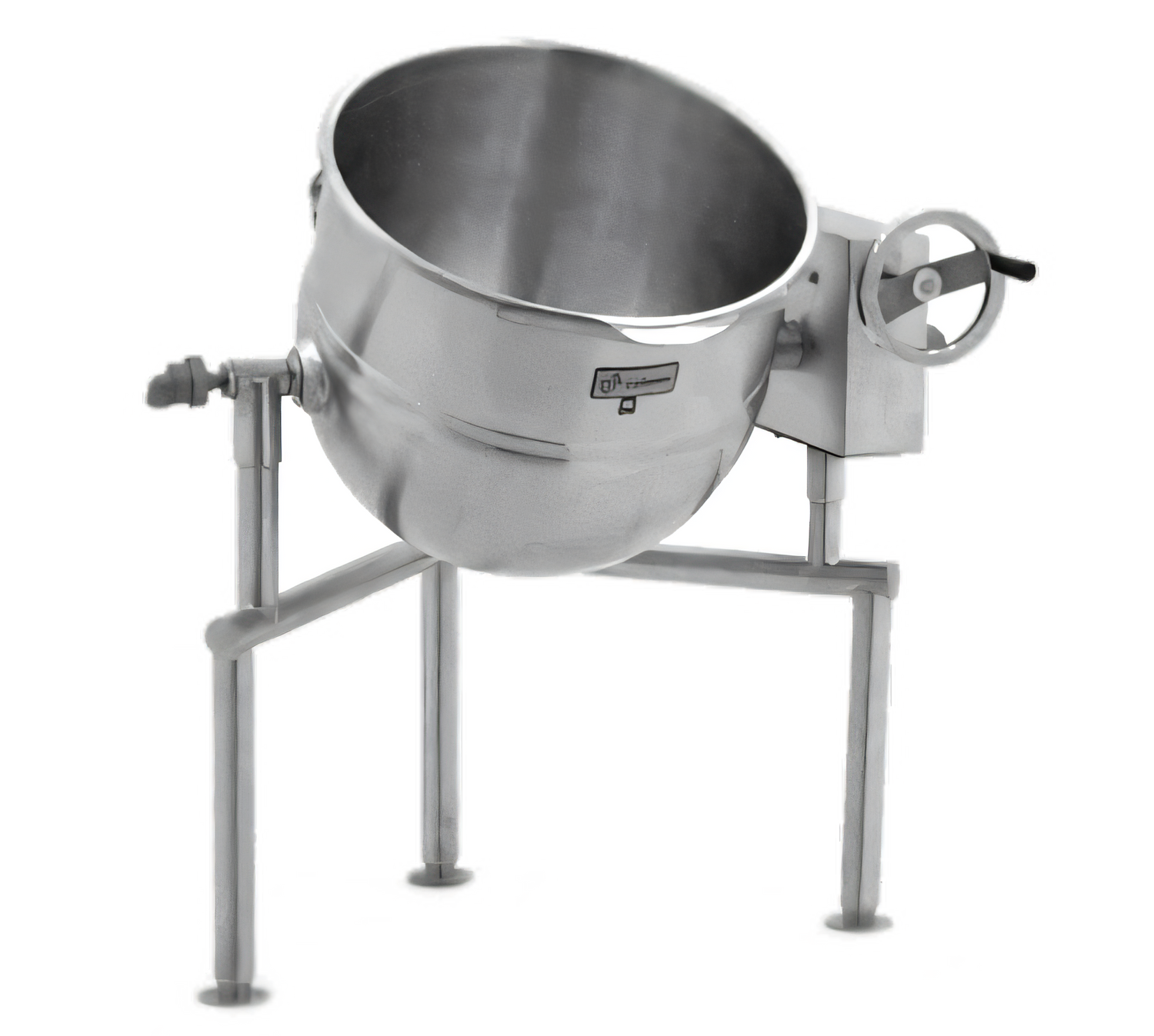

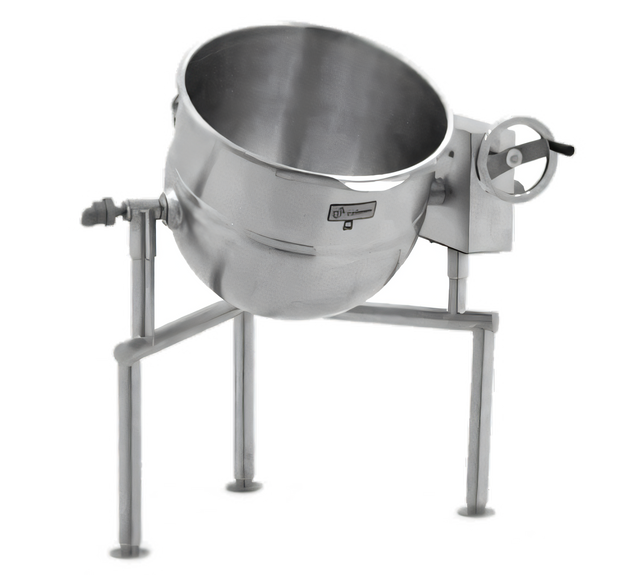

Images may depict different-capacity kettles or optional accessories. Refer to the specification table and factory drawing for exact details of this 50-gallon model.
