Legion TWT-50 Steam Kettles

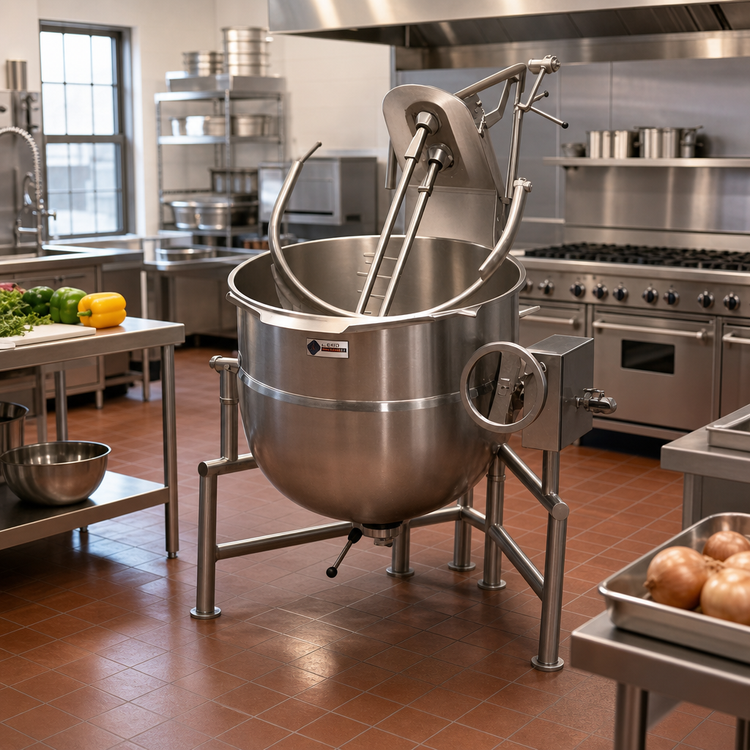

Legion TWT-50 Direct Steam Tilting Kettle – 50 Gallon

Boost batch volume without sacrificing precision. Built in the USA, the Legion TWT-50 pairs a seamless 50-gallon kettle with a self-locking worm-gear tilt so operators can cook, pour and clean faster—shift after shift.

Key Performance Benefits

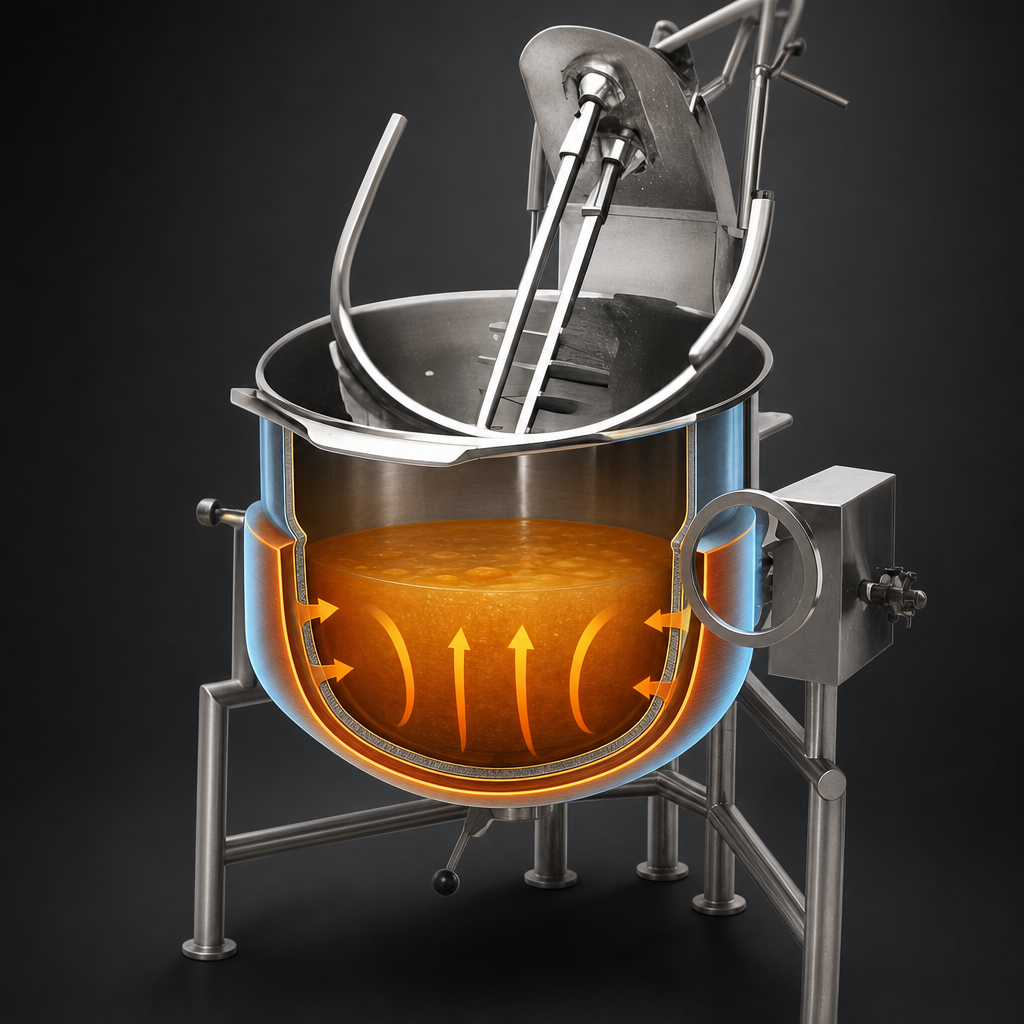

• Rapid, even heat transfer from a 2/3 steam jacket rated to 30 psi.
• Smooth, splash-free pouring via hand-wheel tilt and positive, self-locking worm gear.
• Sanitary deep-drawn 304 SS liner—no internal weld seams to trap food.

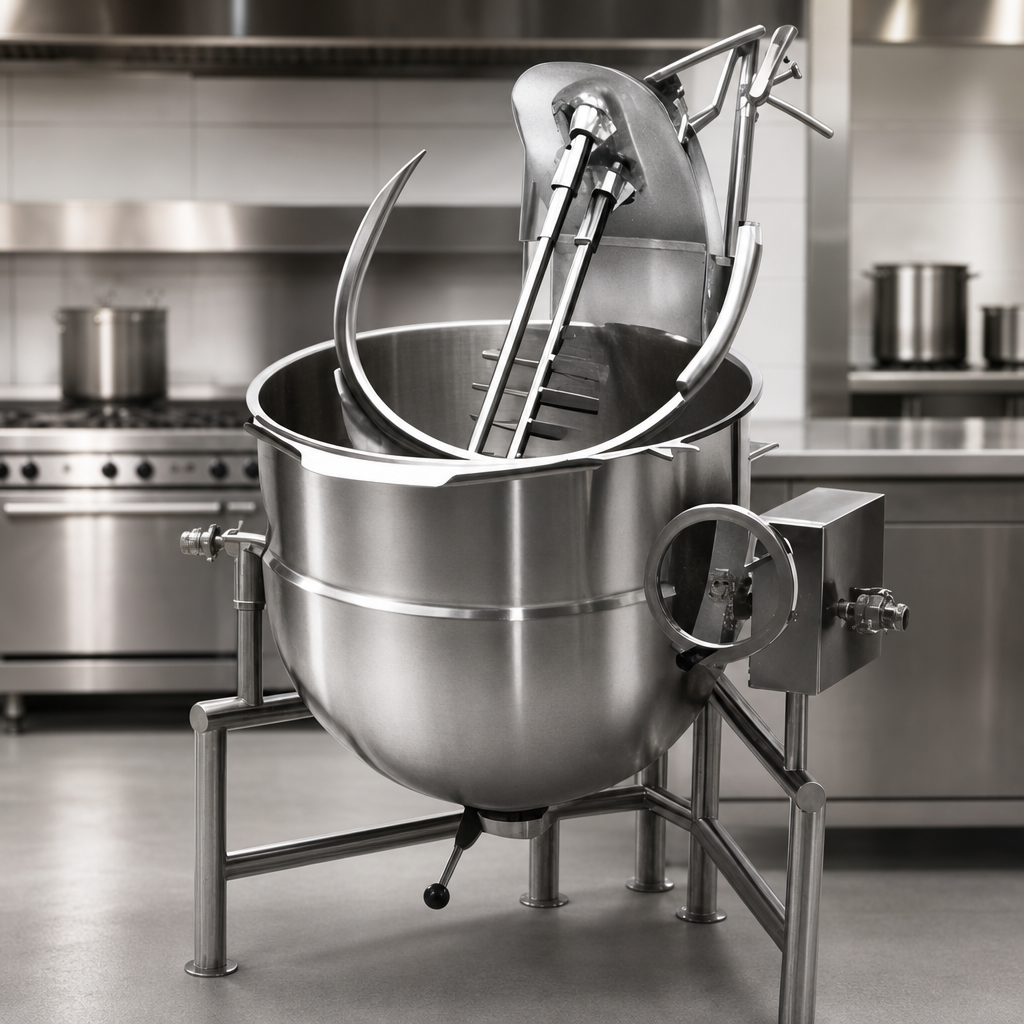

• Reinforced 304 SS gear box built for years of commercial duty.
• Sturdy 2″ tubular tri-leg frame with adjustable flanged feet for bolt-down security.
• Compact floor-mount footprint frees valuable line space.
• Complies with ASME & NSF standards; manufactured in Waynesboro, GA.

Standard Construction

• Capacity: 50 gal (189 L) working volume.
• Seamless deep-drawn 304 SS kettle liner & 304L jacket.
• Control console houses steam controls, pressure gauge & tilt mechanism.
• Tri-leg base fabricated from 2″ OD 304 SS tubing.
• Adjustable flanged feet with anchor-bolt holes.

Popular Factory-Installed Options

• Single or dual pantry faucet with 12″ / 18″ swing nozzle.
• 48″ flexible spray hose (PVC or stainless).
• 2″ or 3″ draw-off valve (compression or ball) with perforated or solid strainer.
• Automatic water-filling meter.
• Lift-off or actuator-assisted cover.
• Two-speed mixer/agitator for viscous products.

Ask our team for pricing and lead times on options sized for the 50-gallon model.

Technical Specifications

Specifications subject to change without notice as Legion Industries pursues continuous product improvement.
