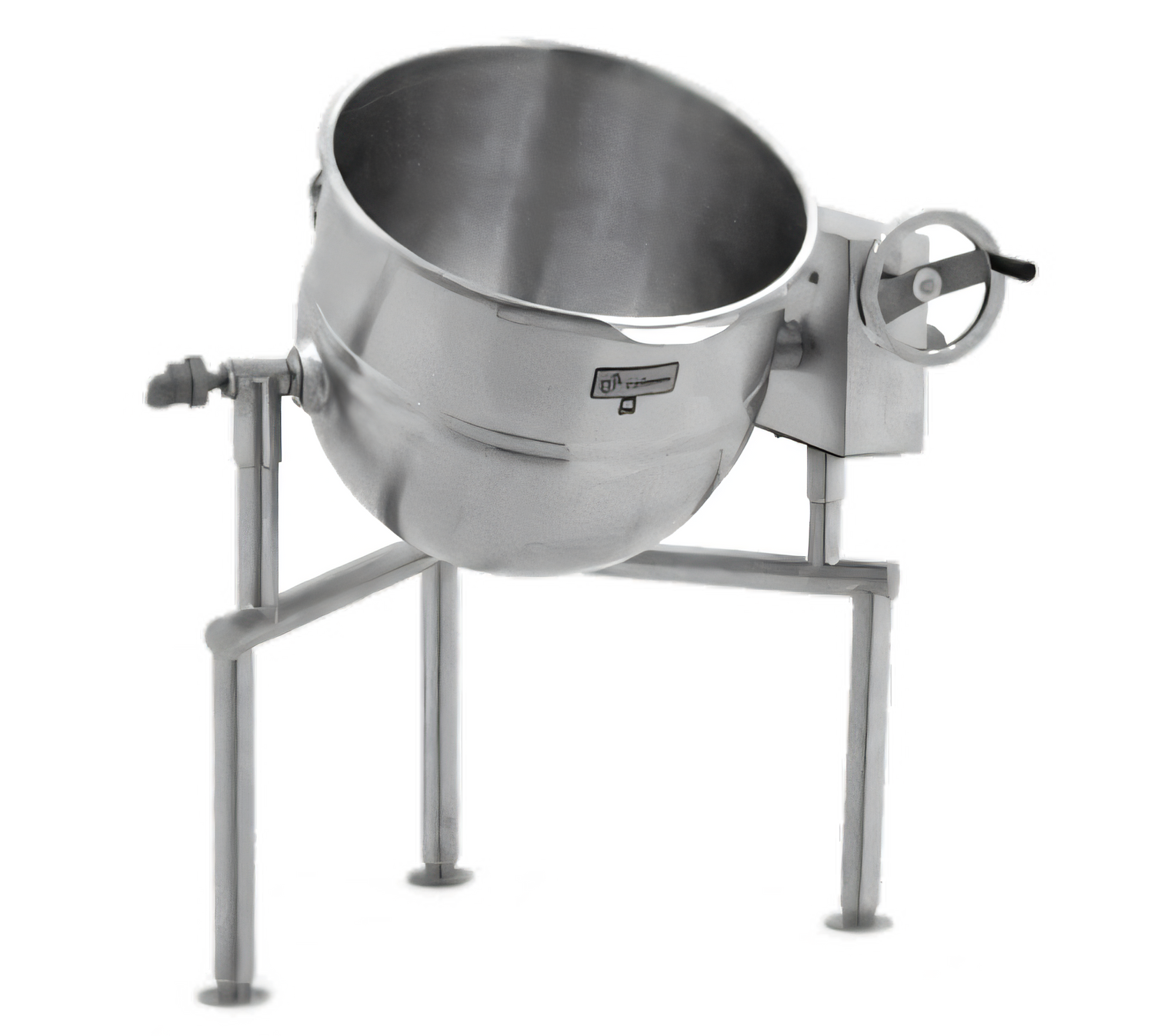

Legion TWT-40MV Direct-Steam Tilting Kettle with 2-Speed Mixer – 40 gal
Seamless 304 SS • 2/3 Jacket • 30 psi • Made in USAEngineered for high-volume production, the Legion TWT-40MV brings together a heavy-duty 40-gallon direct-steam kettle and an integrated twin-shaft mixer. From silky sauces to hearty stews, you’ll enjoy fast, even heating, hands-free agitation and effortless tilting – all in one rock-solid, tri-leg frame.
Why you’ll love it
- Rapid, even heating – 2/3 jacketed design delivers uniform heat transfer up to 30 psi.
- Seamless 304 SS liner & 304L jacket – deep-drawn, crevice-free interior for quick clean-up and maximum sanitation.
- Integrated 2-speed MV mixer – anchor-style agitator (23 / 46 rpm) with counter-rotating beater (60 / 120 rpm) keeps product moving and prevents scorching.
- Self-locking worm-gear tilt – precise, rack-and-pinion control lets one operator safely pour every ounce.
- Rock-solid support – 2″ tubular, all-stainless tri-leg frame with adjustable flanged feet for easy floor anchoring.
- Tool-free clean-up – bayonet-mounted agitator & beater lift out; removable nylon scraper blades wipe the entire kettle wall.
- Safety first – mixer bridge interlock prevents high-speed starts when the agitator is raised.
- ASME & NSF compliant; built in Waynesboro, GA, USA.
MV Twin-Shaft Mixer highlights
- Totally enclosed gear-motor with right-angle output.
- 304 SS anchor agitator hugs the kettle contour.
- 304 SS counter-rotating beater maximizes product turnover.
- Actuator-assisted bridge & agitator lift for effortless access.
- Positive rim lock & latch secures the bridge during operation.
Technical specifications
| Model | TWT-40MV |
|---|---|
| Capacity | 40 gal / 151 L |
| Heat source | External direct steam |
| Jacket coverage | 2/3 (sides & bottom) |
| Operating pressure | 30 psi (2.1 bar) |
| Liner material | Seamless 304 stainless steel |
| Jacket material | Seamless 304L stainless steel |
| Tilt mechanism | Manual, self-locking worm gear |
| Mixer speeds | Main agitator 23 / 46 rpm • Beater 60 / 120 rpm |
| Mixer motor | 1.5 HP (high) / 0.75 HP (low) |
| Steam connections | Inlet ¾″ NPT • Outlet ½″ NPT |
| Overall width (F) | 45.3″ / 115 cm |
| Overall depth (G) | 33.6″ / 85 cm |
| Overall height (C) | 41.5″ / 105 cm |
| Frame | Tri-leg, 2″ tubular 304 SS with adjustable flanged feet |
| Compliance | ASME Section VIII, NSF |
What’s included
- TWT-40 40-gal direct-steam tilting kettle
- Factory-installed MV twin-shaft mixer assembly
- Control console with tilt hand-wheel
- Integrated steam inlet & condensate outlet
- Owner’s/operation manual & ASME data plate
Requires ¾″ steam supply, ½″ condensate return and suitable floor anchoring. External steam generator/boiler not included.
Product Weight:
659.0 lbFrequently Asked Questions
