Legion TWT-30 Steam Kettles
Description

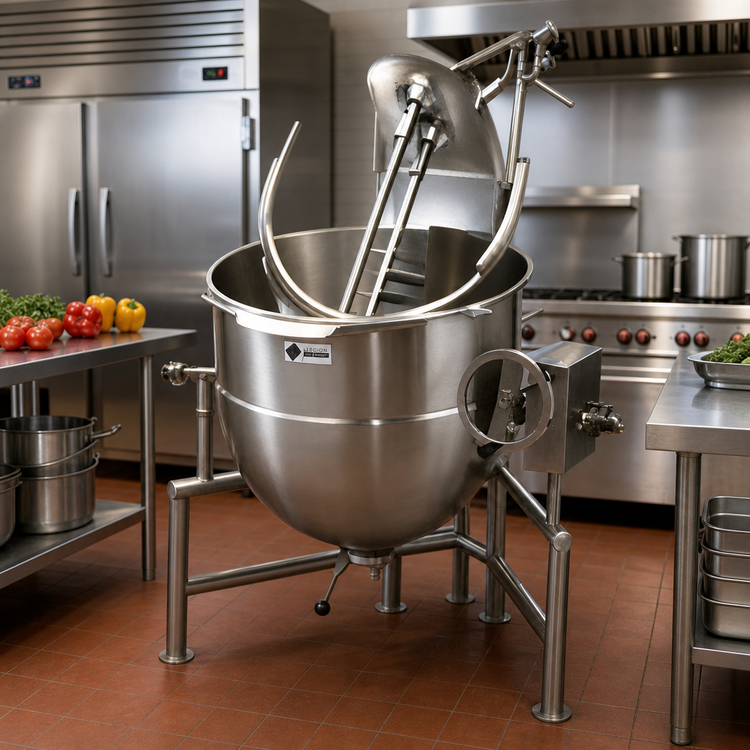

Legion TWT-30 30-Gallon Direct Steam Tilting Kettle
2/3 Jacketed • 304 Stainless Steel • Floor-Mounted Tri-Leg FrameBuilt in the USA for busy commercial kitchens, the Legion TWT-30 combines seamless deep-drawn construction with a rock-solid tri-leg base and self-locking worm-gear tilt. Perfect for high-volume soups, sauces and stews, this 30-gallon kettle delivers rapid, even heating and smooth, controlled pouring—shift after shift.
Standard Features
- Seamless 304 stainless steel kettle liner for maximum sanitation

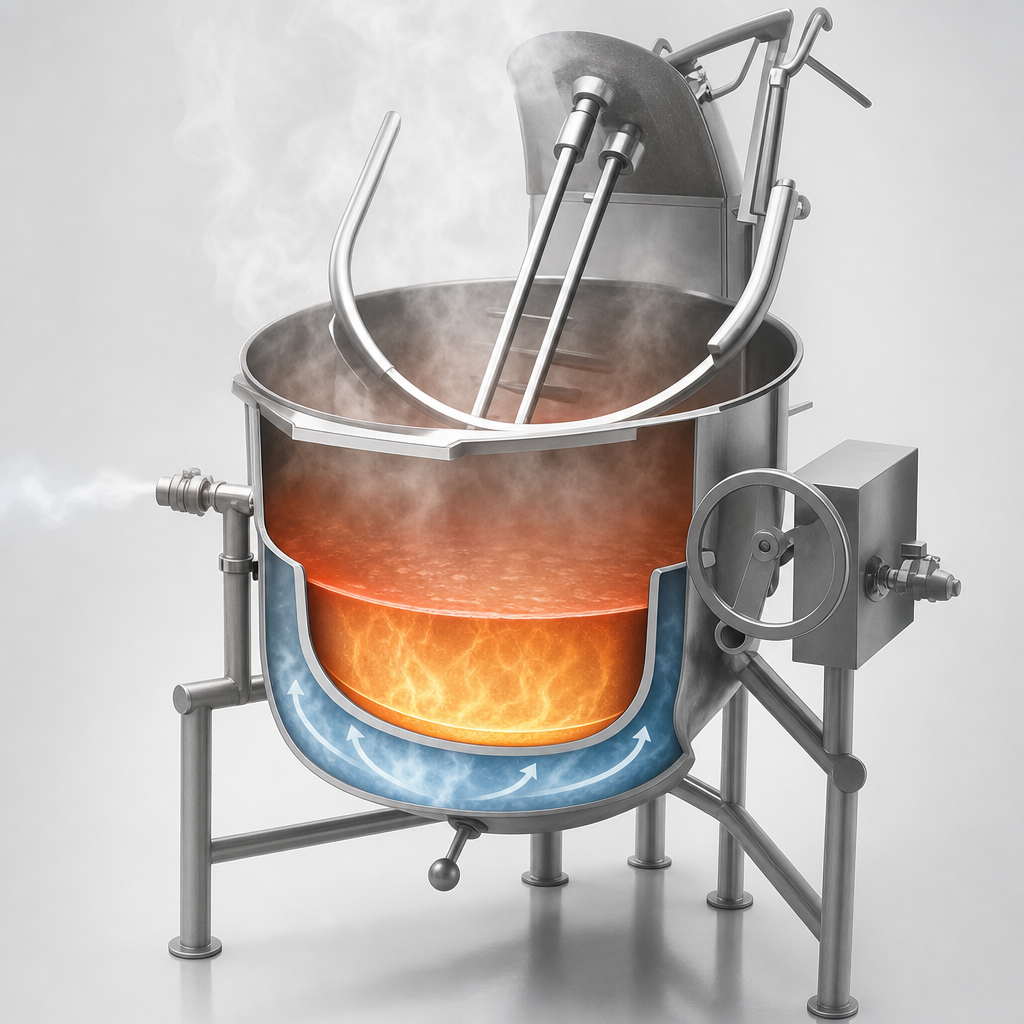

- 304L stainless, 2/3 jacket rated to 30 psi for lightning-fast heat-up
- Self-locking worm-gear tilt with large hand wheel—locks anywhere in the arc
- Reinforced stainless gear box for long-term reliability
- 2" tubular 304 stainless tri-leg frame with adjustable flanged feet
- Deep-drawn bowl eliminates interior welds and hard-to-clean corners
- All stainless exterior with #4 satin finish—built to impress and built to last
Ideal Applications
- Stocks, broths & consommés
- Chili, chowder & hearty soups
- Sauces, gravies & reductions
- Pasta, grains & oatmeal
- Re-thermalizing sous-vide or bagged entrées
Popular Options & Accessories (sold separately)
- Single or dual water faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (PVC or stainless)
- 2" or 3" draw-off valve with compression or ball-type fitting
- Perforated or solid strainer inserts; nylon bag inserts
- Lift-off or actuator-assisted cover
- Automatic water-fill meter, steam trap kits & higher-pressure jackets
Technical Specifications
| Model | TWT-30 |
|---|---|

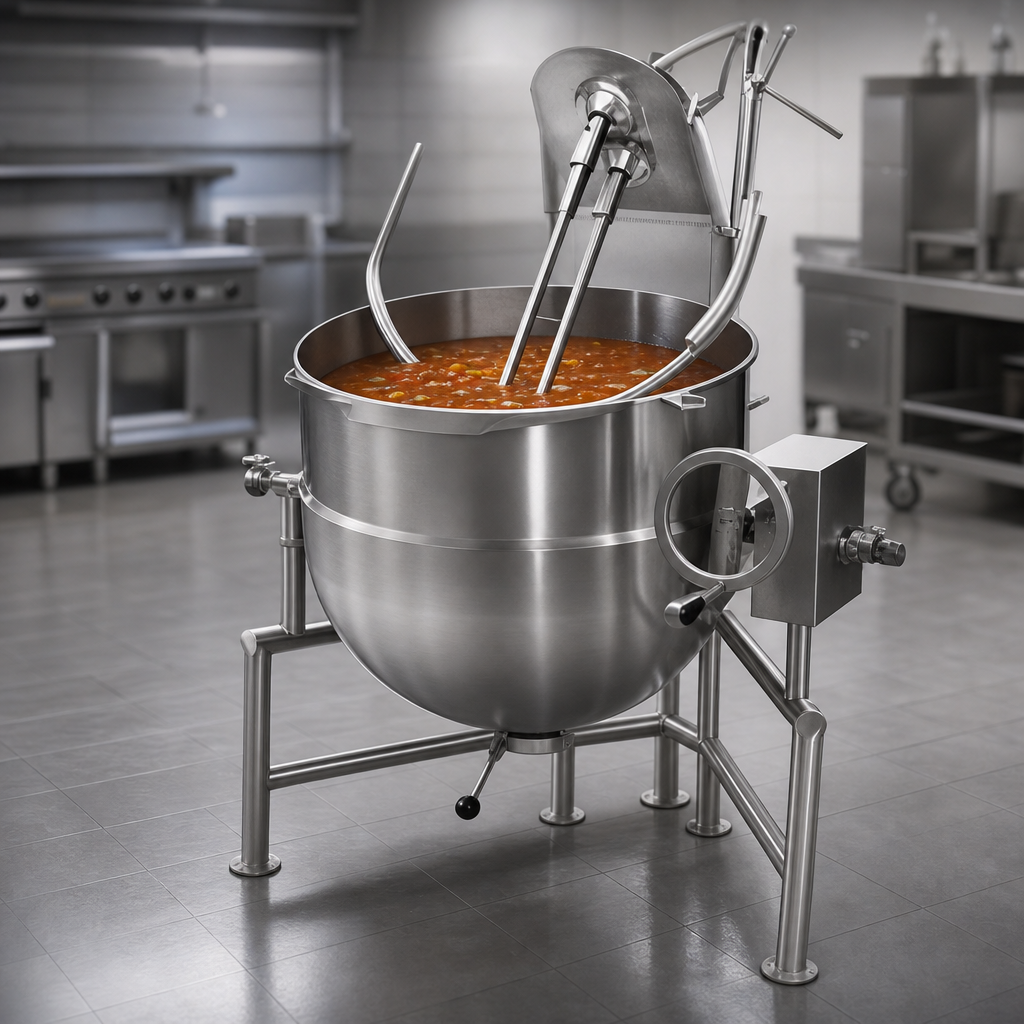

| Capacity | 30 gal | 114 L |
| Heating source | Direct external steam (customer-supplied) |
| Operating pressure | 30 psi (2.07 bar) |
| Jacket coverage | 2/3 of kettle body |
| Steam inlet | ¾" NPT |
| Condensate outlet | ½" NPT |
| Tilt mechanism | Self-locking worm-gear, manual hand wheel |
| Frame | 2" Ø 304 stainless tubular tri-leg with adjustable flanged feet |
| Overall dimensions (in) | W 42.5 × D 32.3 × H 41.3* |
| Shipping weight | Approx. 390 lb (177 kg) |
| Certifications | ASME UM, NSF |
*Height listed from floor to kettle rim; see spec sheet for detailed dimension letters A–X.
Upgrade your production line with the American-made durability and performance of Legion. Order the TWT-30 today and keep your kitchen steaming ahead.
