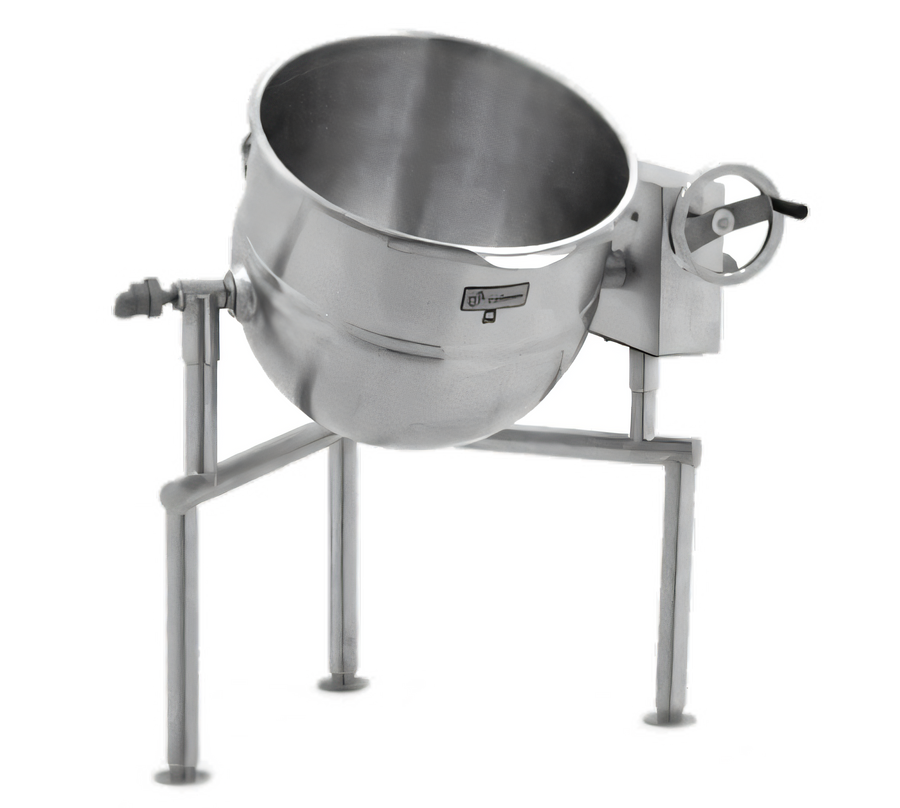

Legion TWT-20MV | 20-Gallon Direct Steam Tilting Kettle with 2-Speed Mixer
Seamless 304 SS • 2/3 Jacket • Made in USAEngineered for demanding production kitchens, the Legion TWT-20MV delivers lightning-fast direct-steam heating, continuous agitation and precise, self-locking tilting—all in a compact, 20-gallon footprint. The result? Perfectly blended sauces, soups, custards and fillings with zero hot spots and minimal labor.
Built for Productivity & Consistency
- Seamless 304 stainless-steel liner and 304 L jacket resist corrosion and make cleanup simple.
- 2/3 jacketed design maximises heating surface for rapid, even cooking up to 30 psi.
- Twin-shaft MV mixer (two-speed) keeps ingredients uniform—no manual stirring required.
- Self-locking worm-gear tilt lets a single operator pour smoothly, accurately and safely.
- Reinforced 304 SS control console protects gears & controls from steam and splash.
- Tri-leg 2″ tubular frame with adjustable flanged feet levels quickly on any floor.
- Made in the USA and manufactured to ASME & NSF standards for commercial safety.
Premium Twin-Shaft Agitation
- Enclosed, balanced aluminum mixer bridge prevents vibration.
- Totally-enclosed gear motor with right-angle output shaft—built for continuous service.
- Two-speed operation (Low 23/60 RPM • High 46/120 RPM) for delicate or vigorous mixing.
- 304 SS anchor-style main agitator hugs kettle wall; removable nylon blades scrape every inch.
- Counter-rotating 304 SS beater eliminates dead zones in thick or high-viscosity products.
- Bayonet mounts allow the agitator & beater to release in seconds for sanitation or kettle-only use.
- Actuator-assisted lift raises the scraper, beater and bridge clear of the kettle for loading or cleaning.
- Integrated safety interlock prevents high-speed starts when the bridge is unlocked.
Technical Specifications
| Model | TWT-20MV |
|---|---|
| Capacity | 20 gal | 76 L |
| Heating Type | Direct steam, 2/3 jacketed |
| Operating Pressure | 30 psi (max working) |
| Construction | Seamless 304 SS liner & jacket, 304 SS gear box, 304 SS 2″ tubular frame |
| Tilt Mechanism | Manual hand-crank, self-locking worm gear (≈90° pour path) |
| Mixer Motor | Totally-enclosed gear motor, two-speed (½ HP low / 1 HP high) |
| Steam Inlet / Outlet | ¾″ NPT inlet (Q) • ½″ NPT condensate outlet (R) |
| Overall Height | 40.8″ (103.6 cm) |
| Overall Width | 31.3″ (79.5 cm) |
| Certifications | ASME-code stamped, NSF listed, UL & ETL compliant |
| Country of Origin | USA |
Popular Accessories (Sold Separately)
- Single or dual water-fill faucet with 12″/18″ swing nozzle
- 2″ or 3″ draw-off valve package with 6′ hose
- Perforated or solid strainers, tri-basket inserts & nylon bag sets
- Automatic water-meter fill system
- Lift-off or actuator-assisted cover
- Steam trap kits in standard or nickel-plated finish
Backed by Legion’s 12-month parts-and-labor warranty with optional extended coverage available.
Product Weight:
593.0 lbFrequently Asked Questions
