Legion TWT-20 Steam Kettles
Description
Legion TWT-20 Direct Steam Tilting Kettle — 20 gal 2/3 Jacket • Deep-Drawn 304 SS • 30 psi
Built for demanding commercial kitchens, the Legion TWT-20 delivers rapid, even heating and smooth, controlled pouring in a compact 20-gallon (76 L) footprint. Its seamless stainless-steel construction, tri-leg frame, and self-locking worm-gear tilt give you the durability and control you need for high-volume soups, sauces, stews, and more.
Why Choose the TWT-20

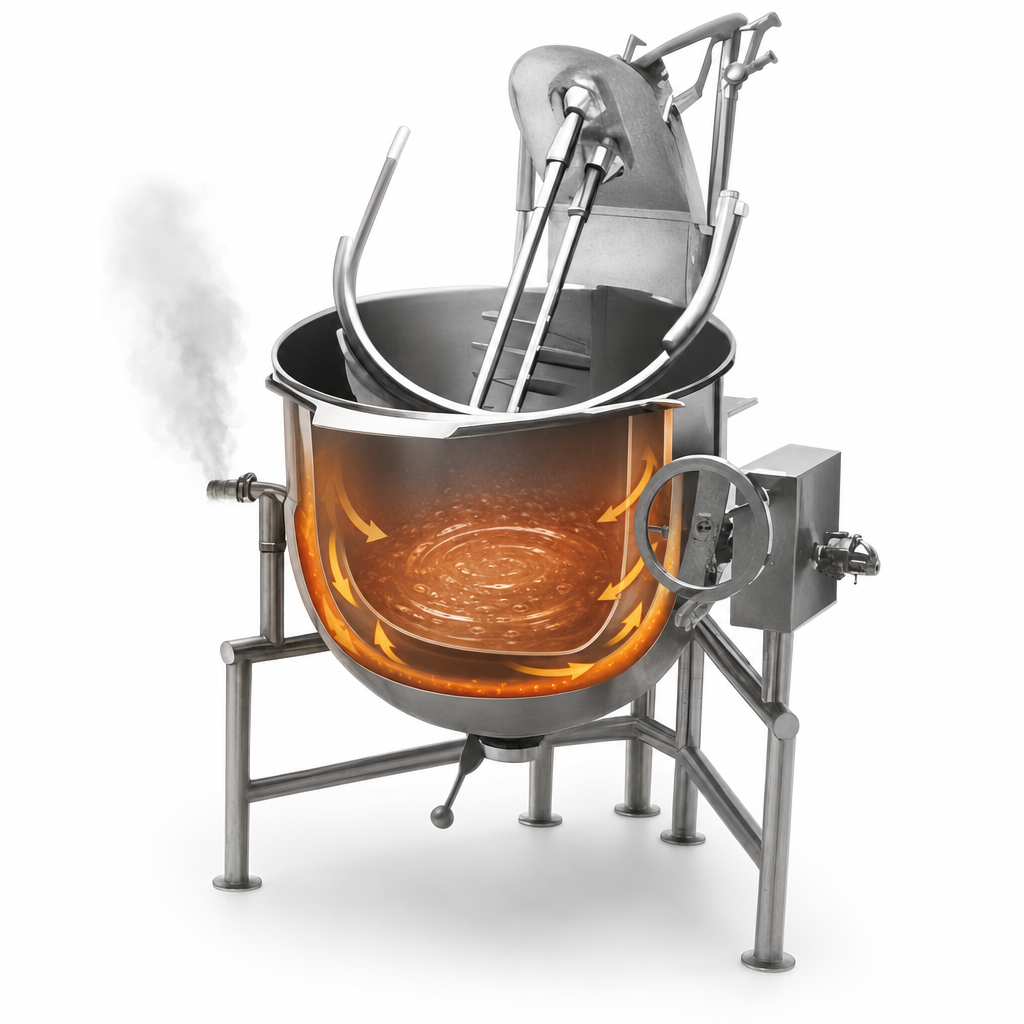

- Fast, uniform cooking with a 2/3 steam jacket rated to 30 psi (259 °F / 126 °C).
- Sanitary design – seamless deep-drawn 304 SS liner for easy cleaning and no crevices.
- Reliable tilting – reinforced gearbox with self-locking worm-gear prevents accidental pour-back.
- Rock-solid support – 304 SS, 2" tubular tri-leg frame with adjustable flanged feet.
- Made in the USA and built to comply with ASME, NSF, UL, ETL, AGA, CSA & CGA standards.
Standard Equipment
- Seamless 304 SS kettle liner & 304L jacket
- 304 SS control console with tilt hand wheel
- 30 psi safety relief valve
- Steam inlet/outlet connections (¾" NPT in / ½" NPT out)
- Tri-leg frame with flanged, height-adjustable feet
Popular Options & Accessories
- Single or dual water faucets (12" or 18" swing nozzle)
- 48" flexible spray hose assembly (PVC or stainless)
- 2" or 3" draw-off valve with hose, perforated/solid strainers
- Lift-off or actuator-assisted cover
- Automatic water-fill meter
- Tri-basket or nylon bag insert for pasta & stocks
- Higher pressure rating, pressure-reducing valve, air eliminator, 2-speed mixer/agitator and more
Technical Specifications
| Model | TWT-20 |
|---|---|
| Capacity | 20 gal | 76 L |
| Operating Pressure | 30 psi (2.1 bar) |
| Jacket Type | 2/3 steam jacket, seamless 304L SS |
| Interior (liner) | Seamless deep-drawn 304 SS |
| Tilting Mechanism | Self-locking worm-gear, hand wheel |
| Steam Inlet / Outlet | ¾" NPT / ½" NPT |
| Overall Height – rim (A) | 22.0 in (559 mm) |
| Overall Width – rim (B) | 16.0 in (406 mm) |
| Overall Height – frame (C) | 39.0 in (991 mm) |
| Min. Pour Path (X) | 21.9 in (556 mm) |
| Shipping Origin | Waynesboro, GA, USA |
Warranty
Legion Industries provides a 12-month parts & labor warranty from installation (15 months from ship date). Extended warranty packages are available.
