Legion TWT-100MV Steam Kettles
Description

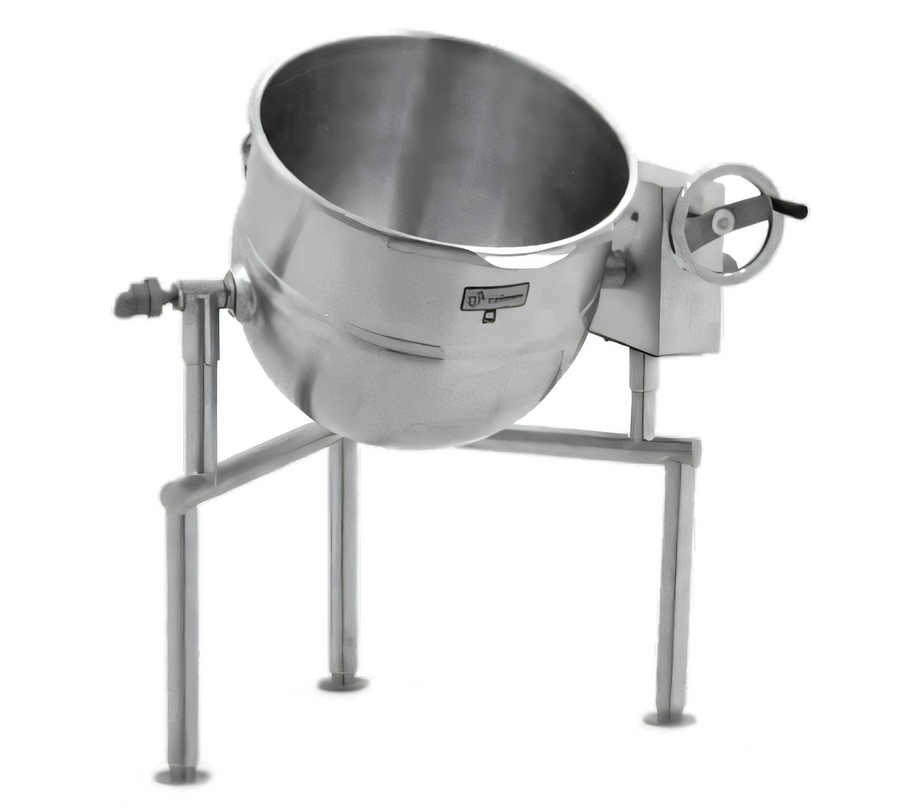

Legion TWT-100 Direct Steam Tilting Kettle with Twin-Shaft Mixer
100 gal | 304 Stainless Steel | 2/3 Jacketed | 30 psi | Made in USAEngineered for production kitchens that demand speed, consistency, and durability, the Legion TWT-100 pairs a 100-gallon direct-steam kettle with a factory-installed MV twin-shaft agitator. Whether you’re simmering sauces, reducing stocks, or cooking high-viscosity fillings, this all-in-one workhorse delivers uniform heat, hands-free mixing, and effortless tilting in a sanitary, easy-to-clean design.
Performance & construction highlights
- Seamless deep-drawn 304 stainless kettle liner for superior sanitation and longevity.
- 2/3 jacket design maximizes heat transfer over the sidewall and bottom for faster batch times.
- Rated for 30 psi direct steam to tackle large loads without hot spots.
- MV twin-shaft agitator offers two selectable speeds (23 / 46 RPM) with a counter-rotating beater (60 / 120 RPM) for total product movement.
- Anchor-style main agitator with removable nylon scraper blades continuously sweeps the kettle surface.
- Actuator-assisted lift clears the agitator bridge for quick cleaning, inspection, or stationary kettle use.
- Self-locking worm-gear tilt mechanism ensures smooth, controlled pouring and holds its position without drift.
- 304 stainless reinforced gearbox and 2″ tubular tri-leg frame built to withstand rigorous daily use.
- Adjustable flanged feet allow precise leveling and secure floor anchoring.
- Meets or exceeds ASME, NSF, and related agency standards.
Key specifications
| Capacity | 100 gal (379 L) |
|---|---|
| Operating pressure | 30 psi |
| Jacket coverage | 2/3 (side & bottom) |
| Materials | 304 stainless liner & 304L stainless jacket |
| Agitator motor | High 2 HP / Low 1 HP, totally-enclosed gear motor |
| Main agitator speed | 46 RPM (high) / 23 RPM (low) |
| Secondary beater speed | 120 RPM (high) / 60 RPM (low) |
| Tilt mechanism | Self-locking worm gear, hand-wheel actuated |
| Steam connections | ¾″ NPT inlet & outlet |
| Overall width (A) | 39.0″ |
| Overall depth (B) | 25.9″ |
| Overall height (F) | 58.8″ |
| Minimum pour path (X) | 31.9″ |
| Shipping origin | Waynesboro, Georgia, USA |
Popular factory options
- 2″ or 3″ draw-off valve (compression or ball type)
- Single or dual pot-filler faucet with 12″ or 18″ swing nozzle
- 48″ flexible spray hose (PVC or stainless)
- Lift-off or actuator-assisted one-piece cover
- Tri-basket or nylon bag inserts for bulk cooking
- Standard or bright-nickel steam trap kits
- Higher jacket pressure ratings or pressure-reducing valve
Looking for something custom? Alternate gear ratios, special voltages, and security-grade hardware are available upon request.
Warranty
Backed by Legion’s 12-month parts & labor warranty from date of installation (15 months from ship date). Extended coverage plans are available.
