Legion TWT-100 Steam Kettles
Description

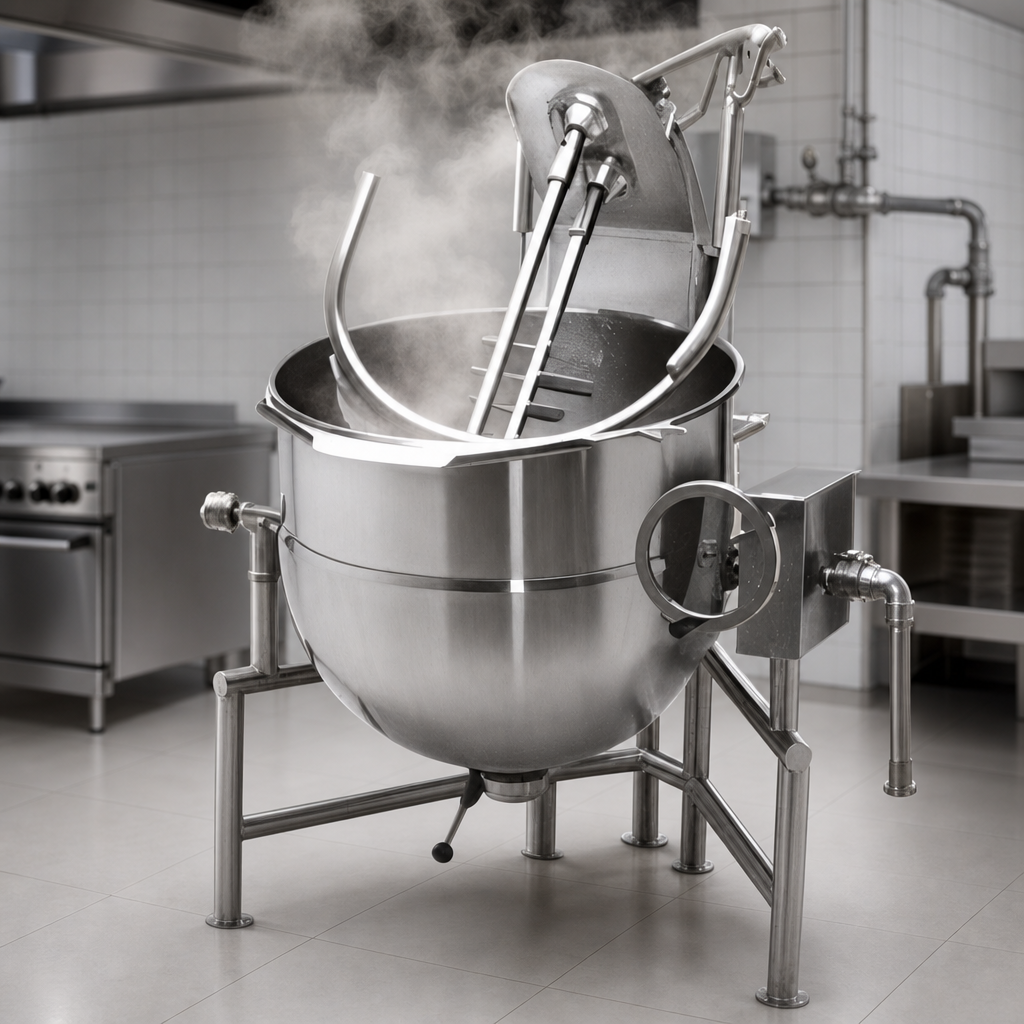

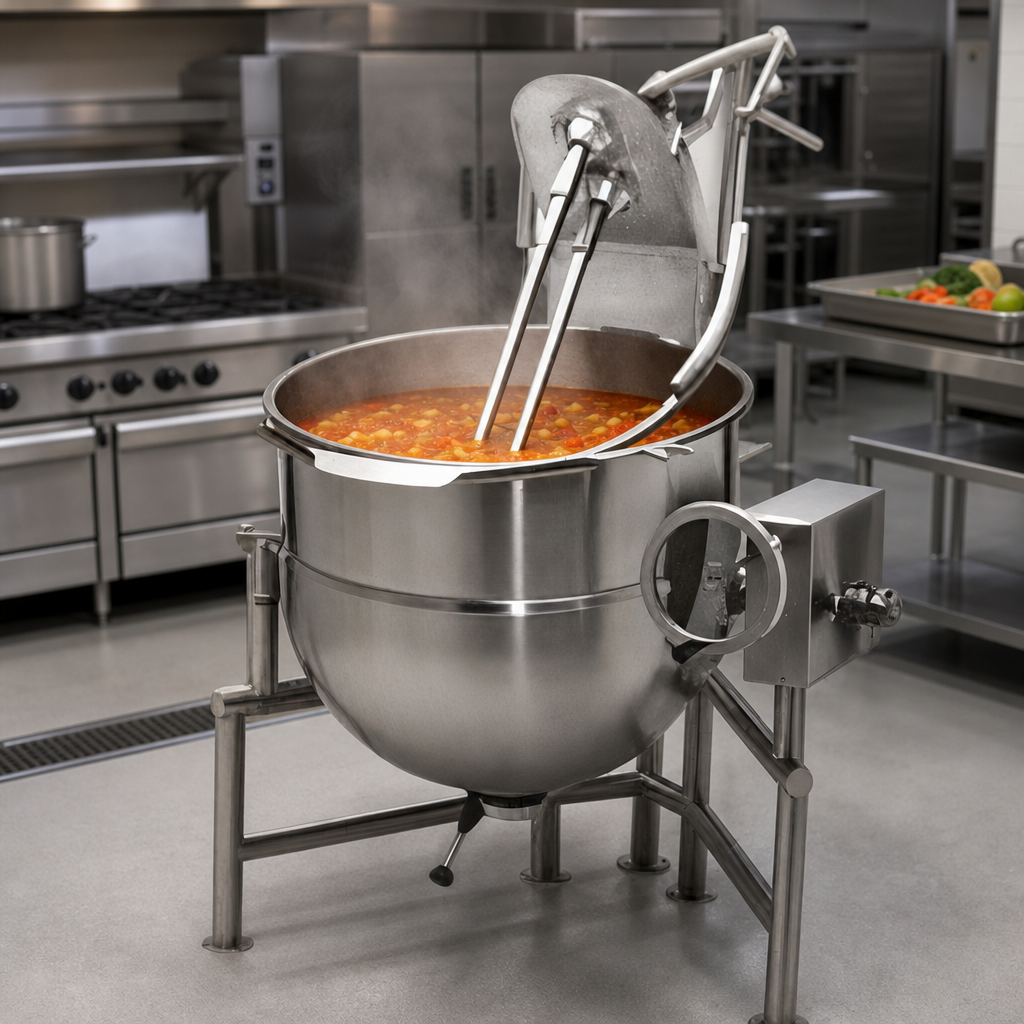

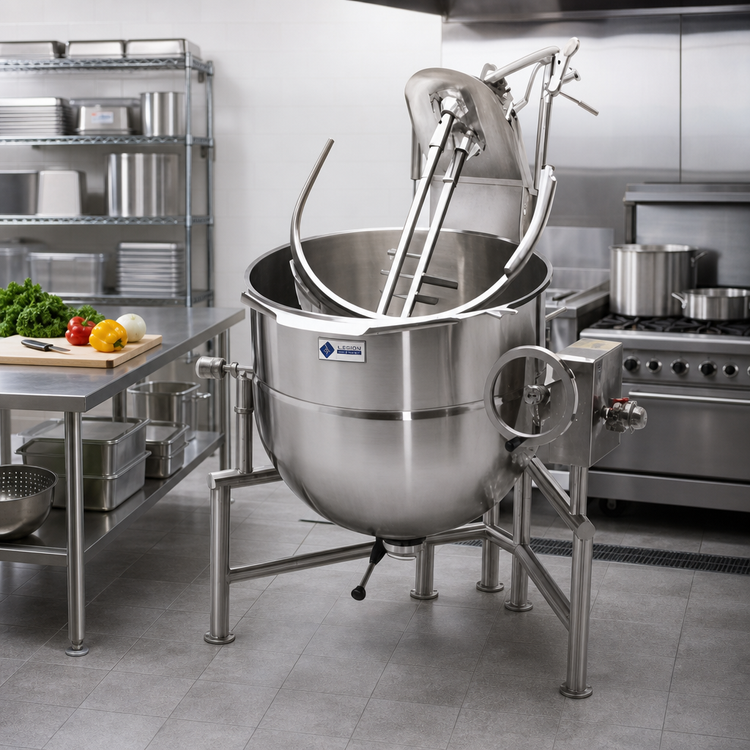

Legion TWT-100 Direct Steam Tilting Kettle – 100 gal (379 L)
2/3-Jacketed • Deep-Drawn 304 Stainless Steel • Floor-Mounted Tri-LegBuilt for the highest-volume production kitchens, the U.S-made Legion TWT-100 combines a massive 100-gallon working capacity with rapid, even steam heating and an ultra-reliable worm-gear tilt. From sauces and soups to stocks and stews, every batch cooks faster, pours cleaner and tastes better.
Why chefs choose the TWT-100
- Seamless 304 stainless steel liner prevents pitting, corrosion and off-flavors.
- 2/3 jacket envelopes the kettle for consistent heat transfer and reduced scalding.
- Self-locking worm-gear tilt lets a single operator pour with millimeter precision.
- Heavy-duty, reinforced 304 stainless gear box—no external lift assists to fail.
- Rigid 2″ tubular tri-leg frame with adjustable flanged feet for easy, level installation.
- 30 psi operating pressure, ASME-stamped & NSF-listed for commercial kitchens.
- Proudly Made in Waynesboro, Georgia, USA.
Technical specifications
| Capacity | 100 gal (379 L) |
|---|---|
| Operating pressure | 30 psi (2.07 bar) |
| Jacket coverage | 2/3 of kettle body |
| Liner material | Seamless 304 stainless steel |
| Jacket material | Deep-drawn 304L stainless steel |
| Tilt mechanism | Manual hand wheel, self-locking worm-gear |
| Support frame | 304 stainless, 2″ tubular tri-leg with flanged feet |
| Steam inlet (NPT) | ¾″ |
| Condensate outlet (NPT) | ¾″ |
| Overall width (A) | 39.0″ (991 mm) |
| Overall depth (F) | 58.8″ (1494 mm) |
| Overall height (G) | 44.3″ (1125 mm) |
| Pour-path clearance (X) | 31.9″ (810 mm) |
| Shipping weight | Contact us for current weight & freight class |
Dimensions H & S apply only when an optional 2″ draw-off valve is ordered.
Factory options & accessories (sold separately)
- 2″ or 3″ draw-off valve (compression or ball-type)
- Single or dual water faucet with 12″/18″ swing nozzle
- 48″ flexible spray hose (PVC or stainless)
- Automatic water fill meter
- Perforated or solid strainers
- Lift-off or actuator-assisted cover
- Steam trap kits – standard or bright nickel-plated
- Tri-basket & nylon bag inserts for bulk cooking
Warranty
Every Legion kettle includes a 12-month parts & labor warranty from installation (15 months from ship date). Extended coverage is available—ask for details at checkout.
