Legion TWSWT-80 Steam Kettles

Legion TWSWT-80 Direct Steam Tilting Wall-Mount Kettle – 80 Gal.

Purpose-built for the demands of high-volume kitchens, the Legion TWSWT-80 combines an 80-gallon (303 L) capacity with the speed and efficiency of direct steam. A seamless 304 stainless liner, 30 psi operating pressure and self-locking worm-gear tilt mechanism deliver years of reliable, even heating for soups, sauces, stocks and beyond—while its space-saving wall-mount bracket keeps valuable floor space clear.

Key Features

• 80 gal / 303 L working capacity—ideal for commissaries, schools & production kitchens.

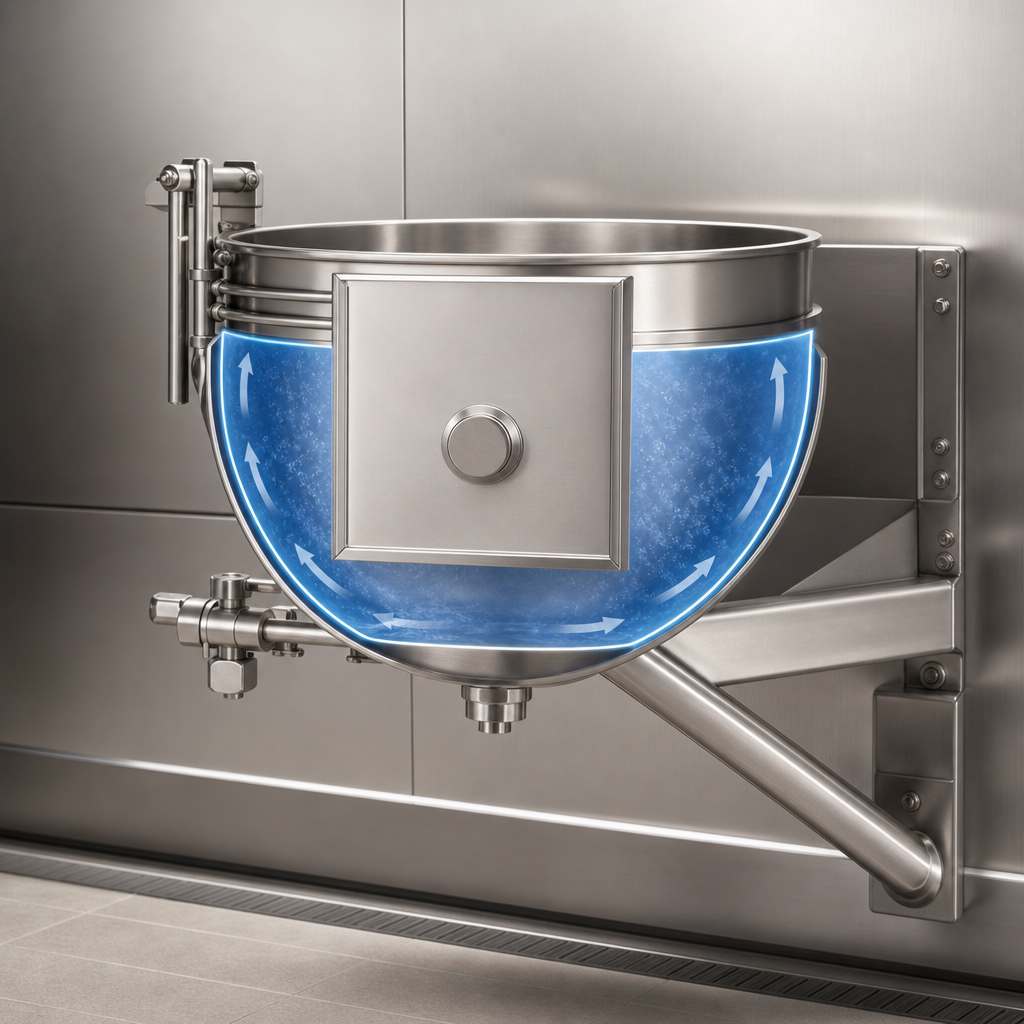

• Full-jacketed, direct-steam design for rapid, uniform heat transfer.

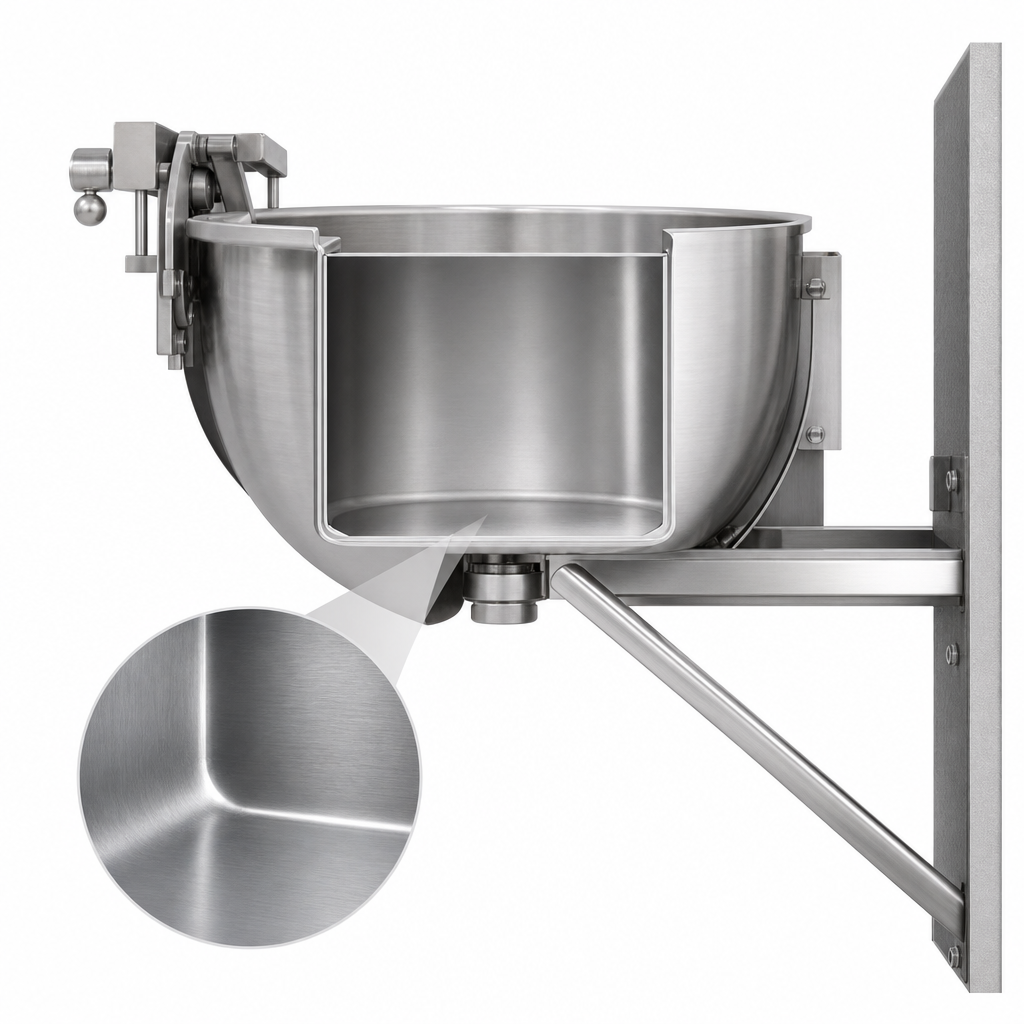

• Seamless deep-drawn 304 stainless steel kettle liner with 304L stainless jacket—no crevices for food soil.
• Heavy-duty 304 stainless support arms seam-welded to jacket; installs on an in-wall carrier (by others).
• Self-locking worm-gear tilt with reinforced stainless gear box—smooth, controlled pouring every time.
• 30 psi (207 kPa) operating pressure rated & ASME-coded for safety and performance.
• Stainless steel control console keeps steam inlet, outlet and tilt controls within easy reach.
• NSF compliant and manufactured in Waynesboro, GA, USA.

Specifications

Popular Options & Accessories (sold separately)

• 2″ or 3″ draw-off valve (compression or ball-type) with nut driver tool.
• Single or double fill faucet with 12″ or 18″ swing nozzle & mounting bracket.
• 48″ flexible spray hose assembly (vinyl or stainless).
• Automatic water-filling meter.
• Two-speed mixer/agitator assembly.
• Lift-off or actuator-assisted cover; lockable security lid.
• Basket, nylon bag & pour-lip pan holder inserts for batch processing.

Legion Advantage

• Built to ASME & NSF standards for uncompromising safety.
• 12-month parts & labour warranty from installation (extended coverage available).
• Made in the USA with responsive technical support & readily available replacement parts.
