Legion TWSWT-50 Steam Kettles
Description

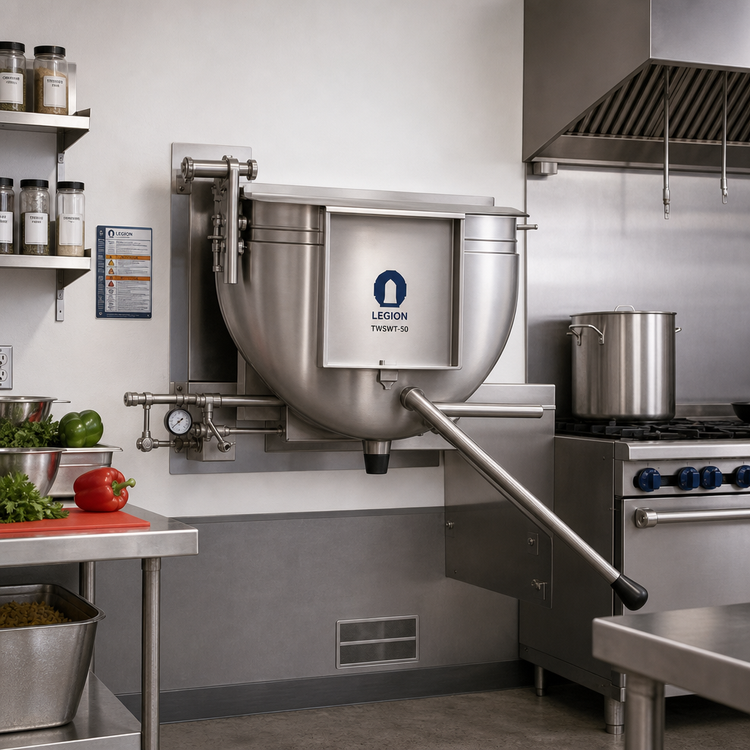

Legion TWSWT-50 Direct Steam Tilting Wall-Mount Kettle – 50 gal
304 stainless steel • full-jacket • 30 psi operating pressureEngineered for heavy-duty production, the Legion TWSWT-50 puts 50 gallons / 189 litres of reliable steam power right where you need it—securely on the wall, not on the floor. A seamless deep-drawn liner, full 304L stainless jacket and a self-locking worm-gear tilt combine to deliver fast heat-up, even cooking and effortless pour-out, day after day.
Why you’ll love it
- High-capacity cooking – Produce up to 50 gal of soups, sauces, stocks or pasta with consistent temperature control.

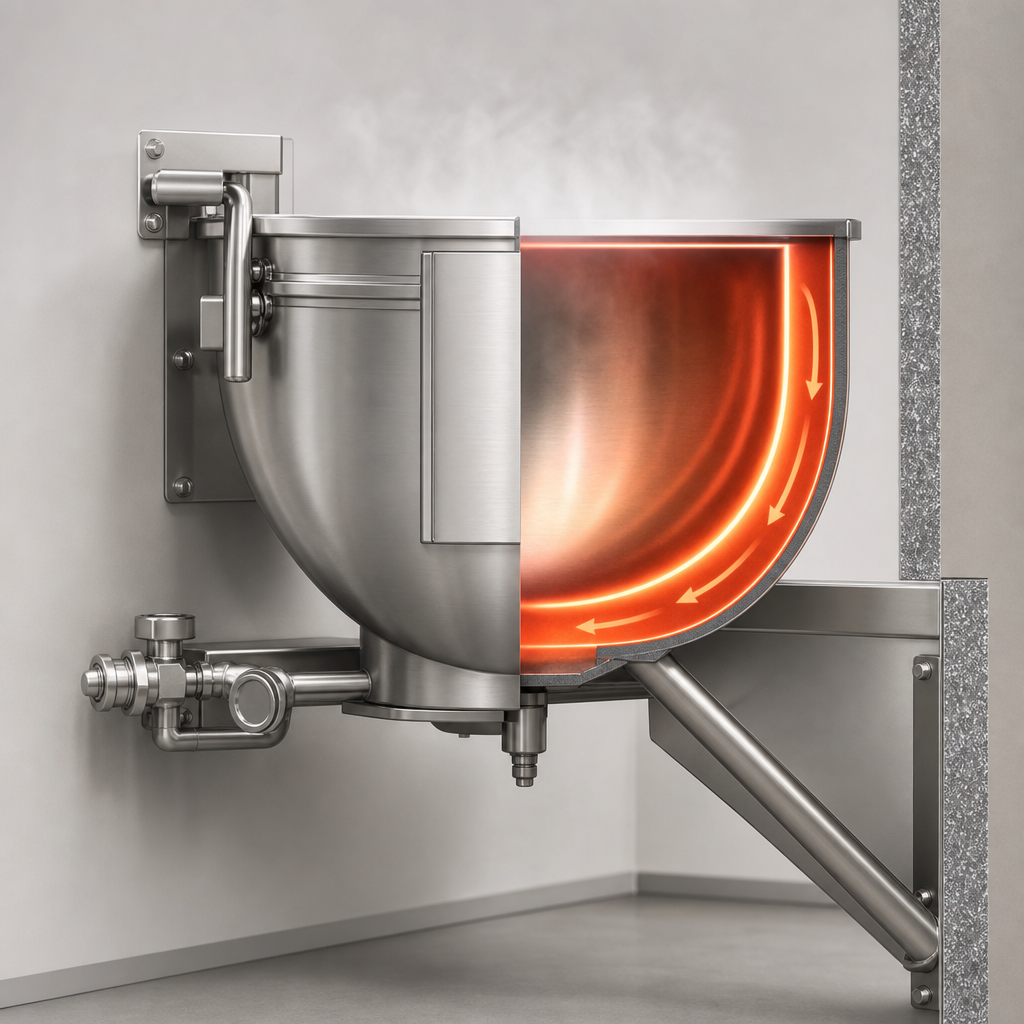

- Full-jacket efficiency – 360° steam jacket surrounds the kettle for uniform heat distribution and faster batch times.

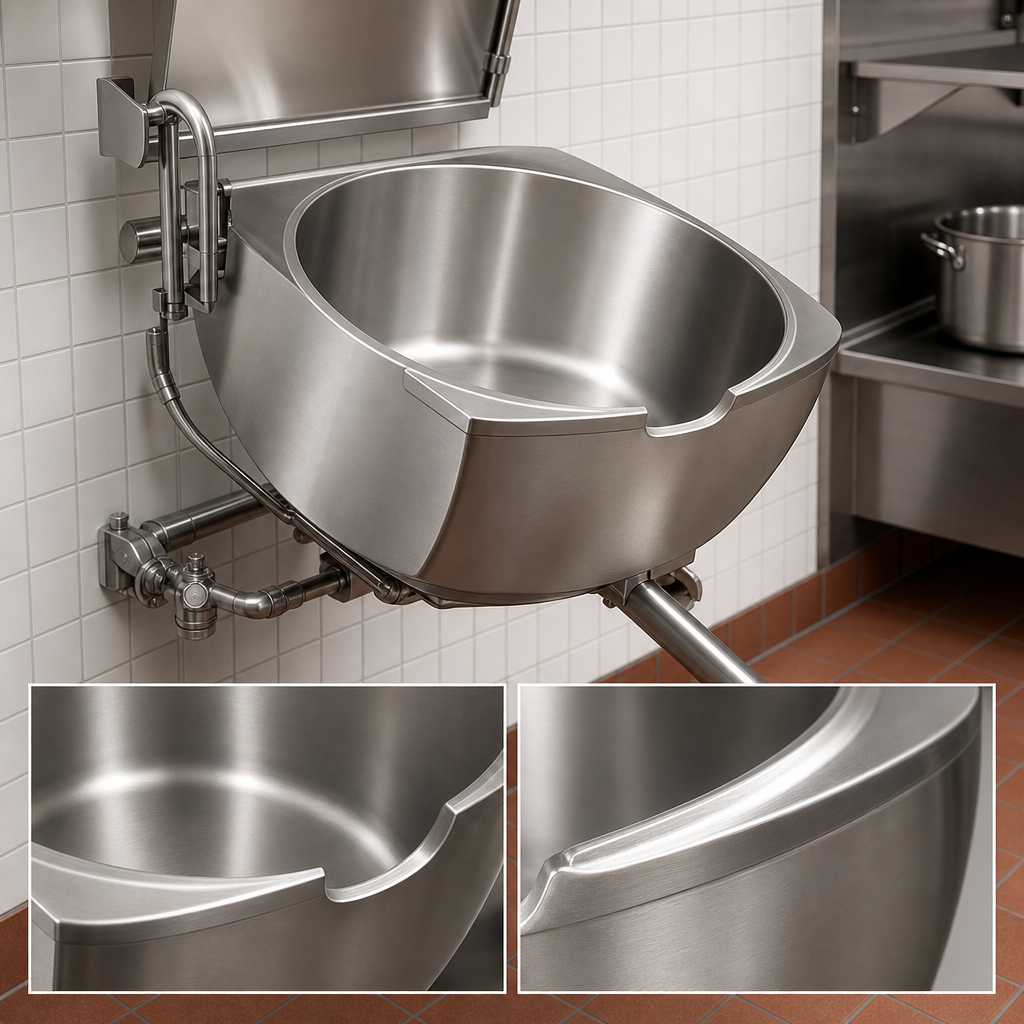

- Deep-drawn 304 construction – One-piece liner and jacket mean no interior welds, fewer food traps and easy sanitation.
- Space-saving wall mount – Bracket-mount design keeps your floor clear for traffic and cleaning.
- Self-locking worm-gear tilt – Smooth, precise pouring that stays put exactly where you stop it.
- Rugged support arms – 304 stainless arms are seam-welded directly to the jacket for rock-solid stability.
- Made in the USA and built to meet or exceed ASME, NSF, UL, ETL and other applicable standards.
Technical specifications
| Model | TWSWT-50 |
|---|---|
| Working capacity | 50 gal / 189 L |
| Operating pressure | 30 psi (207 kPa) |
| Steam inlet | ¾ in NPT |
| Steam outlet / condensate | ½ in NPT |
| Tilting mechanism | Manually actuated, self-locking worm gear with reinforced 304 gearbox |
| Primary materials | Seamless 304 stainless liner & 304L full jacket; 304 support arms |
| Overall dimensions* | A 29.5″ • B 21.8″ • C 40.9″ • D 19.6″ • F 50.0″ (see drawing for details) |
| Mounting | Wall bracket (in-wall carrier available) |
*Dimensions from Legion drawing Rev 113; subject to change without notice.
Popular options & accessories
- Single or double fill faucet with 12″ or 18″ swing nozzle
- 48″ flexible spray hose (vinyl or stainless)
- 2″ or 3″ draw-off valve (compression or ball type) & related nut driver tools
- Air eliminator or pressure-reducing valve
- 2-speed mixer/agitator, lift-off or actuator-assisted covers
- Basket, tri-basket or nylon bag inserts, pour-lip pan holder & measuring strip
- In-wall carrier for additional mounting support
Contact your Legion representative for complete option compatibility and pricing.
Warranty you can trust
Every Legion steam kettle is backed by a 12-month parts & labor warranty (15 months from ship date) with optional extended coverage available.
