Legion TWSWT-25 Steam Kettles
Description

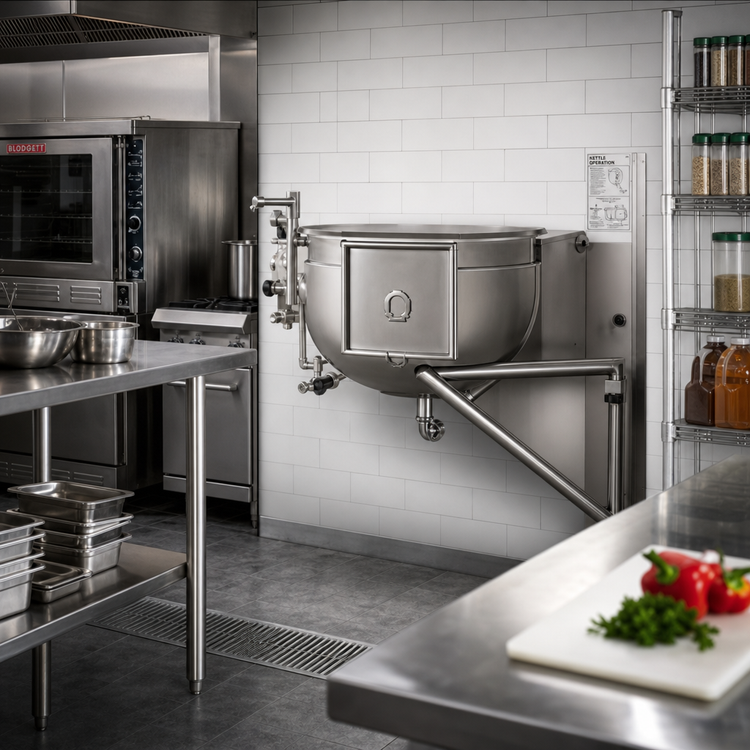

Legion TWSWT-25 Direct Steam Tilting Wall-Mount Kettle – 25 gal.
Full-jacketed • 304 Stainless Steel • 30 psi Operating Pressure • Made in USAEngineered for demanding commercial kitchens, the Legion TWSWT-25 delivers 25 gallons (95 L) of high-performance cooking capacity in a compact, wall-mounted footprint. Its deep-drawn, full-jacketed design heats evenly with direct steam, while the self-locking worm-gear tilt lets one operator safely portion or fully empty the kettle with precision.
Why Choose the TWSWT-25

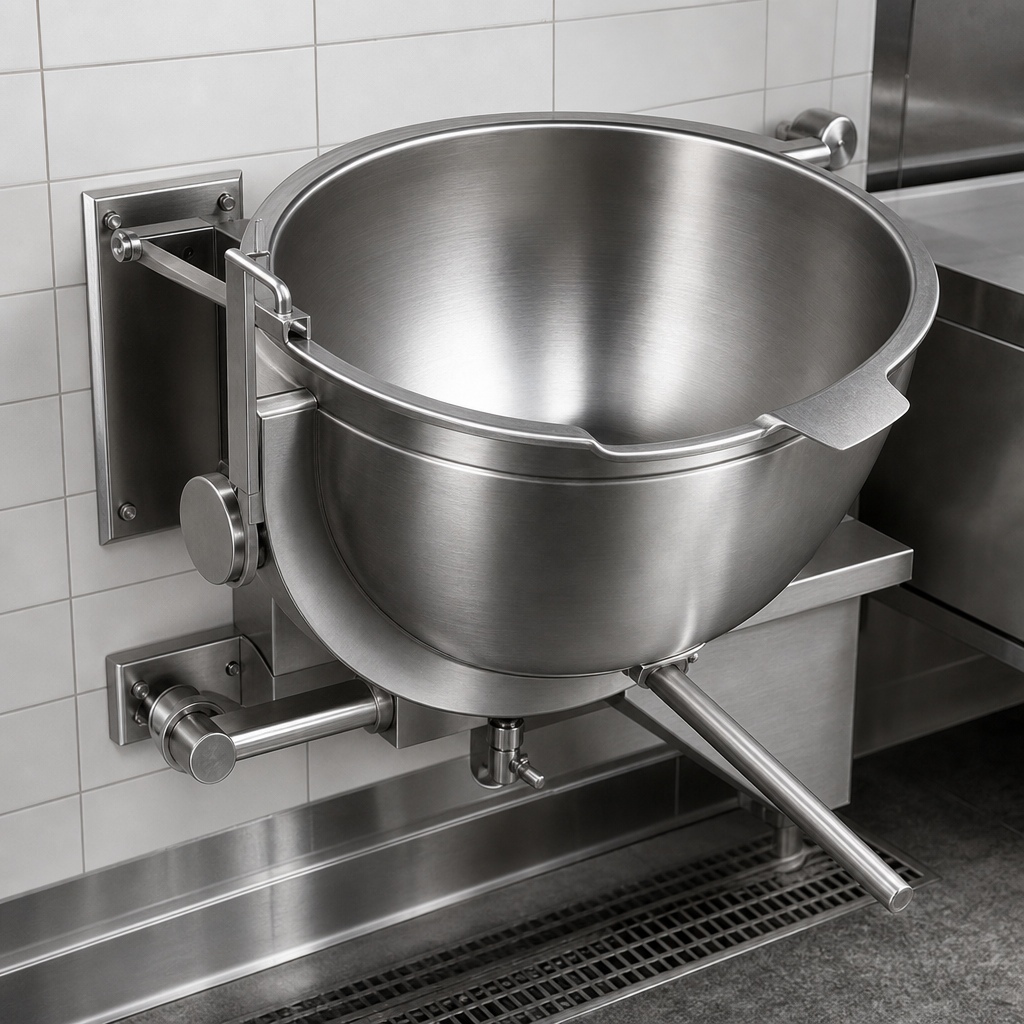

- Seamless 304 stainless steel liner resists pitting and is easy to sanitize.

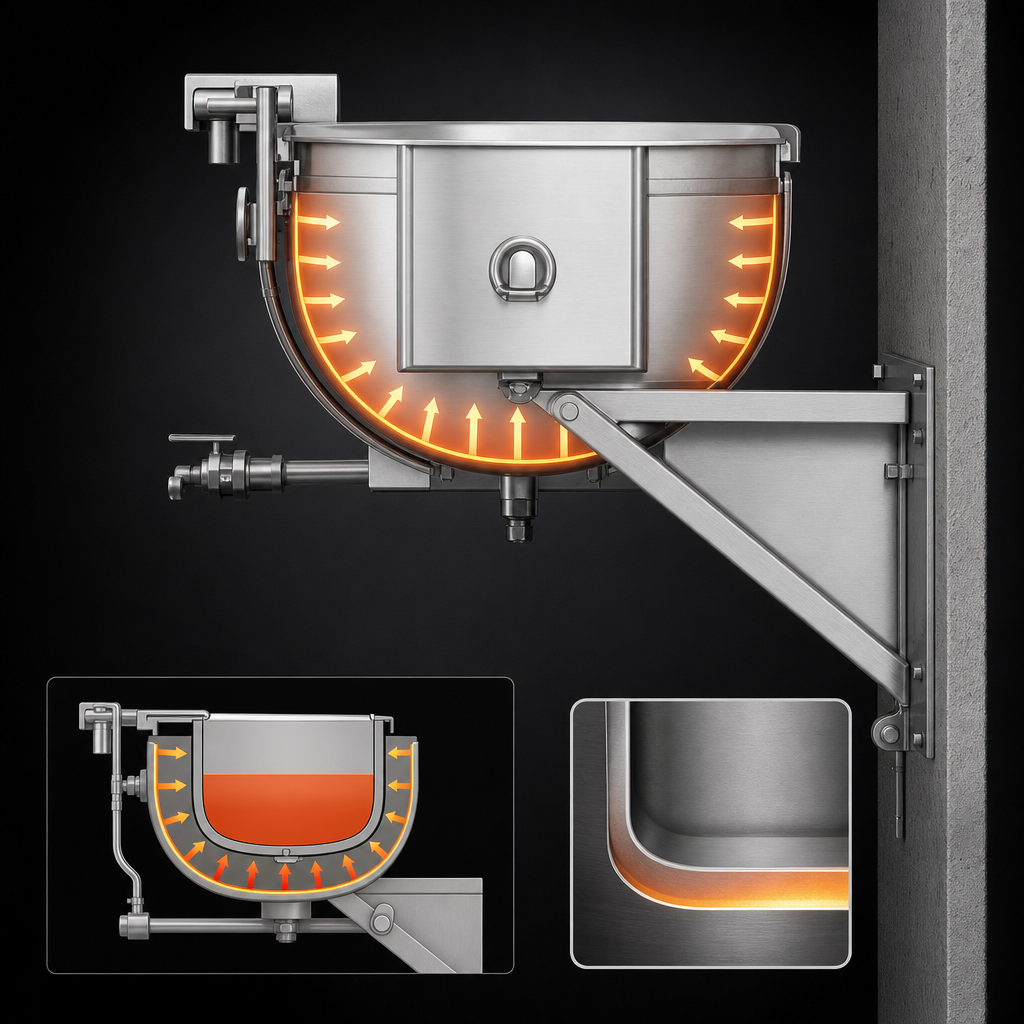

- Full 304L stainless steam jacket for uniform, scorch-free heating.
- Wall-bracket mount frees up valuable floor space.
- Self-locking worm-gear tilt mechanism offers smooth, drip-free pouring at any angle.
- Reinforced 304 stainless gear box built for years of heavy-duty service.
- 30 psi operating pressure—ideal for rapid batch cooking, retherm, and finishing sauces, soups, or stocks.
- 304 stainless support arms seam-welded directly to the jacket for maximum structural integrity.
- NSF & ASME compliant; proudly fabricated in Waynesboro, Georgia.
Perfect For
- High-volume restaurants and commissaries
- Institutional kitchens—hospitals, schools, corrections
- Central production & ghost kitchens needing fast turnaround
- Batch cooking stocks, soups, sauces, pasta, grains, custards, and more
Technical Specifications
| Model / Capacity | TWSWT-25 | 25 gal. (95 L) |
|---|---|
| Mounting | Wall-bracket, welded stainless support arms |
| Construction | Seamless deep-drawn 304 stainless liner & 304L full jacket |
| Operating Pressure | 30 psi (2.1 bar) |
| Tilt Mechanism | Self-locking worm gear with reinforced 304 stainless gear box |
| Steam Connections | Inlet – ¾" NPT | Outlet/Condensate – ½" NPT |
| Overall Dimensions (in.)* | A 25.5 | B 15.5 | C 39.9 | D 19.6 | F 45.3 |
| Recommended Mount Height (T) | Adjustable to suit installation |
*See installation drawing for full dimensional data.
Popular Factory Options
- Single or double fill faucet (12" or 18" swing nozzle) with bracket
- 48" flexible spray hose assembly (vinyl or stainless)
- Air eliminator or pressure-reducing valve
- 2" or 3" draw-off valve, ball or compression style
- Lift-off or actuator-assisted cover
- In-wall carrier kit for concealed mounting
- Basket inserts, strainer bags, pour-lip pan holder & more
Warranty
Covered by Legion’s limited 12-month parts & labor warranty (15 months from ship date). Extended coverage available—ask your representative for details.
