Legion TWSWT-20 Wall-Mount Tilting Kettle with MV Mixer – 20 Gal / 76 L
Direct-steam • Full-jacketed • 30 psi operating pressureCook, mix and pour with absolute confidence. The 20-gallon Legion TWSWT-20 combines a high-efficiency steam jacket with an integrated twin-shaft mixer, delivering fast heat-up, uniform agitation and effortless tilting—all in a space-saving wall-mount design.
Key Features
- Seamless deep-drawn 304 stainless steel kettle liner for a sanitary, easy-clean interior.
- Full 304L stainless steel jacket rated 30 psi for rapid, even heat transfer from your building’s steam supply.
- Self-locking worm-gear tilt mechanism with reinforced 304 stainless gear box for smooth, controlled pouring.
- Stainless steel support arms seam-welded to the jacket—no crevices, no flex.
- MV twin-shaft mixer (two speed) with:
- 304 SS anchor agitator contoured to the kettle wall.
- Counter-rotating 304 SS secondary beater for thorough product movement.
- Removable nylon scraper blades continuously clean the entire cooking surface.
- Actuator-assisted bridge & tool lift plus quick bayonet mounts for fast change-outs.
- Safety interlock prevents high-speed starts when the bridge is raised.
- Clearly labeled control console with ¾″ NPT steam inlet and ½″ NPT condensate outlet.
- Made in the USA and built to applicable ASME & NSF standards.
At-a-Glance Specifications
| Capacity | 20 gal / 76 L |
|---|---|
| Operating pressure | 30 psi |
| Heating source | Direct external steam (customer-supplied) |
| Mixer type | MV twin-shaft, two-speed |
| Main agitator speeds* | ≈ 23 & 46 RPM |
| Tilt | Manual hand-crank, self-locking |
| Interior material | Seamless 304 stainless steel |
| Exterior/jacket | 304L stainless steel, full coverage |
| Steam inlet | ¾″ NPT |
| Condensate outlet | ½″ NPT |
*Based on standard gear ratios.

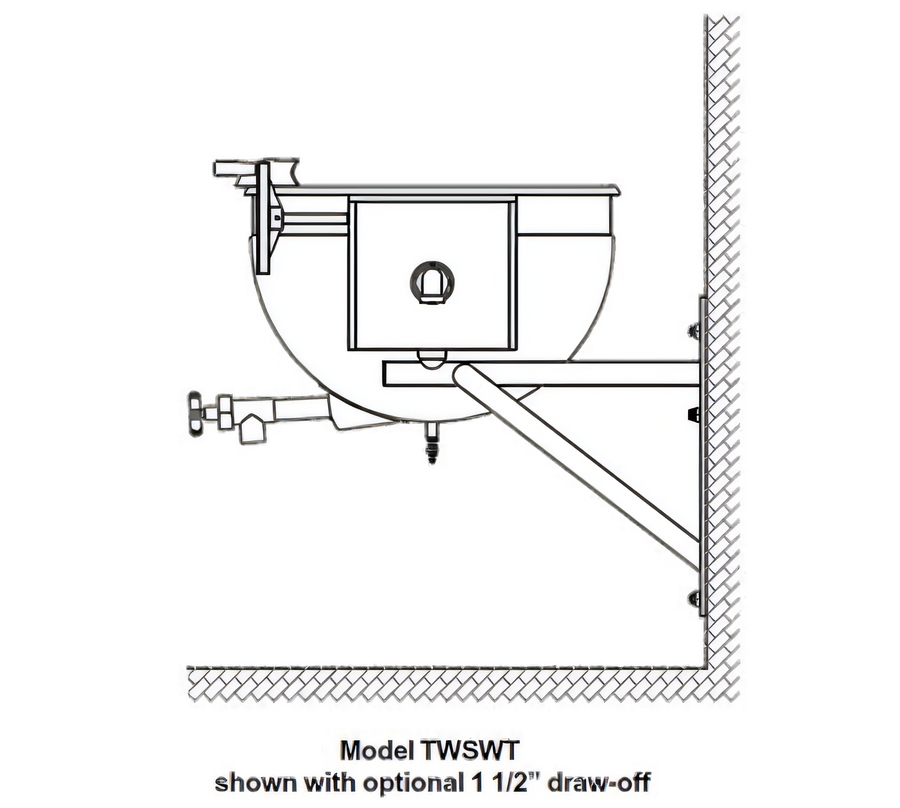

Dimensional Data (TWSWT-20)
| A – Kettle diameter | 23 in / 584 mm |
|---|---|
| B – Jacket depth | 15 in / 381 mm |
| C – Overall width | 39.9 in / 1 014 mm |
| D – Centerline to wall | 14.6 in / 371 mm |
| F – Overall height | 42.5 in / 1 080 mm |
| H – Pour height * | 21.8 in / 554 mm |
| X – Minimum pour path | 20.6 in / 523 mm |
*Height may vary slightly with draw-off valve selection.
Ideal Applications
- Soups, broths & chowders
- Tomato & cream sauces
- Chili, stews & ragù
- Custards, puddings & dessert fillings
- Batch cooking in commissaries, hotels, hospitals & schools
Why Legion?
- Over seven decades of American manufacturing expertise.
- Deep-draw forming eliminates interior welds for superior sanitation and strength.
- Industry-leading warranty and nationwide parts/service network.
Need additional options like higher operating pressure, automatic water meters or spray hoses? Contact our team for a custom configuration.
