Legion TWSWT-20 Steam Kettles
Description

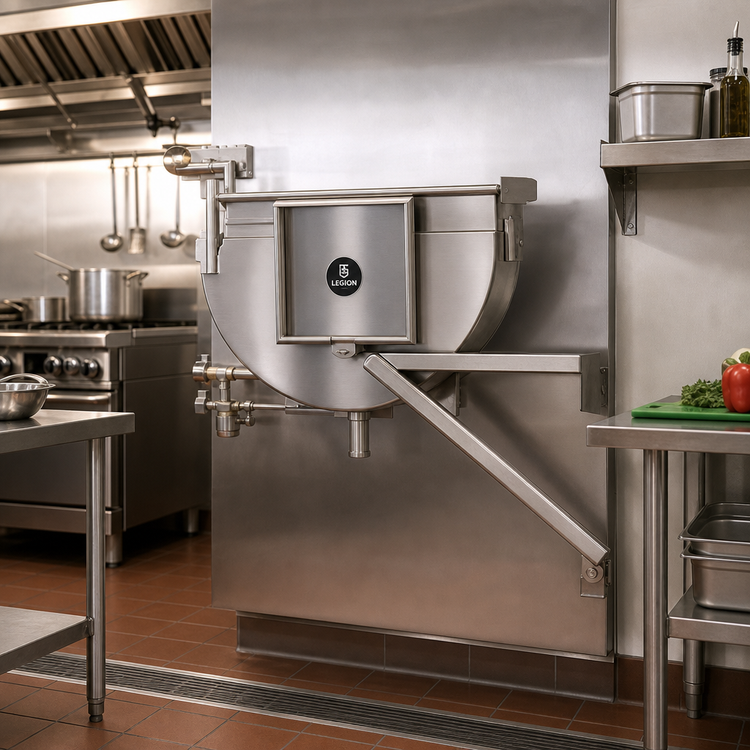

Legion TWSWT-20 Direct Steam Tilting Wall-Mount Kettle
20 Gallon • Full-Jacketed • 304 Stainless SteelBuilt in the USA for institutional and commercial kitchens, the Legion TWSWT-20 combines rugged 304 stainless-steel construction, a space-saving wall mount and smooth worm-gear tilting for fast, efficient batch cooking.
Key Features
- 20 gal / 76 L capacity – perfect for soups, sauces and small-batch production.

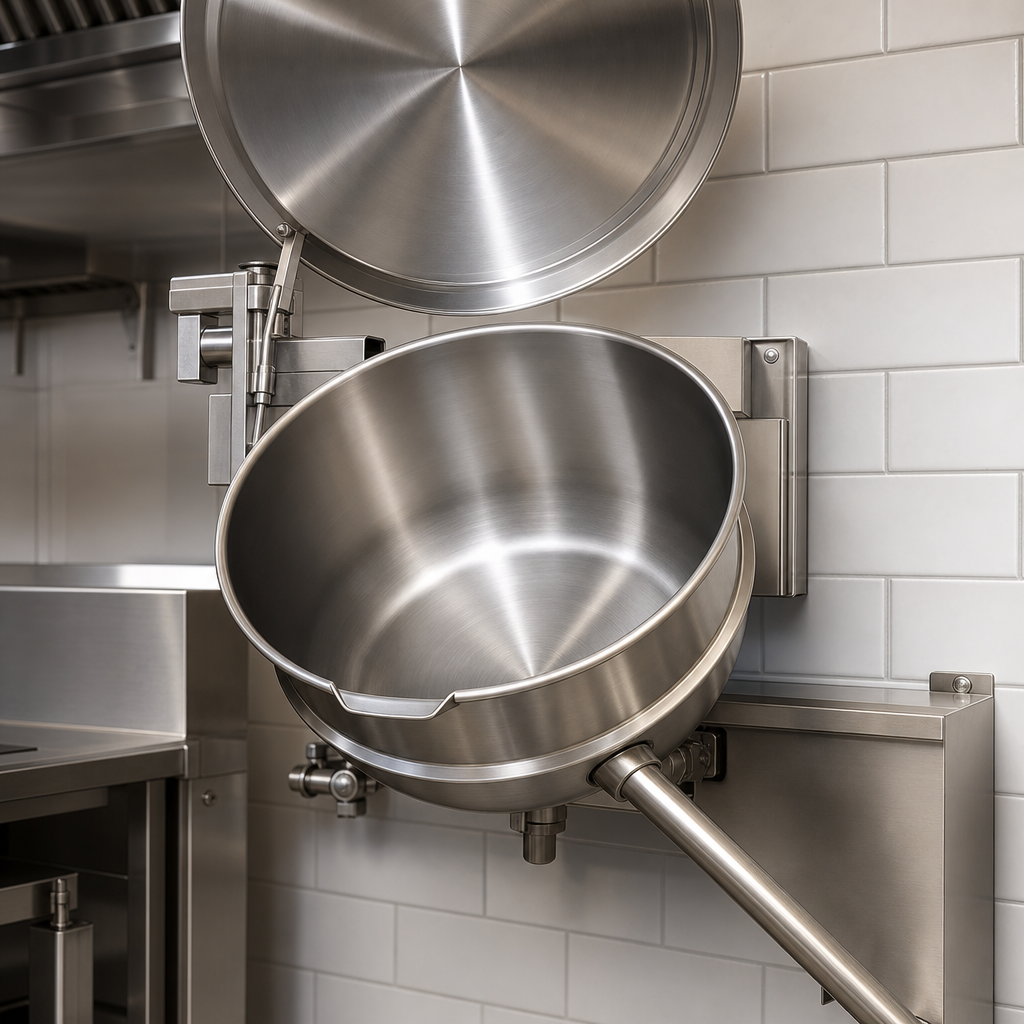

- Seamless deep-drawn 304 stainless kettle liner for a sanitary, easy-to-clean interior.

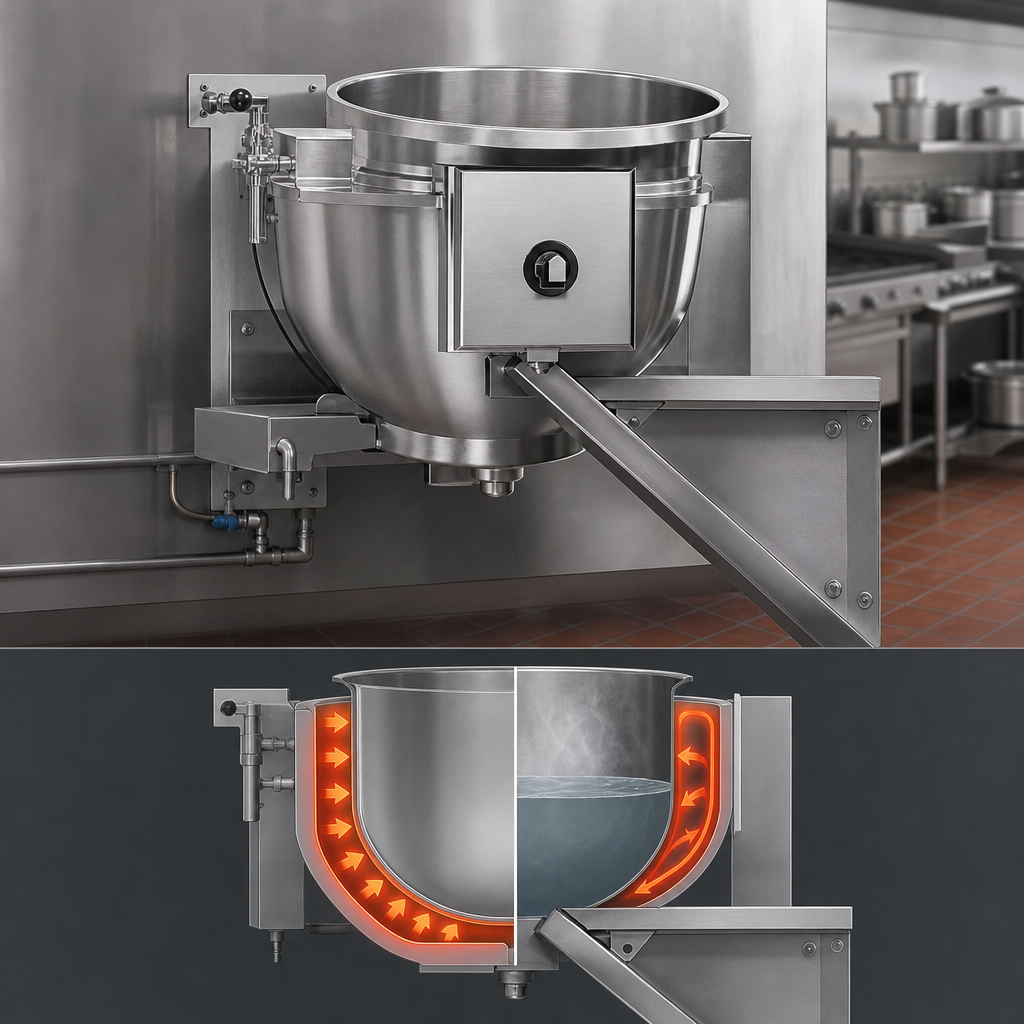

- Full 304L stainless jacket rated to 30 psi for rapid, even heating from direct steam.
- Self-locking worm-gear tilt with reinforced stainless gearbox for smooth, controlled pouring.
- Stainless support arms permanently seam-welded to the jacket for rigid wall mounting.
- Compact control console keeps steam connections and tilt handle protected and accessible.
- Designed and manufactured to applicable ASME, NSF, UL, ETL, CSA and other agency standards.
- Made in Waynesboro, Georgia, USA.
Model Specifications
| Model | TWSWT-20 |
|---|---|
| Capacity | 20 gal (76 L) |
| Operating Pressure | 30 psi (2.07 bar) max |
| Kettle Interior | Seamless 304 stainless steel |
| Jacket | Full, 304L stainless steel |
| Tilt Mechanism | Self-locking worm gear, stainless gearbox |
| Mounting | Wall-bracket, stainless support arms |
| Steam Inlet / Outlet | ¾″ NPT / ½″ NPT |
| Overall Height (F) | 42.5″ / 1080 mm |
| Overall Depth (C) | 39.9″ / 1013 mm |
| Kettle Diameter (A) | 23.0″ / 584 mm |
| Bracket Spacing (B) | 15.0″ / 381 mm |
| Minimum Pour Path (X) | 20.6″ / 524 mm |
Dimensions are taken from manufacturer drawings and should be used for reference only. Provide additional clearance for connections and safe operator access.
Optional Accessories & Upgrades
- Single or double fill faucet kits with 12″ or 18″ swing nozzles
- 48″ flexible spray hose (vinyl or stainless)
- 2″ or 3″ draw-off valve (compression or ball type)
- Automatic water fill meter
- Air eliminator or pressure-reducing valve
- Basket inserts, lockable lid, pour-lip pan holder, measuring strip and more
Warranty
Covered by Legion’s standard warranty: 12 months from installation (15 months from ship date) on parts and labor. See full warranty statement for terms, limitations and exclusions.
