Legion TWSWT-100 Steam Kettles
Description
Legion TWSWT-100 Direct Steam Tilting Wall-Mount Kettle – 100 gal
Full-jacketed • Seamless 304 stainless • Made in USAEngineered for demanding, high-volume kitchens, the TWSWT-100 combines a massive 100-gallon (379 L) capacity with fast, even direct-steam heating and space-saving wall mounting. A self-locking worm-gear tilt lets one operator safely portion or completely empty the kettle with smooth, precision control.
Key Features
- Seamless deep-drawn 304 stainless kettle liner for maximum sanitation and durability.

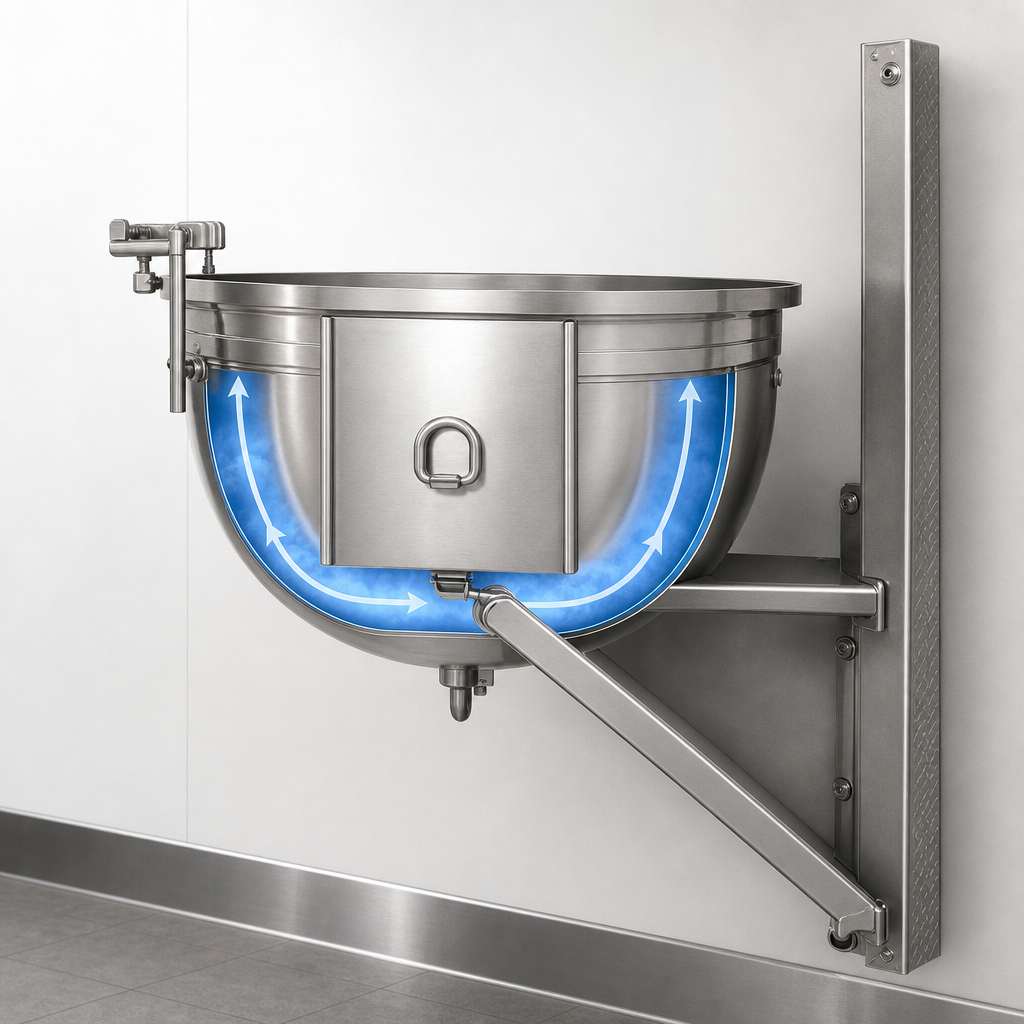

- Full 304L stainless steam jacket rated 25 psi (1.7 bar) for rapid heat-up and uniform cooking.
- Self-locking worm-gear tilt with reinforced 304 stainless gearbox – holds any angle without drift.
- Heavy-duty 304 stainless support arms seam-welded to the jacket and secured to a wall-mount bracket for a rock-solid installation.
- Integrated control console keeps steam, drain and tilt controls organized and within easy reach.
- ASME code stamped, NSF listed and proudly manufactured in Waynesboro, GA.
Ideal For
- Soups, stocks & sauces
- Chili, stews & gravies
- Pasta, rice or cereal cook-ups
- Large-batch blanching or poaching
- Institutional cooking – schools, hospitals, corrections, military
Technical Specifications
| Model | TWSWT-100 |
|---|---|

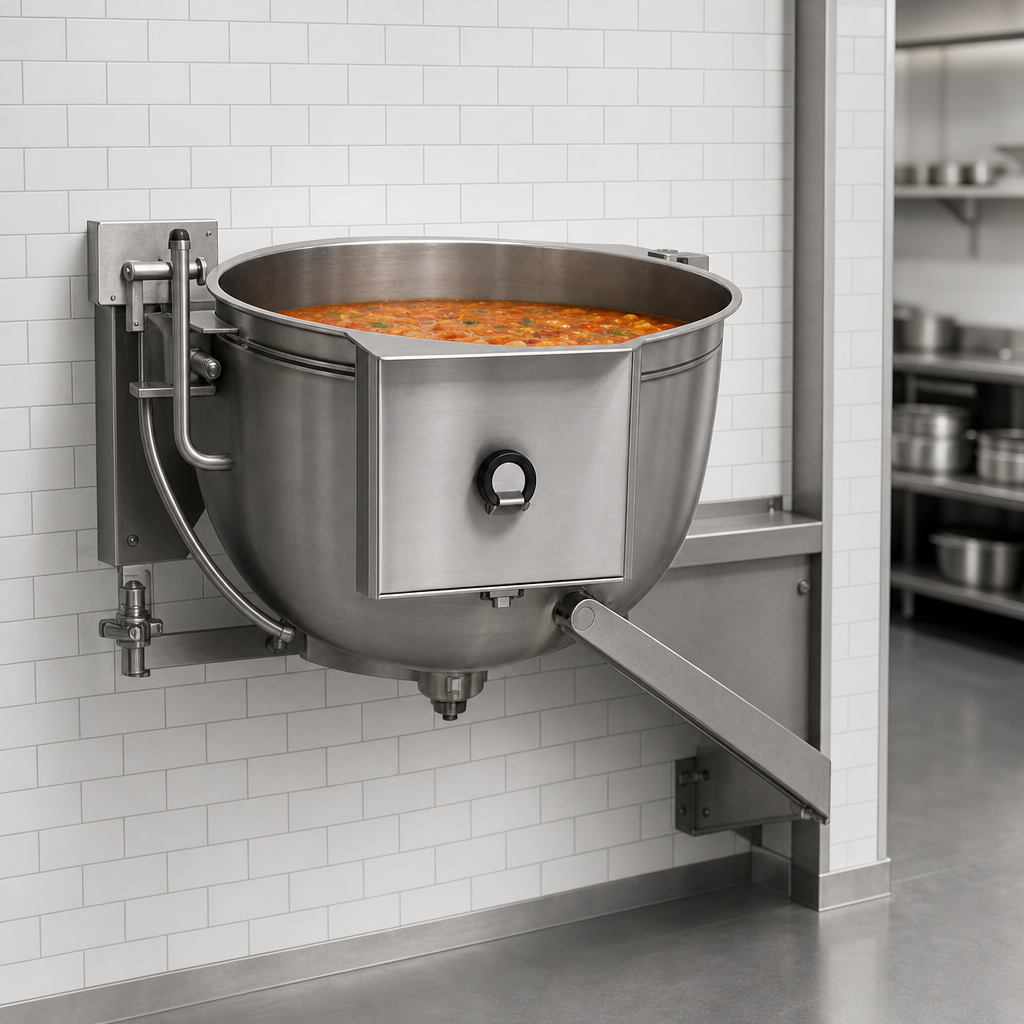

| Capacity | 100 gal (379 L) |
| Mounting | Wall-bracket, tilting |
| Kettle Construction | Seamless 304 stainless liner, full 304L jacket |
| Operating Pressure | 25 psi direct steam |
| Tilt Mechanism | Self-locking worm gear, stainless reinforced gear box |
| Steam Connections | ¾″ NPT inlet / ¾″ NPT condensate outlet |
| Jacket Drain | ¾″ NPT |
| Approx. Overall Dimensions* | W 44″ × D 40.6″ × H 62.5″ |
| Certifications | ASME, NSF |
| Origin | USA |
*Heights vary with draw-off valve selection and installation-specific mounting height.
Popular Options & Accessories
- 2″ or 3″ draw-off valve (compression or ball style) with pour-lip pan holder
- Single or double fill faucet with 12″ / 18″ swing nozzle
- 48″ flexible spray hose (vinyl or stainless)
- Automatic water-filling meter
- Two-speed mixer / agitator
- Lift-off or actuator-assisted cover, lockable security lid
- Basket inserts, nylon bag kits, measuring strip, kettle care kit and more
Need a different capacity? Legion TWSWT kettles are also available in 20-, 25-, 40-, 50-, 60- and 80-gallon sizes.
