Legion TWSWC-80MV Steam Kettles
Description
Legion 80-Gallon Direct Steam Tilting Wall-Mount Kettle with 2-Speed Mixer — Model TWSWC-80-MV
Full jacket • 304 stainless steel • 30 psi ASMEBuilt in the USA for high-volume commercial kitchens, this 80-gallon Legion TWSWC kettle pairs seamless deep-drawn construction with a twin-shaft MV mixer to deliver unbeatable productivity, consistent results and simplified clean-up—all while mounting securely to your cook-line wall to free up valuable floor space.
Key advantages
- Seamless 304 stainless-steel liner eliminates interior welds for superior sanitation and easy cleaning.
- Full-coverage 304L jacket provides uniform steam heating up to 30 psi for rapid, energy-efficient cook times.
- Integrated two-speed MV mixer:
- Anchor-style main agitator conforms to kettle contour.
- Counter-rotating secondary beater breaks up clumps and promotes thorough mixing.
- Nylon scraper blades continuously clean sidewalls & bottom to prevent scorching.
- Bayonet-mount shafts remove in seconds for CIP or when kettle is used without mixing.
- Self-locking worm-gear tilt mechanism for smooth, controlled pouring with one hand.
- Reinforced stainless wall consoles house plumbing & controls with rear-facing NPT steam/condensate connections to keep the cookline clear.
- Balanced aluminum mixer bridge with totally enclosed gear motor (2 HP high / 1 HP low) for quiet, dependable operation.
- Actuator-assisted lift raises the agitator/scraper assembly clear of the kettle for loading and cleaning.
- Built-in safety interlock prevents high-speed starts unless the bridge is fully lowered and locked.
- NSF & ASME certified; manufactured under rigorous quality standards in Waynesboro, GA.
At-a-glance specifications
| Capacity | 80 gal / 303 L |
|---|---|
| Operating pressure | 30 psi (206 kPa) max steam |
| Construction | Seamless 304 SS liner, 304L full jacket, stainless consoles |

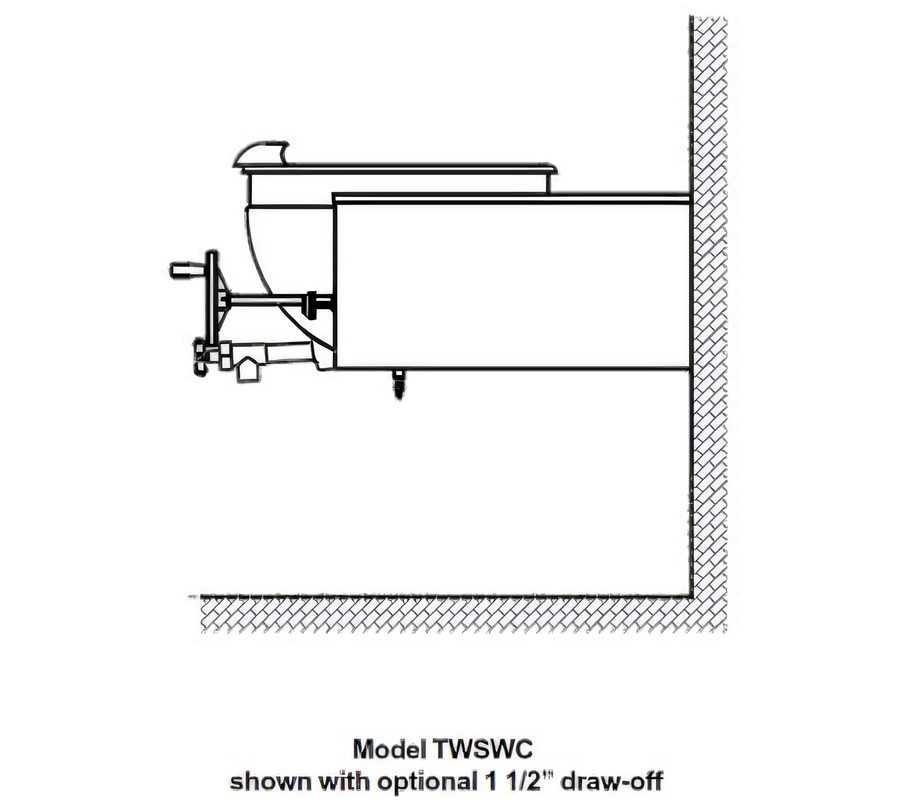

| Mounting | Wall-console (TWSWC) |
| Tilt type | Self-locking worm gear, hand wheel |
| Mixer motor | 2 HP (high) / 1 HP (low) totally-enclosed gear motor |
| Mixer speeds | 46 rpm main / 120 rpm beater (high) • 23 rpm main / 60 rpm beater (low) |
| Steam inlet | ¾" NPT (rear connection) |
| Condensate outlet | ½" NPT (rear connection) |
| Overall width (A) | 39 in / 991 mm |
| Overall height (T) | 44.5 in / 1130 mm |
| Pour path clearance (X) | 32 in / 813 mm (min) |
| Certifications | ASME, NSF |
| Origin | Made in USA |
Perfect for
- Soups, sauces & chowders
- Pasta, rice & grains
- Custards, puddings & confectionery fillings
- Chili, stews & braises
- Bulk rethermalization & holding
Popular options & accessories (sold separately)
- Single or dual fill faucets with 12" or 18" swing nozzles
- 48" flexible spray-rinse hose (vinyl or stainless)
- 2" or 3" draw-off valves with compression or ball-type fitting
- Automatic water-fill meter
- Lift-off or actuator-assisted cover
- Basket, tri-basket or nylon bag inserts
- Pour-lip pan holder, measuring strip & kettle-care kit
Steam supply, condensate return, vacuum/pressure relief, water treatment and mounting hardware must be sized & installed by qualified personnel in accordance with local codes. Refer to Legion installation manual for complete requirements.
