Legion TWSWC-80 Steam Kettles
Description
Legion TWSWC-80 Direct-Steam Tilting Kettle

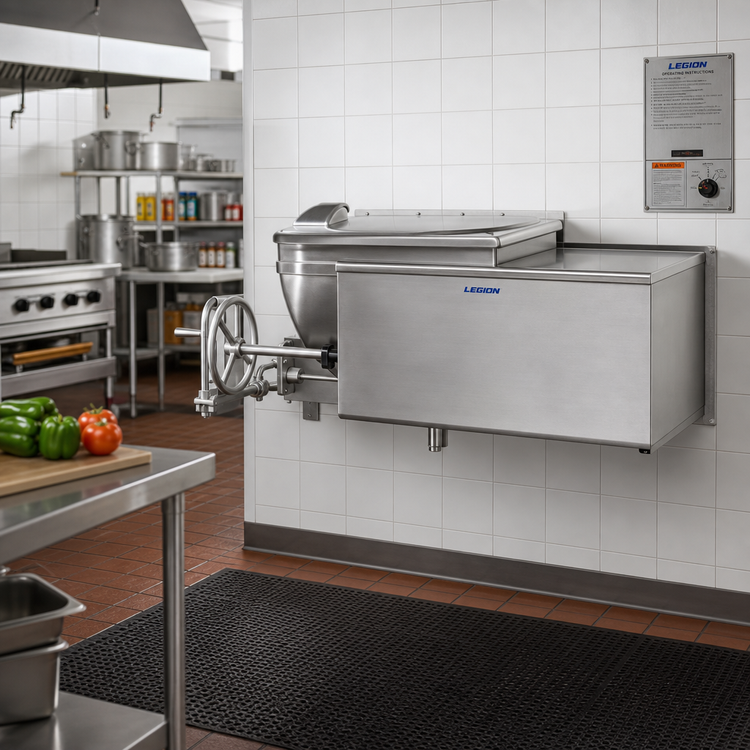

80 gal (303 L) • Wall-Console Mounted • Full Jacket • 30 psiEngineered for demanding, high-volume kitchens, the Legion TWSWC-80 gives you 80 gallons of fast, even, direct-steam cooking power in a space-saving wall-mount format. Seamless 304 stainless construction inside and out, a self-locking worm-gear tilt, and rear-plumbed support consoles make this U.S.-built kettle the durable, easy-to-clean, operator-friendly workhorse you’ve been looking for.
Key Benefits

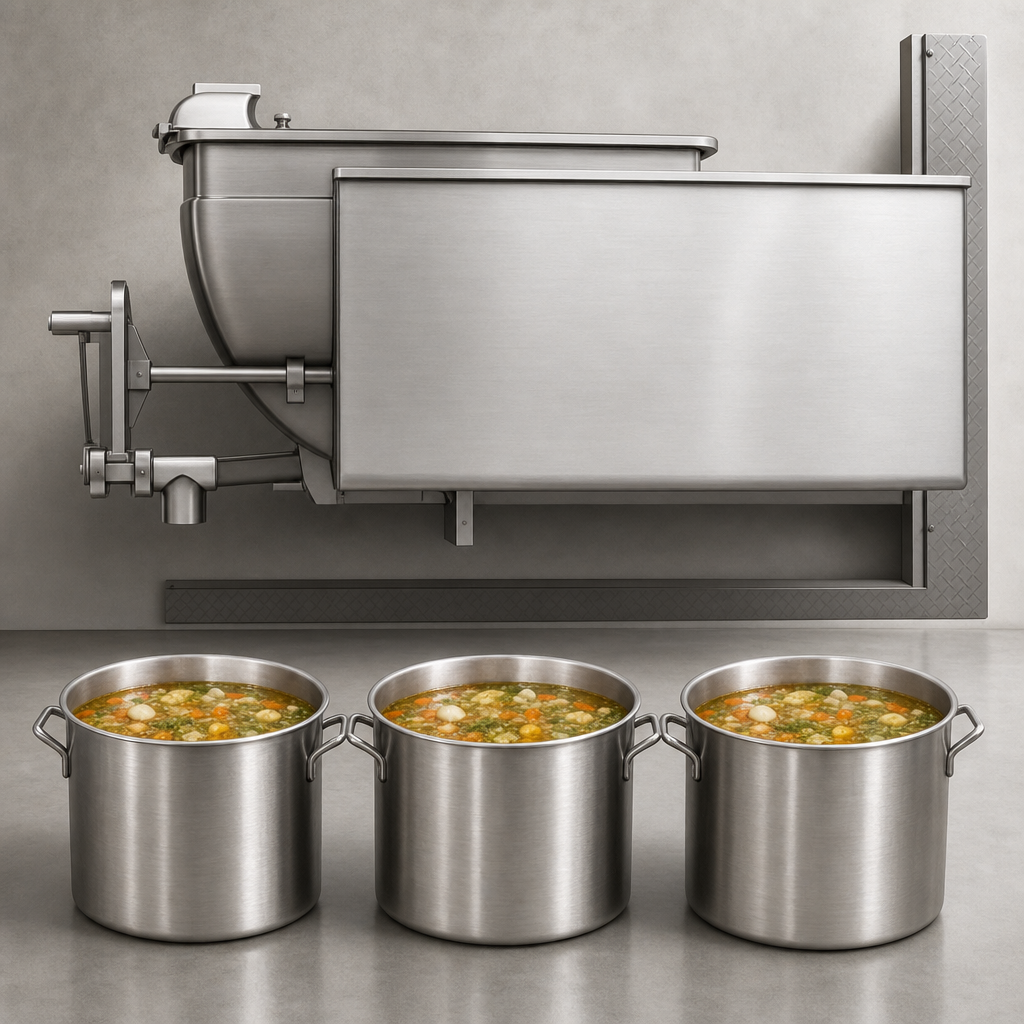

- Large 80 gal (303 L) capacity—batch soups, sauces, stocks or pasta for hundreds in a single cook cycle.
- Seamless 304 stainless steel kettle liner prevents pitting, promotes sanitation, and wipes clean fast.

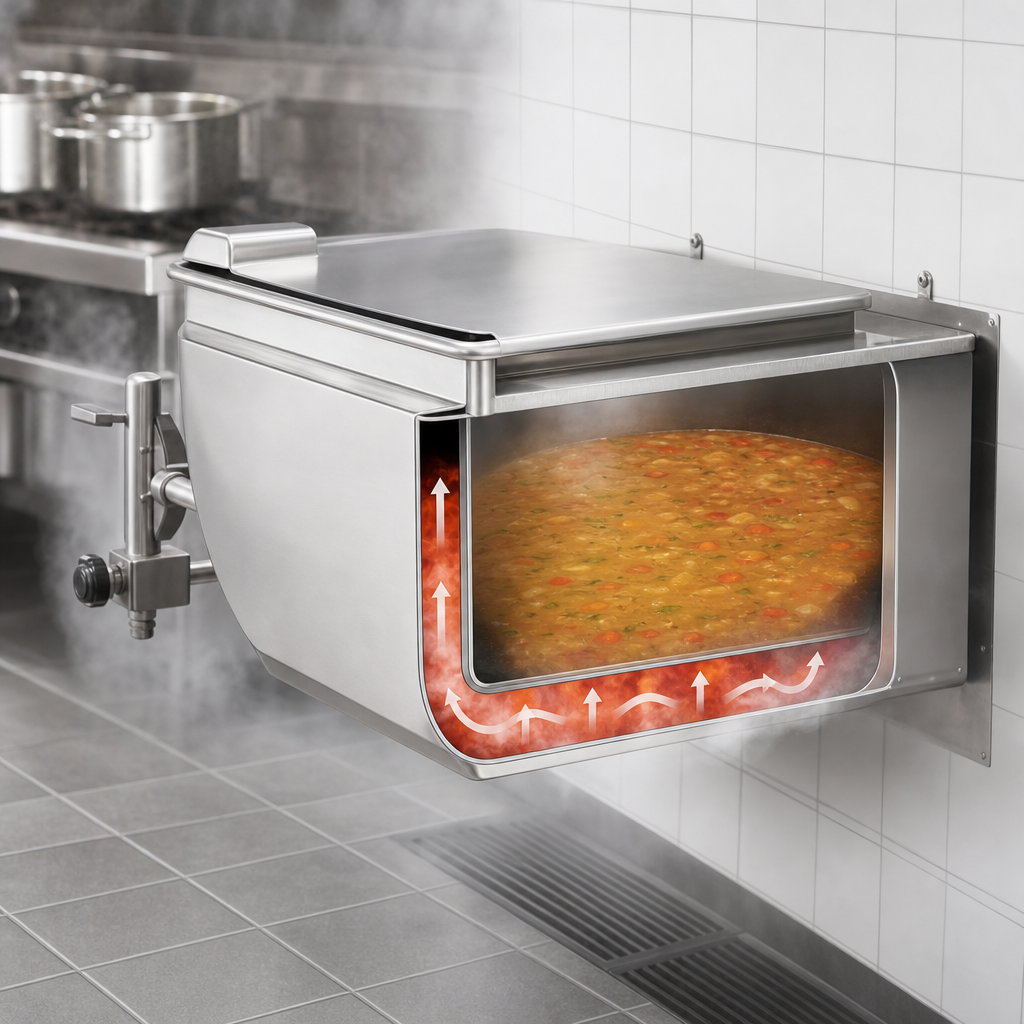

- Full 304L stainless steel jacket delivers uniform steam distribution for faster heat-up and reduced scorching.
- Self-locking worm-gear tilt mechanism lets one operator pour safely and precisely—no drift, no surprises.
- Reinforced stainless steel console boxes carry the load while keeping critical plumbing & controls protected.
- Rear plumbing connections keep steam lines out of the way for a cleaner, safer cookline.
- Built to ASME code and NSF-listed for peace-of-mind compliance.
- Made in the USA and backed by a 12-month parts & labor warranty.
Technical Specifications
| Model | TWSWC-80 |
|---|---|
| Capacity | 80 gal / 303 L |
| Operating Pressure | 30 psi (207 kPa) max |
| Liner Material | Seamless deep-drawn 304 stainless steel |
| Jacket Material | 304L seamless deep-drawn stainless steel (full jacket) |
| Tilting System | Manual, self-locking worm-gear with balanced handle |
| Mounting | Wall-console, stainless steel reinforced support boxes |
| Steam Connection | ¾" NPT inlet, ½" NPT condensate outlet (rear) |
| Overall Width | 44.5 in / 113 cm (console to console) |
| Kettle Diameter | 39.0 in / 99 cm |
| Depth (front-to-wall) | 38.0 in / 97 cm |
| Height (to top of console) | 30.5 in / 77 cm |
| Shipping Weight | Call factory |
| Agency Approvals | ASME, NSF (others as applicable) |
Dimensions are nominal and subject to change without notice. Refer to the current Legion installation drawing for rough-in details.
Factory-Installed Options & Accessories
- Single or double fill faucet with 12" or 18" swing nozzle (includes bracket)
- 48" flexible spray hose (vinyl or stainless)
- 2" or 3" draw-off valve (compression or ball type) with nut driver tool
- Automatic water-fill meter
- Two-speed mixer/agitator assembly
- Lift-off or actuator-assisted hinged cover
- Basket inserts, nylon bag insert with spreader ring, pour-lip pan holder
- Higher pressure rating, pressure-reducing valve, air eliminator valve
- In-wall carrier for wall mounting, prison/security packages and more
Warranty
Legion provides a 12-month parts & labor warranty (15 months from ship date) on the TWSWC-80. Certain wear parts such as valves, seats, and gaskets are covered for 90 days. Full warranty term, conditions, and exclusions are available upon request.
