Legion TWSWC-60 Steam Kettles
Description
Legion TWSWC-60 Direct Steam Tilting Wall-Mount Kettle – 60 gal
Full-jacketed • Deep-drawn 304 SS • Made in USAFree up floor space without sacrificing capacity. The Legion TWSWC-60 delivers 60 gallons (227 L) of high-output cooking power in a wall-mounted, full-jacketed kettle built entirely from food-grade 304 stainless steel. A self-locking worm-gear tilt lets a single operator pour product smoothly and safely while the rear-plumbed console keeps steam and condensate lines tucked out of sight.
Why You’ll Love It

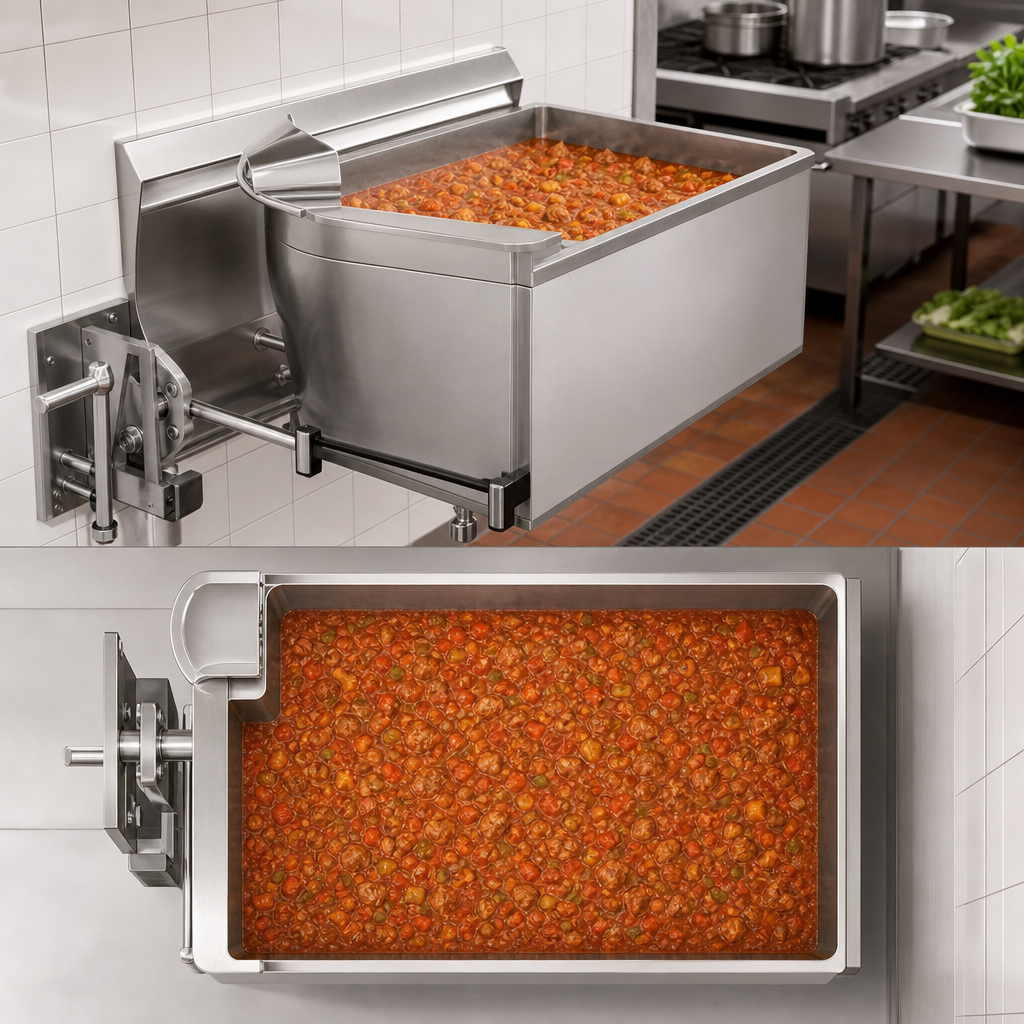

- 60 gal (227 L) working capacity handles high-volume soups, sauces, pasta, stocks and more.
- Seamless deep-drawn 304 SS kettle liner for superior sanitation and easy cleaning—no interior weld seams.

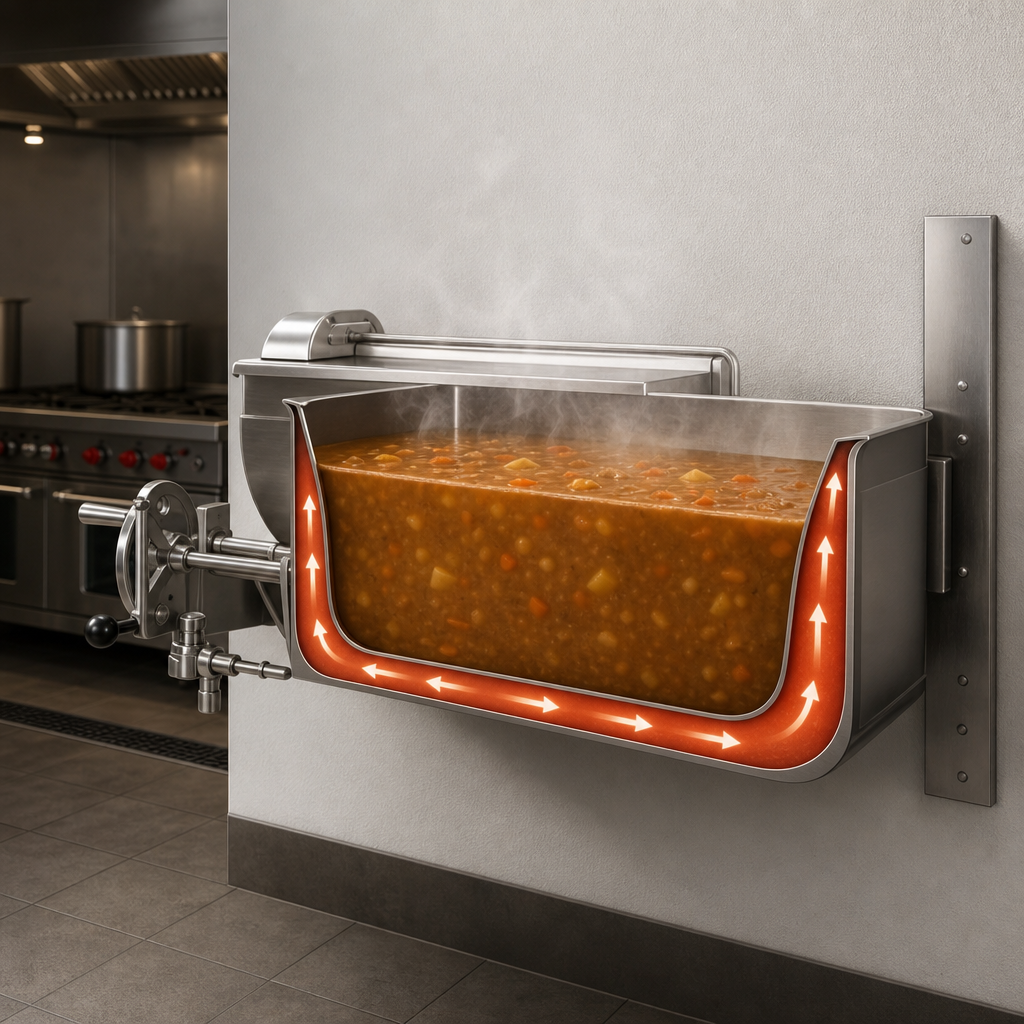

- Full 304L stainless jacket surrounds kettle for even 30 psi direct-steam heating.

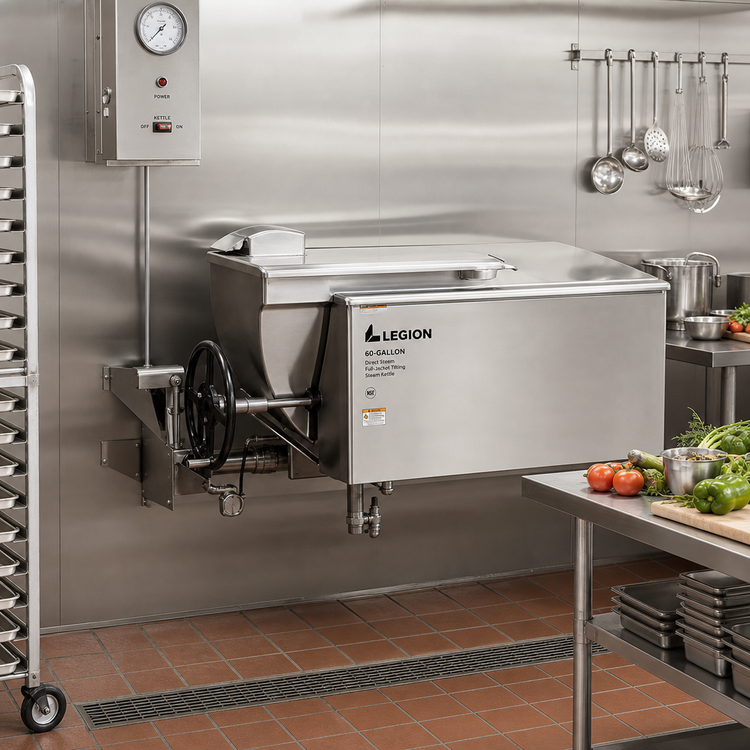

- Wall-console mounting with stainless reinforced support boxes clears valuable floor area.
- Self-locking worm-gear hand crank gives precise, drip-free 90° tilting control.
- Rear-facing ¾" NPT steam inlet & ½" NPT condensate outlet are factory-installed inside the console.
- Made in the USA to ASME & NSF standards for lasting durability and code compliance.
Perfect For
- Central & commissary kitchens needing wall-hung equipment
- Institutional feeding—schools, hospitals, correctional facilities
- Batch production of soups, chili, oatmeal, gravy, custards and braises
- High-volume retherm or holding of sauces & bases
Technical Specifications
| Model | TWSWC-60 |
|---|---|
| Capacity | 60 gal / 227 L |
| Operating Pressure | 30 psi (206 kPa) direct steam |
| Construction | 304 SS deep-drawn liner | 304L full-jacket | 304 SS support consoles |
| Tilt Mechanism | Manual hand-crank, self-locking worm gear, 90° pour angle |
| Steam Connections (rear) | ¾" NPT inlet | ½" NPT condensate outlet |
| Overall Width (A) | 32.5 in (826 mm) |
| Overall Height (T) | 39.6 in (1 006 mm) |
| Minimum Pour Clearance (X) | 32.5 in (826 mm) |
| Mounting | Wall console—rear plumbing ready; optional in-wall carrier available |
| Compliance | ASME, NSF & other applicable agency certifications |
Popular Factory Options
- Single or double water fill faucets with 12" or 18" swing nozzles
- 48" flexible spray hose (vinyl or stainless)
- 2" or 3" draw-off valve (compression or ball type) with nut driver
- Automatic water-fill meter
- Mixer/agitator, 2-speed
- Lift-off or actuator-assisted cover
- In-wall carrier for additional mounting support
See price list or contact us for a complete option & accessory catalog.
Covered by Legion’s standard 12-month parts & labor warranty. Extended coverage is available at time of purchase.
