Legion TWSWC-40 Steam Kettles

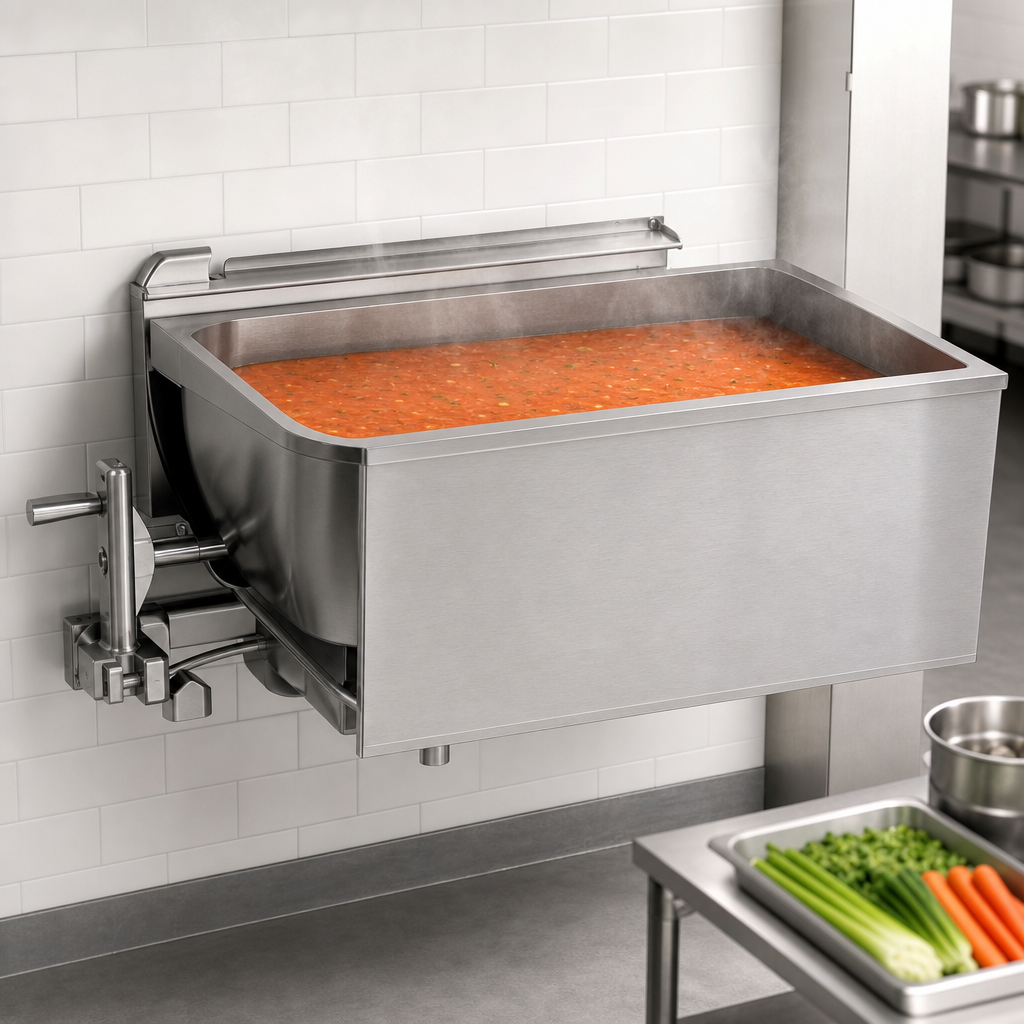

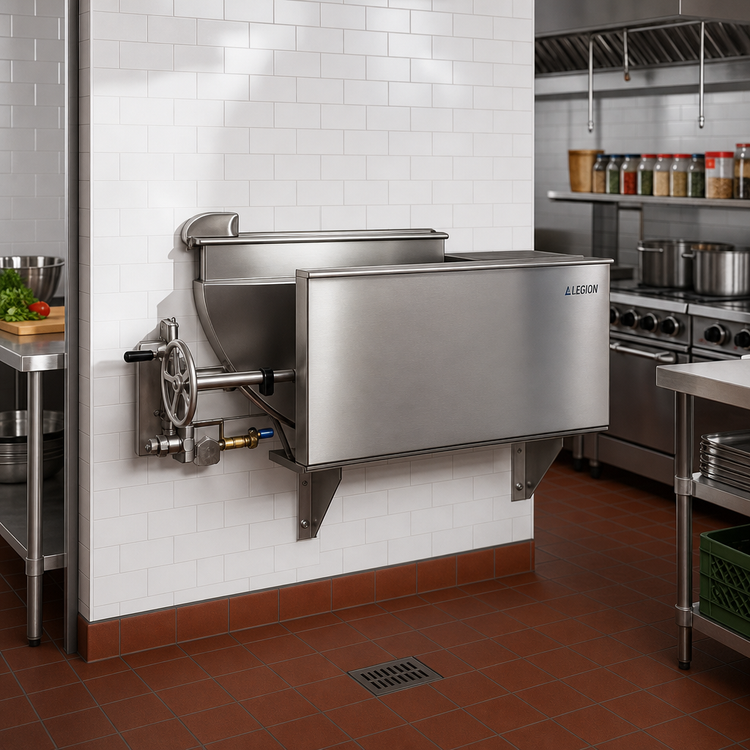

Legion TWSWC-40 Direct Steam Tilting Wall-Mount Kettle – 40 Gal

Built for demanding, high-volume kitchens, the Legion TWSWC-40 delivers 40 gallons of consistent, even heat in a space-saving wall-console design. Its seamless 304 stainless steel liner, full 30 psi steam jacket and self-locking worm-gear tilt mechanism make large-batch production safer, faster and easier than ever.

Performance & durability highlights

• Seamless deep-drawn 304 stainless steel kettle liner—no creases, no trapped food soil.
• 304L full jacket rated at 30 psi for rapid, uniform heat transfer.
• Manual hand-wheel with self-locking worm gears for smooth, controlled tilting.
• Reinforced stainless steel support consoles with rear plumbing connections protect service lines.
• Wall-console mount frees up valuable floor space and simplifies cleaning.
• Engineered and manufactured in Waynesboro, GA to meet ASME & NSF standards.

Standard equipment

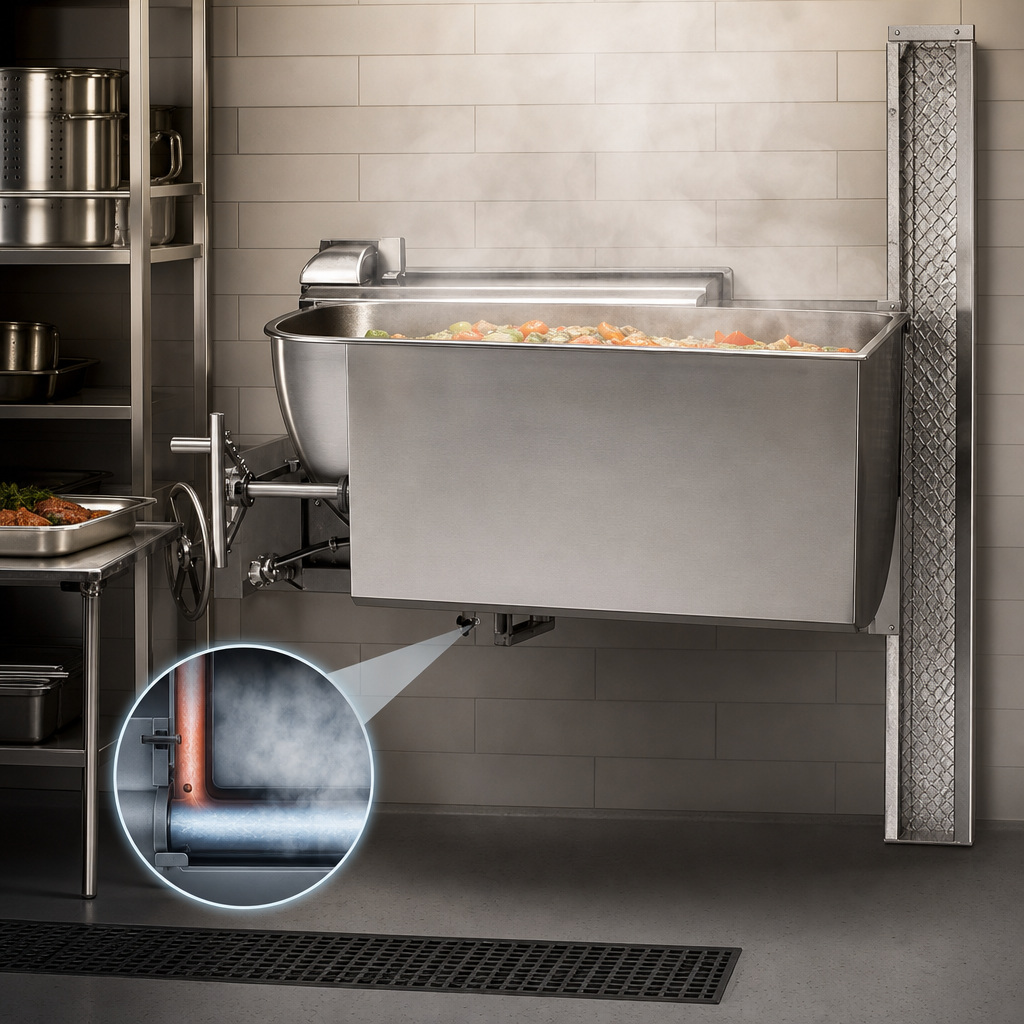

• Direct-steam, full-jacketed kettle body
• Factory-installed steam & condensate plumbing (rear connection)
• 304 stainless control console with integral mounting bracket
• ¾″ NPT steam inlet & ½″ NPT condensate outlet

Popular accessories (optional)

• Single or dual fill faucet with 12″ or 18″ swing nozzle
• 48″ flexible spray hose (vinyl or stainless)
• 2″ or 3″ draw-off valve assemblies
• Air eliminator & pressure-reducing valve kits
• Basket, tri-basket or nylon bag inserts for batch cooking
• Automatic water fill meter & two-speed mixer/agitator

Key specifications

Footprint & clearances
