Legion TWSWC-25 Steam Kettles
Description

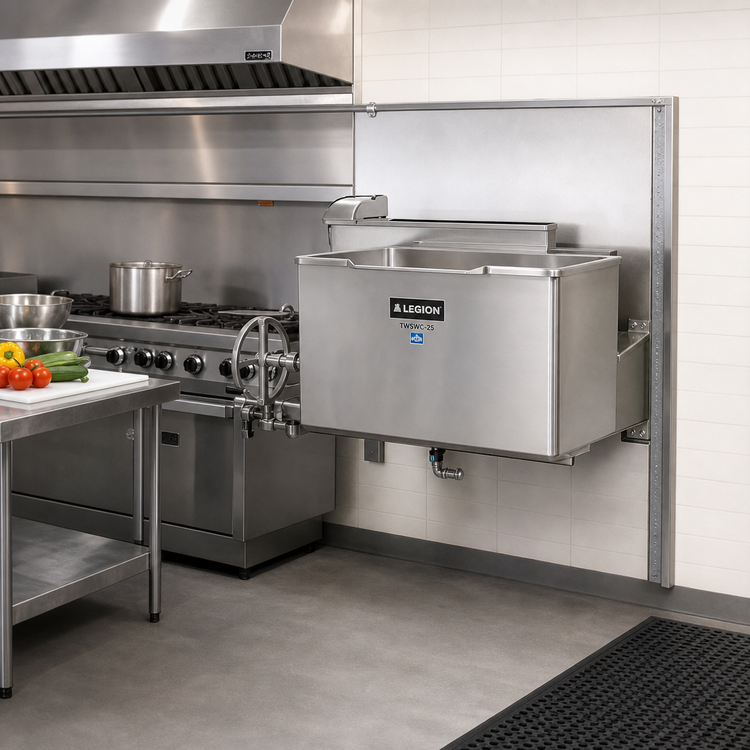

Legion TWSWC-25 Direct Steam Tilting Wall-Mount Kettle
25 gal / 95 L • Full Jacket • 30 psi • Made in USABuilt for performance in high-demand commercial kitchens, the Legion TWSWC-25 pairs efficient direct-steam heating with space-saving wall-console mounting. Its all-stainless construction, smooth worm-gear tilt and 30 psi operating pressure make this 25-gallon kettle a rock-solid choice for soups, sauces, stocks and more.
Key Features

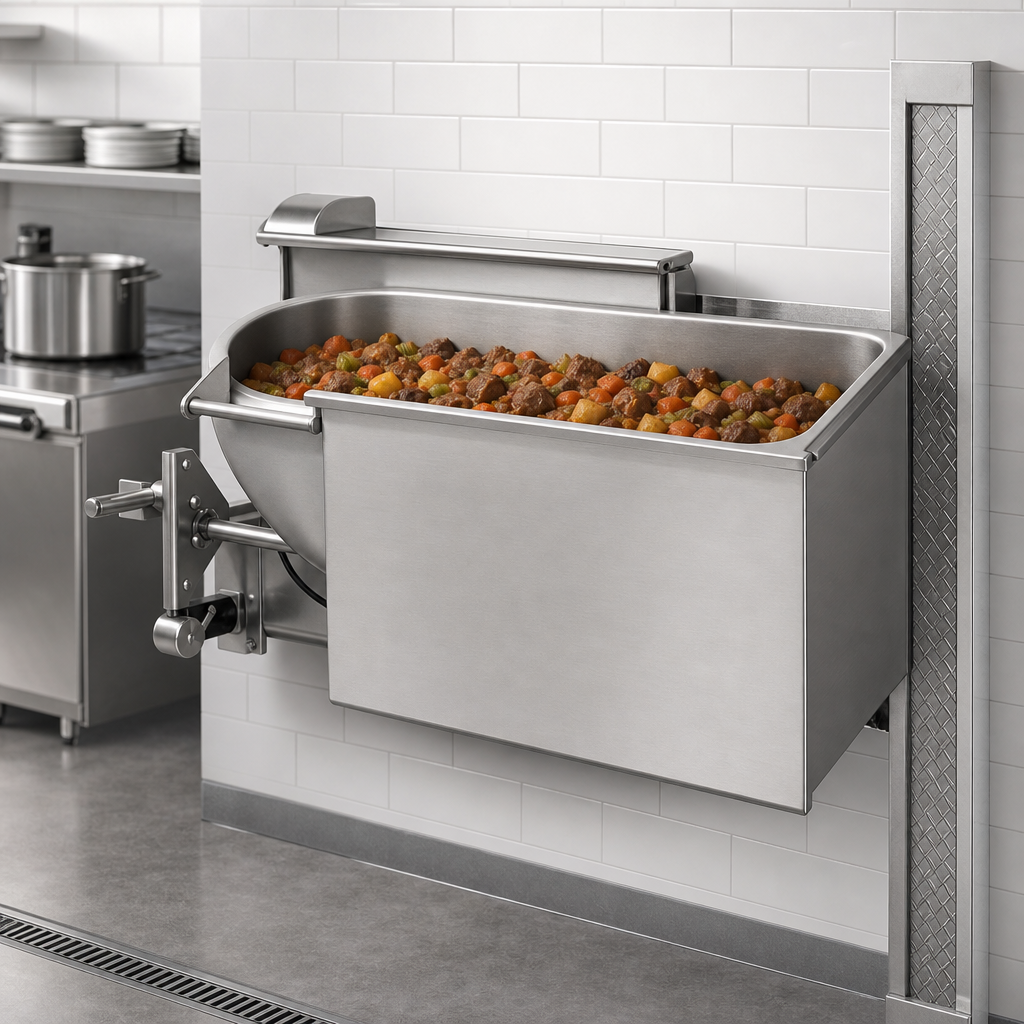

- 25-gallon (95 L) working capacity—perfect for medium-volume production.
- Seamless deep-drawn 304 stainless steel liner for maximum sanitation and easy cleaning.

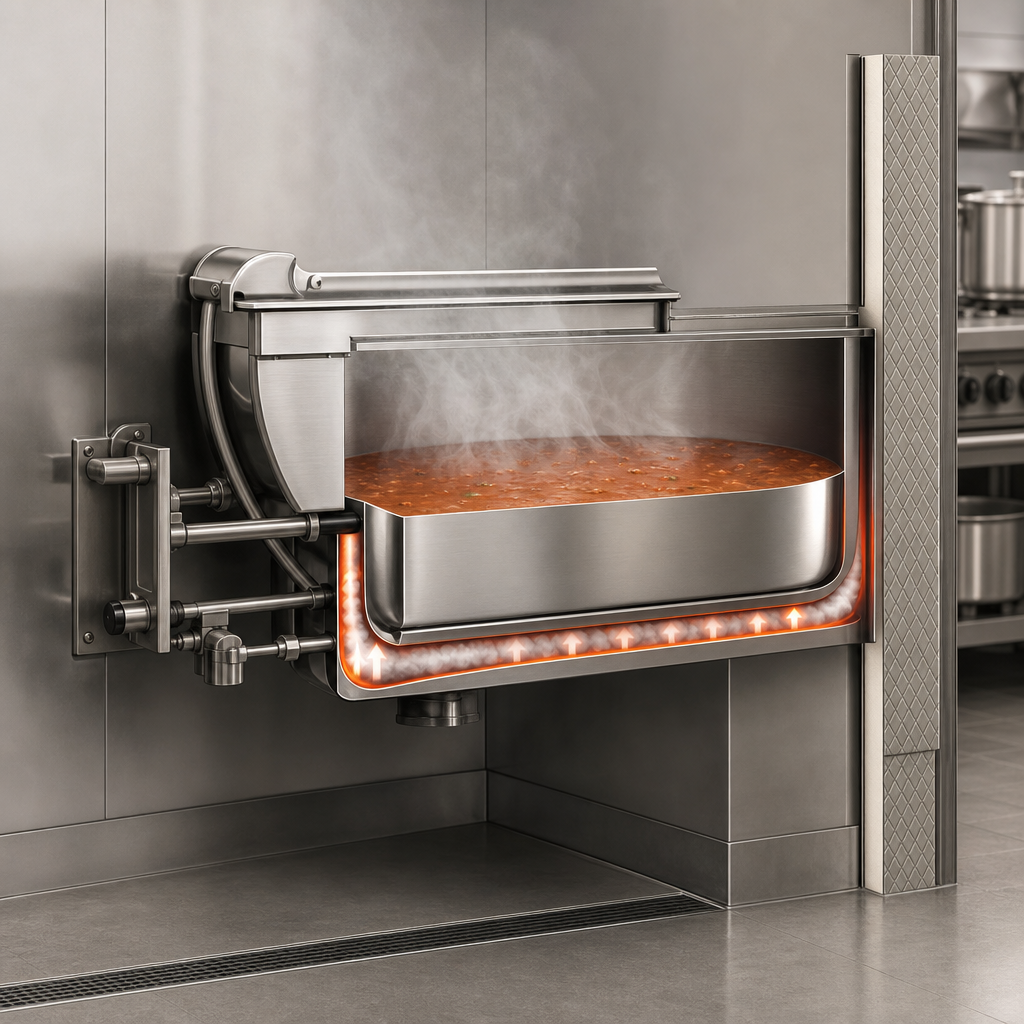

- 304L stainless full jacket rated to 30 psi delivers fast, even heat transfer with no hot spots.
- Self-locking worm-gear tilt mechanism provides precise, controlled pouring and prevents accidental tip-back.
- Wall-console mount frees floor space and positions the kettle at a comfortable working height.
- Stainless steel reinforced support consoles with rear ¾" NPT steam inlet & ½" NPT condensate outlet keep utilities out of the traffic flow.
- Factory-installed control console houses all connection plumbing for quick, clean hook-up.
- Engineered and manufactured in the USA; meets or exceeds ASME & NSF requirements.
Specifications
| Model | TWSWC-25 |
|---|---|
| Capacity | 25 gal / 95 L |
| Mounting style | Wall-console, dual stainless support consoles |
| Liner material | Seamless 304 stainless steel |
| Jacket material | Seamless 304L stainless, full jacket |
| Operating pressure | 30 psi (207 kPa) maximum |
| Tilt mechanism | Manual self-locking worm gear |
| Steam connections | ¾" NPT inlet (steam) / ½" NPT outlet (condensate) |
| Utilities supplied by | Direct steam (customer-supplied) |
| Compliance | ASME, NSF & other applicable standards |
| Country of origin | USA |
Popular Options & Accessories (sold separately)
- Single or double fill faucet with 12" or 18" swing nozzle & bracket
- 48" flexible spray hose (vinyl or stainless)
- 2" or 3" draw-off valves, nut driver tool & draw-off protection
- Air eliminator or pressure-reducing valve
- Two-speed mixer/agitator assembly
- Lift-off or actuator-assisted hinged cover
- Basket inserts, tri-basket kit, nylon bag with spreader ring
- Pour-lip pan holder & measuring strip
- In-wall carrier for secure mounting in masonry walls
Need a different capacity? Legion offers wall-mount tilting kettles from 20 – 100 gallons. Contact us for details or custom configurations.
