Legion TWSWC-20 Steam Kettles
Description

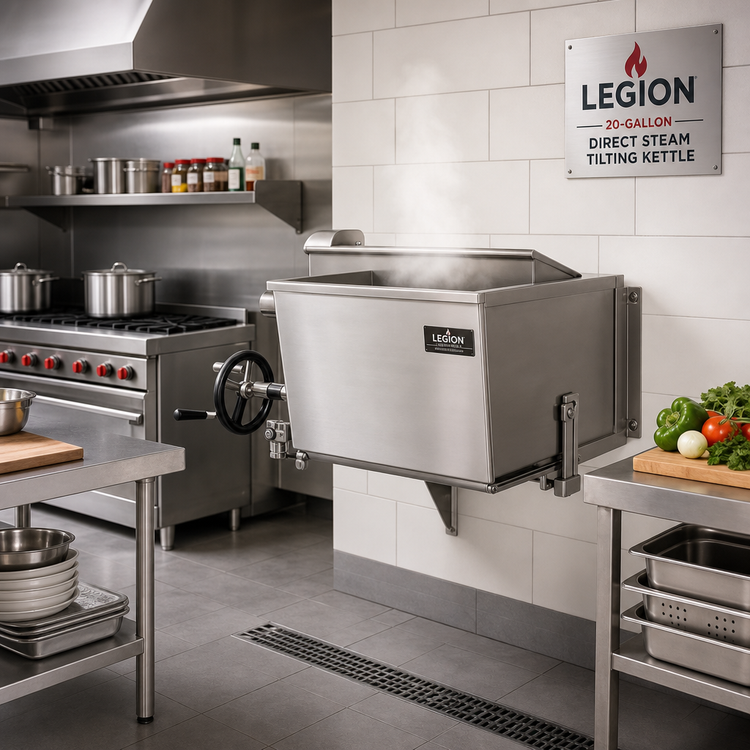

Legion TWSWC-20 Direct Steam Tilting Wall-Mount Kettle – 20 Gal.
Full-jacketed | 304 Stainless Steel | 30 psi Operating PressureBuilt for volume production and built to last, the American-made Legion TWSWC-20 gives you 20 gallons (76 L) of fast, even heating in a space-saving wall-console package. Its seamless 304 stainless kettle and full steam jacket provide exceptional thermal efficiency, while the self-locking worm-gear tilt lets one person safely pour every last drop.
Why you’ll love it
- Deep-drawn 304 stainless liner – crevice-free interior cleans in seconds and resists acids & salts.

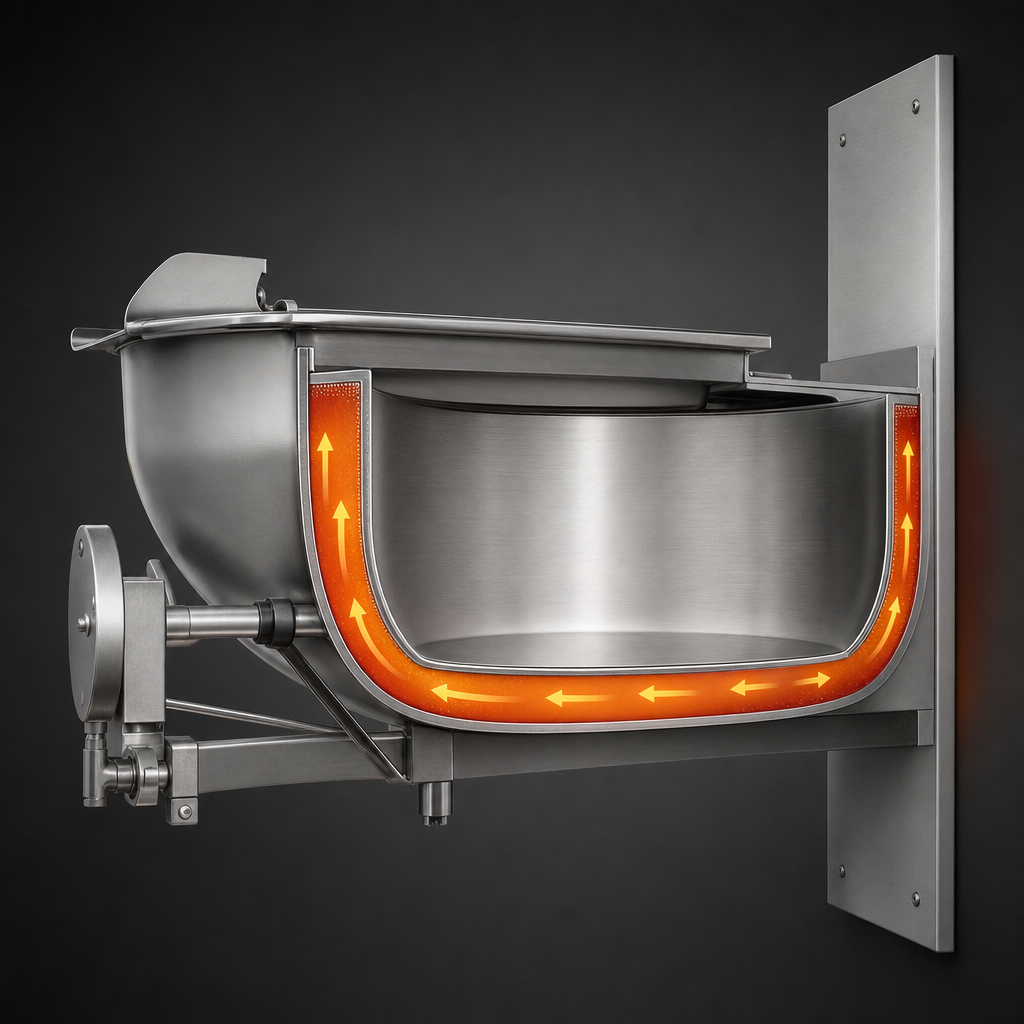

- 304L full jacket delivers surround-heat performance for reduced scorching and faster batch times.
- Wall-console mount frees valuable floor space and streamlines cleaning under the cookline.
- Self-locking worm-gear tilt holds any position for safe, controlled pouring.
- Reinforced stainless support consoles with rear NPT connections keep plumbing hidden and protected.

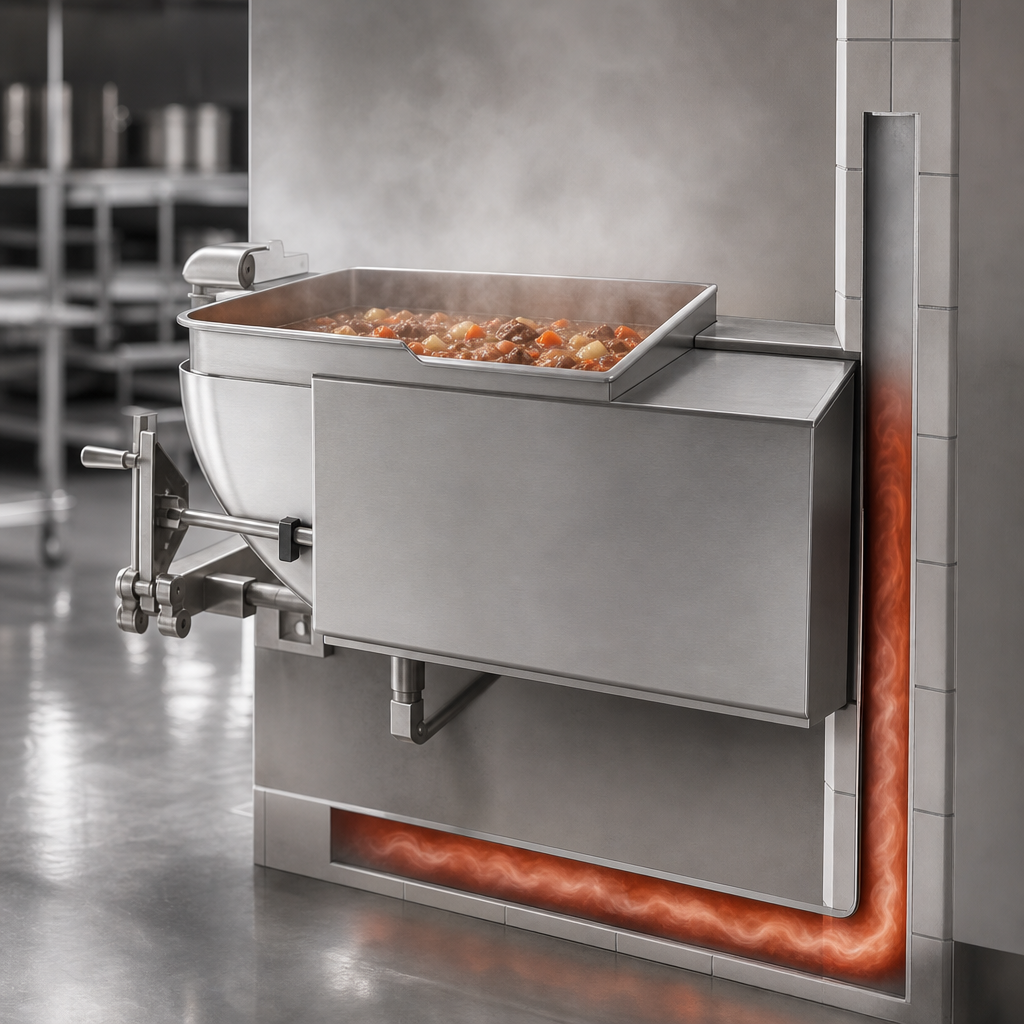

- 30 psi direct-steam rating handles today’s high-pressure boiler systems without modification.
- Made in the USA and built to meet or exceed ASME, NSF and other major approval standards.
Technical specifications
| Model | TWSWC-20 |
|---|---|
| Usable capacity | 20 gal. / 76 L |
| Operating pressure | 30 psi (206 kPa) direct steam |
| Construction | Seamless 304 stainless kettle liner with 304L full jacket & reinforced stainless console boxes |
| Tilt mechanism | Manual, self-locking worm gear with balanced handle |
| Steam inlet / condensate outlet | ¾ in. NPT (inlet) / ½ in. NPT (outlet) |
| Overall width (A) | 23 in. (584 mm) |
| Overall depth (D) | 21.5 in. (546 mm) |
| Overall height (C) | 37 in. (940 mm) |
| Approx. ship weight | Contact factory |
| Agency compliance | ASME, NSF & applicable UL/ETL requirements |
| Country of origin | USA |
Factory options & accessories
- Single or dual fill faucet with 12 in. or 18 in. swing nozzle
- 48 in. vinyl or stainless spray hose assembly
- Air eliminator or pressure reducing valve
- 2 in. or 3 in. draw-off valve (compression or ball type) with nut driver
- Automatic water-fill meter
- Lift-off or actuator-assisted cover
- Basket inserts, pour-lip pan holder, measuring strip & kettle care kit
See price list or speak with your Legion representative for a complete option menu.
Warranty
1-year parts & labor (12 months from installation / 15 months from ship date), with extended coverage available.
