Legion TWSWC-100 Steam Kettles
Description
Legion TWSWC-100 Direct Steam Tilting Wall-Mount Kettle
100 gal / 379 L • Seamless 304 Stainless Steel • Full Jacket • 25 psiEngineered for the busiest commissaries, hospitals and institutional kitchens, the Legion TWSWC-100 delivers unbeatable batch capacity, rapid heat-up and rock-solid reliability— all while saving valuable floor space thanks to its wall-console mount design.
Performance You Can Count On

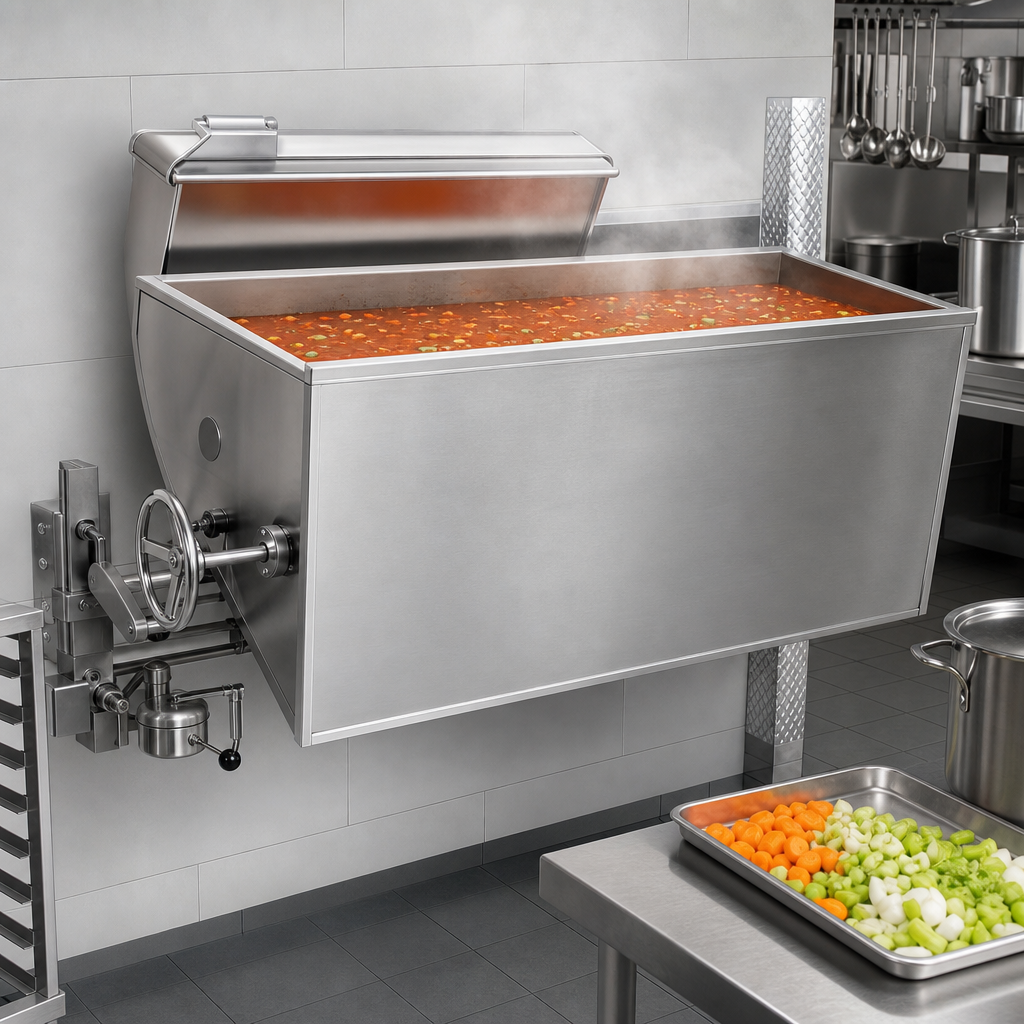

- Massive 100-gallon (379 L) working capacity—ideal for stocks, soups, sauces and braises.

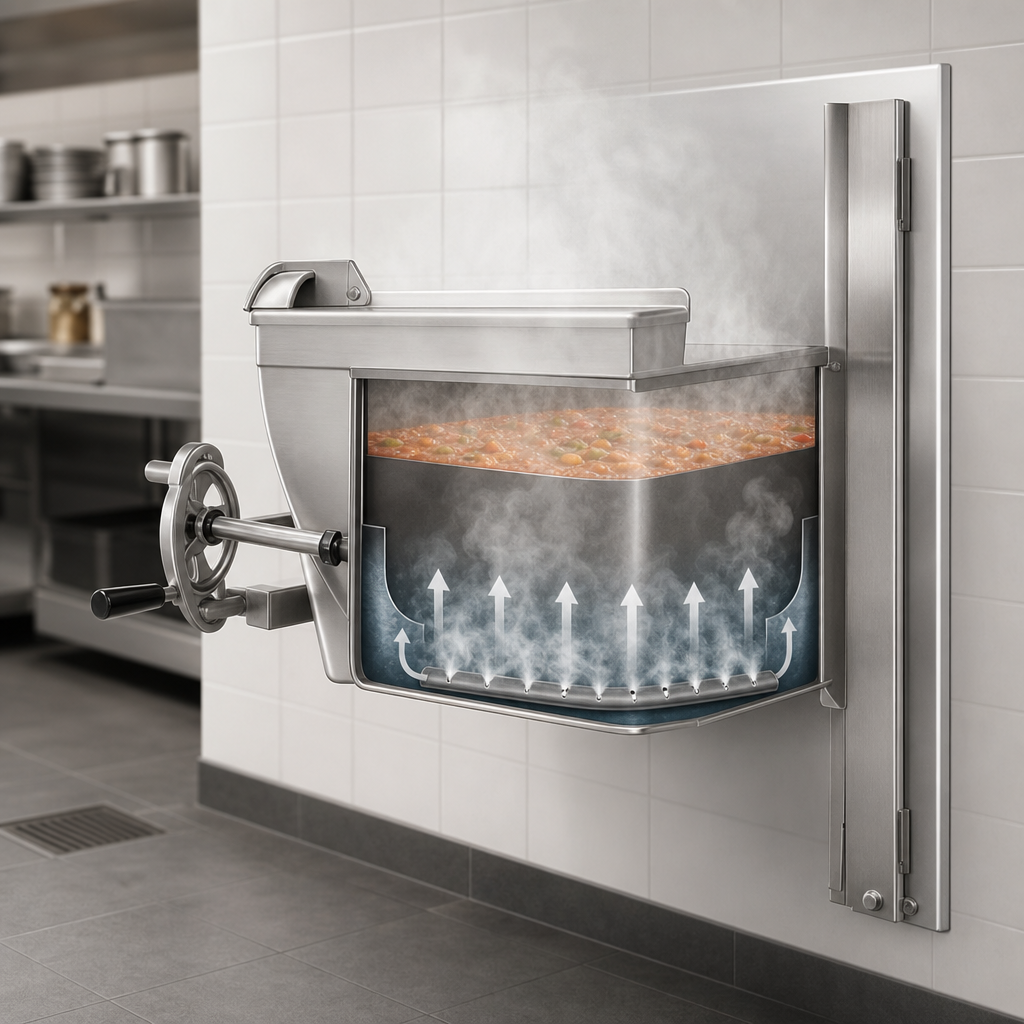

- Full-jacket, direct-steam heating envelops the entire kettle for lightning-fast, even cooking.
- Deep-drawn, seamless 304 SS liner eliminates crevices that can harbor food soil.
- 304L stainless jacket and exterior stand up to harsh chemicals and daily steam cleaning.
- Self-locking worm-gear tilt mechanism lets one operator safely pour with fingertip control.
- Reinforced stainless steel console boxes protect controls & plumbing; all connections exit the rear to keep the cookline clear.

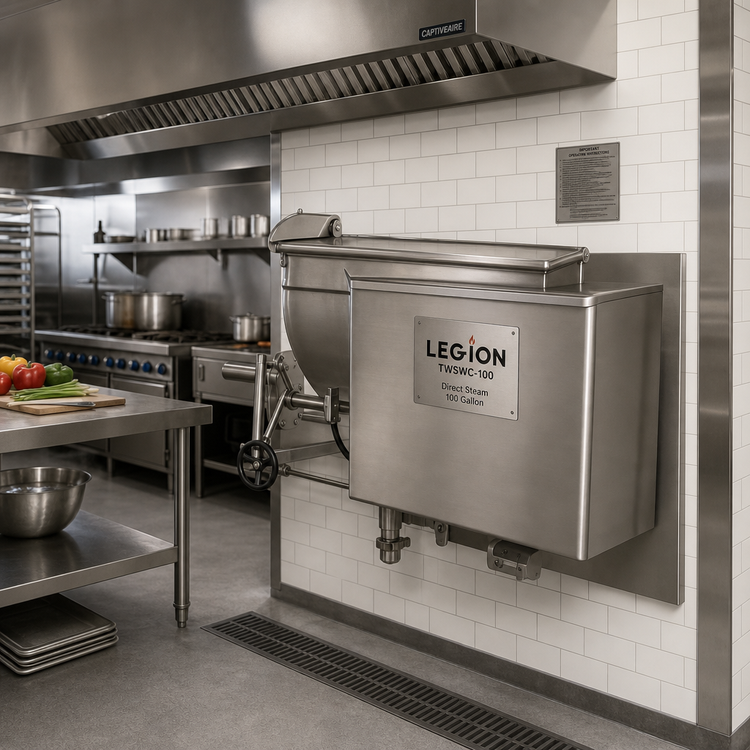

- Wall-mount configuration frees up floor space while providing sturdy, code-compliant support.
- Built in the USA and manufactured to meet or exceed ASME, NSF, UL and other applicable standards.
Technical Specifications
| Model | TWSWC-100 |
|---|---|
| Capacity | 100 gal / 379 L |
| Operating Pressure | 25 psi direct steam |
| Construction | Seamless 304 SS liner & 304L full jacket |
| Tilt Mechanism | Manual hand-crank, self-locking worm gear |
| Mounting Style | Wall-console with stainless reinforced support consoles |
| Steam Inlet | ¾″ NPT (rear) |
| Condensate Outlet | ½″ NPT (rear) |
| Interior Diameter (A) | 44.0″ / 1118 mm |
| Interior Depth (B) | 22.5″ / 572 mm |
| Minimum Pour Path (X) | 32.8″ / 834 mm |
| Overall Width (T) | 49.5″ / 1257 mm |
*Dimensions per Legion drawing Rev 113. Allow additional clearance for service and optional accessories.
Popular Options & Accessories (sold separately)
- 2″ or 3″ draw-off valve kits (compression or ball type)
- Single or dual fill faucets with 12″ / 18″ swing nozzles
- 48″ flexible spray hose assembly (vinyl or stainless)
- Automatic water-metering system
- Lift-off or actuator-assisted one-piece covers
- Basket, tri-basket or nylon bag inserts & pour-lip pan holder
- In-wall carrier kit for additional structural support
From high-volume prep to delicate simmering, the Legion TWSWC-100 keeps your production line moving smoothly—batch after batch, year after year.
