Legion TWP-80 Steam Kettles
Description

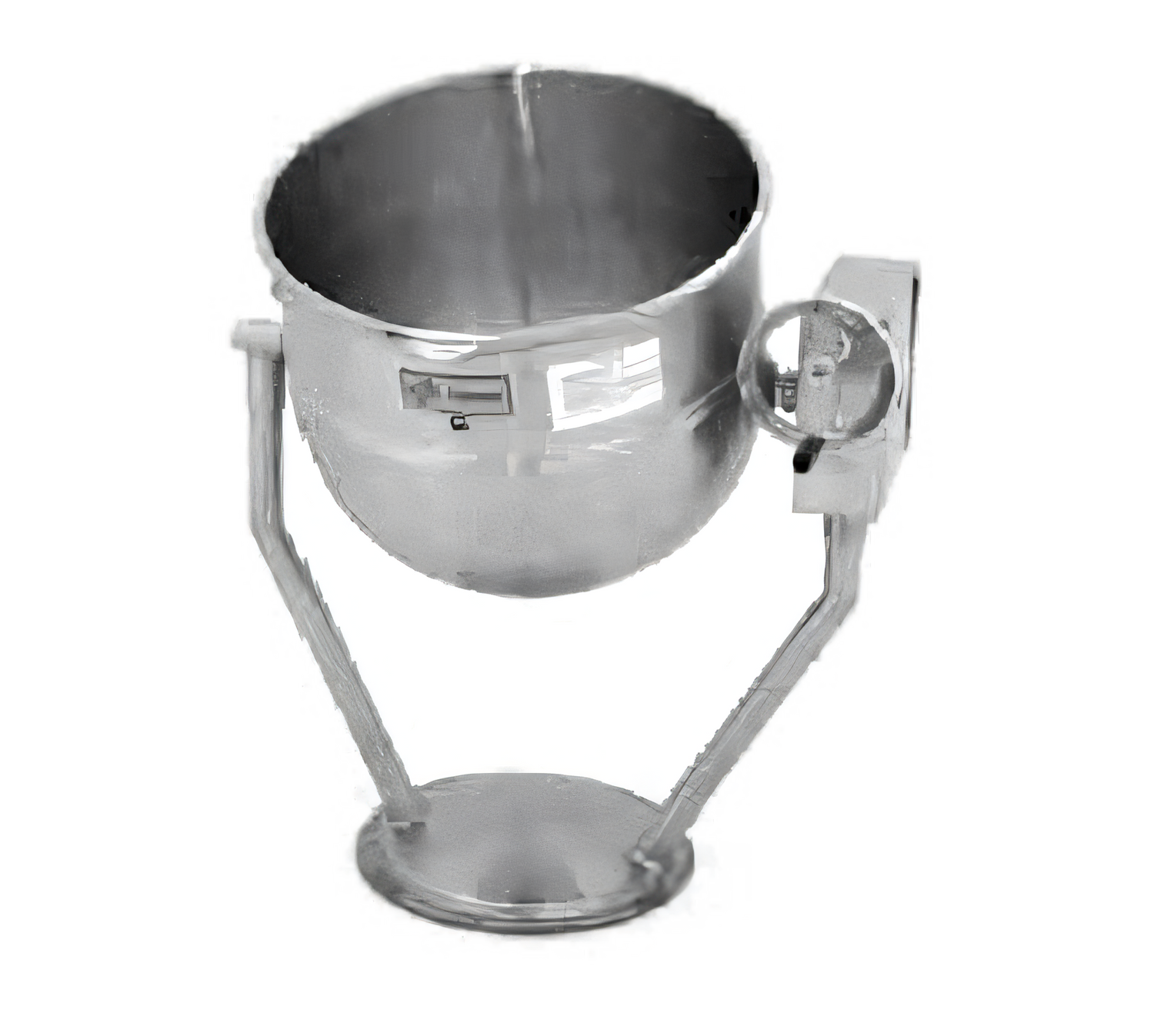

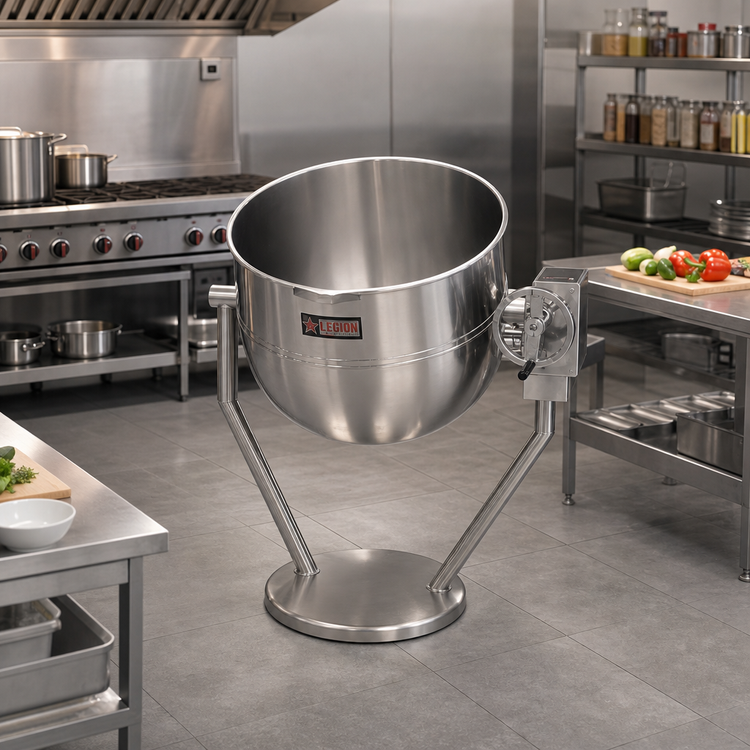

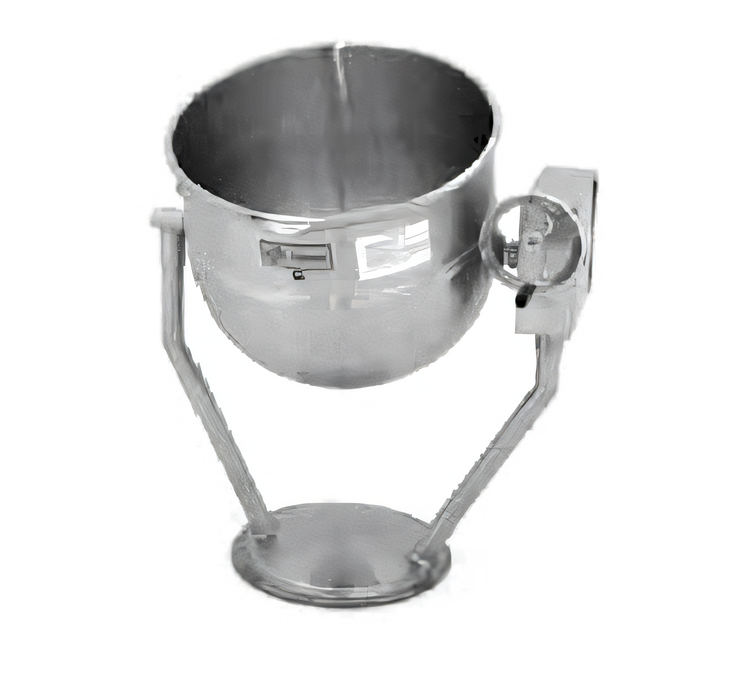

Legion TWP-80 Direct Steam Tilting Kettle – 80 gal / 303 L
2/3-Jacketed • Pedestal Mounted • 30 psi Operating PressureEngineered and manufactured in the USA, the Legion TWP-80 brings rock-solid reliability to high-volume cooking. An all-stainless, deep-drawn kettle body delivers unmatched sanitation and heat transfer, while the self-locking worm gear tilt lets one operator pour heavy batches with total confidence.
Why Choose the TWP-80

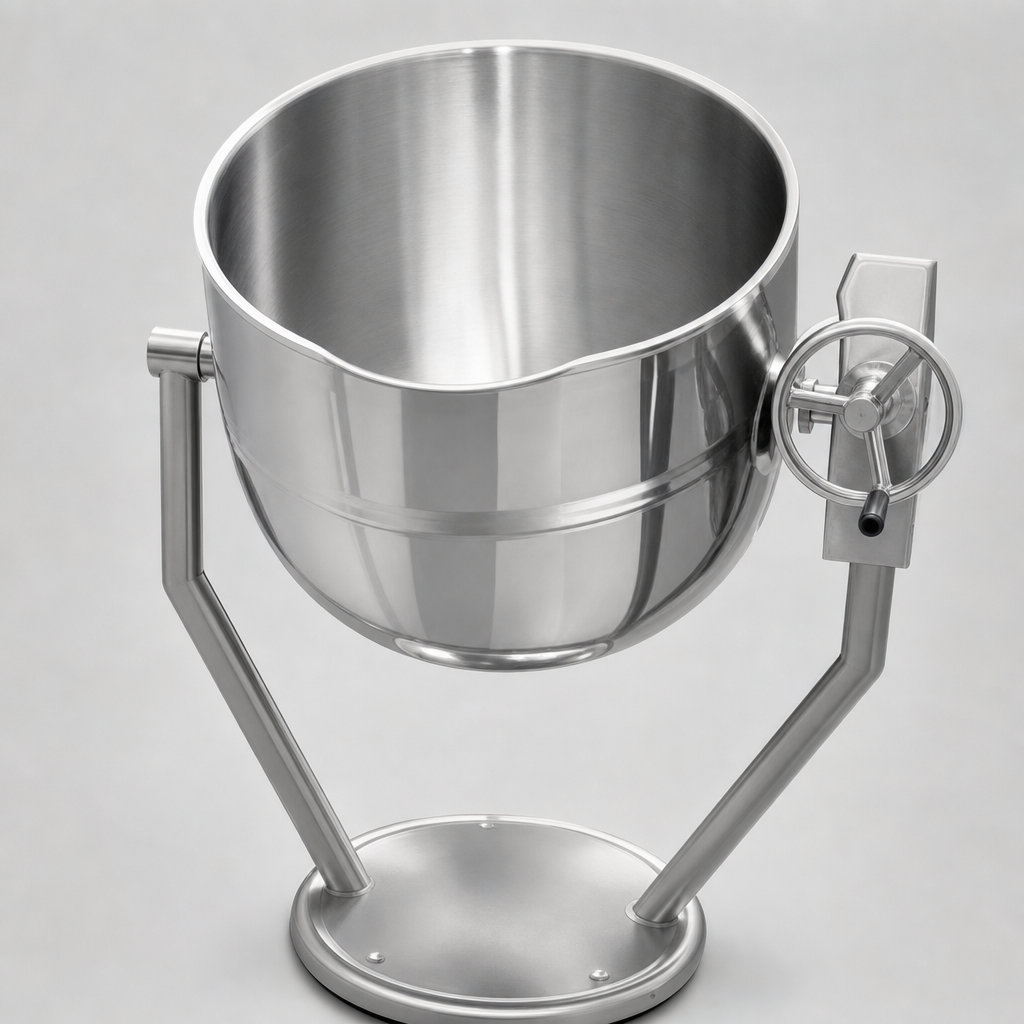

- Seamless 304 stainless steel liner eliminates crevices that can trap food soil.
- 304L stainless, 2/3 jacket ensures rapid, even heating up the sidewalls—not just the bottom.
- Self-locking worm gear tilt mechanism provides smooth, controlled pouring at any angle.
- Reinforced 304 stainless gear box built for the constant demands of institutional kitchens.
- Pedestal base & 2" tubular support frame resist corrosion and simplify floor clean-up.
- 30 psi design pressure pairs easily with on-site boiler or building steam.
- NSF-, ASME- & CSA-compliant construction for worry-free code approvals.
- Made in the USA for shorter lead times and readily available replacement parts.
Technical Specifications

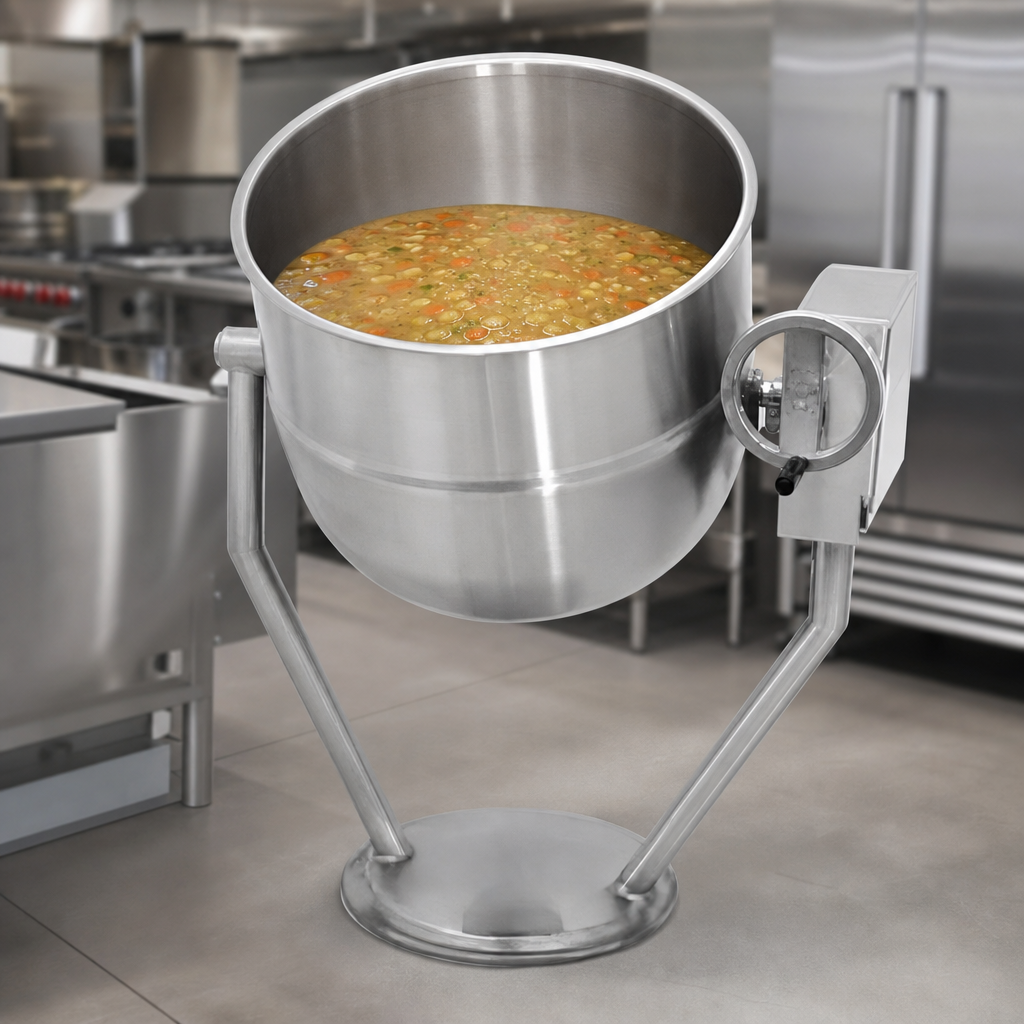

| Capacity | 80 gal | 303 L |
|---|---|
| Construction | Seamless 304 stainless liner & 304L stainless 2/3 jacket |
| Operating Pressure | 30 psi (2.07 bar) steam |
| Tilt System | Self-locking worm gear with 304 stainless gear box |
| Mounting | Pedestal base with 2" tubular stainless support frame |
| Steam Connections | ¾" NPT steam inlet & outlet |
| Overall Dimensions* |
A 32.5" | B 27.6" | C 43.4" D 22.0" | F 53.3" | X (pour path) 34.4" |
| Net Weight | Contact factory (varies with option package) |
*Refer to the factory drawing for additional clearances and piping locations.
Factory-Installed Options & Accessories
- 2" or 3" draw-off valve with compression or ball-type fitting
- Single or double fill faucet with 12"/18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Automatic water filling meter
- Lift-off or actuator-assisted cover
- Perforated basket/strainer, tri-basket or nylon bag insert
- Air eliminator or pressure reducing valve for high-pressure steam lines
- Lockable lid & reinforced bar rim for correctional facilities
Warranty & Support
Every Legion kettle ships with a 12-month parts & labor warranty (15 months from ship date). Extended coverage is available—ask our team for details.
Looking for CAD blocks, plumbing rough-ins or a custom option not listed here? Our product specialists are ready to help.
