Legion TWP-60 Steam Kettles
Description

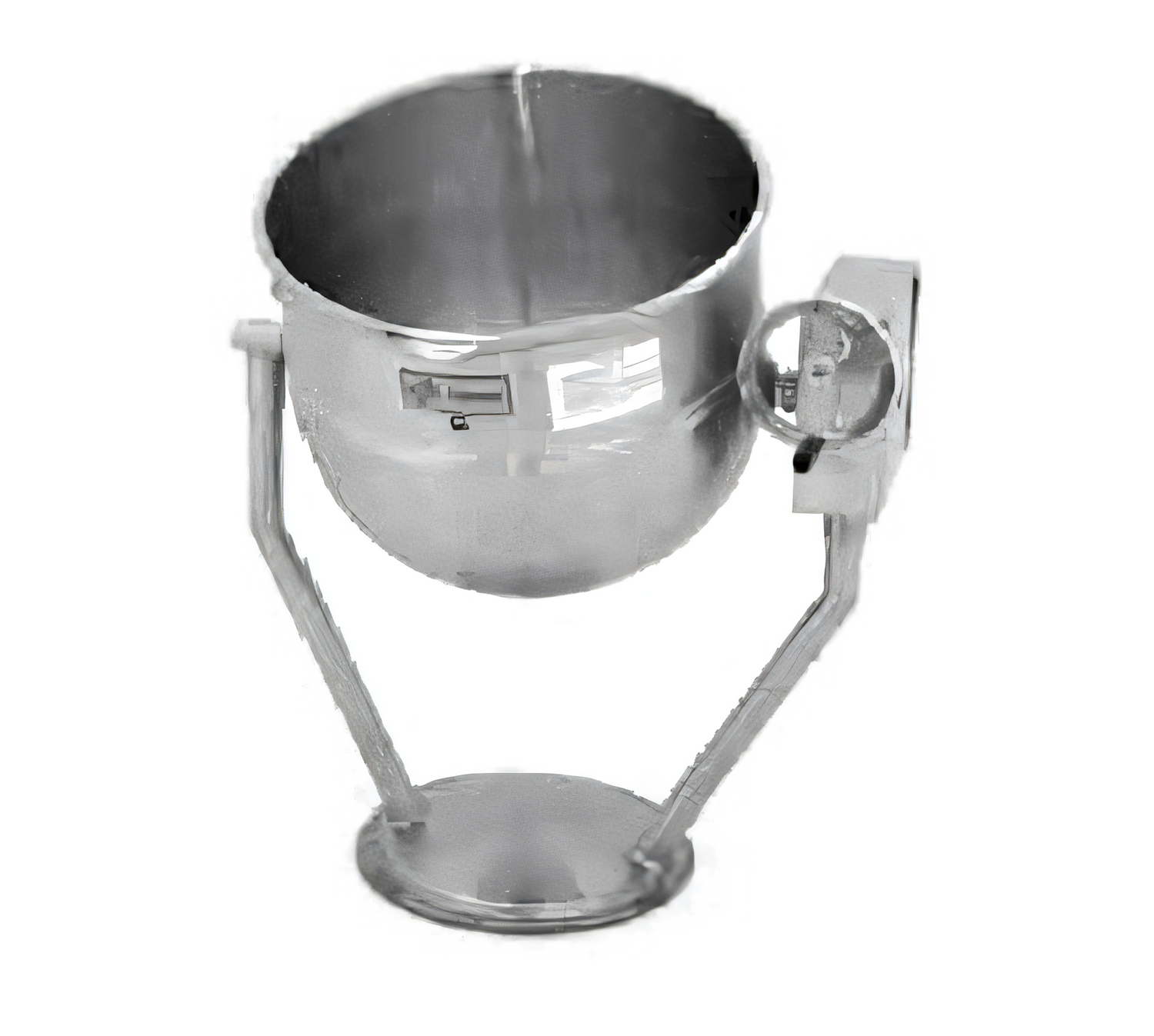

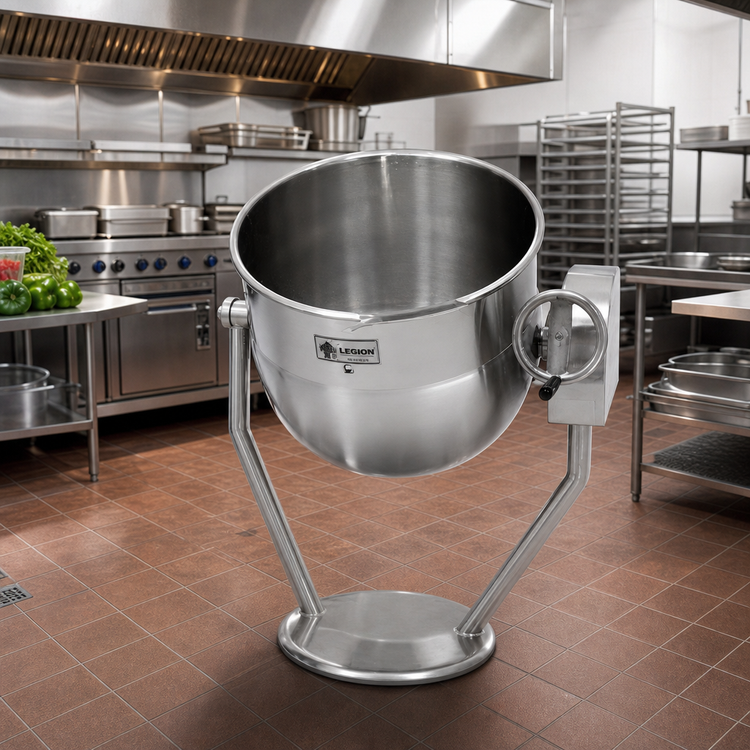

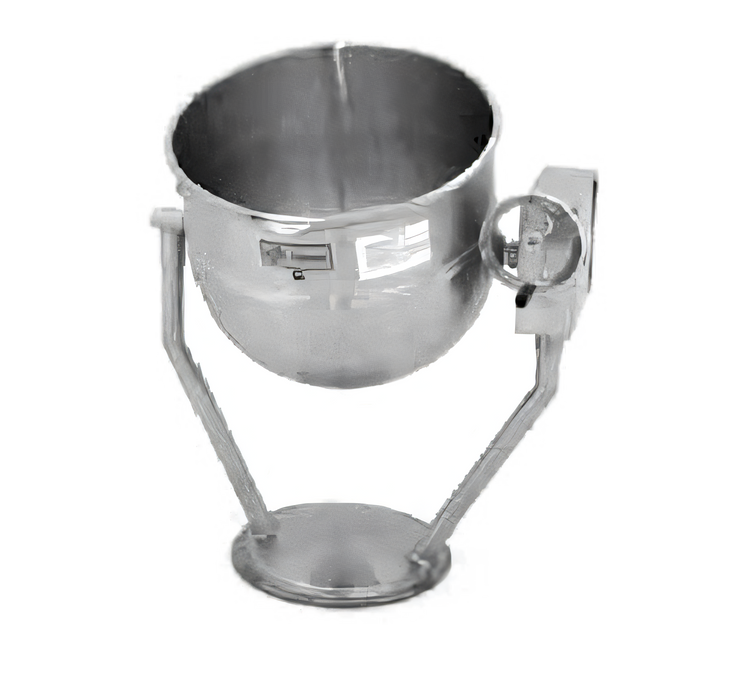

Legion TWP-60 Direct-Steam Tilting Kettle – 60 gal / 227 L
2/3 Jacketed • 304 Stainless Steel • Pedestal Mounted • Made in USABuilt for the high-volume, high-demand commercial kitchen, the Legion TWP-60 delivers fast, even steam-powered cooking with the strength and reliability of all-stainless construction. Its precision worm-gear tilt and rock-solid pedestal base make pouring safe and effortless, while the seamless deep-drawn kettle body cleans in seconds and resists the toughest kitchen conditions.
Standard Features

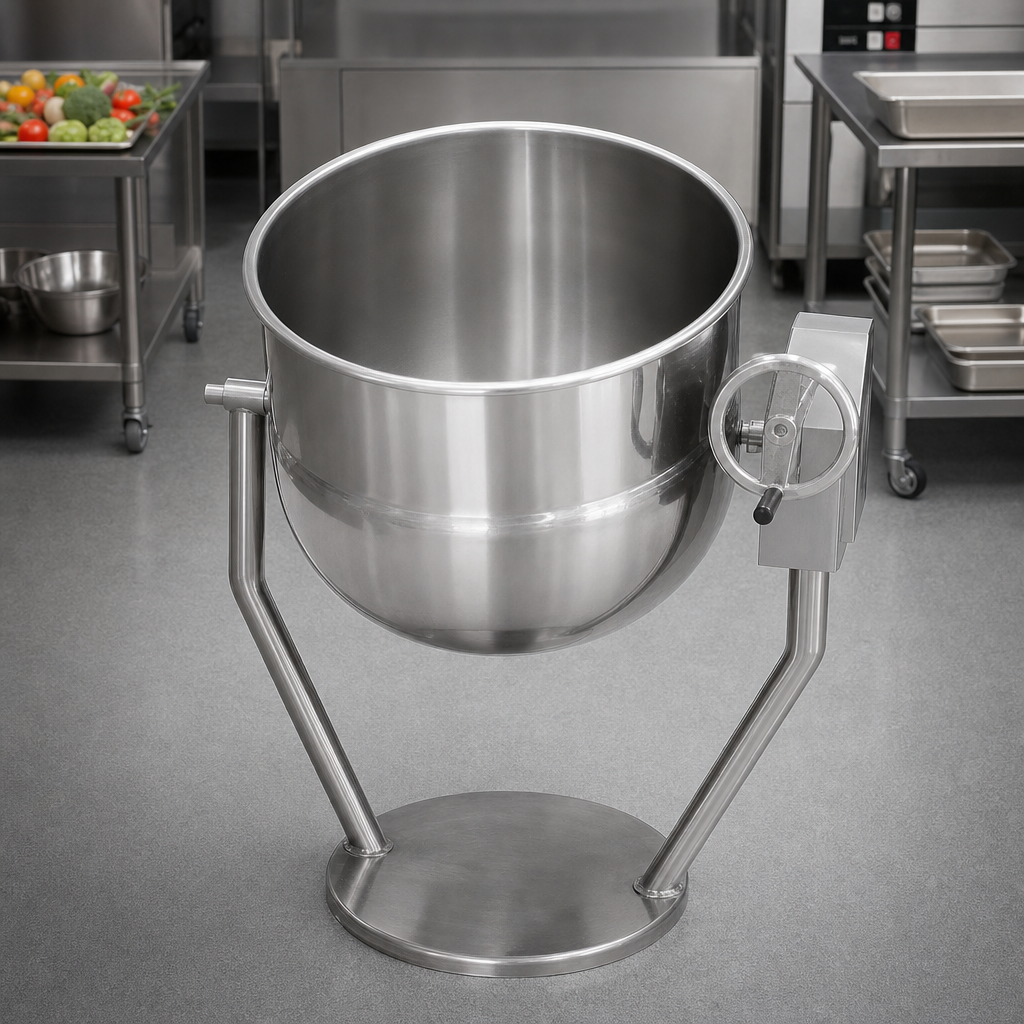

- 60 gal (227 L) working capacity – ideal for soups, sauces, pasta, stocks & braises

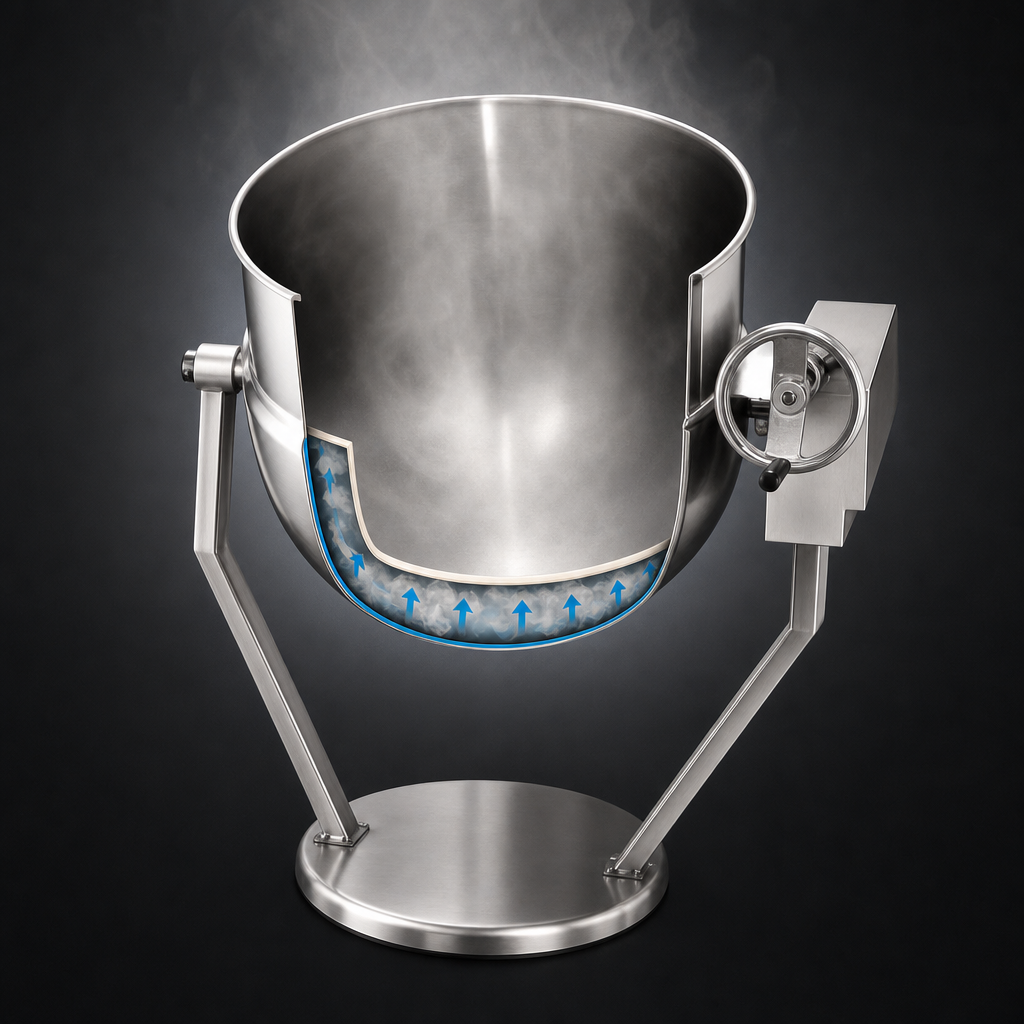

- 2/3 steam jacket delivers rapid, uniform heat transfer
- Seamless deep-drawn 304 stainless kettle liner – no welds, no pitting
- 304L stainless jacket, ASME stamped for 30 psi operating pressure
- Self-locking worm-gear tilt with reinforced 304 stainless gear box – smooth 90° pour
- 2" tubular 304 stainless support frame & pedestal base – maximum stability, easy floor cleaning
- Right-side control console for safe, ergonomic operation
- NSF listed & built in the USA to stringent ASME quality standards
Popular Options & Accessories (Sold Separately)
- Single or dual fill faucets with 12" or 18" swing nozzles
- 48" flexible spray hose (vinyl or stainless)
- Automatic water-fill meter
- 2" or 3" draw-off valves with perforated disc strainers
- Lift-off or actuator-assisted one-piece cover
- Tri-basket or single basket inserts, nylon bag kits & measuring strips
- Higher pressure & air-eliminator valve packages
Technical Specifications
| Model | TWP-60 |
|---|---|
| Capacity | 60 gal / 227 L |
| Operating Pressure | 30 psi (207 kPa) |
| Jacket Coverage | 2/3 (side & bottom) |
| Construction | 304 stainless liner & exterior, 304L stainless jacket |
| Tilt Mechanism | Self-locking worm gear, 90° dump angle |
| Steam Inlet / Outlet | ¾" NPT inlet / ½" NPT condensate outlet |
| Overall Width (F) | 49.6 in (1260 mm) |
| Overall Height (C) | 41.5 in (1054 mm) |
| Minimum Pour Path (X) | 31.5 in (800 mm) |
| Pedestal Footprint (O × P) | 25.9 in × 22.5 in (658 mm × 572 mm) |
| Compliances | ASME, NSF |
| Origin | Waynesboro, Georgia USA |
Backed by Legion’s standard 12-month parts & labor warranty (15 months from ship date). Extended coverage available – see details.
