Legion TWP-50 Steam Kettles
Description

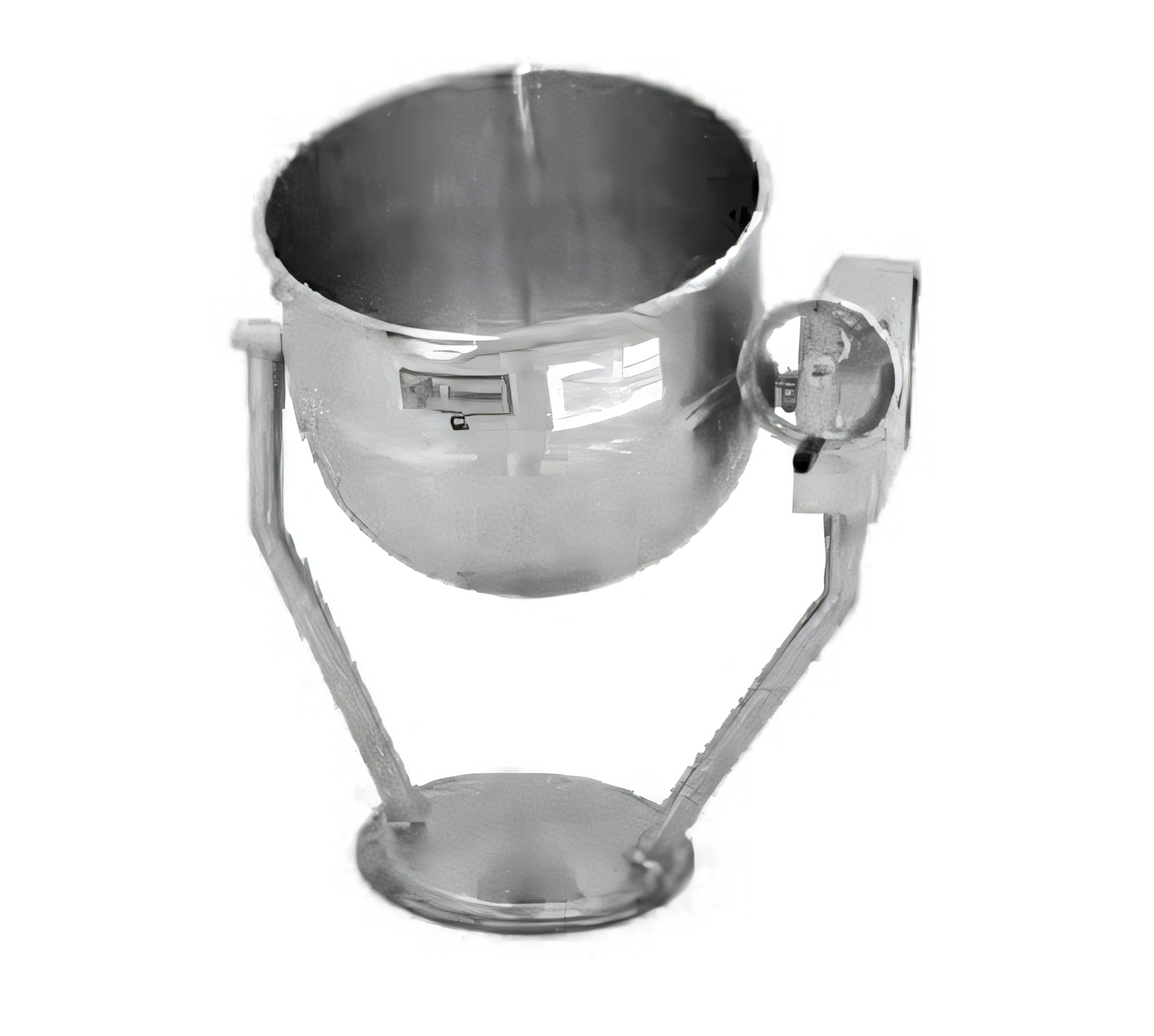

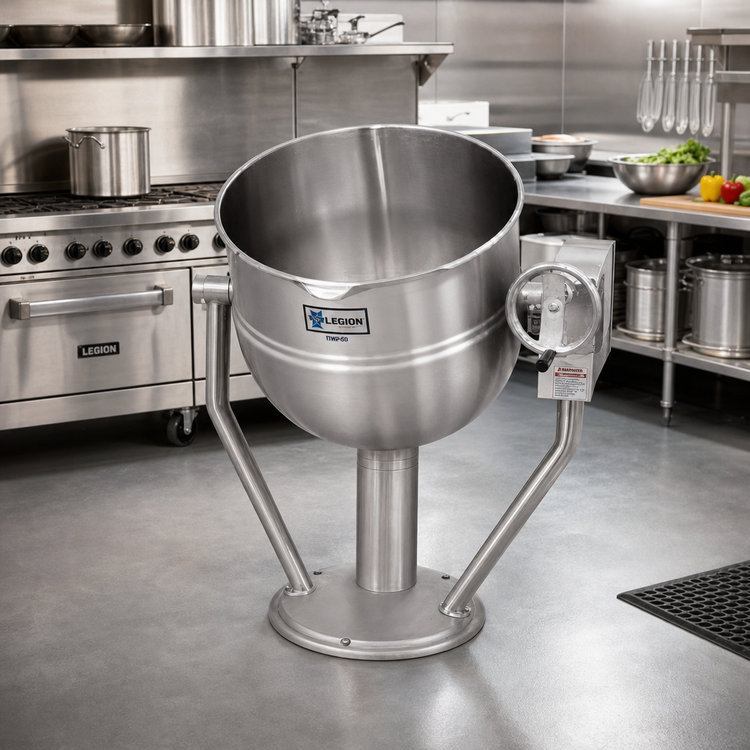

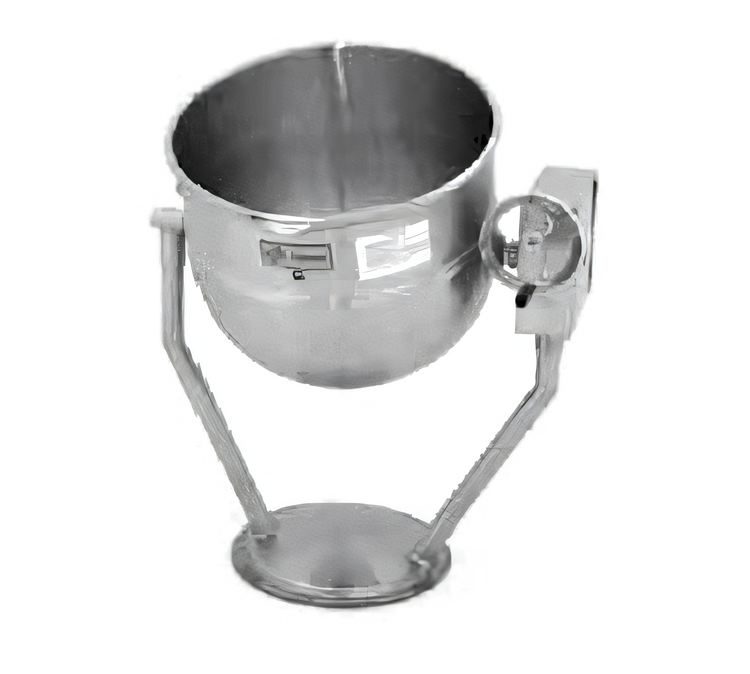

Legion TWP-50 50-Gallon Direct Steam Tilting Kettle
2/3 Jacket • 304 Stainless Steel • 30 psi Operating Pressure • Made in USAEngineered for heavy-duty, high-volume production, the Legion TWP-50 combines fast, even direct-steam heating with a smooth self-locking tilt mechanism. Produce up to 189 litres of perfectly simmered soups, sauces, stocks and more—then pour with confidence and control.
Key Features

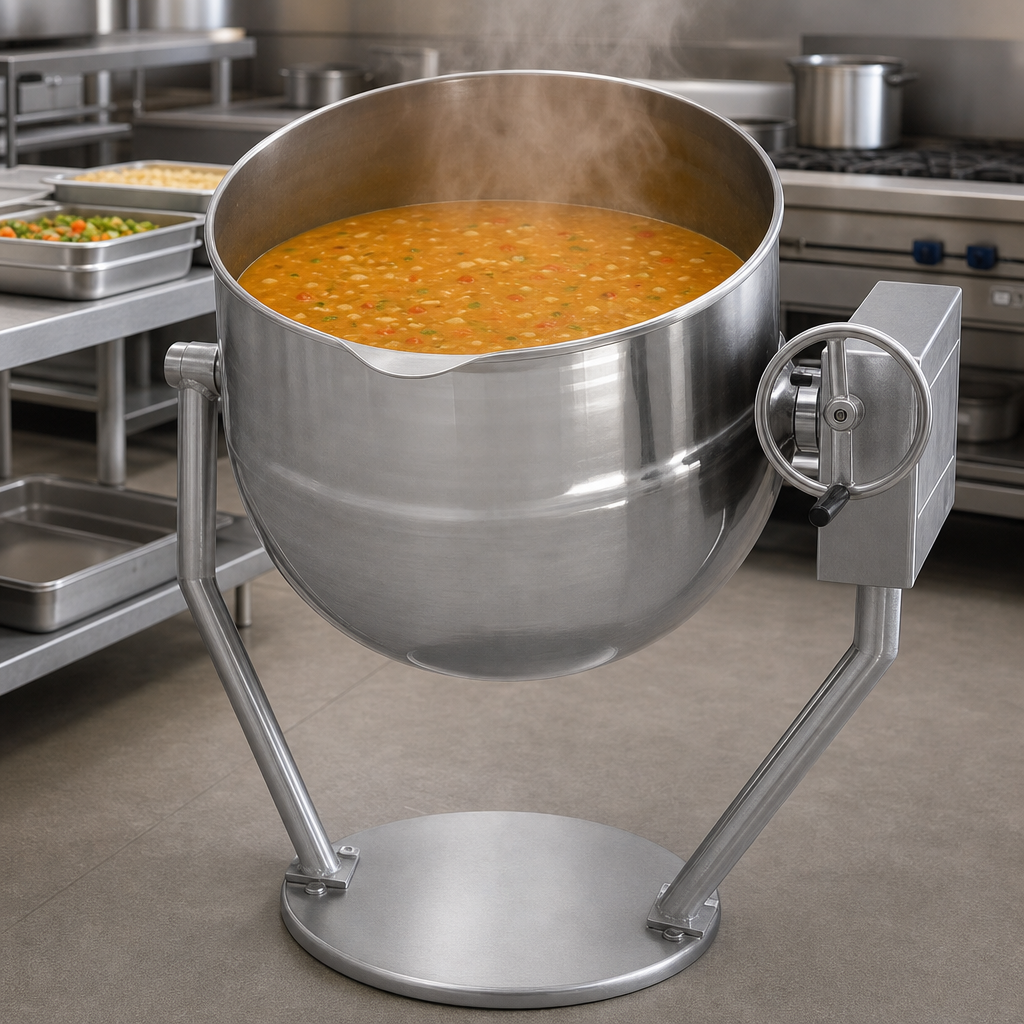

- 50-gallon / 189 L capacity for medium-to-large batch cooking
- Seamless deep-drawn 304 stainless steel kettle liner—no welds, no crevices, easier cleaning

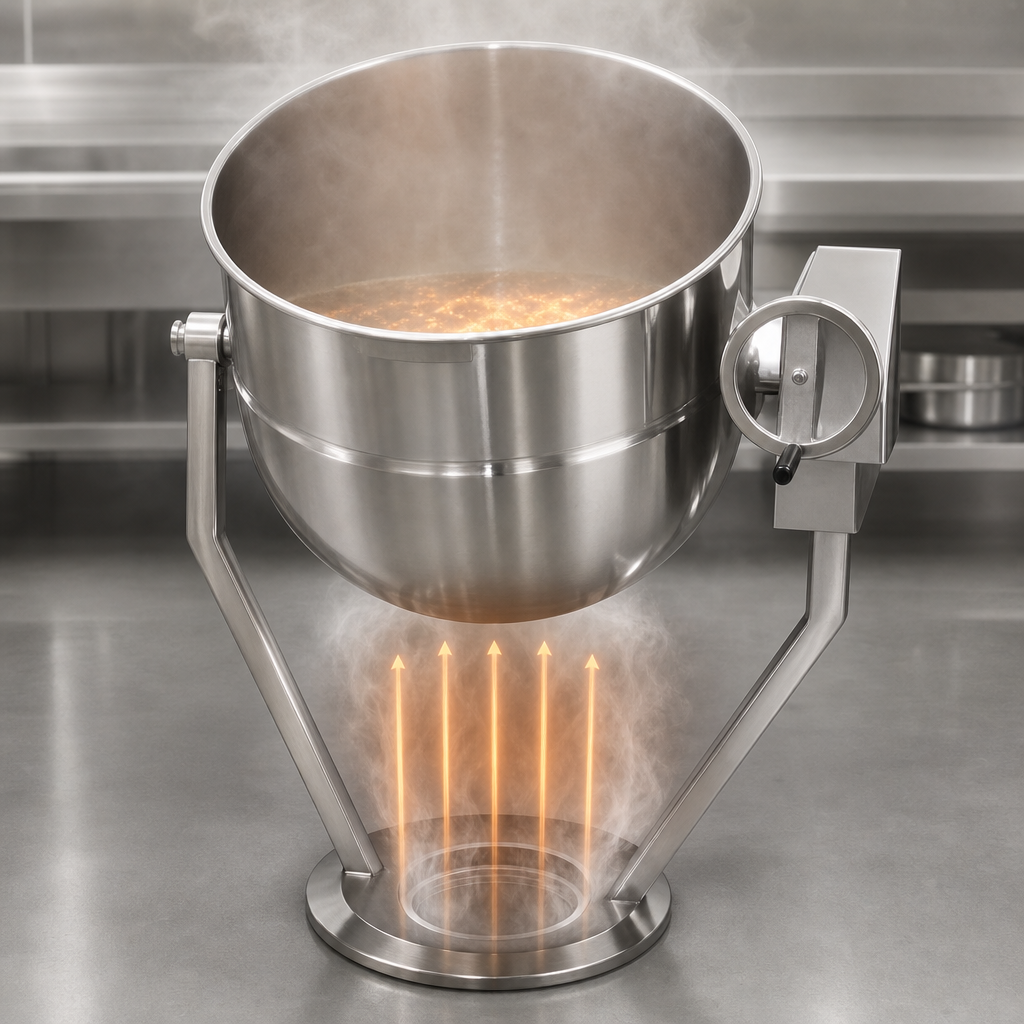

- 2/3 jacketed body delivers efficient, uniform heating with 30 psi direct steam
- Self-locking worm-gear hand tilt offers smooth, precise pouring through a full 100 ° range
- Reinforced 304 stainless gearbox and control console built for years of commercial use
- Heavy 2" tubular stainless steel support frame and pedestal base for rock-solid stability
- Balanced pour lip minimises drips, reduces waste and keeps your floor safer
- Manufactured in Waynesboro, Georgia to meet or exceed ASME & NSF standards
Technical Specifications
| Model | TWP-50 |
|---|---|
| Capacity | 50 gal (189 L) |
| Operating Pressure | 30 psi (2 bar) max. |
| Jacket Coverage | Two-thirds of kettle body |
| Interior Liner | Seamless 304 stainless steel, sanitary finish |
| Exterior Jacket | 304L stainless steel, deep-drawn |
| Tilt Mechanism | Self-locking worm gear, manual hand wheel |
| Support Structure | 2" tubular 304 stainless frame with pedestal base |
| Steam Inlet | 3/4" NPT |
| Condensate Outlet | 1/2" NPT |
| Approx. Overall Height (F) | 49.6 in (1260 mm) |
| Approx. Width (A) | 29.5 in (750 mm) |
| Approx. Depth (C) | 38.3 in (973 mm) |
Popular Options & Accessories
- Single or double fill faucet with 12" or 18" swing nozzle
- 48" flexible spray-rinse hose (vinyl or stainless)
- Lift-off stainless steel kettle cover
- 2-speed mixer/agitator assembly
- 2" or 3" draw-off valve with perforated disk strainer
- Pour-lip pan holder assembly
- Kettle care & cleaning kit
- Tri-basket or nylon bag inserts for pasta & vegetables
Covered by Legion’s standard 12-month parts & labour warranty from installation (15 months from ship date). Extended coverage is available—ask your food-service consultant for details.
Need a different capacity or custom configuration? Legion offers sizes from 20-100 gal and a wide range of speciality options made to order.
