Legion TWP-40 Steam Kettles
Description

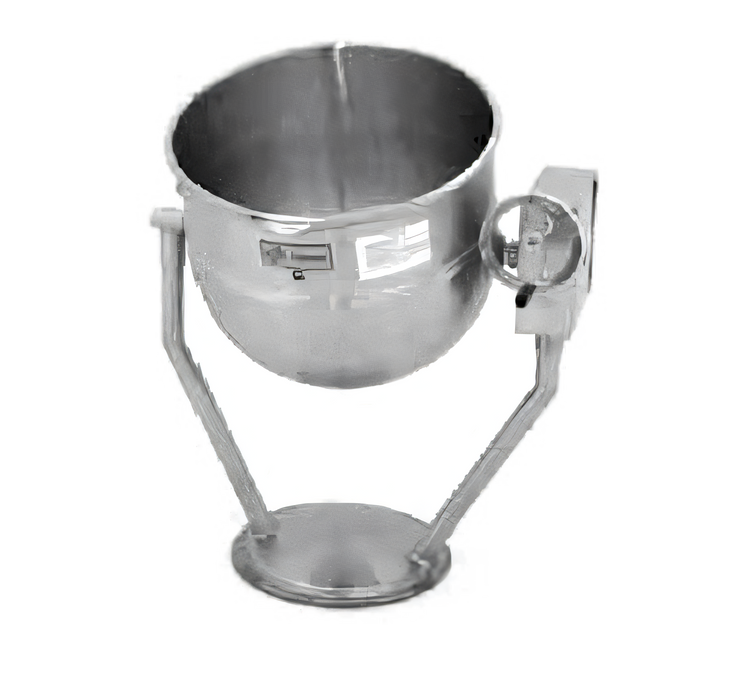

Legion TWP-40 Direct Steam Tilting Kettle – 40 Gallon
2/3 Jacketed • Pedestal Mounted • Made in USAEngineered for high-volume production kitchens, the Legion TWP-40 delivers 40 gallons (151 L) of consistently heated capacity in a space-saving, pedestal-mounted footprint. Its seamless stainless construction, smooth worm-gear tilt and fast heat-up make it the professional’s choice for soups, sauces, stews, custards and more.
Standard Features

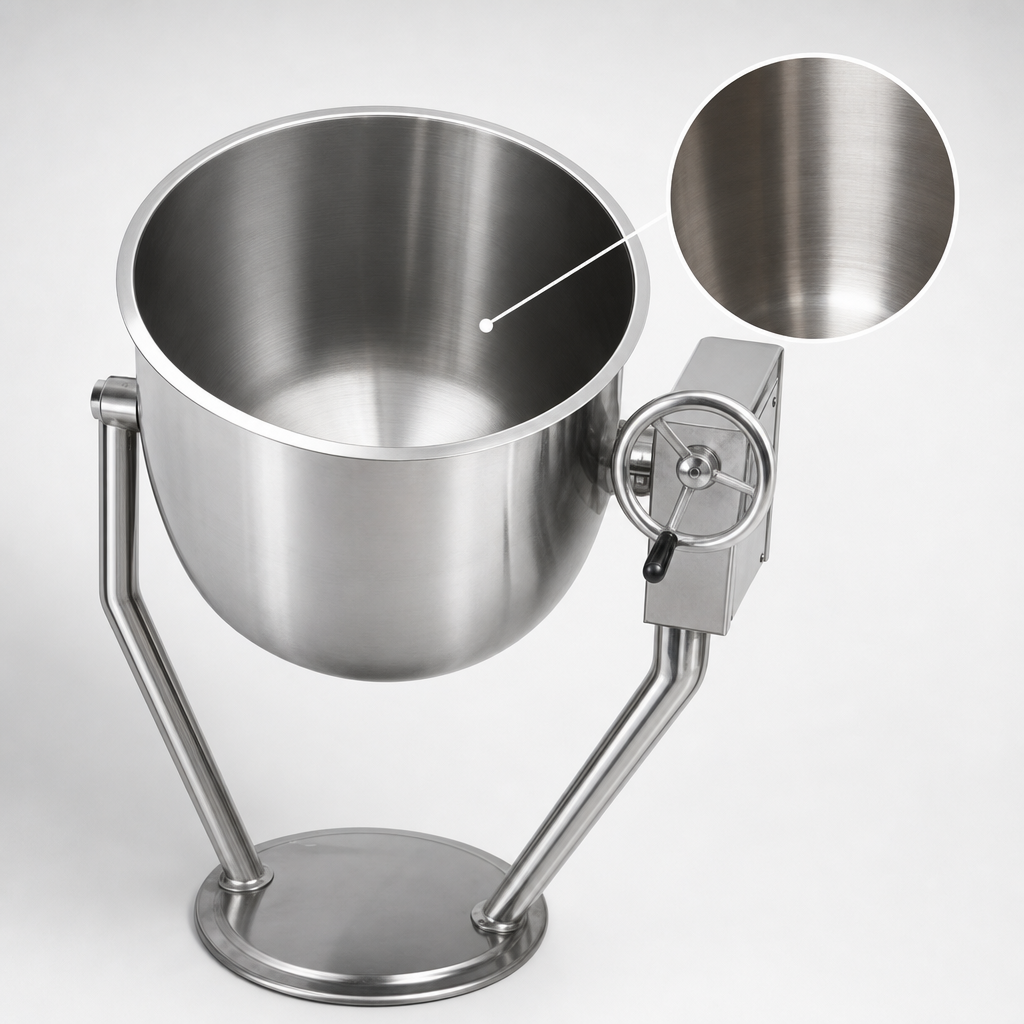

- Seamless deep-drawn 304 stainless steel kettle liner for superior sanitation & easy cleaning.

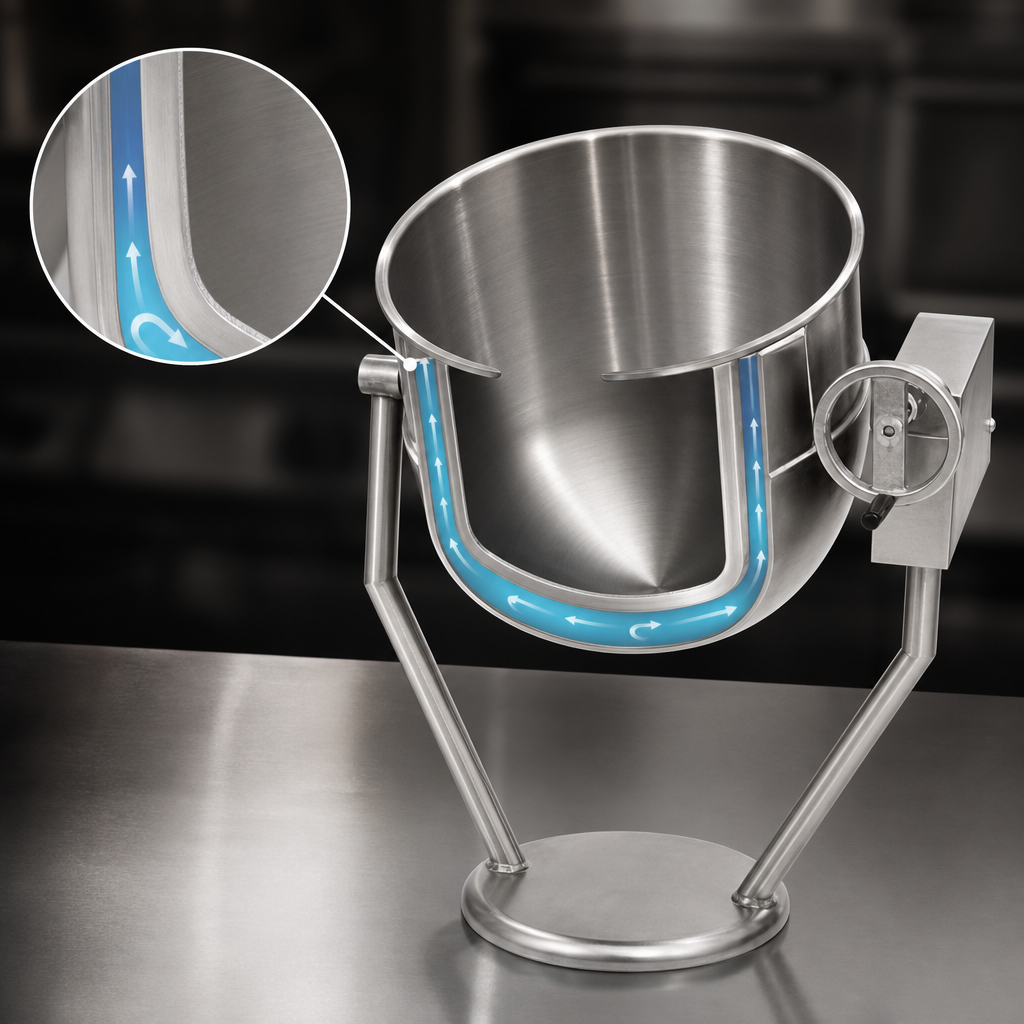

- 2/3 jacketed design with 304L stainless jacket for rapid, even direct-steam heating.
- Self-locking worm-gear tilt mechanism—precise, one-handed control and locks at any angle.
- Reinforced 304 stainless gearbox & 2 in. tubular support frame built for decades of heavy use.
- Stainless steel pedestal base keeps the kettle stable while minimising floor space.
- 30 psi operating pressure for fast batch times and reduced energy consumption.
- Complies with ASME, NSF, UL, ETL, AGA, CSA & CGA standards.
Why Your Kitchen Will Love It
- Processes up to 150 litres per batch—ideal for commissaries, correctional facilities and large restaurants.
- Uniform heat eliminates hot spots and product scorching, reducing labour spent on constant stirring.
- Quick, controlled tilt shortens turnaround time between batches and boosts productivity.
- All-stainless build tolerates aggressive cleaning chemicals and daily high-heat cycles.
Technical Specifications
| Model | TWP-40 |
|---|---|
| Capacity | 40 gal / 151 L |
| Heat Source | Direct steam (boiler supplied) |
| Jacket Coverage | 2/3 (sides & bottom) |
| Operating Pressure | 30 psi (2.07 bar) |
| Kettle Liner | Seamless 304 stainless steel |
| Jacket Material | 304L stainless steel |
| Tilt Mechanism | Self-locking, hand-wheel operated worm gear |
| Mounting | Pedestal with 2 in. tubular stainless support |
| Steam Connections | ¾ in. NPT inlet, ½ in. NPT outlet |
| Overall Dimensions* | 25.5 W × 22.3 D × 45.3 H in. |
| Minimum Pour Path | 28.4 in. |
| Country of Origin | Waynesboro, GA, USA |
*Dimensions shown are manufacturer’s published values; verify clearances with local codes.
Popular Options & Accessories (Sold Separately)
- Single or double water-fill faucet with 12 in. or 18 in. swing nozzle
- 48 in. flexible spray hose (vinyl or stainless)
- Automatic water filling meter for precise batching
- 2-speed mixer/agitator attachment
- Lift-off or actuator-assisted cover
- 2 in. or 3 in. draw-off valve with perforated disk strainer
- Tri-basket or single basket inserts, nylon bag systems & pour-lip pan holders
Need an option you don’t see? Ask—Legion offers extensive customisation.
Warranty
Legion covers the TWP-40 with a 12-month parts & labour warranty from the date of installation (15 months from ship date) when registered within 10 days of install.
