Legion TWP-30 Steam Kettles
Description

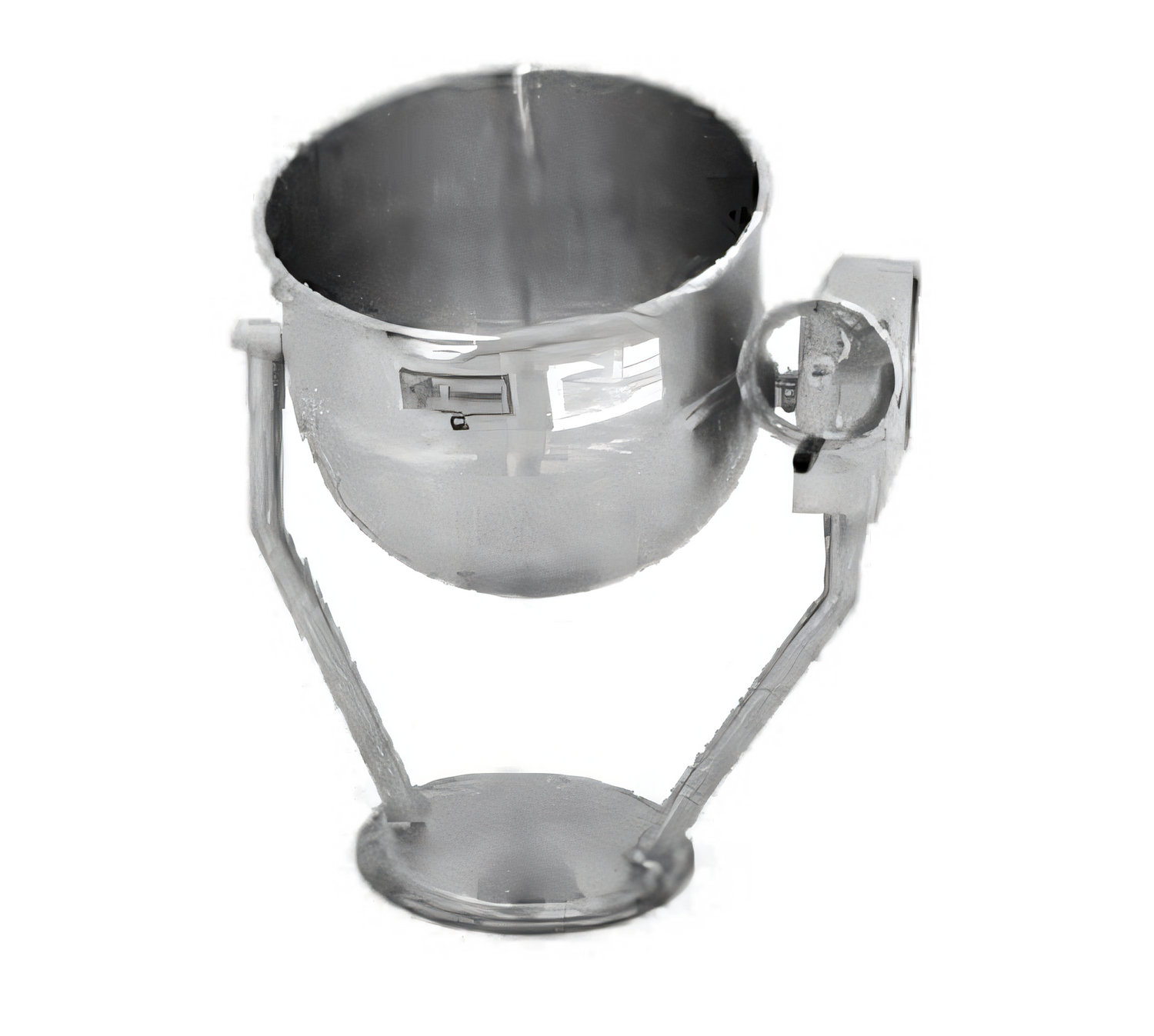

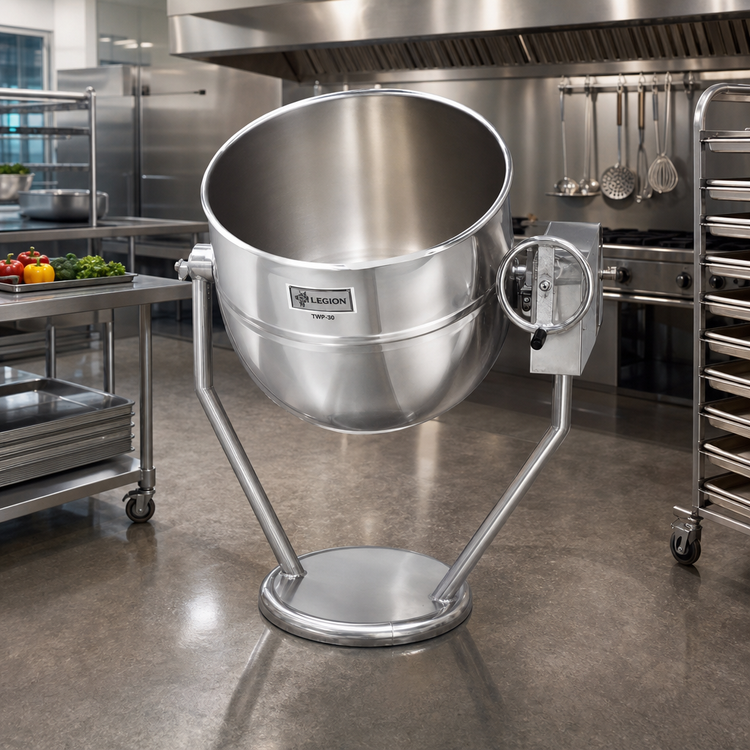

Legion TWP-30 Direct Steam Tilting Kettle – 30 Gal.
Deep-Drawn 304 Stainless • 2/3 Jacket • Made in the USADesigned for high-volume kitchens that demand performance and durability, the Legion TWP-30 delivers fast, even heating with a 2/3 steam jacket and rock-solid tilting control. Its seamless 304 stainless kettle liner resists pitting and corrosion, while the self-locking worm gear tilt lets one operator pour heavy batches with precision and safety.
Standard Features

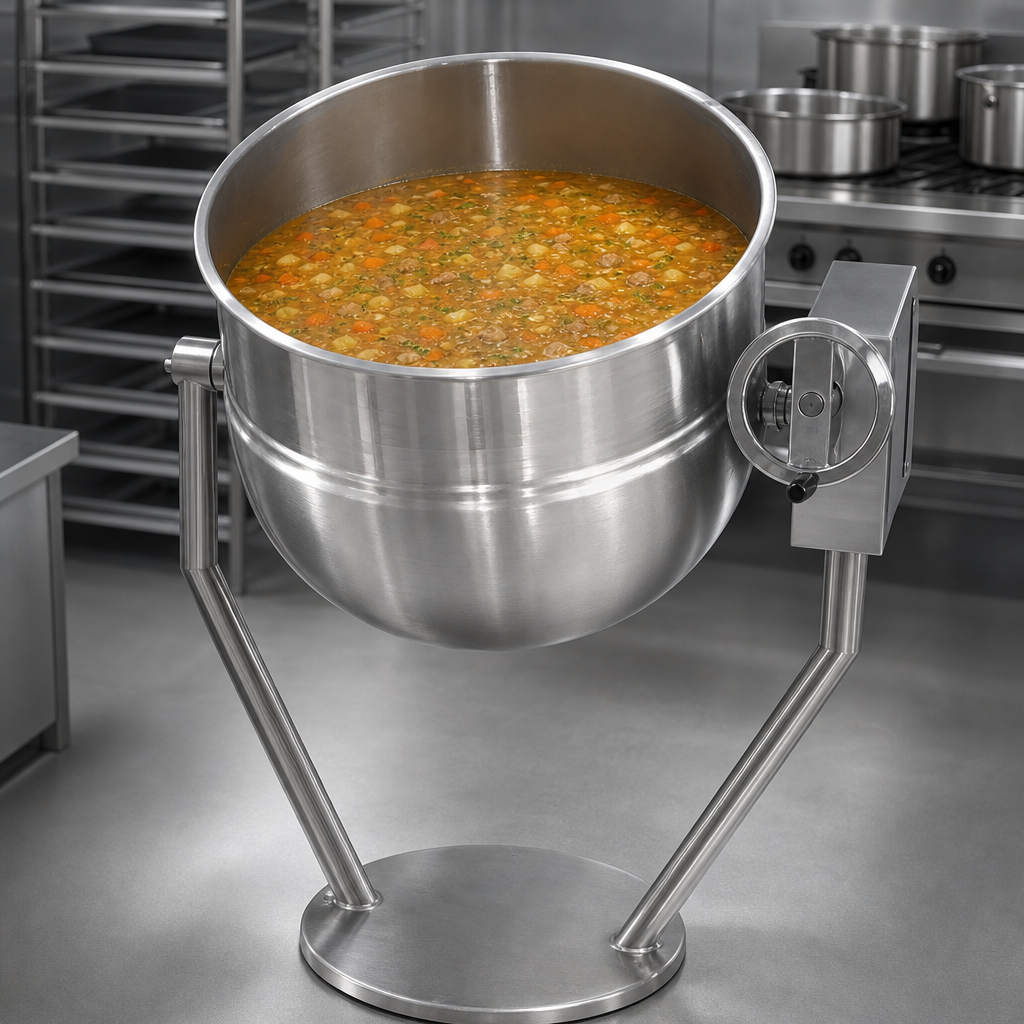

- 30 gallon (114 L) capacity – ideal for sauces, soups, stocks and reductions

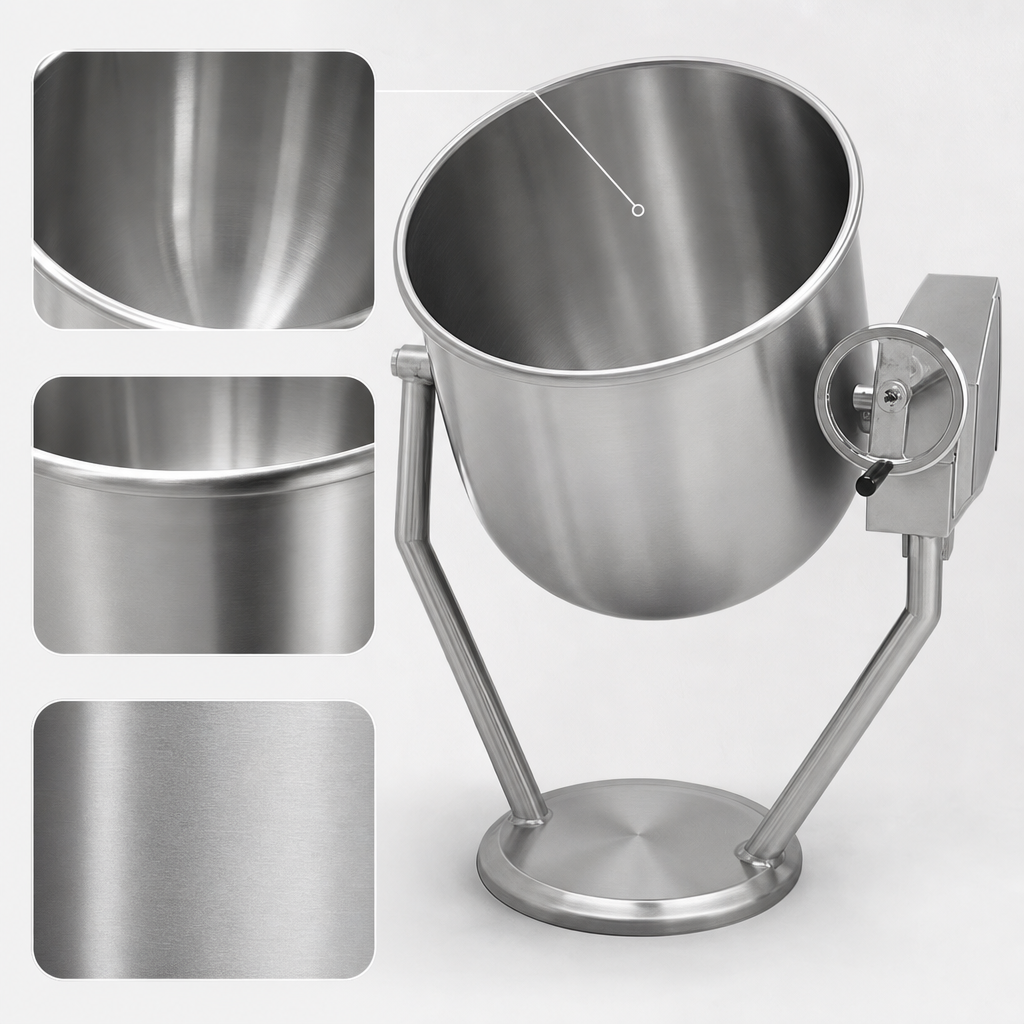

- Seamless deep-drawn 304 stainless steel kettle liner for maximum sanitation
- 304L stainless 2/3 steam jacket rated at 30 psi for rapid, uniform heat transfer
- Self-locking worm-gear tilt mechanism with reinforced 304 stainless gear box
- Easy-crank hand wheel delivers smooth, controlled pouring at any angle
- 304 stainless 2 inch tubular support frame and heavy-duty pedestal base
- Separate stainless control console keeps steam supply and controls protected
- NSF, ASME and other applicable agency-compliant construction
- Made in Waynesboro, Georgia, USA
Specifications
| Model | TWP-30 (Pedestal Mounted, Tilting) |
|---|---|
| Capacity | 30 gal / 114 L (net) |
| Operating Pressure | 30 psi (2.1 bar) |
| Jacket Coverage | 2/3 of kettle body |
| Construction | 304 SS liner & gearbox, 304L SS jacket, welded & polished |
| Steam Inlet / Outlet | ¾" NPT inlet (Q) | ½" NPT condensate outlet (R) |
| Overall Height (C) | 41.3" (105 cm) |
| Overall Width (F) | 42.5" (108 cm) |
| Minimum Pour Path (X) | 26.0" (66 cm) |
| Shipping Weight | Approx. 380 lb / 172 kg |
Popular Options & Accessories (Sold Separately)
- Single or double fill faucet kits with 12" or 18" swing nozzles
- Automatic water-fill meter for hands-free batching
- 48" vinyl or stainless flexible spray hose assembly
- 2" or 3" draw-off valves with perforated disk strainers
- Lift-off or actuator-assisted hinged cover
- Tri-basket or single basket inserts for cooking & cooling
- Nylon bag insert with spreader ring for stock production
Covered by Legion’s 12-month parts & labor warranty (15 months from ship date when registered). Extended coverage available.
