Legion TWP-20 Steam Kettles
Legion TWP-20 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Legion TWP-20 Steam Kettles
Description

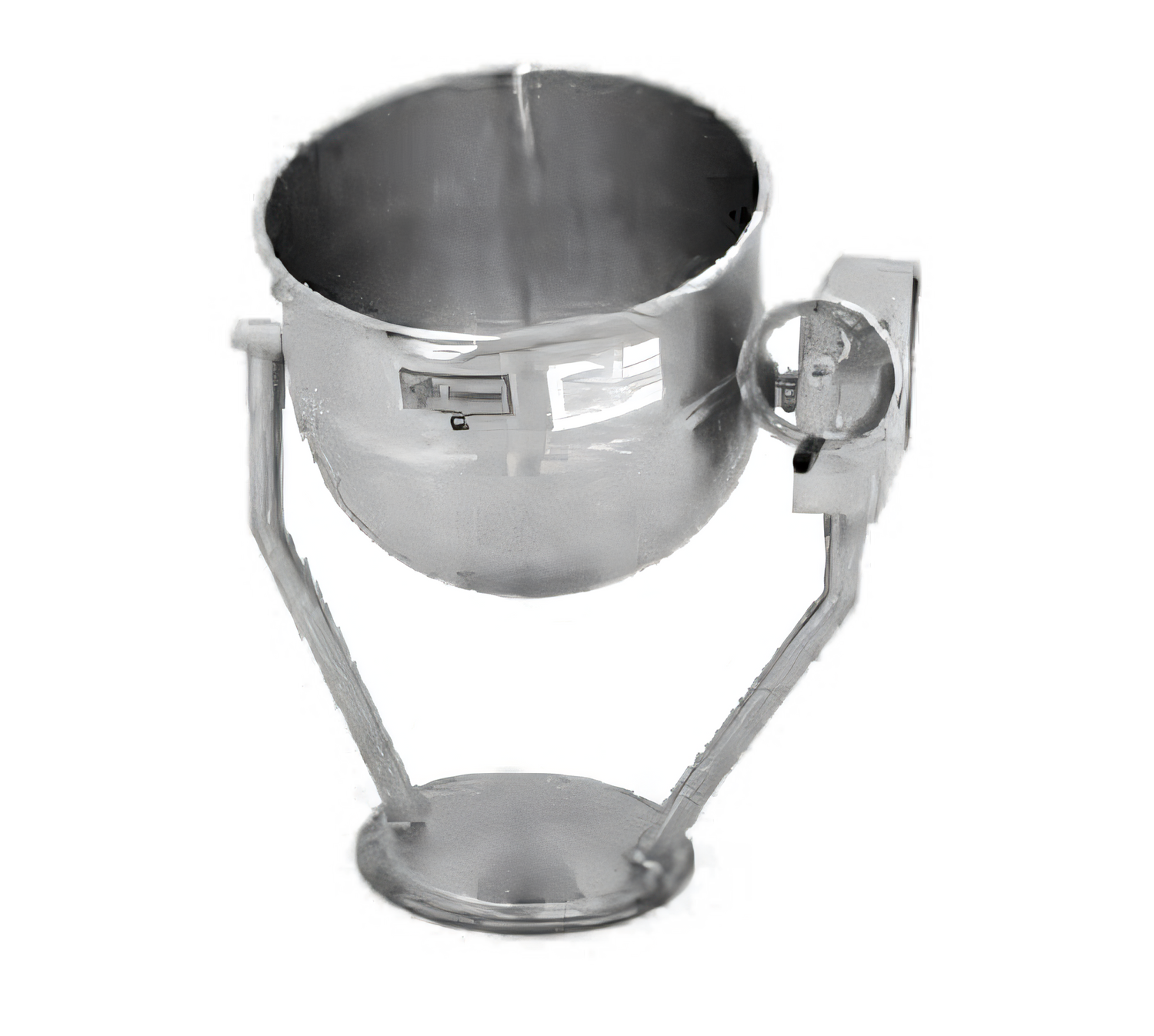

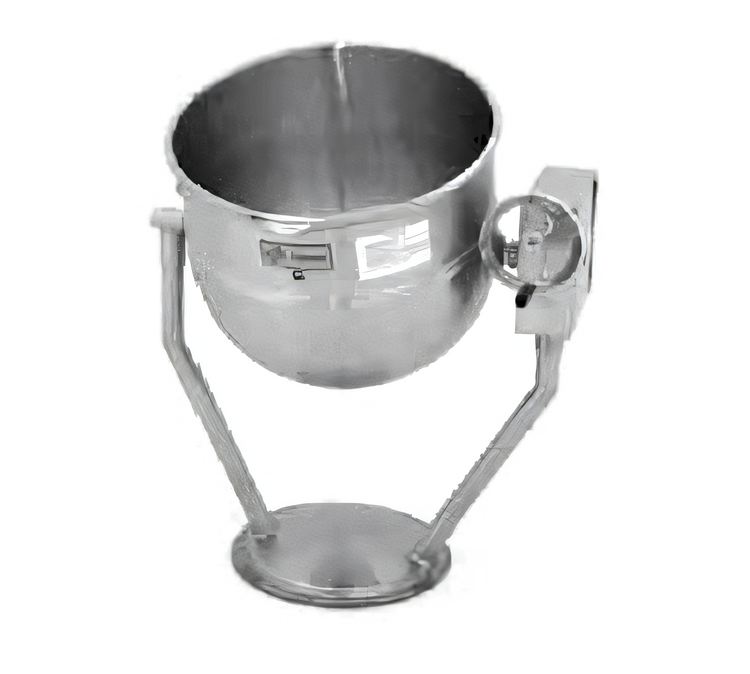

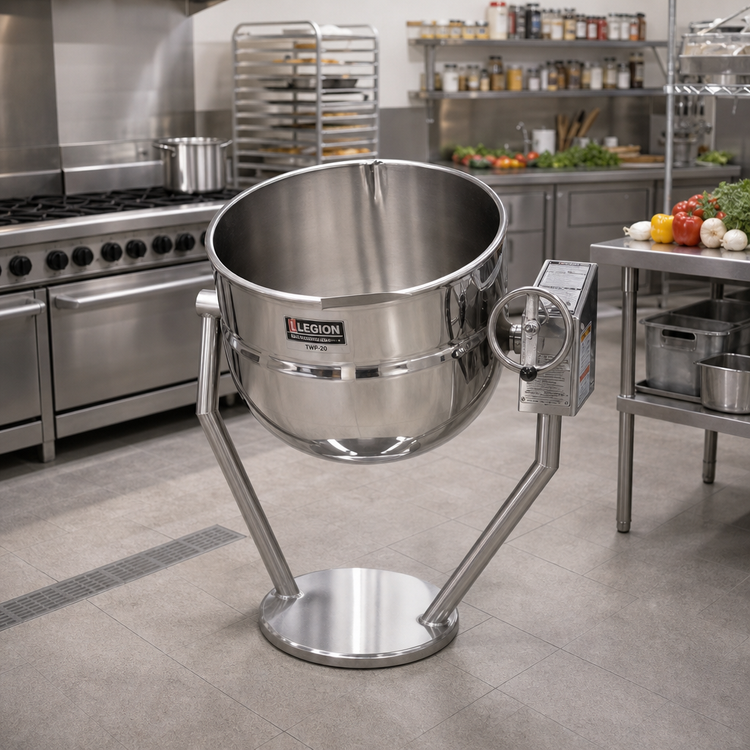

Legion TWP-20 Direct-Steam Tilting Kettle – 20 gal.
2/3-Jacketed • 304 Stainless • Made in USAEngineered for high-volume kitchens that refuse to compromise on speed or durability, the Legion TWP-20 delivers 20 gallons of even, steam-powered cooking in a compact, pedestal-mounted footprint. Perfect for soups, sauces, stocks, pasta and more.
Why You’ll Love It
- Seamless deep-drawn 304 stainless kettle liner cleans fast and resists pitting.

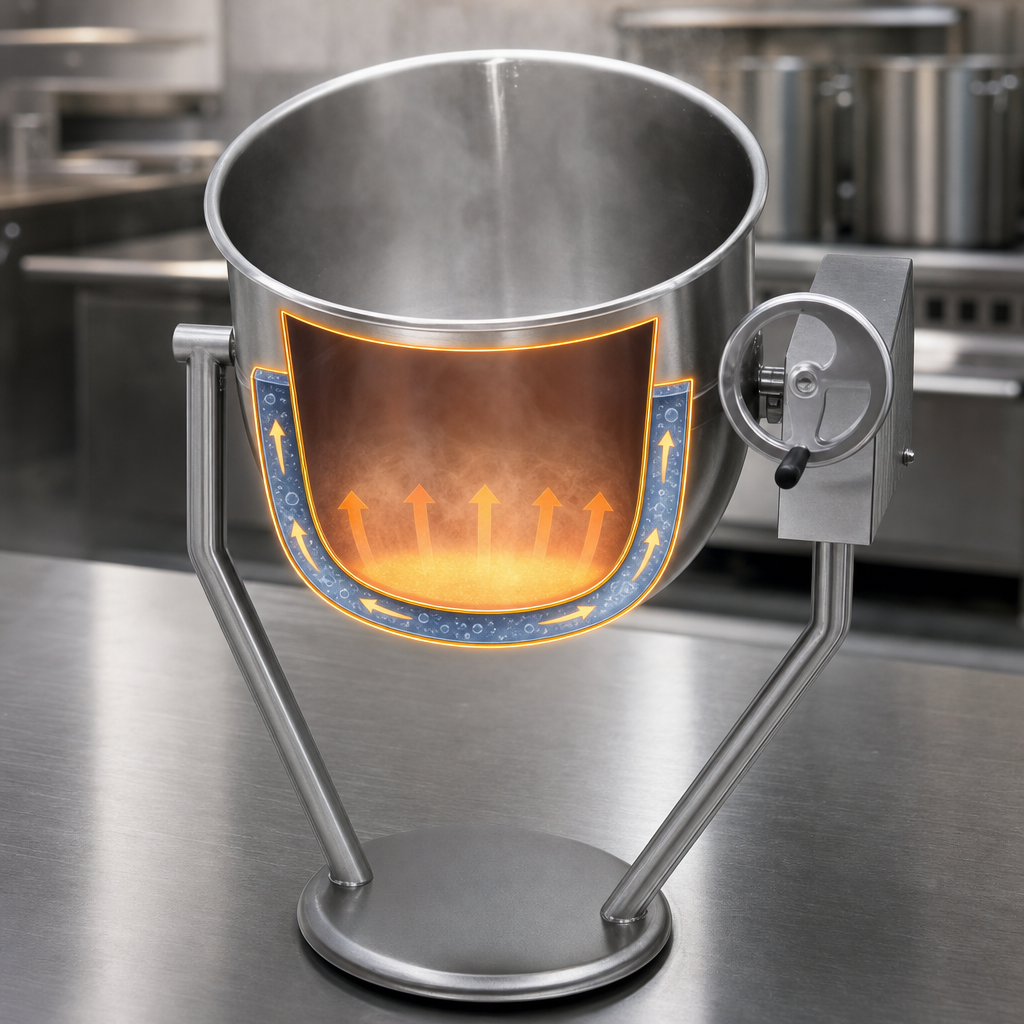

- 2/3 steam jacket (304L) surrounds product for uniform, scorch-free heat transfer.
- 30 psi operating pressure accelerates batch times without sacrificing quality.
- Self-locking worm-gear tilt lets a single operator safely pour with fingertip control.
- Reinforced all-stainless gear box, 2 in. tubular support frame and pedestal base for unmatched longevity.
- Remote control console keeps sensitive components away from heat and splash.
- ASME-stamped, NSF-listed and proudly built in Waynesboro, Georgia.
Standard Specification
- Capacity: 20 gal / 76 L
- Direct steam connection (¾ in. NPT inlet • ½ in. NPT condensate outlet)
- Manual hand-tilt, 100° forward dump angle
- Polished sanitary pour lip
- 304 stainless pedestal base with bolt-down flange
Dimensional Data
| Overall width (A) | 22.0 in / 559 mm |
|---|---|
| Front-to-back (B) | 16.0 in / 406 mm |
| Bowl depth (C) | 39.0 in / 991 mm |
| Overall height (F) | 40.8 in / 1 037 mm |
| Minimum pour path (X) | 21.9 in / 556 mm |
| Steam inlet (Q) | ¾ in. NPT |
| Condensate outlet (R) | ½ in. NPT |
“H” dimension varies with optional draw-off valve selection.
Popular Accessories (sold separately)
- Single or double fill faucet with 12 in. or 18 in. swing nozzle
- 48 in. flexible spray hose (vinyl or stainless)
- 2 in. or 3 in. draw-off valve & drain hose
- Lift-off or actuator-assisted cover
- Perforated disk strainer – ¼ in. or ⅛ in. holes
- Pour-lip pan holder, measuring strip & kettle care kit
Looking for additional capacities or integrated electric steam? Legion TWP kettles are available up to 100 gallons— contact us for details.
