Legion TWP-100 Steam Kettles
Description

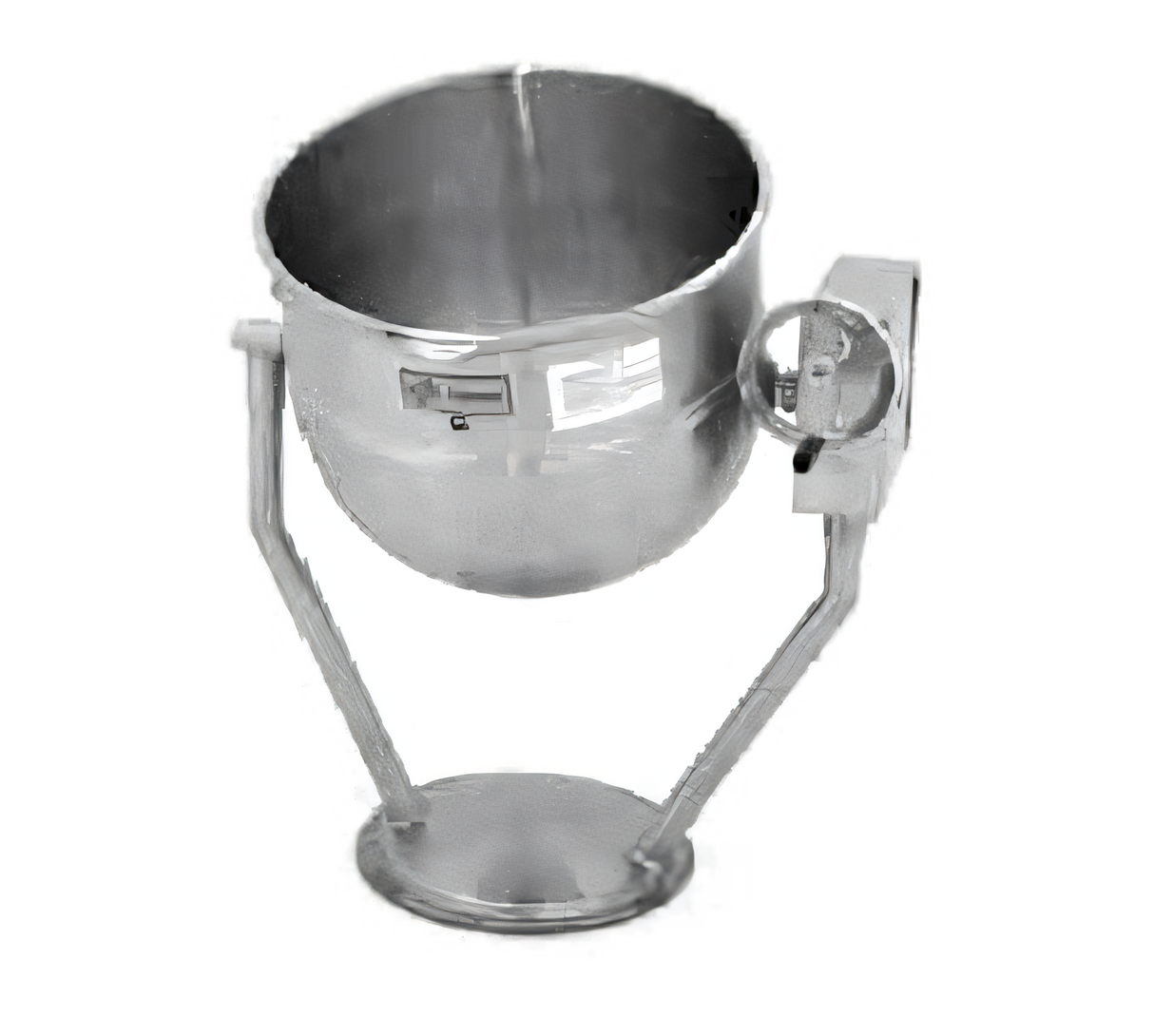

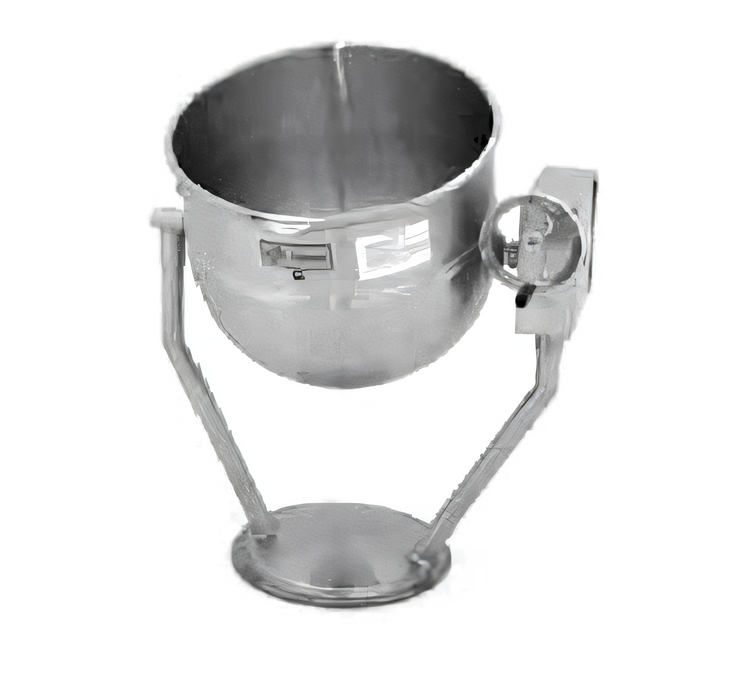

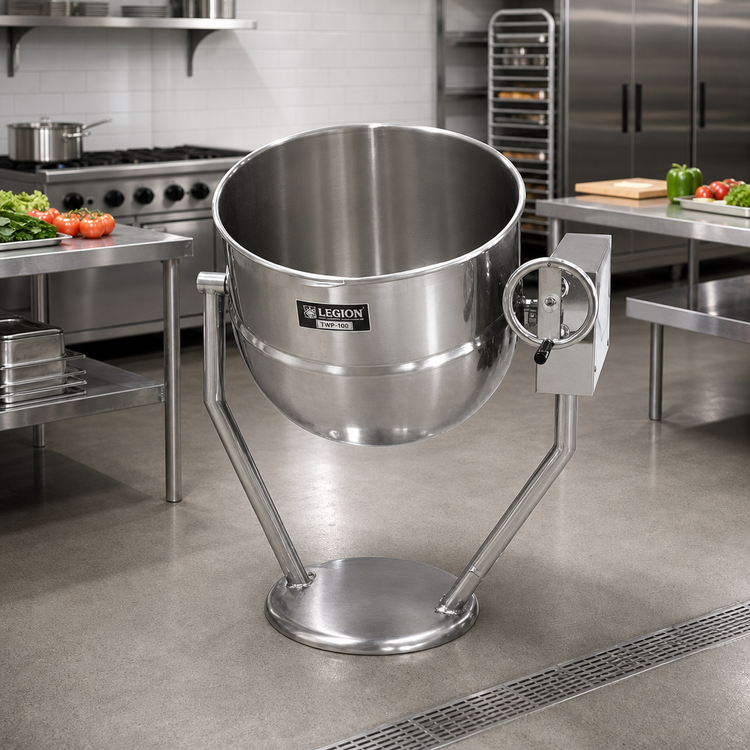

Legion TWP-100 Direct Steam Tilting Pedestal Kettle — 100 Gal
2/3-Jacketed • 304 Stainless Steel • Made in USABuilt for the demands of high-volume production kitchens, the Legion TWP-100 puts a full 100 gallons (379 litres) of uniform, controllable heat at your command. Its deep-drawn, seamless stainless liner and efficient 2/3 steam jacket slash heat-up times and virtually eliminate hot spots, while the smooth, self-locking tilt lets one operator pour with total confidence.
Key advantages
- Seamless 304 stainless kettle liner wipes clean and prevents food traps.

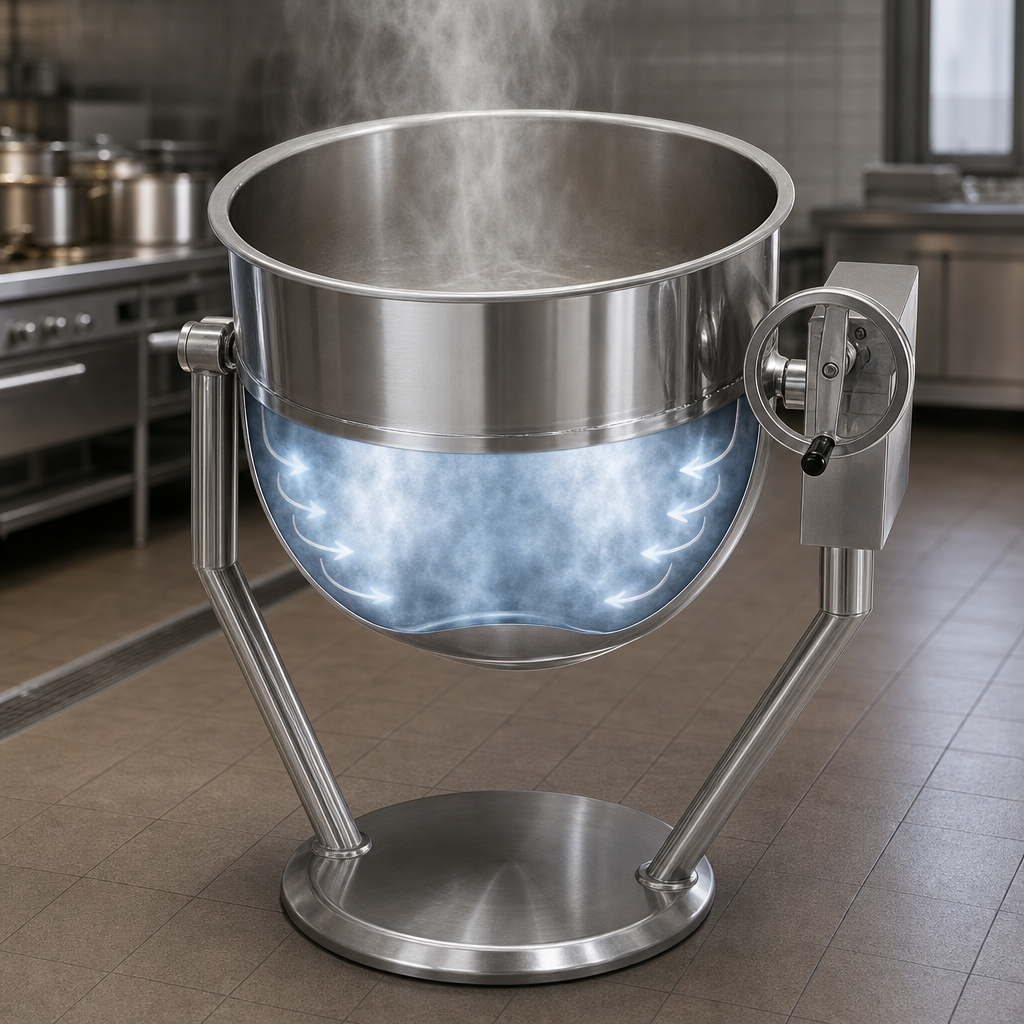

- 2/3 jacket envelopes sides & bottom for rapid, even heating.
- Self-locking worm-gear tilt provides precise, balanced pouring through the entire 33.8″ path.
- Heavy-duty 304 stainless control console and reinforced gear box built for continuous service.
- 2″ tubular support frame & pedestal base keep floors clear and sanitation simple.
- 30 psi operating pressure handles fast batch turnover and quick recovery.
- NSF-listed, ASME-certified, and proudly manufactured in Waynesboro, GA.
Specifications
| Model | TWP-100 |
|---|---|

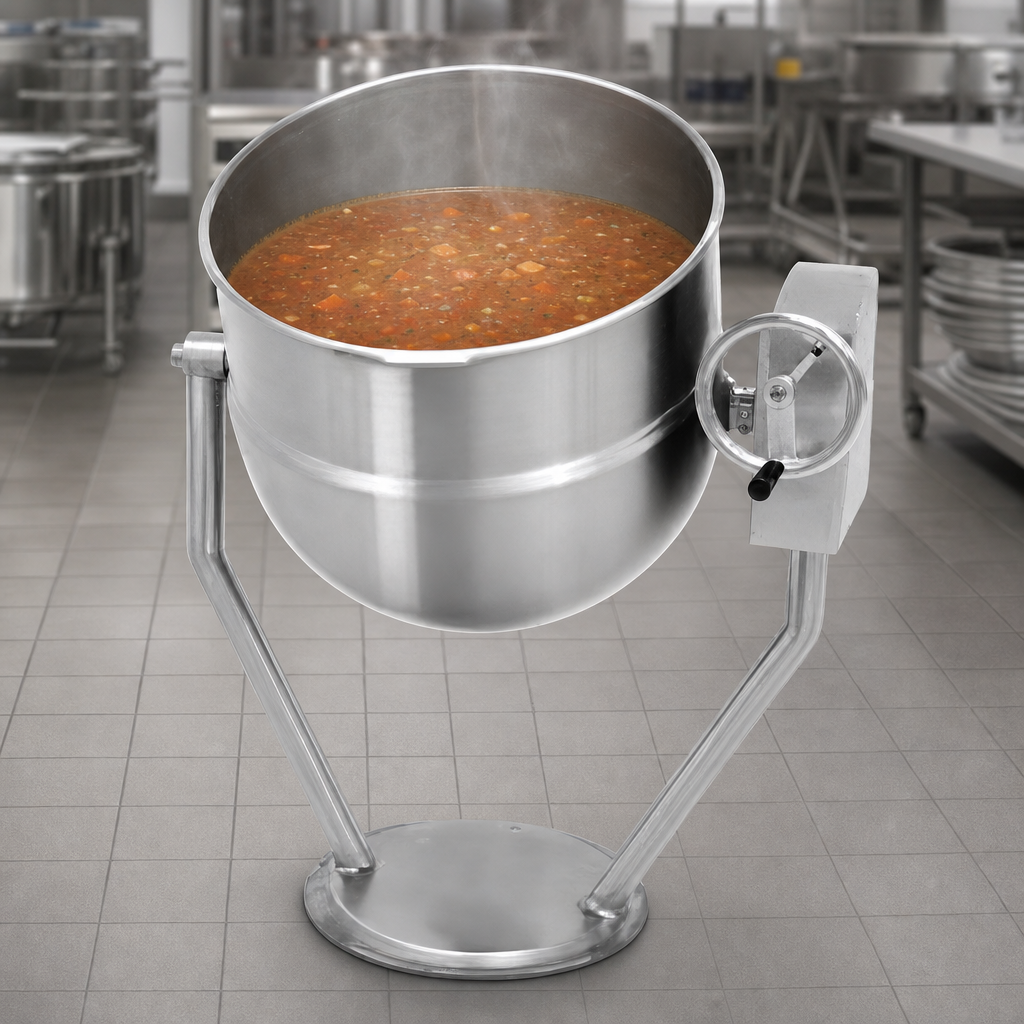

| Capacity | 100 gal / 379 L |
| Heat Source | Direct steam (remote boiler) |
| Jacket Coverage | 2/3 (sides & bottom) |
| Operating Pressure | 30 psi (2.1 bar) |
| Liner Material | Seamless 304 stainless steel |
| Jacket Material | 304L stainless steel |
| Tilt Mechanism | Hand-crank, self-locking worm gear |
| Mounting | Single pedestal with 2″ tubular support frame |
| Steam Connections | ¾″ NPT inlet & ¾″ NPT outlet |
| Overall Width (A) | 39.0″ (991 mm) |
| Overall Height (F) | 58.8″ (1 494 mm) |
| Overall Depth (C) | 41.3″ (1 050 mm) |
| Minimum Pour Path (X) | 33.8″ (859 mm) |
Dimensions taken from factory drawing | “H” dimension varies with selected draw-off valve.
Popular options & accessories
- 2″ or 3″ draw-off valves with ¼″ or ⅛″ perforated strainers
- Lift-off or actuator-assisted hinged covers
- Single or dual fill faucets (12″ / 18″ swing nozzles) with 48″ spray hose
- Automatic water-fill meter
- Tri-basket or single basket inserts & nylon bag kits
- Pour-lip pan holder, measuring strip, kettle care kit
- Higher operating pressure, air eliminator, or pressure-reducing valve
Standard warranty: 12 months from installation (15 months from ship date). Extended coverage available.
