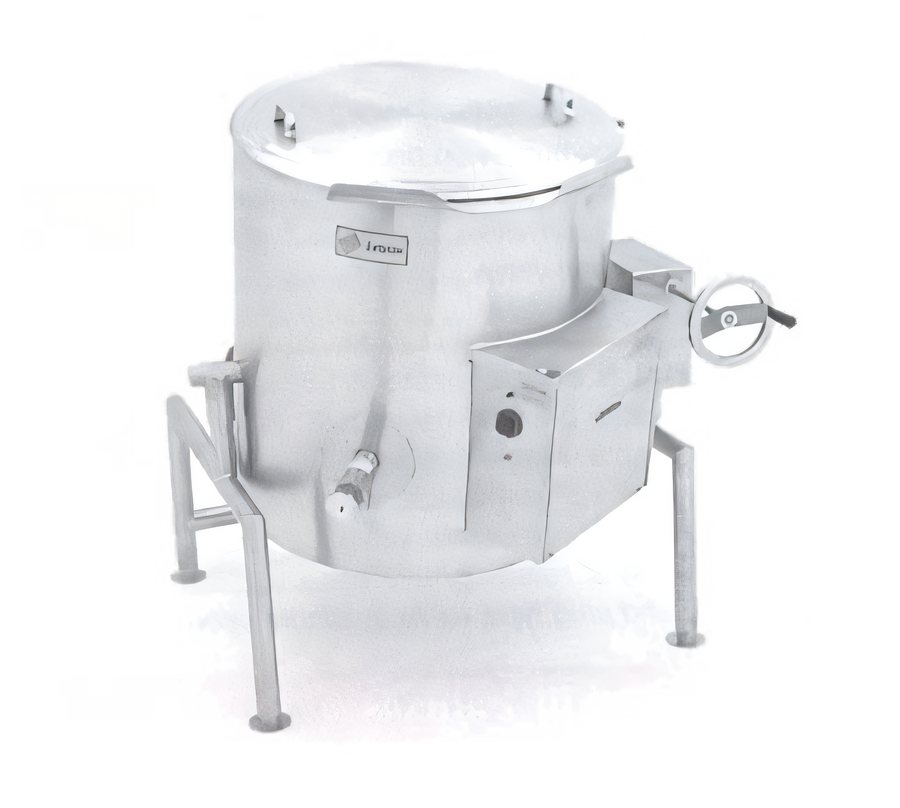

Legion TWE-60 Insulated Self-Contained Tilting Kettle with MV Mixer – 60 gal / 36 kW
Electric • 2/3 Jacketed • Made in USAEngineered for high-volume kitchens, the Legion TWE-60 combines a 60-gallon self-contained kettle with a powerful twin-shaft agitator. From hearty soups to delicate sauces, you’ll achieve consistent, labor-saving results with accurate thermostat control, rapid heat-up and gentle, fully adjustable mixing.
Why chefs choose the TWE-60
- Seamless deep-drawn 304 SS liner with sanitary radius lip—no internal welds to trap food soil.
- 2/3 jacketed & fully self-contained—no external boiler or steam supply required.
- High-output 36 kW electric elements (field-replaceable) heat product from 150 °F–260 °F with ±2 °F accuracy.
- Full-body insulation keeps exterior surfaces cooler and lowers energy costs.
- Self-locking worm-gear tilt delivers smooth, controlled pouring through a 42.5 in (108 cm) pour path.
- Automatic low-water and tilt cut-off switches protect the heating system.
- All-stainless construction—kettle, jacket, console, gear box, support frame & adjustable flanged feet.
- Built in Waynesboro, Georgia to meet ASME & NSF standards.
Integrated MV two-speed agitator
- Balanced aluminum mixer bridge with actuator-assisted lift.
- Two-speed gear motor: 46/23 RPM main anchor agitator, 120/60 RPM secondary beater.
- 304 SS anchor agitator hugs the kettle wall; removable nylon blades continually scrape for zero burn-on.
- Counter-rotating 304 SS beater promotes even heat distribution and homogeneous blends.
- Bayonet mounting allows tool-free removal for cleaning or kettle-only operation.
- Positive rim lock & safety interlock prevent high-speed starts with bridge raised.
Built-in safety features
- Pressure relief valve, gauge & air eliminator for jacket monitoring.
- Indicator light alerts operator to low-water condition.
- Thermostat high-limit prevents overheating.
- Insulated for Safety™ outer casing reduces surface temperature.
Technical specifications
| Capacity | 60 gal / 227 L |
|---|---|
| Heat input | 36 kW electric |
| Voltage (select) | 208, 240, 380, 415, 440 or 480 V |
| Amps @ 480 V / 3-ph | 43.3 A per leg |
| Temperature range | 150 °F – 260 °F (66 °C – 127 °C) |
| Tilt mechanism | Manual, self-locking worm gear |
| Overall width (W) | 39.3 in / 100 cm |
| Overall depth (D) | 48.6 in / 123 cm |
| Overall height (F) | 51.6 in / 131 cm |
| Pour path clearance (Y) | 42.5 in / 108 cm |
| Construction | 304/304L stainless steel kettle, jacket & frame |
Factory-installed options
- 2 in or 3 in draw-off valve (compression or ball type)
- Single/dual water faucet with 12″ or 18″ swing nozzle & flexible spray hose
- Automatic water-fill meter
- Lift-off, hinged or actuator-assisted cover
- Pour-lip pan holder, measuring strip & care kit
- Electric timer with buzzer or pressure switch
- Prison/security fastener package & lockable control cover
Looking for a different capacity or portable mixer solution? Contact us for the complete range of Legion kettles and agitator packages.
Product Weight:
1320.0 lbFrequently Asked Questions
