Legion TWE-60 Steam Kettles
Description

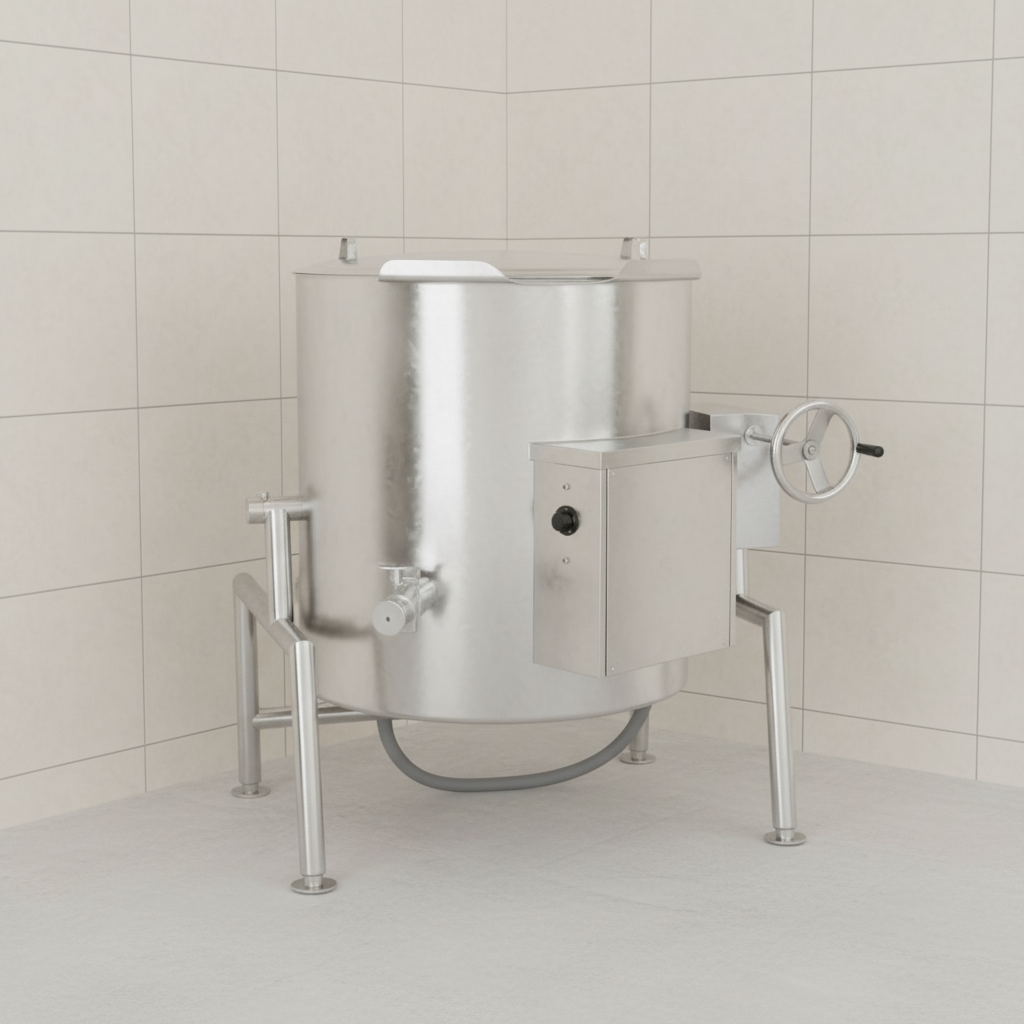

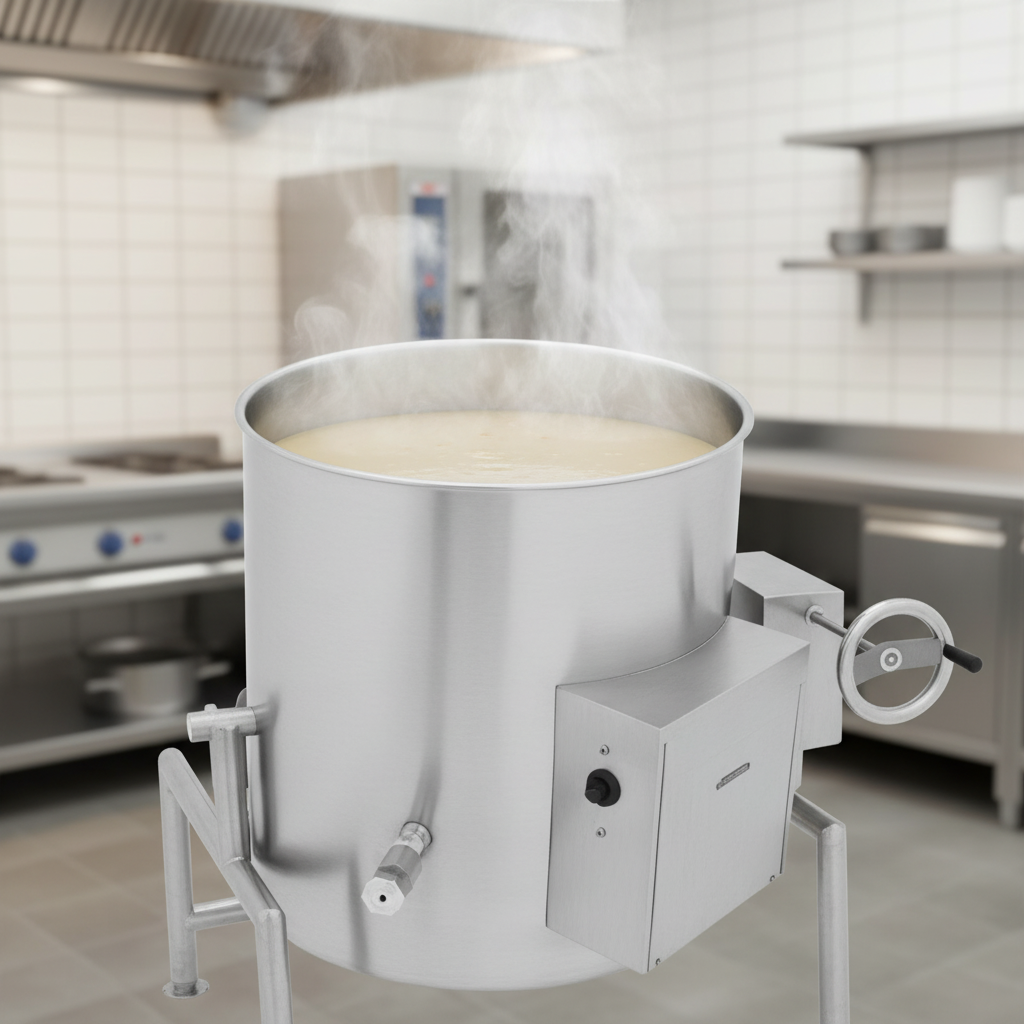

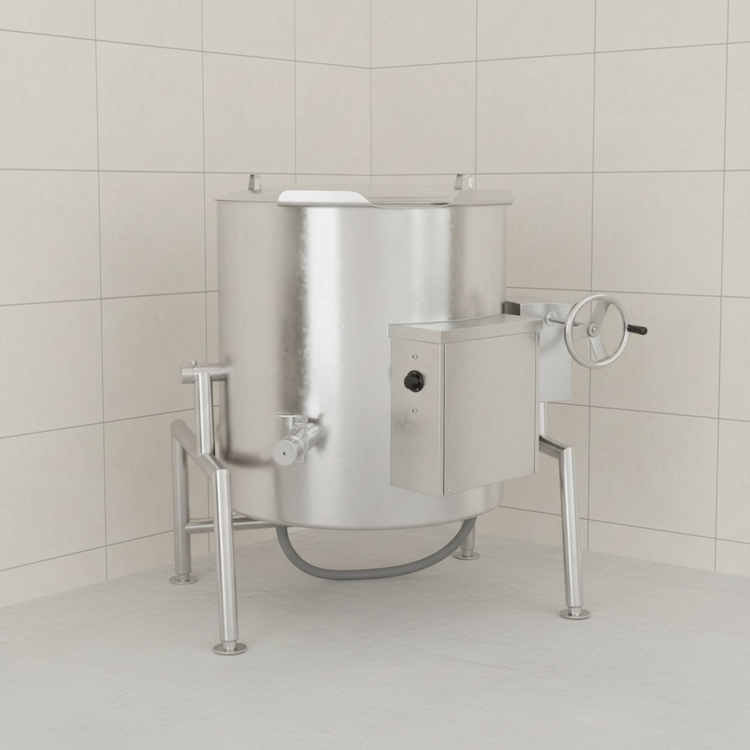

Legion TWE-60 Electric Tilting Kettle – 60 gal
2/3 Jacketed • Self-Contained • 36 kW • Made in USABatch-cook soups, sauces, pasta, chili and more—fast, evenly and safely. The Legion TWE-60 combines a 60-gallon (227 L) capacity with heavy-duty stainless-steel construction, deep insulation and a self-locking worm-gear tilt, giving high-volume kitchens a reliable workhorse that’s ready for decades of daily service.
Key Advantages
- Speed & Uniformity – 36 kW electric elements heat a 2/3 jacket for rapid, even cooking without hot spots.
- Self-Contained Convenience – No external boiler; factory-sealed jacket is filled from the built-in water port.
- Energy-Saving Insulation – Full-body insulation keeps heat in the kettle and kitchen temperatures down.
- Precision Control – Thermostat dial maintains 150 °F – 260 °F (65 °C – 127 °C) with low-water and tilt cut-off safety.
- Effortless Pouring – Self-locking worm-gear handle lets one operator tilt and hold any angle securely.

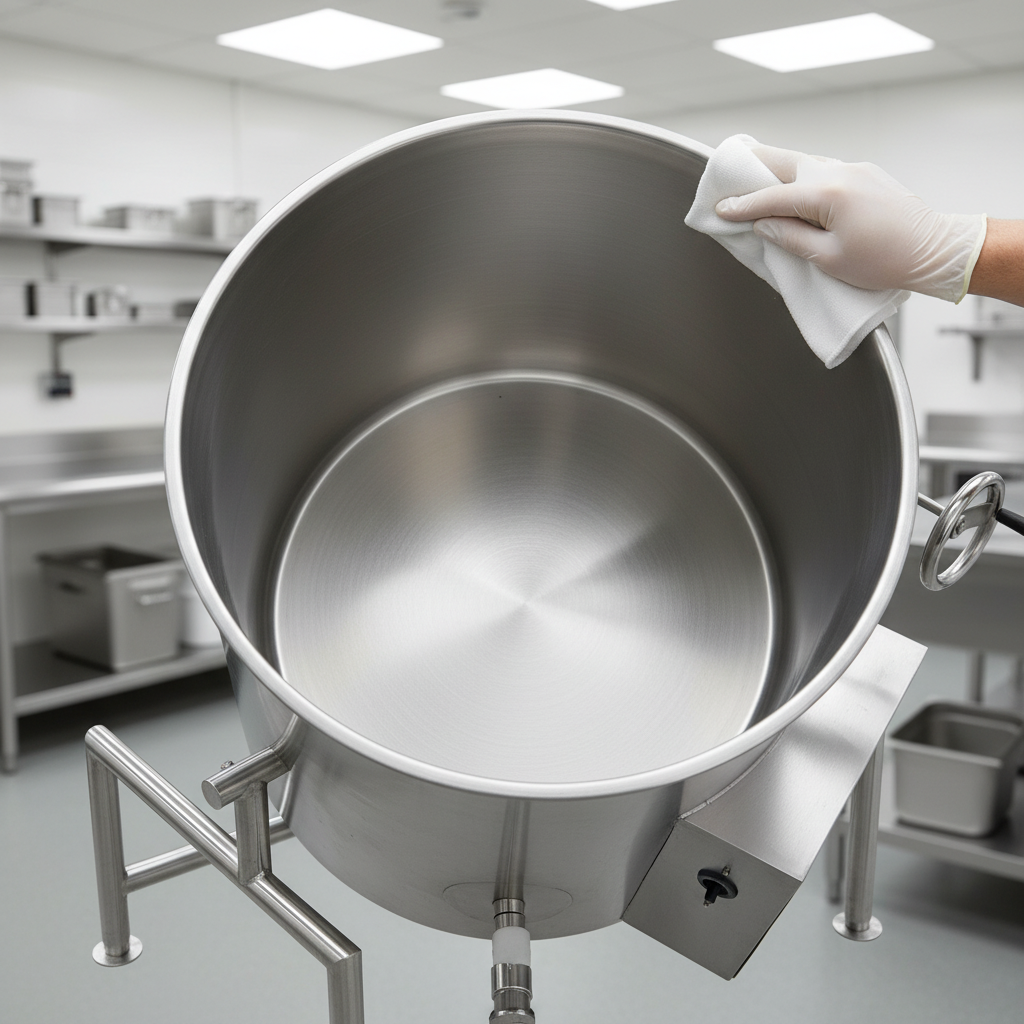

- Built to Last – Seam-welded 304 & 304L stainless liner, jacket, frame, console and legs resist corrosion and chemicals.
Integrated Protection System
- Thermostatic temperature control
- Automatic low-water cut-off with indicator light
- Tilt interlock power cut-off
- ASME pressure relief valve & pressure gauge
- Air eliminator valve and jacket-water fill port
- Field-replaceable heating elements
Technical Specifications
| Capacity | 60 gal (227 L) |
|---|---|
| Heat Input | 36 kW electric |
| Temperature Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Liner / Jacket | Seamless deep-drawn 304 / 304L stainless, 2/3 jacketed |
| Exterior & Frame | 304 stainless, full-body insulated |
| Tilt Mechanism | Self-locking worm gear with reinforced 304 gearbox |
| Support | 304 stainless 2" tubular frame, adjustable flanged feet |
| Overall Dimensions (W × D × H) | 42.6" × 48.6" × 45.3"* *Height shown with optional 2" draw-off. |
| Voltage / Phase (per leg amps) | 208 V 3ɸ 99.9 A | 240 V 3ɸ 86.6 A | 380 V 3ɸ 54.7 A | 415 V 3ɸ 50.1 A | 440 V 3ɸ 47.2 A | 480 V 3ɸ 43.3 A |
| Certifications | ASME, NSF, UL listed |
Popular Factory Options
- 2" or 3" draw-off valve (compression or ball-type)
- Single or dual fill faucet with 12"/18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Lift-off, hinged or actuator-assisted cover
- Pour-lip pan holder, measuring strip & cleaning care kit
- Timer with buzzer, pressure switch, 2-speed mixer/agitator
- Security package: tamper-resistant fasteners & lockable control cover
Backed by Legion’s 12-month parts & labor warranty (extension available). Built in Waynesboro, GA to meet or exceed the latest ASME, NSF and UL standards.
