Legion TWE-40 Steam Kettles
Description

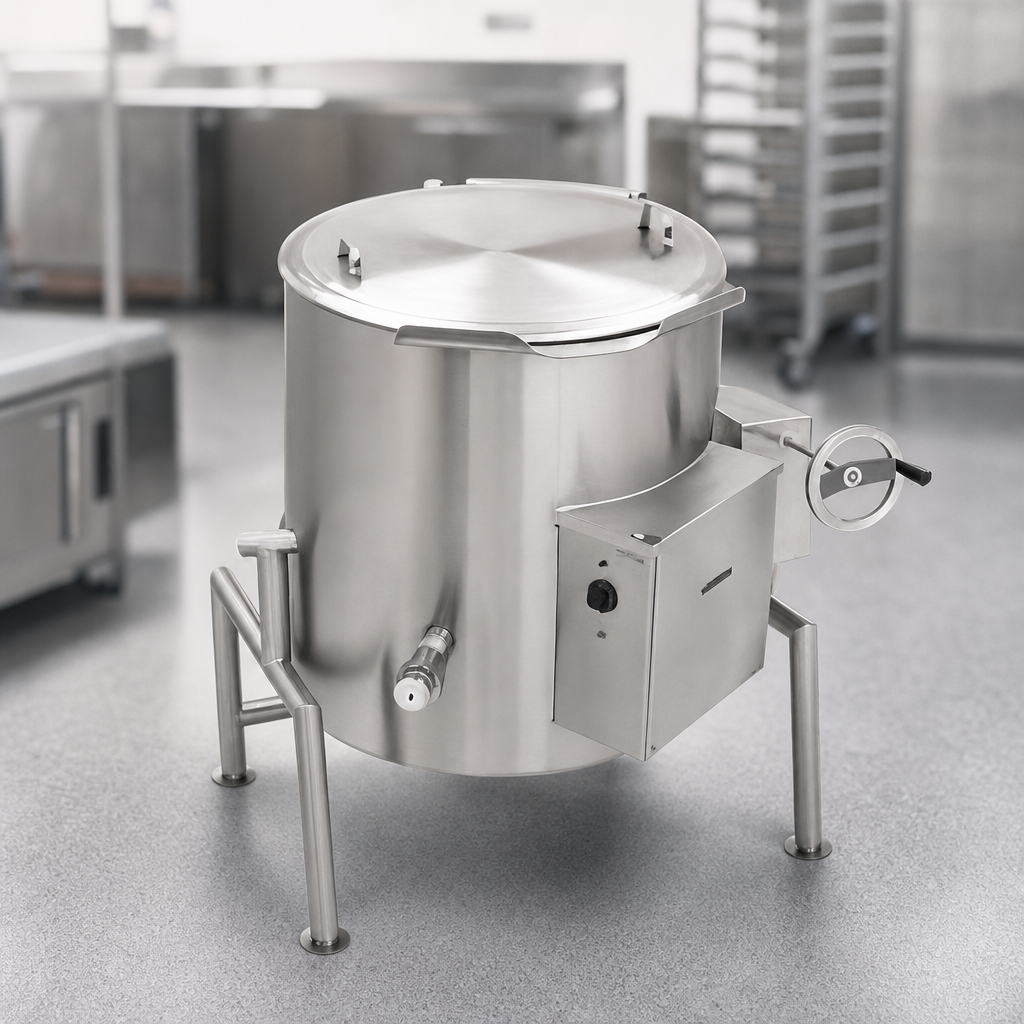

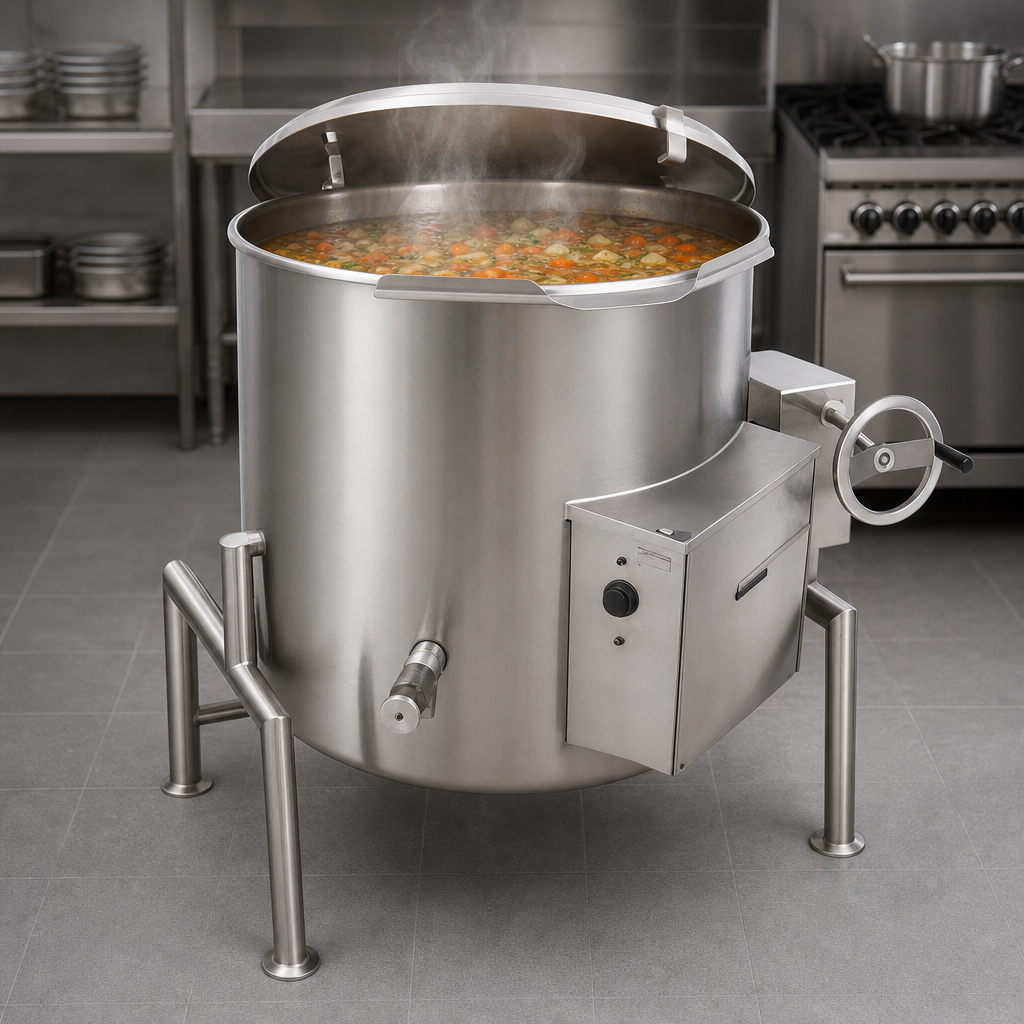

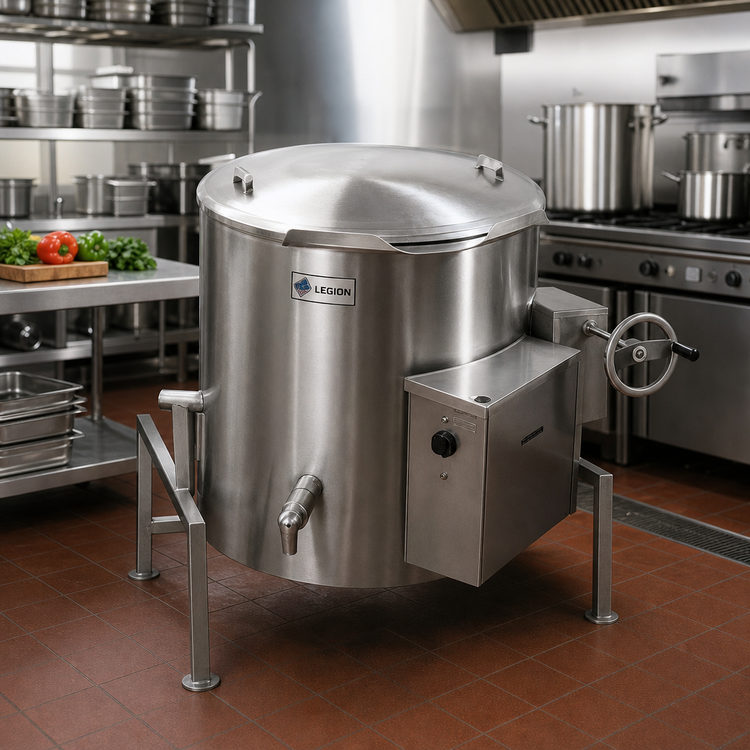

Legion 40-Gallon Electric Tilting Kettle
Model TWE-40 | 24 kW • 2/3 Jacketed • Self-ContainedBuilt for high-volume, high-precision and high-safety commercial kitchens, the Legion TWE-40 delivers 40 gallons (151 L) of consistent cooking capacity in an Insulated-for-Safety™ 2/3 jacketed design. A seamless 304 stainless steel liner, full-body insulation and a self-locking worm-gear tilting system combine for effortless operation, energy efficiency and years of reliable service.
Why You’ll Love It
- Rapid, even heating – 24 kW electric elements surrounded by a 304L stainless jacket accelerate cook times while eliminating hot spots.
- Precise thermostat control – 150 °F to 260 °F (65 °C – 127 °C) dial keeps delicate sauces, custards and bulk soups right on-temp.
- Insulated-for-Safety™ shell – Full-body mineral wool insulation slashes heat loss and keeps exterior surfaces cool to the touch.
- Seamless deep-drawn kettle liner – One-piece 304 stainless steel with integrally formed radius lip resists pitting and simplifies cleaning.
- Self-locking worm-gear tilt – Smooth 90° pour with a reinforced gearbox; stays where you set it for hands-free draining.
- Comprehensive protection package – Low-water cut-off, pressure relief valve, air eliminator & pressure gauge guard the jacket and heating elements.
- Field-serviceable elements – Replace heaters from the side console without removing the kettle from service.
- Adjustable flanged feet – Level, bolt-down installation on any commercial floor.
- Made in the USA and engineered to meet or exceed ASME, NSF, UL and ETL standards.
At-a-Glance Specs
| Capacity | 40 gal / 151 L (approx. 640 portions @ 8 oz) |
|---|---|
| Heating Power | 24 kW electric, field-replaceable elements |
| Voltage Options | 208, 240, 380, 415, 440 or 480 V Single- or three-phase |
| Thermostat Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Interior / Jacket | 304 stainless liner & 304L stainless jacket |
| Tilt Mechanism | Self-locking worm gear with tilt cut-off switch |
| Exterior Finish | 304 stainless outer shell, seam-welded control console & legs |
| Overall Dimensions* | W 43.5″ × D 46.6″ × H 47.5″ |
| Net Weight | Approx. 600 lb (varies with options) |
*Dimensions shown without optional draw-off valve assembly.
Built-In Safety Features
- Automatic low-water cut-off & indicator light
- Pressure relief valve preset to jacket rating
- Air eliminator valve and easy jacket water fill port
- Tilt-actuated element cut-off switch prevents dry-fire accidents
Popular Factory Options & Accessories
- 2″ or 3″ draw-off valve (compression or ball type)
- Single / dual deck-mount faucet with 12″ or 18″ swing nozzle
- 48″ flexible spray hose (vinyl or stainless)
- Lift-off, 2-piece hinged or actuator-assisted cover
- Tri-basket or single basket inserts & nylon bag kits
- Electric timer with buzzer, pressure switch, two-speed agitator & more
Warranty
Legion backs every TWE-series kettle with a 12-month parts & labor warranty from the date of installation (15 months from ship date). Extended coverage is available.
