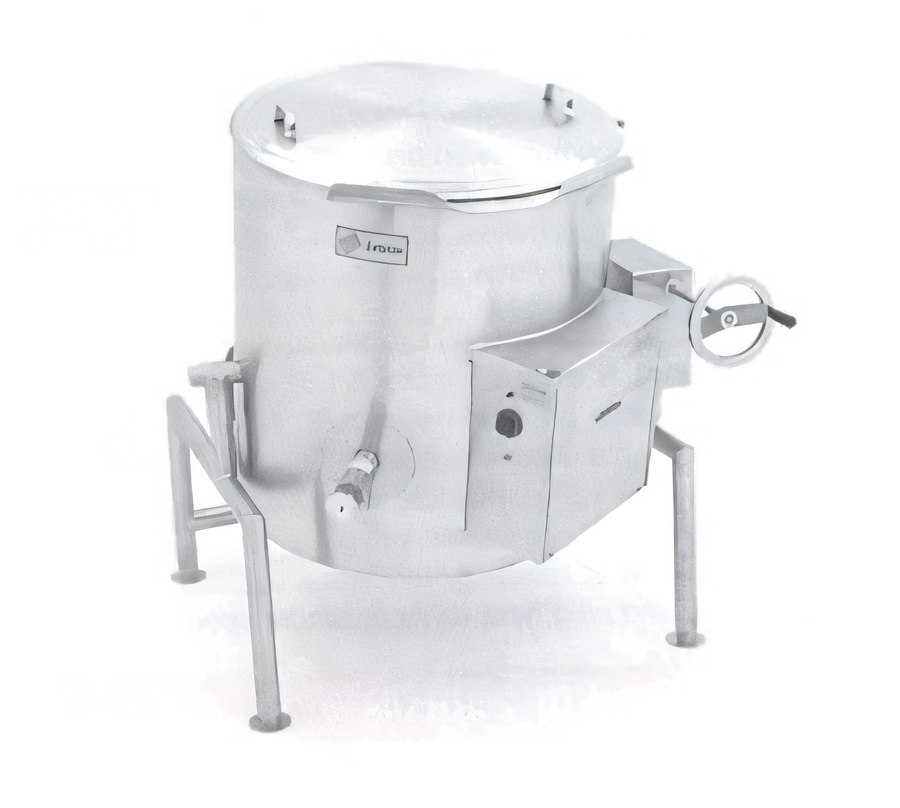

Legion TWE-30 Electric Tilting Kettle with 2-Speed Mixer – 30 Gal / 24 kW
Self-Contained • 2/3 Jacketed • 304 Stainless Steel • Made in USAEngineered for demanding food-service operations, the Legion TWE-30 couples a 30-gallon tilting kettle with a powerful twin-shaft mixer so you can cook, mix and pour from a single, space-saving station. The fully insulated, self-contained 24 kW electric system delivers fast, even heat while keeping the kitchen cooler and safer.
Key Features
- 30 gal (114 L) seamless 304 stainless kettle liner with integrally formed radius lip for drip-free pouring.
- Self-contained 2/3 steam jacket delivers uniform cooking temperatures up to 260 °F (127 °C).
- 24 kW field-replaceable electric elements governed by an accurate thermostat (150 – 260 °F).
- Insulated for Safety™ full-body insulation reduces energy loss and keeps exterior surfaces cooler.
- Self-locking worm-gear tilt with manual crank and tilt cut-off switch for one-handed, controlled emptying.
- Kettle protection system: pressure relief valve, air eliminator, pressure gauge, jacket-water fill, automatic low-water shut-off with indicator light.
- All-stainless construction—outer shell, control console, gearbox and 2″ tubular support frame—stands up to years of heavy use.
- Adjustable flanged feet for secure floor anchoring and easy leveling.
Integrated 2-Speed Mixer
- Twin-shaft agitator: 304 SS anchor-style main paddle plus counter-rotating beater for thorough mixing of thin or high-viscosity foods.
- Two operating speeds – Low: 23 RPM main / 60 RPM beater • High: 46 RPM main / 120 RPM beater.
- 1 hp (high) / ½ hp (low) totally-enclosed gear motor; aluminum mixer bridge is balanced and sealed.
- Removable nylon scraper blades continuously clean kettle walls to prevent scorching.
- Actuator-assisted lift raises the agitator clear of the kettle for product change-over and cleaning.
- Positive rim lock and safety interlock prevent high-speed starts when the bridge is raised.
Performance & Safety Highlights
- UL, NSF & ASME compliant—built and pressure-tested in the USA.
- Automatic low-water, over-temperature and tilt shut-offs protect both operator and equipment.
- Field-selectable voltages: 208, 240, 380, 415, 440 or 480 V • 1- or 3-phase • 50/60 Hz.
- 12-month parts & labor warranty with optional extended coverage.
Technical Specifications
| Model | TWE-30 with MV Mixer |
|---|---|
| Capacity | 30 gal / 114 L |
| Heat Input | 24 kW electric, self-contained |
| Thermostat Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Electrical | 208-480 V, 1 ø or 3 ø, 50/60 Hz (see amp chart below) |
| Full-Load Amps @ 240 V | 1 ø 100 A | 3 ø 57.7 A per leg |
| Jacket Rating | 50 psi @ 298 °F ASME |
| Tilt Mechanism | Manual crank, self-locking worm gear |
| Mixer Motor | 1 hp (high) / ½ hp (low), 2-speed |
| Agitator Speeds | 23 / 46 RPM (main) • 60 / 120 RPM (beater) |
| Overall Height | ≈ 43.5 in (110 cm) to rim |
| Front-to-Back | ≈ 44.1 in (112 cm) |
| Side-to-Side | ≈ 37.4 in (95 cm) pour path |
| Net Weight | ≈ 640 lb (290 kg) |
| Warranty | 12 months parts & labor (extended terms available) |
Looking for a draw-off valve, faucet package or custom control options? Our team can configure the TWE-30 to match your exact workflow.
Specifications are subject to change without notice. Photos may show optional accessories.
