Legion TWE-30 Steam Kettles
Description

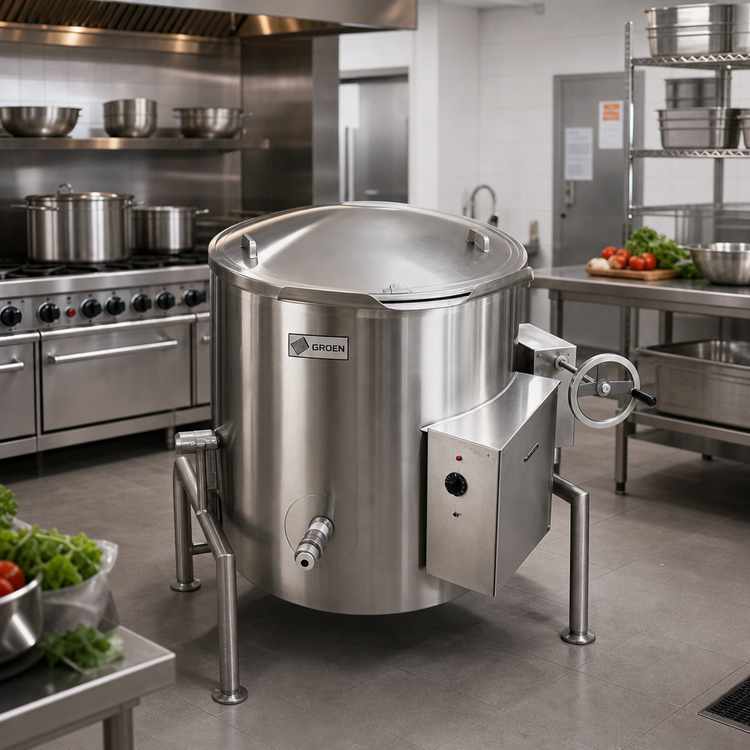

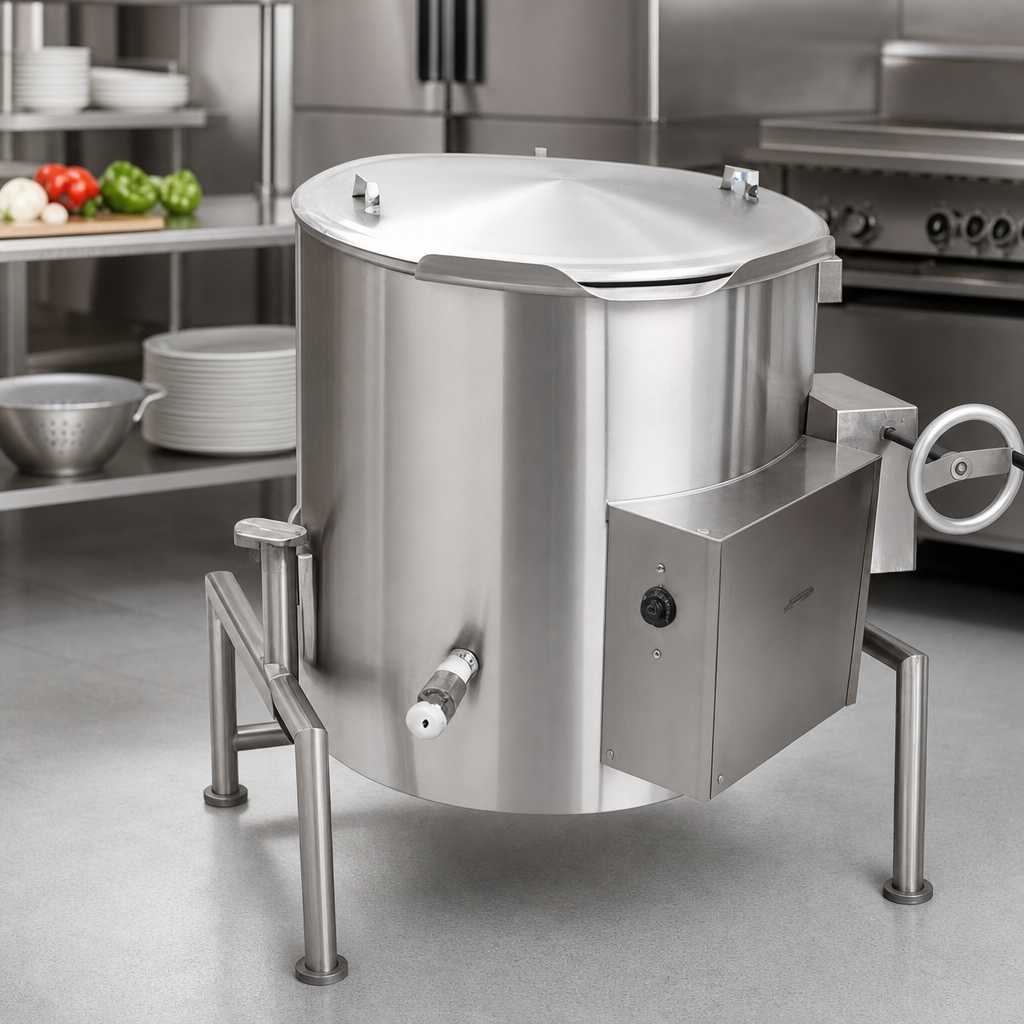

Legion TWE-30 Electric Tilting Kettle – 30 Gal
2/3 Jacketed • Self-Contained • 24 kW • Made in USAEngineered for high-volume commercial kitchens, the Legion TWE-30 delivers rapid, even heating, effortless pouring and industry-leading safety in a compact, floor-mounted footprint. With a full 30-gallon (114 L) capacity and an insulated, self-contained design, it is the ideal workhorse for soups, sauces, stocks and braising.
Why You’ll Love It

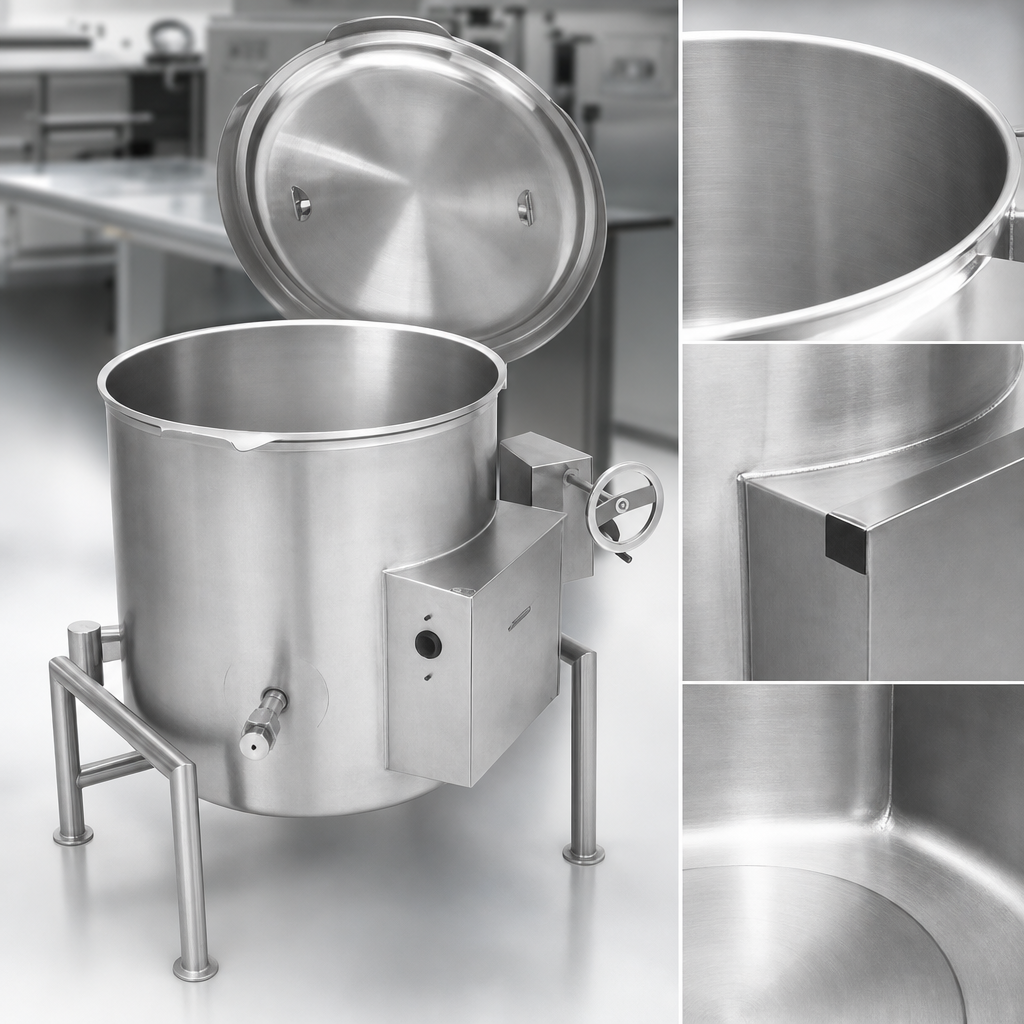

- Seamless 304 stainless steel liner with integrally formed radius lip – hygienic & easy to clean.
- 2/3 jacketed construction for fast, uniform heat transfer.
- Thermostat control (150 °F – 260 °F) with automatic low-water cut-off & indicator light.
- Self-locking worm-gear tilt mechanism gives precision control and stays put at any angle.
- Full-body insulation (Insulated for Safety™) keeps exterior surfaces cooler and saves energy.
- All-stainless outer casing, control console, reinforced gear box & 2 in. tubular frame – built to last.
- Tilting cut-off switch de-energises elements when the kettle leaves the upright position.
- Adjustable flanged feet for fast, rock-solid installation on uneven floors.
- Field-replaceable heating elements simplify long-term maintenance.
Integrated Kettle Protection
- Pressure relief valve
- Air eliminator valve
- Pressure gauge
- Jacket-water fill port
These safeguards work together to maximise performance while protecting your staff and equipment.
Specs at a Glance
| Capacity | 30 gal | 114 L |
|---|---|
| Kettle Interior | Seamless 304 stainless steel, deep-drawn |
| Jacket | 304L stainless, 2/3 coverage |
| Heating Power | 24 kW (electric) |
| Temperature Range | 150 °F – 260 °F (66 °C – 127 °C) |
| Tilt Mechanism | Self-locking worm gear, manual crank |
| Overall Height | ≈ 44.1 in | 1,120 mm |
| Overall Width | ≈ 36.0 in | 914 mm |
| Overall Depth | ≈ 23.0 in | 584 mm |
| Electrical (per leg) |
208 V 1φ 115.4 A | 208 V 3φ 66.6 A 240 V 1φ 100.0 A | 240 V 3φ 57.7 A 380 V 1φ 63.2 A | 380 V 3φ 36.5 A 415 V 1φ 57.8 A | 415 V 3φ 33.4 A 440 V 1φ 54.5 A | 440 V 3φ 31.5 A 480 V 1φ 50.0 A | 480 V 3φ 28.9 A |
| Certifications | ASME, NSF, UL & more (meets all applicable standards) |
Popular Factory Options
- 2 in. or 3 in. draw-off valve (compression or ball-type)
- Single / dual faucet with 12 in. or 18 in. swing nozzle & mounting bracket
- 48 in. flexible spray hose (vinyl or stainless)
- Hinged, lift-off or actuator-assisted covers
- Pour-lip pan holder, measuring strip & care kit
- Electric timer with buzzer, pressure switch or 2-speed mixer/agitator
Options ship installed and tested when ordered with the kettle.
From bulk chilli to velvety custards, the Legion TWE-30 brings consistent results, lower labour costs and legendary durability to every shift. Add it to your line-up today and taste the difference efficiency can make.
