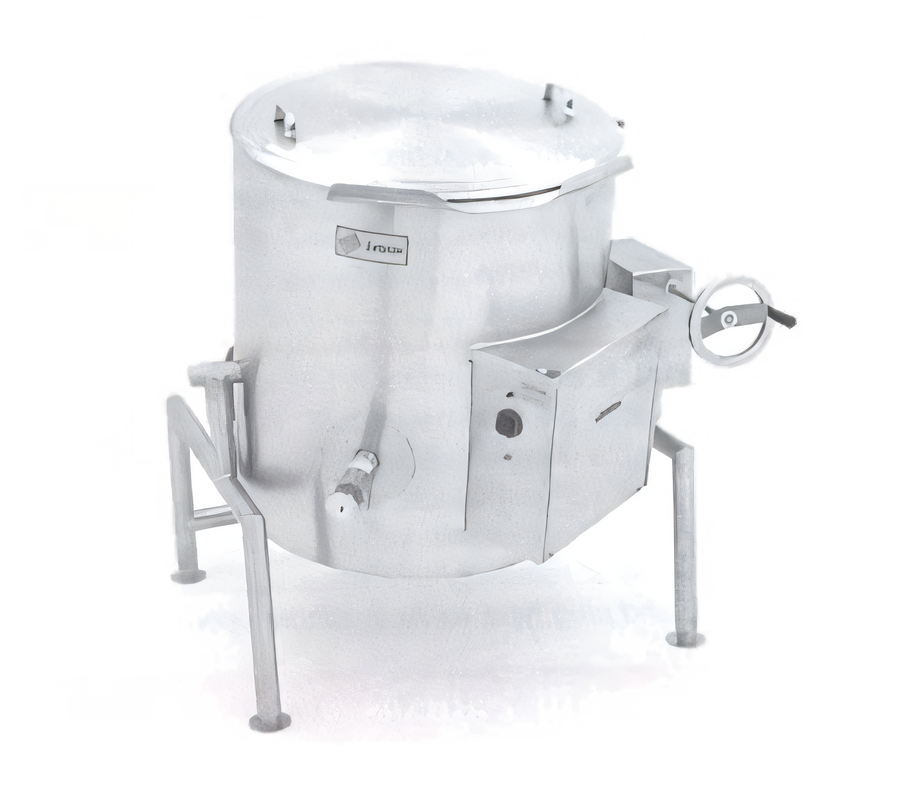

Legion TWE-20M 20-Gallon Electric Tilting Kettle with Integrated Mixer
Self-Contained • 12 kW • 304 Stainless Steel • Made in USAFrom batch soups to velvety custards, the Legion TWE-20M gives you 20 gallons of flawless, evenly-heated capacity and hands-free agitation in a single, rock-solid floor unit. Its fully self-contained steam jacket heats fast, while the twin-shaft mixer keeps product moving for perfect consistency—every time.
Why You’ll Love It
- One-piece, deep-drawn 304 stainless kettle liner with sanitary radius lip for drip-free pouring.
- 2⁄3 jacketed, 12 kW electric heating—30 % faster to a boil than open-pot ranges.
- Twin-shaft agitator with counter-rotating beater (High 46/120 rpm • Low 23/60 rpm) eliminates scorching and lumping.
- Thermostatic control 150 °F – 260 °F lets you precisely simmer, braise or boil.
- Automatic low-water cut-off, pressure relief valve, air eliminator & gauge safeguard the jacket.
- Self-locking worm-gear tilt and heat-cut-off switch allow safe, splash-free pour-off.
- Full-body insulation keeps exterior surfaces cool and saves energy.
- All-stainless outer casing, control console, gear box and 2″ tubular frame built for heavy commercial use.
- Adjustable flanged feet bolt securely to the floor for code-compliant installation.
Specifications
| Capacity | 20 gal / 76 L |
|---|---|
| Heat Source | Electric, self-contained 2⁄3 steam jacket |
| Input | 12 kW |
| Voltage (per leg) | 208 V, 240 V, 380 V, 415 V, 440 V, 480 V • 1 ø or 3 ø |
| Amps @ 240 V | 1 ø – 50 A / 3 ø – 28.9 A |
| Temperature Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Agitator Motor | Two-speed 1 HP / ½ HP |
| Main Agitator Speed | High 46 rpm • Low 23 rpm |
| Secondary Beater Speed | High 120 rpm • Low 60 rpm |
| Construction | 304 & 304L stainless steel, seam welded |
| Overall Width (W) | 18.0″ (457 mm) |
| Front-to-Back (F) | 43.1″ (1,095 mm) |
| Overall Height (C) | 41.6″ (1,057 mm) |
| Pour-Path Clearance (Y) | 35.5″ (902 mm) minimum |
| Compliance | ASME, NSF, UL, ETL |
Popular Options & Accessories
- Single or dual fill faucets with 12″ or 18″ swing nozzles
- 48″ flexible spray hose (vinyl or stainless)
- 1½″ or 2″ sanitary draw-off valves (compression or ball type)
- Lift-off, hinged or actuator-assisted one-piece cover
- Pour-lip pan holder, measuring strip & care kit
- Electric timer with buzzer for repeatable batch cooking
- Tamper-resistant fasteners & lockable control cover for security applications
Looking for a larger capacity? 30-, 40- and 60-gallon TWE models are also available with identical features.
Product Weight:
955.0 lbFrequently Asked Questions
