Legion TWE-20 Steam Kettles
Description

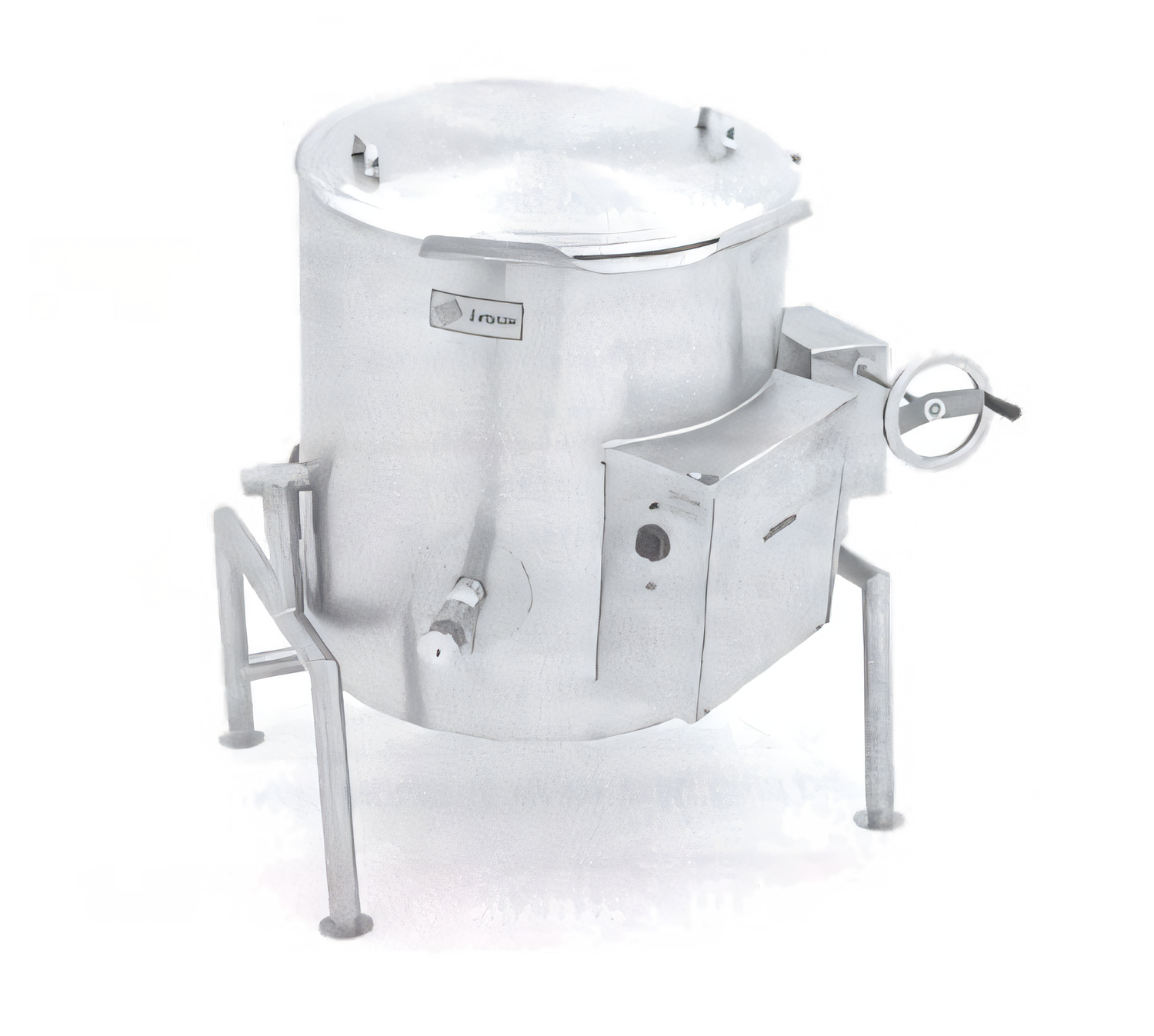

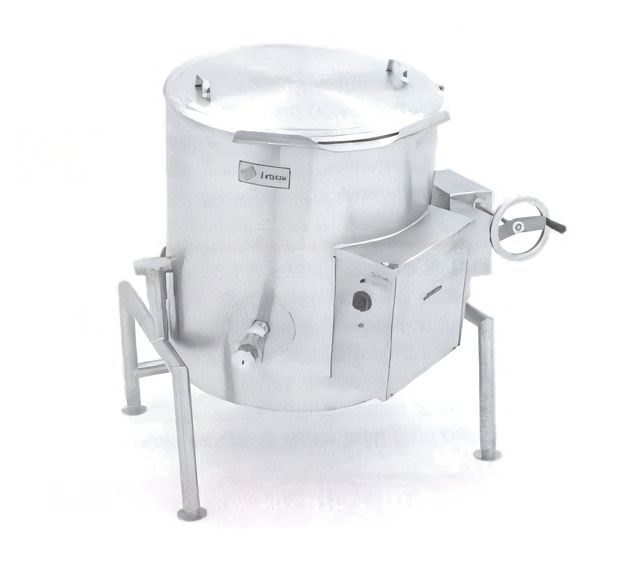

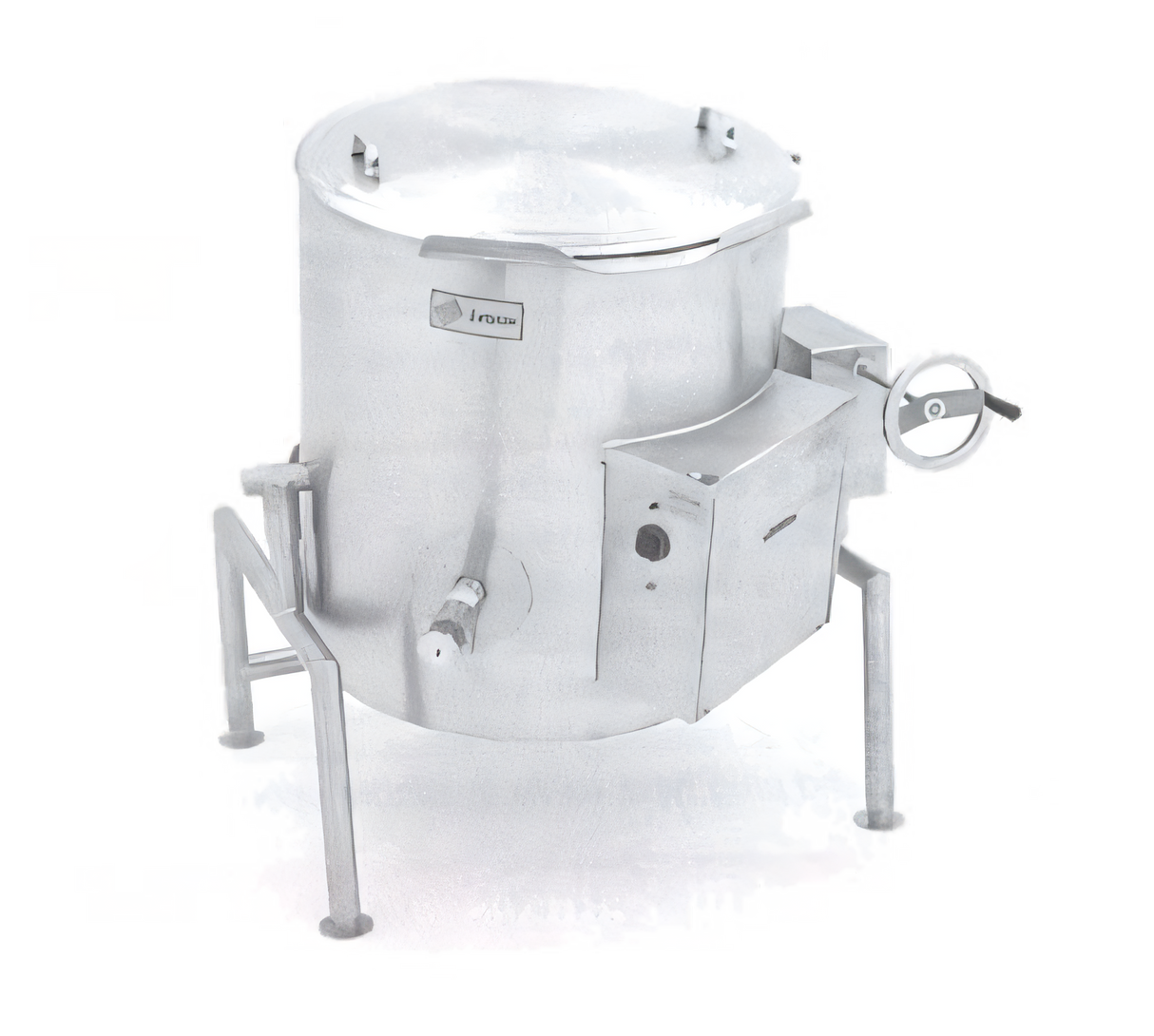

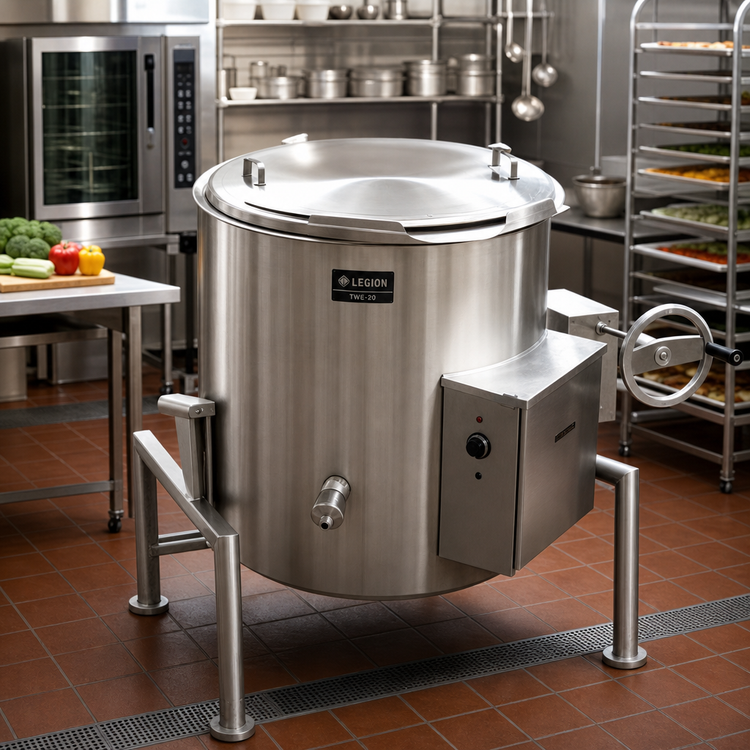

Legion TWE-20 Electric Tilting Kettle – 20 gal
Self-Contained • 2/3 Jacketed • Insulated for Safety™ • Made in USAGive your kitchen the speed, consistency and safety of steam-jacketed cooking—without the need for an external boiler. The 20-gallon Legion TWE-20 is a compact, floor-mounted workhorse engineered to braise, boil, simmer and stew with unbeatable temperature control and effortless tilting.
Key Advantages
- Rapid, even heating – 2/3 jacketed vessel surrounds product with steam for faster cook times and zero burn-on hot spots.
- Precise thermostat control – Dial in any set-point from 150 °F – 260 °F (66 °C – 127 °C) and hold it accurately.

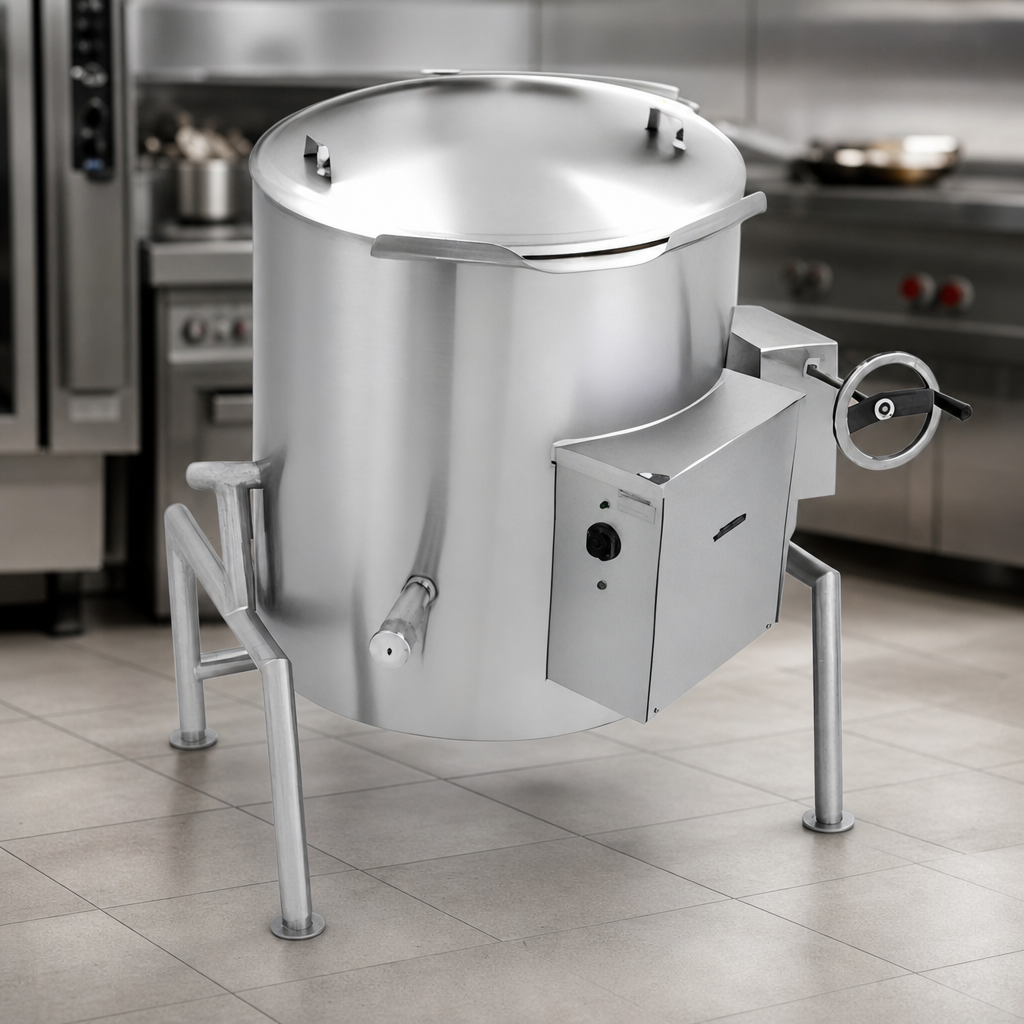

- Self-contained 12 kW electric system – Just connect power and water; no boiler room or steam lines required.
- Insulated for Safety™ – Full-body insulation keeps exterior surfaces cool and cuts energy loss.
- Seamless 304 stainless kettle liner – Deep-drawn one-piece construction with integral radius lip cleans fast and resists pitting.
- Self-locking worm gear tilt – Smooth, precise pouring with a built-in cut-off switch that disables heat whenever the kettle is tilted.
- Rugged all-stainless chassis – Jacket, casing, console, reinforced gear box and 2″ tubular frame are all 304 or 304L stainless steel.
- Kettle protection package – Pressure relief valve, air eliminator, low-water cut-off with indicator light, pressure gauge and field-replaceable elements keep you up and running.
- Adjustable flanged feet – Level the unit securely on any finished floor.
Perfect For
- Soups, stews & chowders
- Pasta, rice & grains
- Sauces, gravies & reductions
- Braising proteins or vegetables
- Beverage bases & syrups
Technical Specs
| Model | Legion TWE-20 |
|---|---|

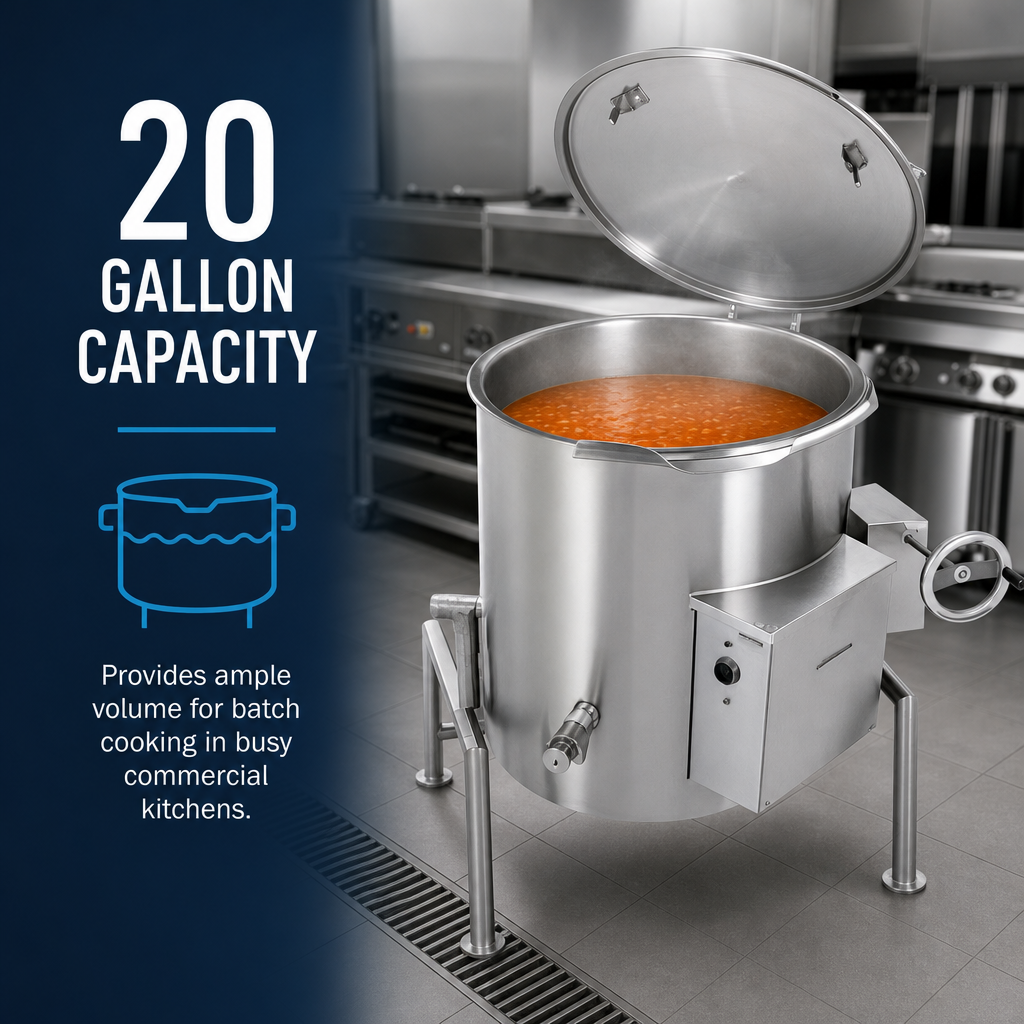

| Capacity | 20 gal / 76 L |
| Heating System | Electric, self-contained, 12 kW |
| Temperature Range | 150 °F – 260 °F (66 °C – 127 °C) |
| Construction | Seamless 304 S/S liner, 304L jacket, fully insulated stainless outer casing |
| Tilt Mechanism | Self-locking worm gear with tilt cut-off switch |
| Floor Mounting | 2″ tubular stainless frame with adjustable flanged feet |
| Electrical (per leg) |
208 V 1ɸ 57.7 A | 208 V 3ɸ 33.3 A 240 V 1ɸ 50.0 A | 240 V 3ɸ 28.9 A |
| Overall Footprint | Approx. 43.1″ W × 42.0″ D × 41.6″ H* |
| Compliance | Meets ASME, NSF, UL, ETL, CSA & other applicable standards |
*Height to rim. See spec sheet for detailed dimensional drawings.
Popular Factory Options
- Single or dual fill faucets with 12″ or 18″ swing nozzles
- 48″ flexible spray hose (vinyl or stainless)
- 2″ or 3″ draw-off valves (ball or compression)
- Lift-off, hinged or actuator-assisted cover
- Care kit, measuring strip & basket inserts
- Electric timer with buzzer or 2-speed mixer/agitator
Warranty Coverage
Legion backs every TWE-series kettle with a 12-month parts & labor warranty (15 months from ship date when registered). Extended warranty plans are available—contact us for details.
