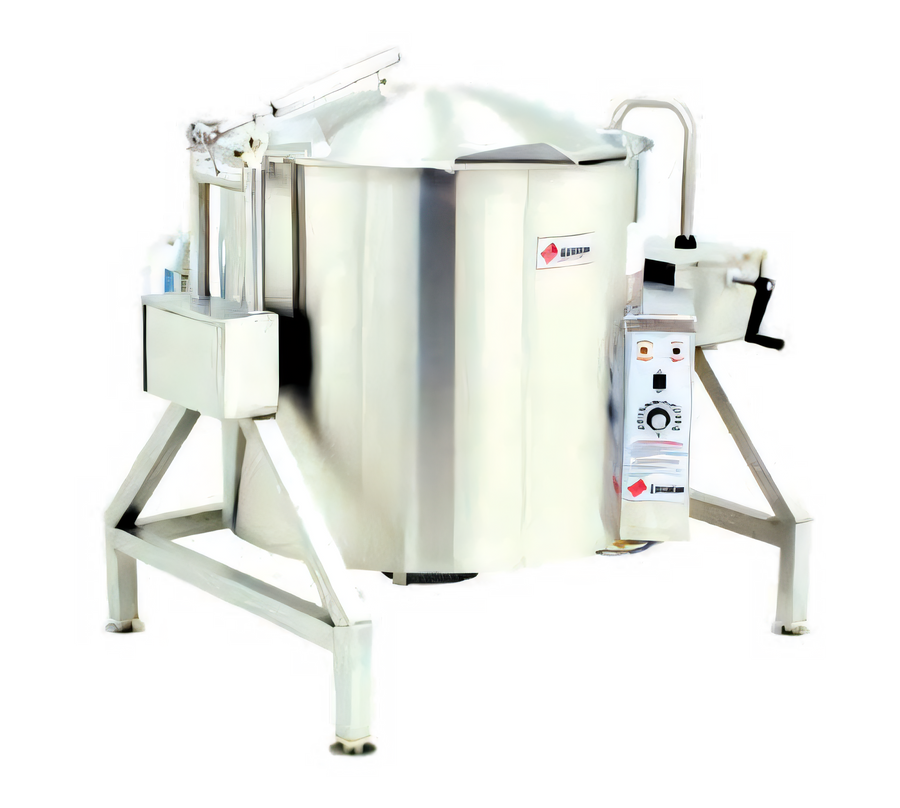

Legion TLGB-80 Gas Tilting Kettle • 80 Gal • With 2-Speed Mixer
Insulated, self-contained 2/3-jacketed floor model – Made in USAEngineered for high-volume kitchens that refuse to compromise on speed, safety, or product quality, the Legion TLGB-80 delivers 80 gallons of evenly heated capacity plus a factory-matched 2-speed mixer. 304 stainless steel throughout, full-body insulation, and intelligent controls give you powerful, precise cooking while protecting crews and cutting energy costs.
Why it belongs in your kitchen
- 80-gallon capacity in a deep-drawn, 304 SS kettle liner for superior durability and sanitation.
- 2/3 steam jacket surrounded by 3–14 in of Insulated for Safety™ fiber to keep heat in the food, not the room.
- Factory-installed twin-shaft, 2-speed agitator with anchor scraper and counter-rotating beater for uniform product consistency.
- 131,400 BTU gas burner (natural or LP) brings product rapidly to temperature, controlled by a 150 °F – 260 °F thermostat.
- Self-contained closed water system—no external boiler or steam supply required.
- Smooth, positive-tilt design with self-locking worm gear lets one operator safely pour heavy batches.
- Electronic ignition (120 V) with safety pilot, low-water cutoff, pressure relief valve and Kettle Protection System for worry-free operation.
- Convenient jacket water fill with sight glass plus pressure gauge and air eliminator for quick checks at a glance.
- Seam-welded 304 SS frame, console, outer casing and reinforced gear box stand up to daily commercial abuse.
- Adjustable flanged feet bolt to floor for rock-solid stability.
Integrated 2-Speed Mixer Highlights
- Enclosed aluminum mixer bridge with totally-enclosed gear motor.
- Anchor-style main agitator follows kettle contour; removable nylon blades continuously scrape the sidewall.
- Counter-rotating beater improves circulation—ideal for sauces, soups, pie fillings & more.
- Bayonet-mount tools lift out tool-free for fast cleaning or cooking without agitation.
- Actuator-assisted bridge lift and positive rim lock for secure, ergonomic operation.
Performance & Utility Specs
| Capacity | 80 gal / 303 L |
|---|---|
| Heat Source | Natural or Propane gas, 131,400 BTU/hr |
| Mixer Drive | Twin-shaft, 2-speed (23 RPM low / 46 RPM high main agitator) |
| Temperature Range | 150 °F – 260 °F (thermostatic control) |
| Ignition | Electronic, 120 V, 1 ph, 50/60 Hz, 1 A |
| Gas Connection | ¾ " IPS supply; factory outlet pressure 3.5" W.C. (Nat) / 9.0" W.C. (LP) |
| Construction | 304 SS liner, jacket, frame, console & outer casing |
| Overall Dimensions | W 57.9" × D 48.9" × H 43.4" (contact us for full drawing) |
| Standards | ASME-coded jacket, NSF, UL, ETL, CSA approvals |
Factory Options & Accessories
Add-ons ship installed or loose as noted.
- 2" or 3" compression or ball-type draw-off valve
- Single/double fill faucets with 12" or 18" swing nozzle
- 48" vinyl or stainless spray hose assembly
- Automatic water-filling meter
- Electric timer with buzzer, pressure switch & higher-voltage ignition
- Lockable lid & control cover, prison-grade fasteners
- Basket, perforated strainer, drain hose, measuring strip & kettle care kit
Built-in Safety
- Automatic low-water cutoff with indicator prevents element damage.
- Pressure relief valve and gauge safeguard the jacketed cavity.
- Full-body insulation keeps surfaces cooler and reduces energy loss.
- Safety pilot and ignition lockout stop gas flow if flame is lost.
Warranty
Every TLGB kettle is backed by Legion’s 12-month parts & labor warranty (15 months from ship date). Extended coverage available.
Product Weight:
1205.0 lbFrequently Asked Questions
