Legion TLGB-80 Steam Kettles
Description

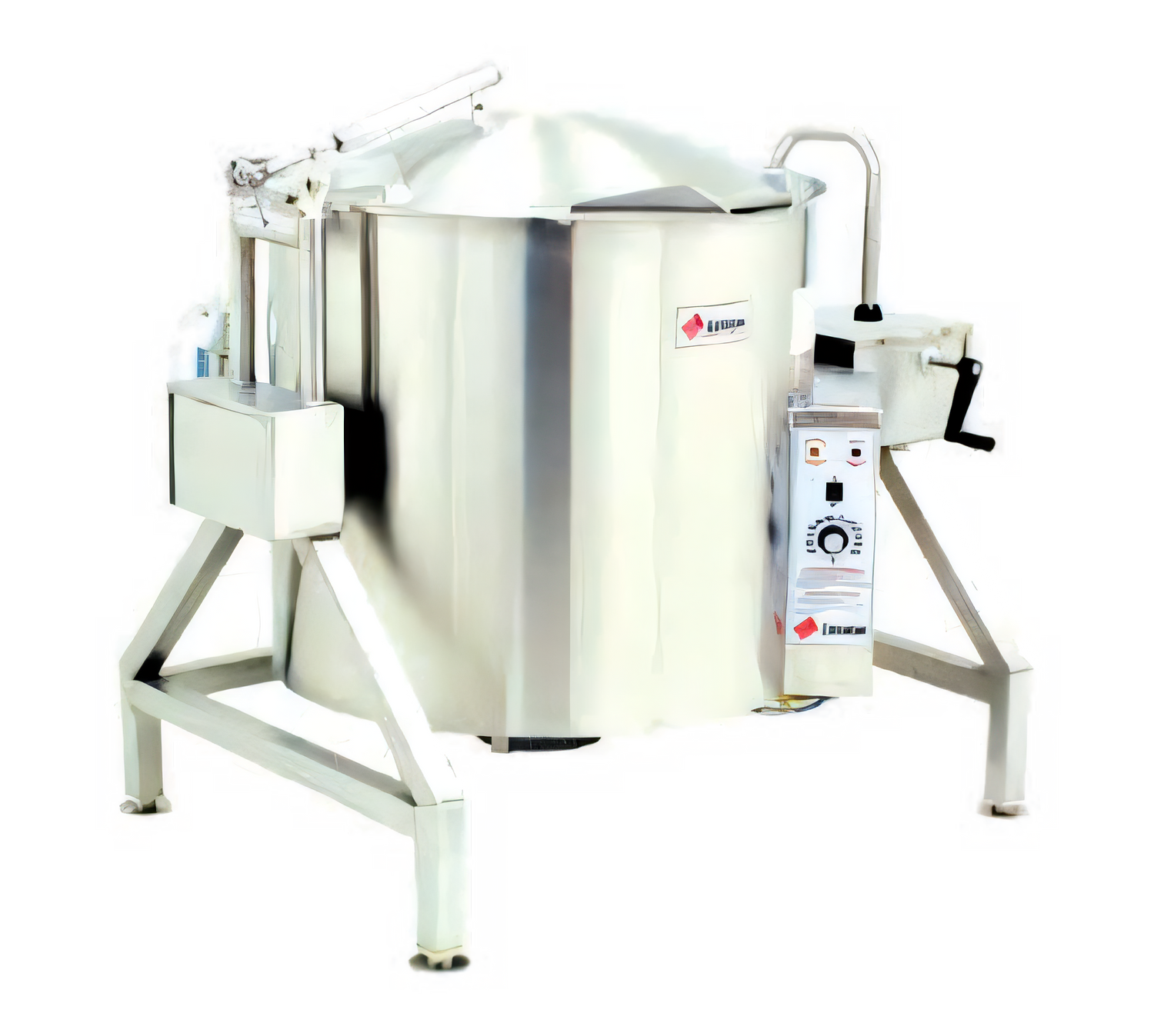

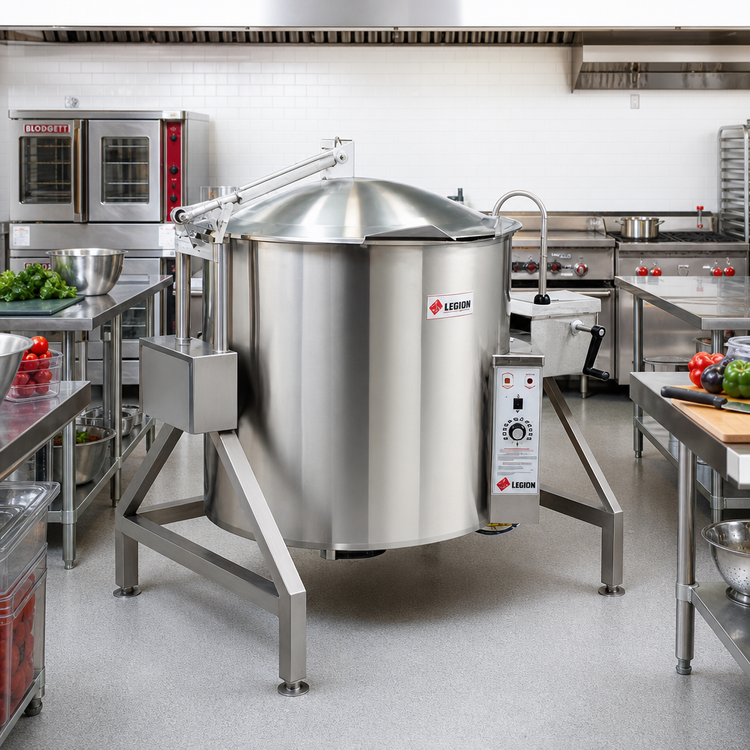

Legion TLGB-80 Gas Tilting Kettle – 80 Gallons
Insulated • 2/3-Jacketed • Self-Contained Floor ModelEngineered for high-volume production and operator safety, the TLGB-80 delivers a generous 80 gallons (303 L) of precise, even heating in a compact, floor-mounted footprint. With a rugged 304 stainless steel liner, full-body insulation and a powerful 131,353 BTU gas burner, this American-made kettle is built to keep your menu—and your kitchen—running at full tilt.
Built-in Advantages
- Massive 80 gal / 303 L capacity handles soups, sauces, stocks & pasta with ease.
- 2/3-jacketed design powered by 131,353 BTU for rapid, even heat distribution.

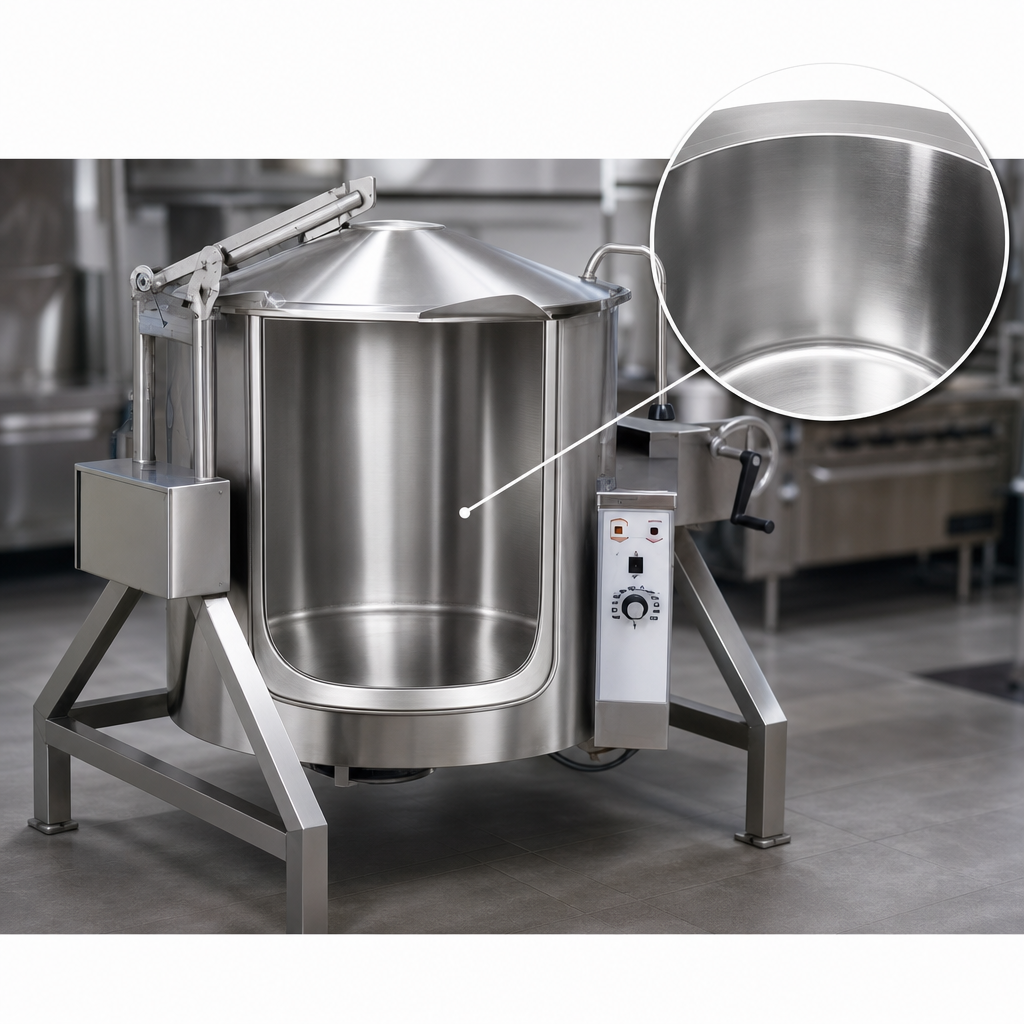

- Deep-drawn 304 stainless steel liner resists corrosion, pitting and flavor transfer.
- Insulated for Safety™ – up to 3 in. of high-efficiency insulation keeps exterior surfaces cool.
- Precise thermostat control from 150 °F – 260 °F (65 °C – 126 °C).
- Electronic spark ignition (120 V standard) with safety pilot & automatic shut-offs.
- Self-contained water jacket with sight glass, fill port & low-water cut-off indicator.
- Smooth, self-locking worm-gear tilt mechanism for controlled, splash-free pouring.
- Seam-welded 304 stainless outer casing & tubular frame—easy to clean, built to last.
- Made in the USA to ASME, NSF and other applicable standards.
Technical Specifications
| Model | TLGB-80 |
|---|---|
| Capacity | 80 gal (303 L) |
| Heat Input | 131,353 BTU/hr |
| Fuel | Natural or Propane (factory set) • 3/4 in. IPS connection |
| Operating Pressure | Natural 3.5 " W.C. • Propane 9 " W.C. |
| Temperature Range | 150 °F – 260 °F (65 °C – 126 °C) |

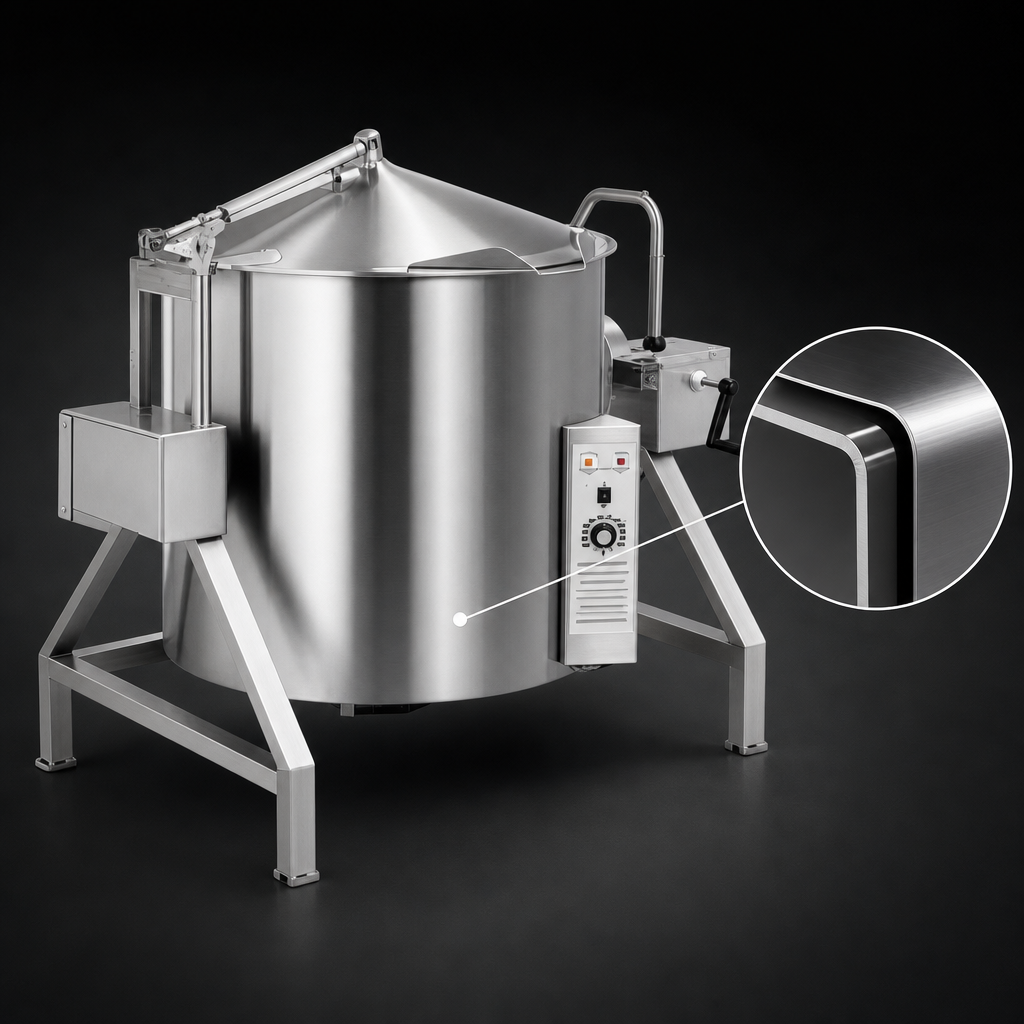

| Jacket | 2/3 coverage – 304L stainless, self-contained water bath |
| Liner | 304 stainless steel, deep-drawn |
| Exterior | Seam-welded 304 stainless casing & control console |
| Ignition | Electronic spark, 120 V (208/240 V optional) |
| Tilt Mechanism | Single-reduction, self-locking worm gear with hand crank |
| Safety Systems | Pressure relief valve, air eliminator, low-water cut-off, indicator lights |
| Overall Dimensions | 57.9 " W × 48.9 " D × 47.5 " H (see drawing) |
| Shipping Origin | Waynesboro, GA • USA |
Popular Factory Options
- 2 " or 3 " draw-off valve (compression or ball-type)
- Single or double fill faucet with 12 " / 18 " swing nozzle
- 48 " flexible spray hose assembly (vinyl or stainless)
- Lift-off or actuator-assisted cover
- Electric timer with buzzer & pressure switch
- 1/2 " gas quick-disconnect with 60 " flexible hose
- Mixer/Agitator – two-speed integrated system
Looking for something specific? Our team can help configure the TLGB-80 with the exact accessories and utilities your kitchen requires.
