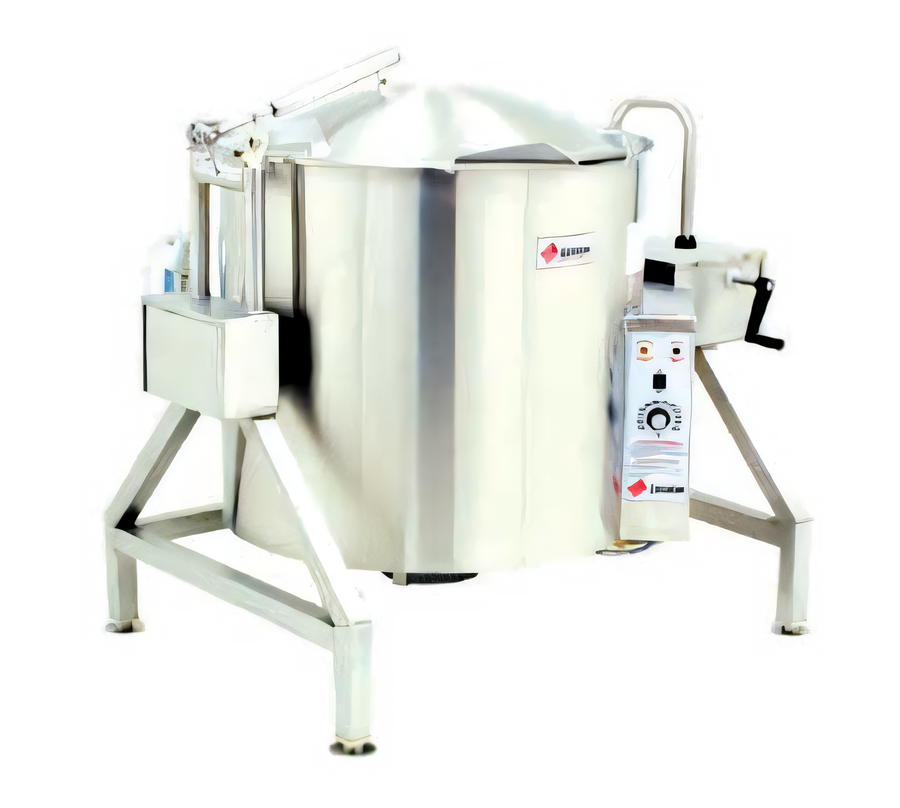

Legion TLGB-60 Low-Rim Gas Tilting Kettle with 2-Speed Mixer – 60 gal
Insulated • Self-Contained • 2/3-Jacketed Floor Model • 106,800 BTU*Built for high-volume kitchens that demand speed, safety and consistency, the TLGB-60 combines Legion’s legendary tilting kettle with a factory-installed two-speed mixer. Cook, blend, and pour up to 60 gallons of soups, sauces, fillings and more—no external boiler or separate mixing station required.
Key Features
- 60 gal (227 L) capacity in an ergonomic low-rim design for easy loading and scraping
- Gas-fired, 2/3 water jacket reaches 150 °F – 260 °F quickly and evenly
- Factory-mounted two-speed twin-shaft mixer with anchor agitator & counter-rotating beater
- 304 stainless steel kettle liner, jacket, outer casing, control console & frame
- Insulated for Safety™—3"-14" fiberglass wrap minimizes ambient heat and energy loss
- Electronic ignition, safety pilot, low-water cutoff, pressure relief & gauge for worry-free operation
- Smooth self-locking tilt via permanently lubricated worm gear drive
- Deep-drawn seamless construction for maximum durability and hygiene
- Adjustable flanged feet secure directly to the floor
- Made proudly in the USA
Mixer Highlights
- Enclosed, balanced aluminum mixer bridge with totally enclosed gear motor
- Anchor-style main agitator with removable nylon scraper blades sweeps entire kettle surface
- Counter-rotating stainless beater improves agitation of viscous products
- Bayonet-mount agitators release in seconds for cleaning or kettle-only use
- Safety interlock prevents high-speed starts unless mixer is fully engaged
Technical Specifications
| Model | TLGB-60 (with 2-speed mixer/agitator) |
|---|---|
| Capacity | 60 gal / 227 L |
| Heat Source | Natural Gas – 106,800 BTU/hr Propane option – 108,500 BTU/hr |
| Temperature Range | 150 °F – 260 °F (66 °C – 127 °C) |
| Jacket | 2/3, self-contained water jacket (no external boiler required) |
| Mixer Motor | 2 HP, two-speed 23 & 46 RPM main agitator / 60 & 120 RPM secondary beater |
| Construction | 304 stainless liner, 304L jacket, seam-welded outer shell & tubular frame |
| Controls | Thermostat dial, electronic ignition, low-water cutoff indicator, pressure gauge & sight glass |
| Utility Connections | Gas: 3/4" IPS Electricity: 120 V, 1 Ph, 1 A (208/240 V optional) |
| Overall Dimensions | W 56.6" × D 29.5" × H 46.1" Rim Height 35.6" |
| Country of Origin | USA |
Built-In Safety Systems
- Kettle Protection System™ guards against over-pressure & low water
- ASME-coded pressure relief valve
- Automatic low-water cutoff disables burners and illuminates warning light
- Self-locking tilt mechanism prevents accidental dumping
*BTU rating shown for natural gas. All specifications are subject to change without notice; please verify gas and electrical requirements with your local code authority before installation.
