Legion TLGB-60F Steam Kettles
Description

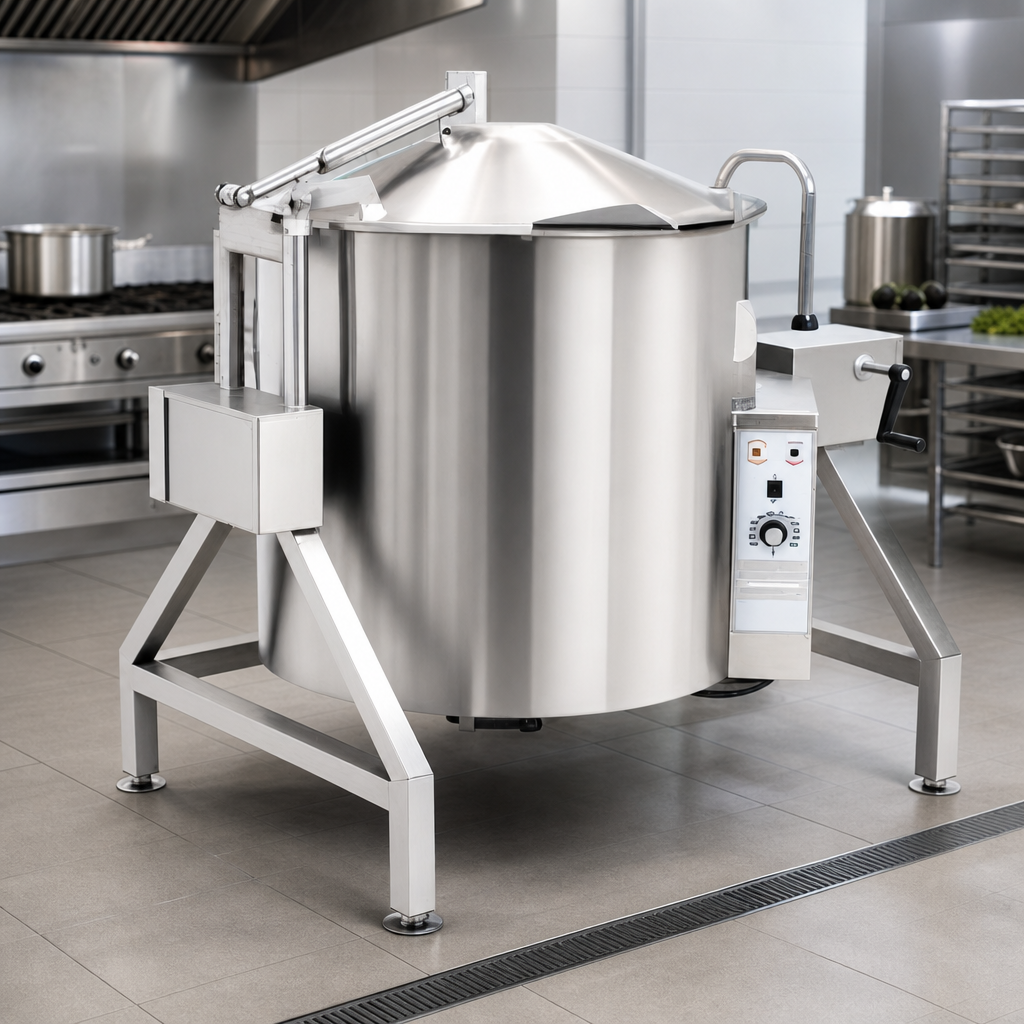

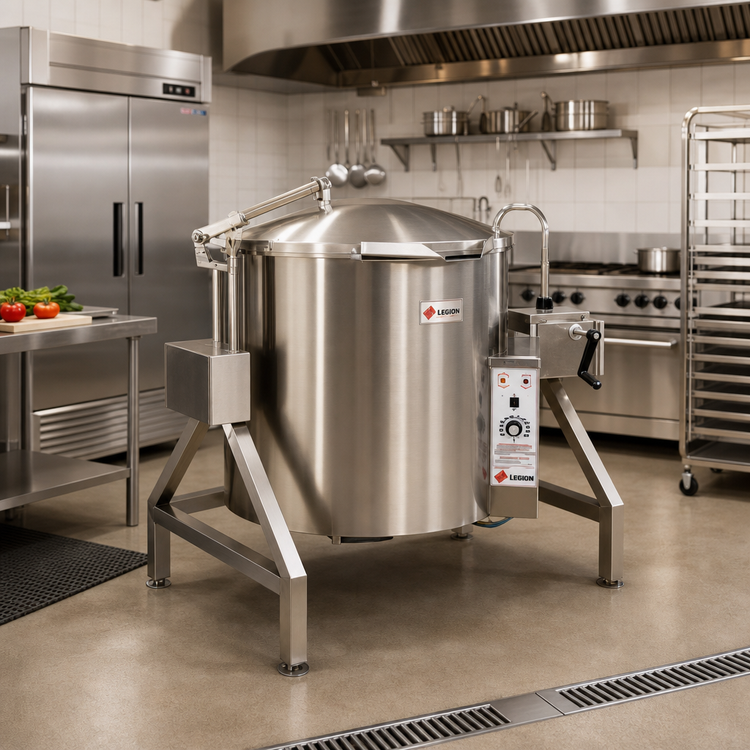

TLGB-60F Low-Rim™ Gas Tilting Kettle — 60 Gal.
Insulated, self-contained, full-jacketed floor model | Made in USAEngineered for high-volume, high-precision kitchens, Legion’s TLGB-60F couples a deep-drawn 60-gallon kettle with Low-Rim™ ergonomics, full body insulation and a powerful 131,400 BTU burner system. The result: faster heat-up, tighter temperature control and a safer, more productive work zone.
Why chefs choose the TLGB-60F
- 60-gal. capacity handles up to 227 litres of soups, sauces, stews and more.

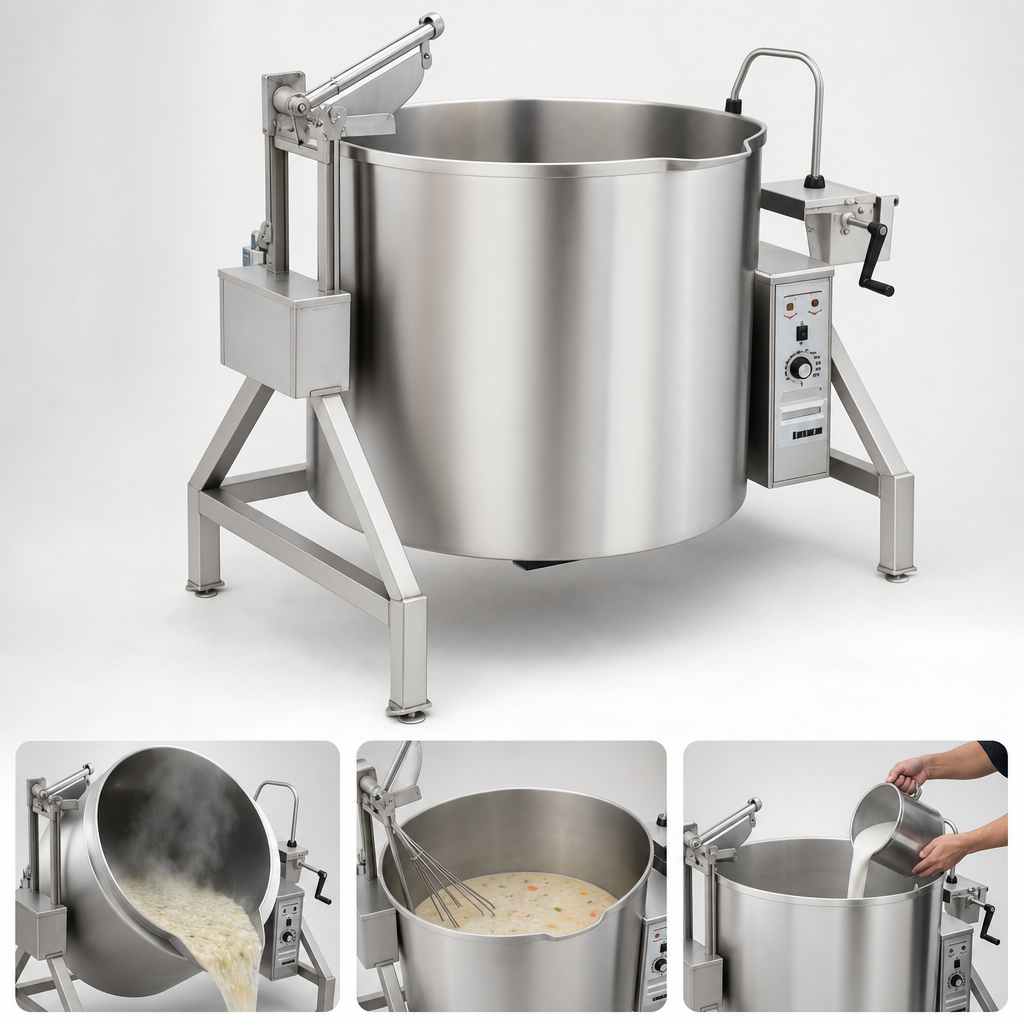

- Low-Rim™ design lowers the kettle lip for easier stirring, sampling and safer tilt-out.
- Full jacket & insulation (3 – 14 in.) deliver superior heat distribution and reduce energy loss.
- 304 stainless liner & 304L jacket resist corrosion and simplify clean-up.
- Thermostat control 150 °F – 260 °F holds tight temperature tolerances for delicate recipes.
- Kettle Protection System with pressure relief, air eliminator & low-water cutoff keeps operators safe.
- Self-locking worm gear tilt offers smooth, precise pouring without counter-weighting.
- Electronic ignition (120 V) lights instantly; no standing pilot to waste fuel.
- Adjustable flanged feet bolt securely to the floor for rock-solid installation.
Technical specifications
| Model | TLGB-60F |
|---|---|
| Capacity | 60 gal / 227 L |
| Construction | 304 SS kettle liner, 304L SS full jacket, seam-welded SS outer casing & frame |
| BTU Rating | 131,400 BTU (Natural) / 131,100 BTU (LP) |
| Gas Connection | 3/4" IPS, supply pressure 5–7" W.C. (Natural) or 12–14" W.C. (LP) |
| Electrical | 120 V, 1 ph, 50/60 Hz, 1 A (electronic ignition) |
| Thermostat Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Exterior Dimensions (WxDxH) | 57.9" F × 47.5" G × 41.6" K (see drawing) |
| Required Utilities | Natural or Propane gas, 120 V receptacle, cold water for jacket fill |
| Standards | ASME, NSF, UL, ETL & other applicable approvals |
| Origin | Proudly manufactured in Waynesboro, Georgia USA |
Popular factory options
- 2" or 3" draw-off valve (compression or ball type)
- Single / dual fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Electric timer with buzzer
- Mixer/agitator, 2-speed
- Lockable lid or control cover for secure installations
- 1/2" gas quick disconnect & flexible gas hose
Need a custom configuration? Chat with our equipment specialists for lead-time and pricing.
Warranty & support
Every Legion kettle ships with a 12-month parts & labour warranty (15 months from ship date). Extended coverage up to three years is available at checkout.
