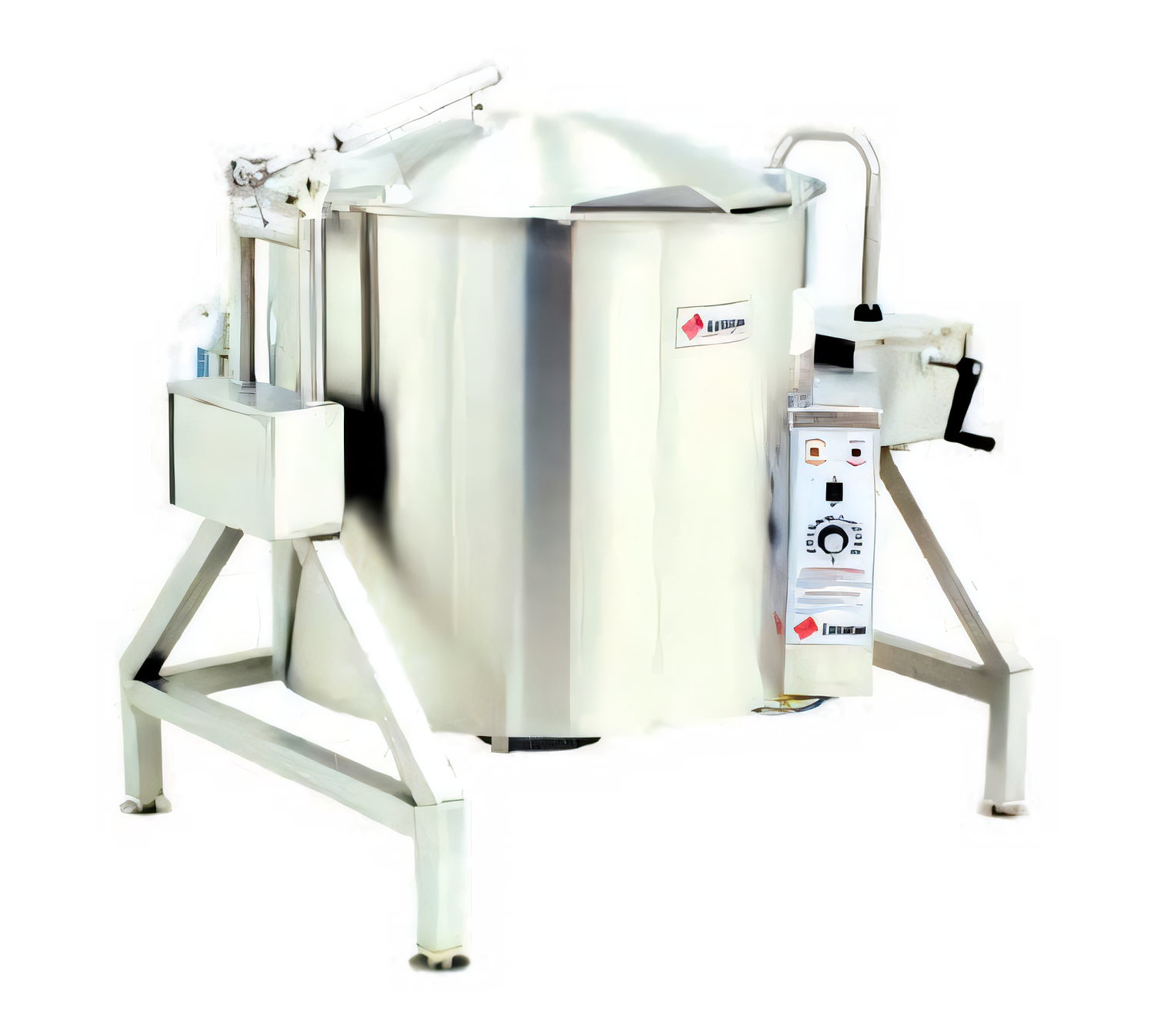

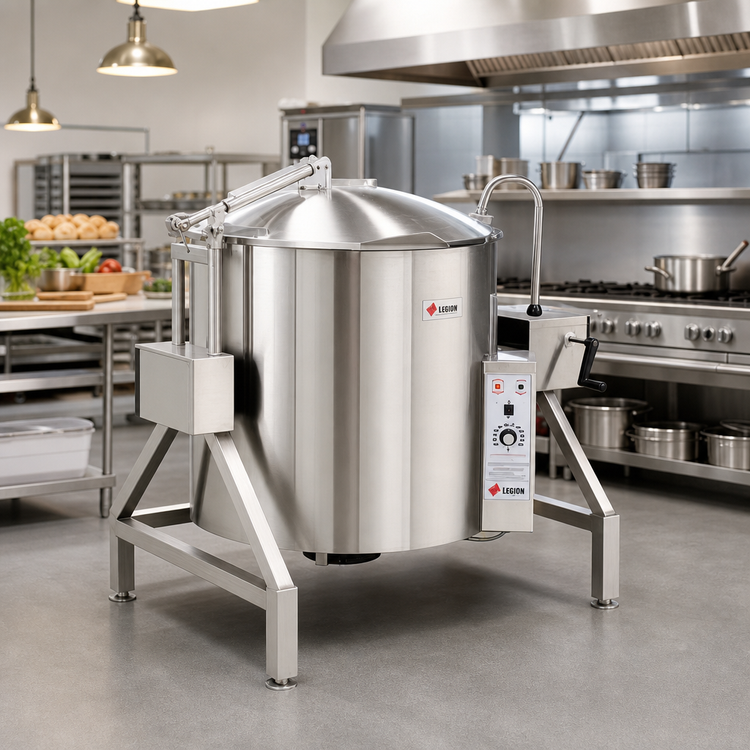

Legion TLGB-40F Low-Rim™ 40-Gallon Gas Tilting Kettle

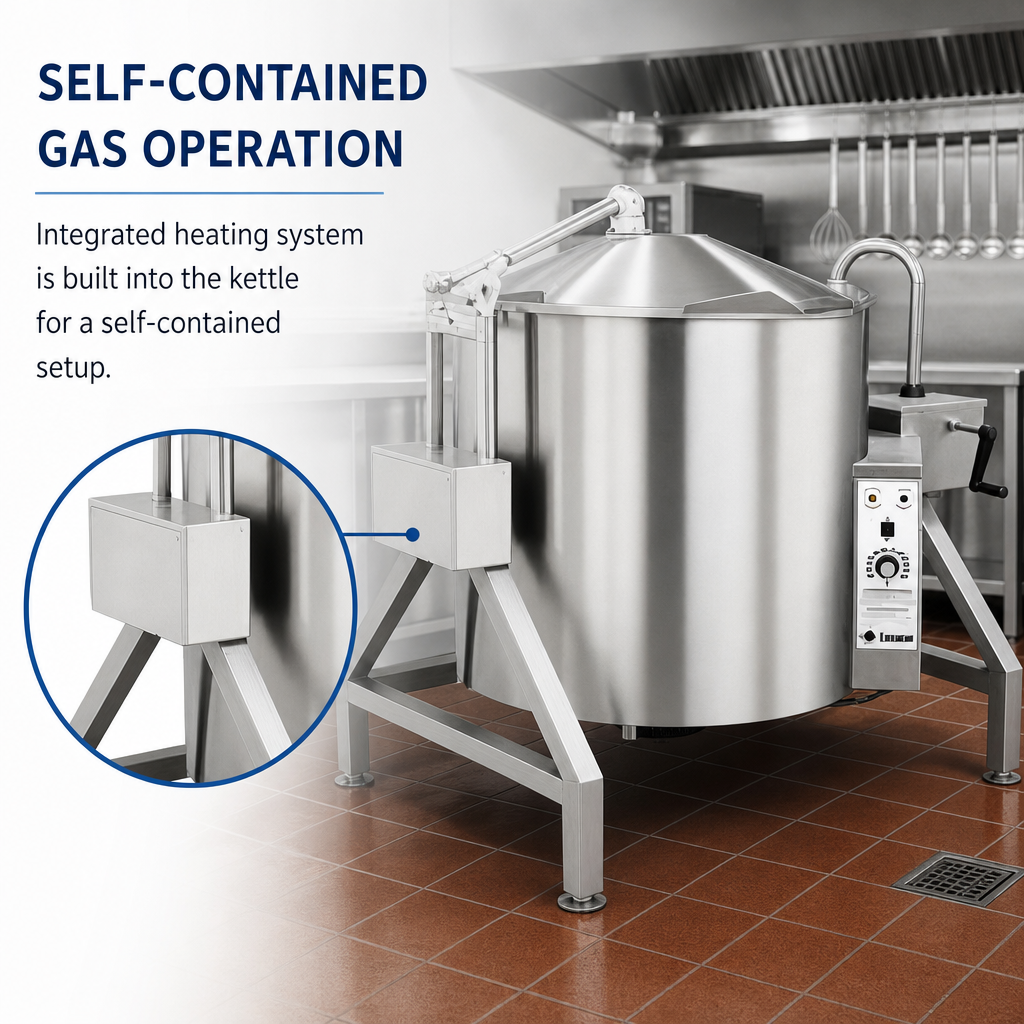

Insulated • Self-Contained • Full Jacket • Made in USABuilt for high-volume commercial kitchens, the TLGB-40F delivers 40 gallons (151 L) of consistent, even heat for soups, sauces, stews and more. Legion’s Low-Rim™ design lowers the kettle height for safer, easier access while the full-jacket construction maximizes heating efficiency—saving both time and energy on every batch.
Why You’ll Love It
- 106,800 BTU gas burner (natural or propane) reaches set temps fast and recovers quickly between loads.
- Deep-drawn 304 stainless steel liner resists pitting and corrosion for years of heavy-duty service.
- Full 304L stainless jacket surrounds the entire kettle for uniform heat distribution—no hot spots.
- “Insulated for Safety™” 3″–14″ fiberglass insulation keeps exterior surfaces cool and reduces energy loss.
- Thermostatic control 150 °F – 260 °F (65 °C – 127 °C) with electronic ignition for precise, push-button operation.
- Kettle Protection System with pressure relief valve, air eliminator, pressure gauge and low-water cutoff.

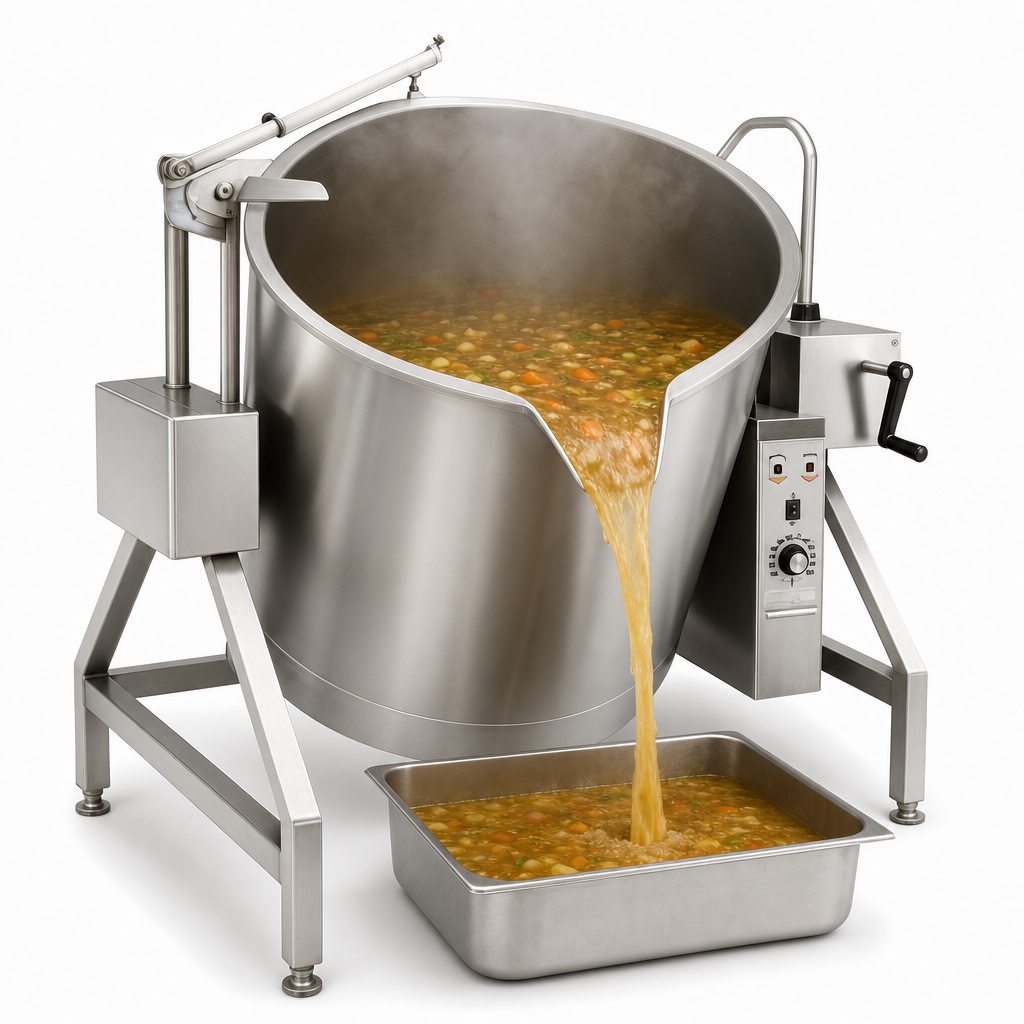

- Self-locking worm-gear tilt gives smooth, controlled pouring at any angle.
- Rugged floor frame with adjustable flanged feet anchors securely to the kitchen floor.
Standard Features
- 304 stainless exterior casing and control console—seam-welded for a sanitary finish.
- Jacket-water fill port with sight glass for quick visual checks.
- 120 V electronic ignition cord & plug (208/240 V optional).
- Safety pilot with automatic flame failure shut-off.
- ASME-code construction; NSF compliant.
Technical Specifications
| Capacity | 40 gal / 151 L |
|---|---|
| Energy Input | 106,800 BTU (Natural) | 108,500 BTU (Propane) |
| Thermostat Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Gas Connection | 3⁄4″ IPS |
| Operating Gas Pressure | Natural 5–7″ W.C. | Propane 12–14″ W.C. |
| Electrical | 120 V, 1 Ph, 50/60 Hz, 1 A (208/240 V optional) |
| Exterior Dimensions † | W 56.6″ | D 35.6″ | H (rim) 39.4″ |
| Construction | 304 & 304L stainless steel; 3″ reinforced radius lip |
| Country of Origin | USA |
†Dimensions shown are nominal; refer to spec sheet for detailed installation drawings.
Popular Options & Accessories
- 2″ or 3″ draw-off valve (compression or ball-type fitting)
- Single or double fill faucet with 12″/18″ swing nozzle
- 48″ flexible spray hose assembly (vinyl or stainless)
- Electric timer with audible buzzer
- 2-speed mixer/agitator
- Lift-off or actuator-assisted cover
- Flexible gas hose, ½″ × 60″ quick-disconnect
This kettle must be installed by a qualified technician in accordance with local codes. Adequate clearance, leveling and plumbing/electrical connections are required for safe operation.
Backed by Legion’s 12-month parts & labor warranty (extended plans available).
