Legion TLGB-40 Steam Kettles
Description

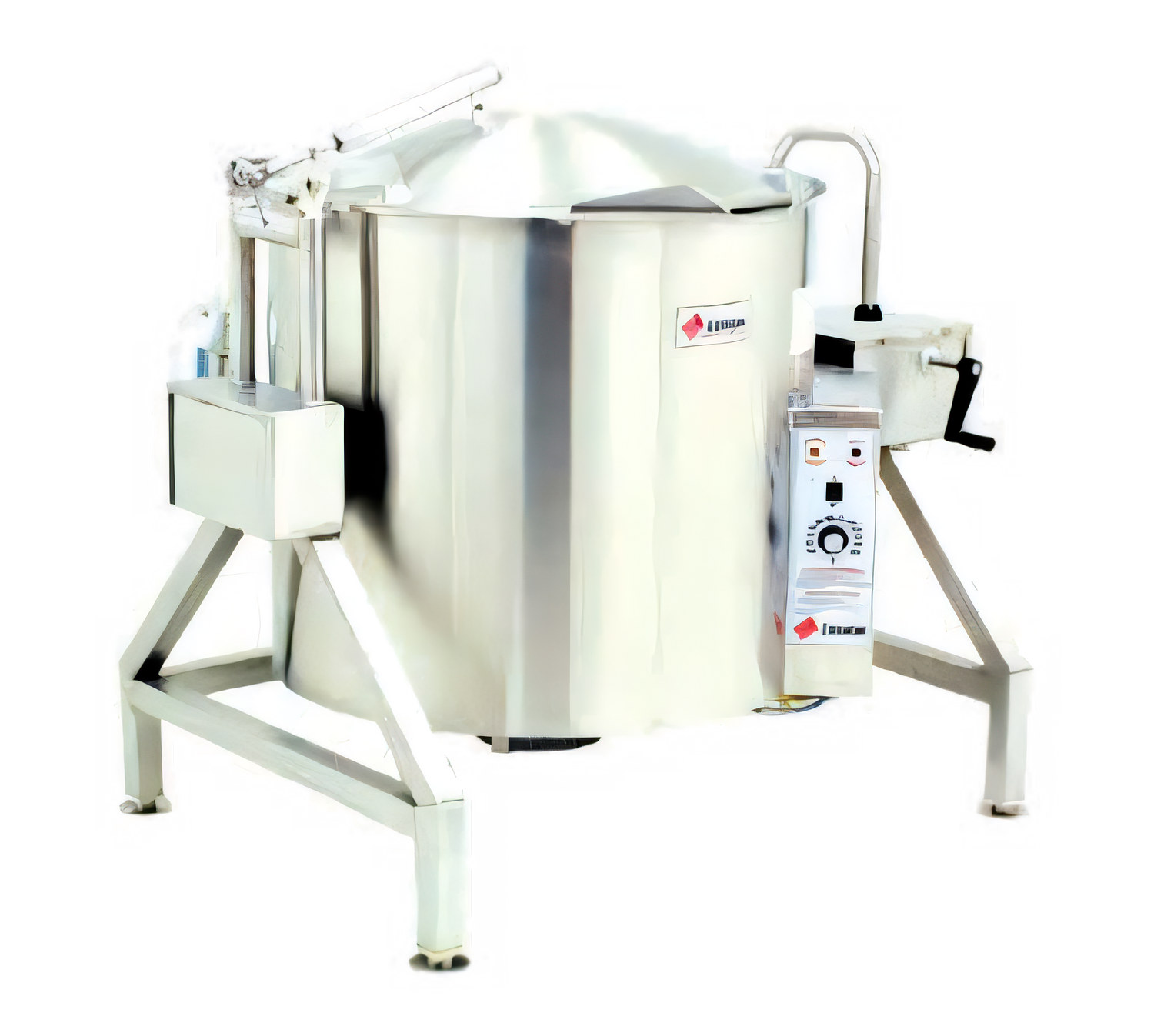

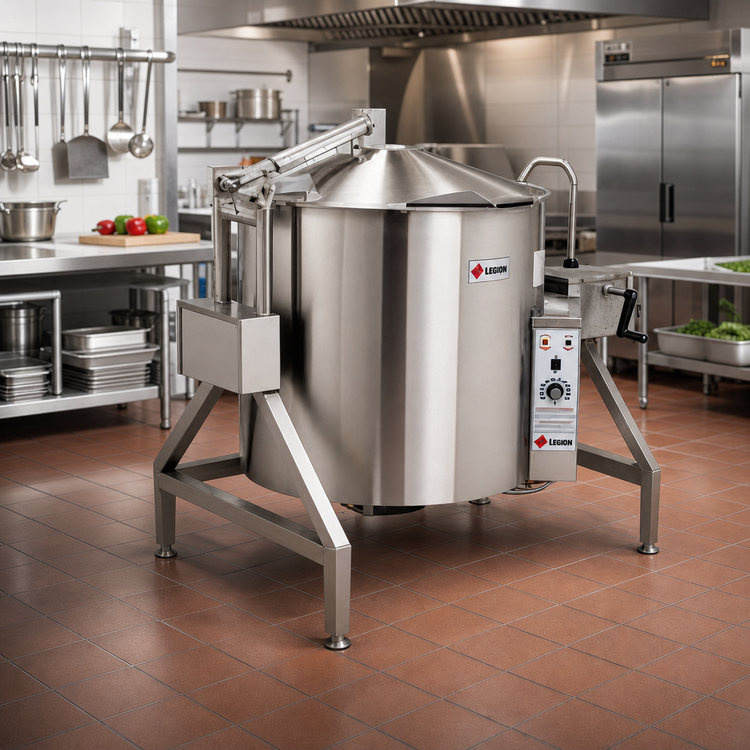

Legion TLGB-40 40-Gallon Gas Tilting Kettle
Insulated for Safety™ • 2/3 Jacket • 79,855 BTUEngineered for high-volume production, the TLGB-40 combines rapid, even heating with rugged stainless-steel construction and full-body insulation. Whether you’re simmering stock, crafting sauces, or blanching vegetables, this self-contained floor kettle delivers consistent results and operator-friendly performance in a compact footprint.
Key Features
- 40 gal / 151 L working capacity with deep-drawn 304 stainless steel liner
- Gas-fired burner rated at 79,855 BTU/h (natural gas)

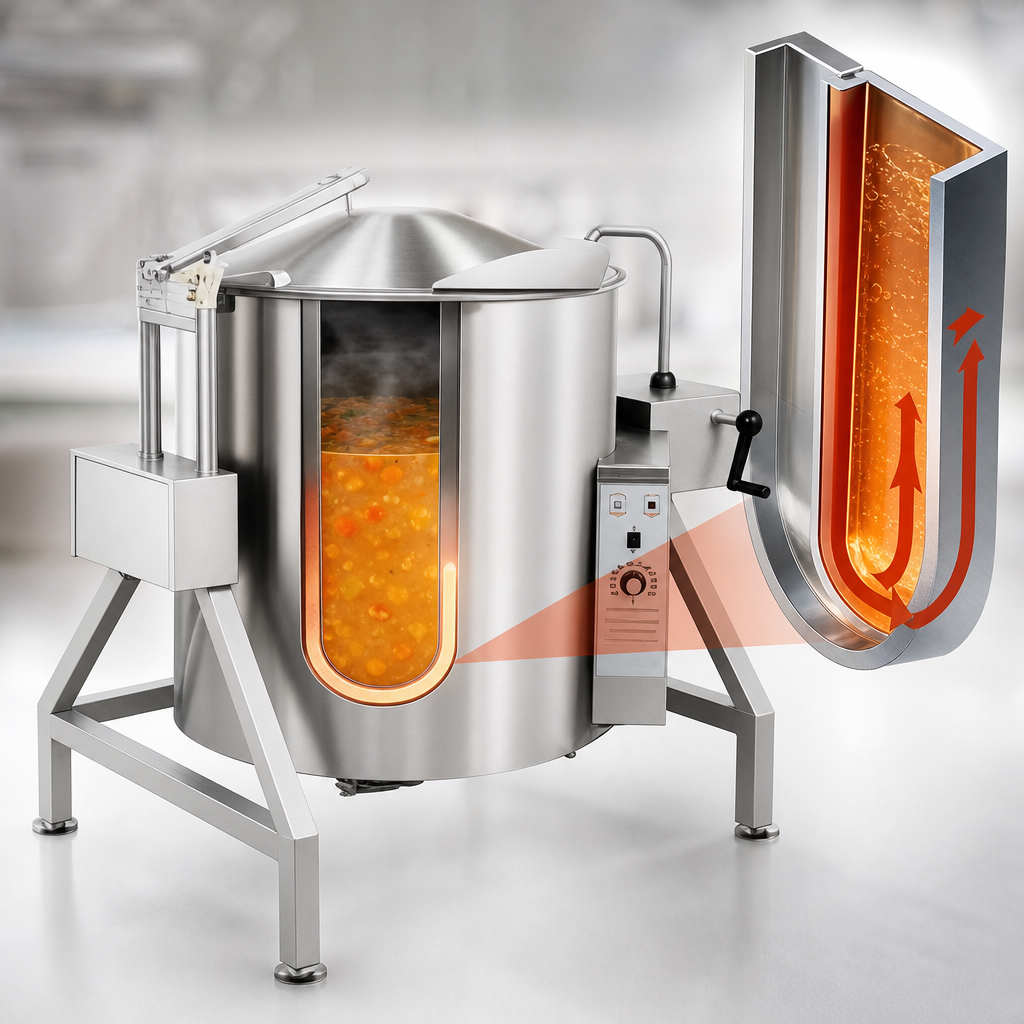

- 2/3 steam jacket surrounds side & bottom for uniform heat distribution

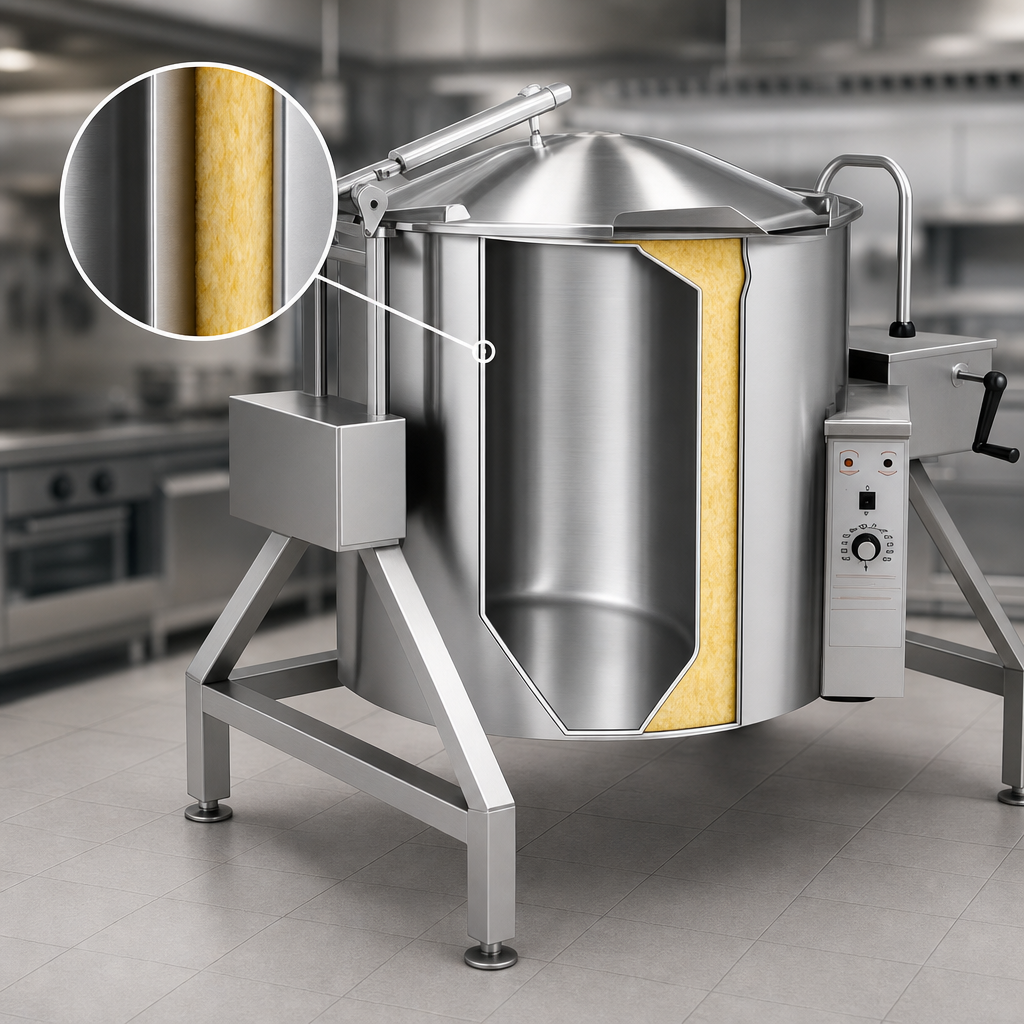

- Insulated for Safety™ – 3 – 14 in of wrap-around insulation keeps exterior surfaces cooler and cuts energy loss
- Precise thermostat control 150 °F – 260 °F with electronic spark ignition (120 V standard)
- Kettle Protection System: pressure relief valve, air eliminator, pressure gauge & low-water cutoff with indicator light
- Smooth, self-locking worm-gear tilt with reinforced stainless gear box
- 3 in reinforced radius pouring lip for clean, drip-free transfers
- Seam-welded 304 stainless outer casing, control console & tubular frame
- Adjustable flanged feet for permanent, level floor mounting
- ASME-code, NSF-listed construction — proudly made in Waynesboro, GA USA
Technical Specifications
| Capacity | 40 gal / 151 L |
|---|---|
| Heat Input | 79,855 BTU/h (natural) • 83,100 BTU/h (propane) |
| Jacket | 2/3 steam jacket, 304L stainless |
| Temperature Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Construction | 304 stainless liner & outer casing, seam-welded |
| Ignition / Electrical | Electronic spark • 120 V 1 ph 50/60 Hz 1 A (208 V or 240 V optional) |
| Gas Connection | 3/4 in IPS |
| Gas Supply Pressure | Natural 5-7 in W.C. • Propane 12-14 in W.C. |
| Outlet Pressure (factory) | Natural 3.5 in W.C. • Propane 9 in W.C. |
| Tilt Mechanism | Manual worm-gear, self-locking & permanently lubricated |
| Overall Dimensions* | 51.1 in (W) × 26.2 in (D) × 42.5 in (H) |
*Dimensions taken from manufacturer drawings; allow additional clearance for tilting and service access.
Popular Options & Accessories
- 2 in or 3 in draw-off valve (compression or ball type)
- Lift-off or actuator-assisted cover
- Single or double fill faucet with 12 in / 18 in swing nozzle
- 48 in flexible spray hose (vinyl or stainless)
- Electric timer with audible buzzer
- ½ in gas quick-disconnect & flexible hose
- Two-speed mixer/agitator assembly
- Basket, bag and perforated strainer inserts
Warranty
Comes standard with a 12-month parts & labor warranty from date of installation (90 days on wear items). Extended coverage available; contact us for details.
