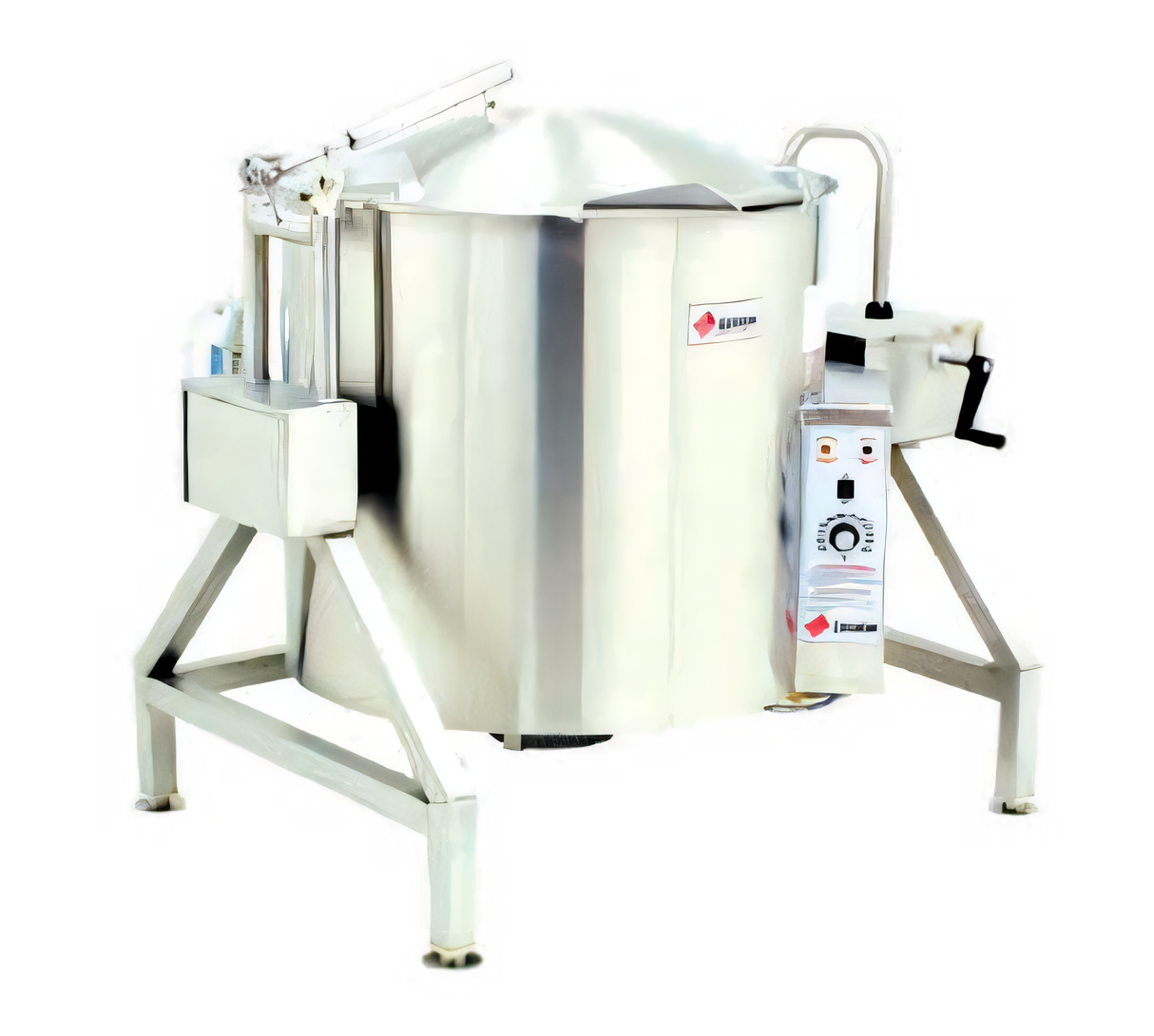

Legion TLGB-30 Low-Rim Gas Tilting Kettle with 2-Speed Mixer
30 gal / 114 L • Self-Contained • Insulated for Safety™Engineered and built in the USA, the Legion TLGB-30 combines gentle, even steam jacket cooking with a powerful twin-shaft agitator to deliver high-volume, labor-saving performance in any commercial kitchen. A fully insulated 304 stainless steel body, precise thermostat control, and smooth floor-mounted tilting action make large-batch production faster, safer, and more efficient.
Why Choose the TLGB-30?
- True 30 gallon (114 L) working capacity – ideal for soups, sauces, stews & more.
- 2⁄3 steam jacket surrounds the sidewalls for superior heat transfer with no hot spots.
- 66,700 BTU gas burner (natural) with dependable electronic ignition (120 V standard).
- Twin-shaft 2-speed mixer (anchor agitator + counter-rotating beater) keeps product uniform while preventing scorching.
- Full-body 3"–14" fiberglass insulation retains heat, lowers energy costs, and keeps exterior surfaces cooler.
- Low-rim design and self-locking worm gear tilt for ergonomic unloading into pans or mobile carts.
- Deep-drawn 304 stainless steel liner & 304L jacket for maximum durability and easy sanitation.
- Integrated Kettle Protection System with low-water cutoff, pressure relief valve, pressure gauge & sight glass.
- Adjustable flanged feet and heavy-duty tubular frame for rock-solid floor installation.
Built-In 2-Speed Agitation
- Anchor-style main agitator hugs the kettle contour; removable nylon blades constantly scrape the sidewalls.
- Secondary counter-rotating beater positioned between the center shaft and outer arm for thorough blending.
- High speed: 46 RPM (main) / 120 RPM (beater) – perfect for rapid dispersion and emulsions.
- Low speed: 23 RPM (main) / 60 RPM (beater) – gentle agitation for delicate products.
- Bayonet-mount shafts lift out tool-free for quick cleaning or when kettle is used without mixing.
- Actuator-assisted bridge lift with positive rim lock for safe, one-person operation.
Technical Specifications
| Capacity | 30 gal | 114 L |
|---|---|
| Heating Source | Natural or Propane Gas |
| Input | 66,700 BTU (Natural) / 67,800 BTU (LP) |
| Steam Jacket | 2/3 coverage, 304L stainless |
| Operating Temp. | 150 °F – 260 °F (thermostat controlled) |
| Electrical | 120 V, 1 ph, 50/60 Hz, 1 A (208/240 V optional) |
| Gas Connection | 1/2" IPS; 5-7" W.C. (Nat) / 12-14" W.C. (LP) |
| Construction | 304 SS liner, jacket, outer casing & console; seam-welded |
| Dimensions (in.) |
A 23.0 | B 20.3 | C 38.3 | D 23.8 | F 47.7 | G 39.0 K 32.1 | L 33.5 | S 16.5 | T 25.6 | XI 13.5 |
| Certification | ASME, NSF, CSA & applicable safety standards |
| Country of Origin | Made in USA |
Perfect For
- Central kitchens & commissaries
- Schools, hospitals & correctional facilities
- Sauce, gravy & soup production lines
- Brew pubs & craft beverage infusion
Accessories such as draw-off valves, faucet assemblies, basket inserts and kettle care kits are available separately. Contact us for tailored configurations or installation guidance.
Product Weight:
965.0 lbFrequently Asked Questions
