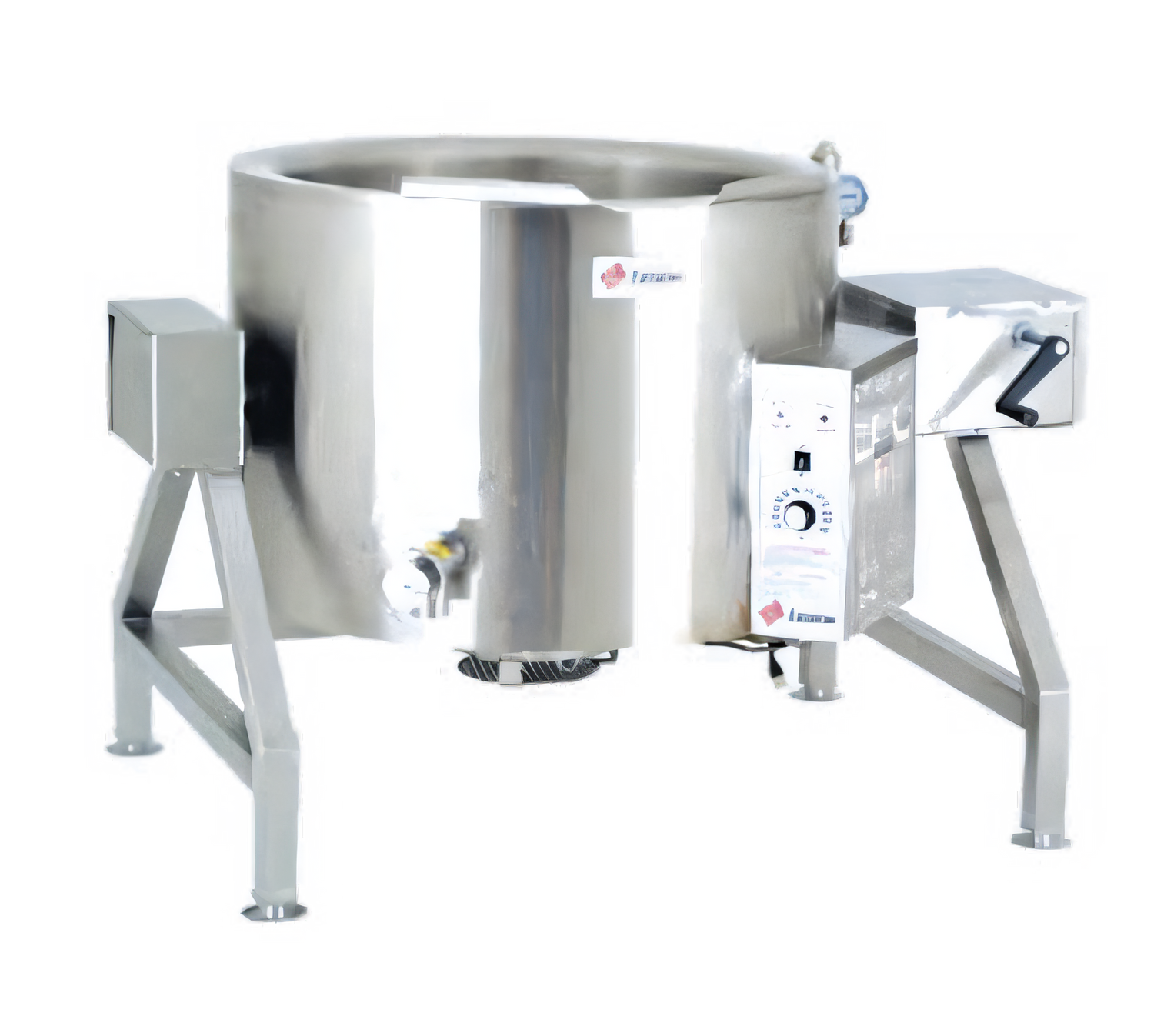

Legion TLGB-30F-MV 30-Gallon Gas Tilting Kettle with 2-Speed Mixer
Insulated • Self-Contained • Full Jacket • Made in USABuilt for high-volume production kitchens that refuse to compromise on quality, the Legion TLGB-30F-MV pairs a 30-gallon, gas-fired, full-jacket kettle with a powerful twin-shaft mixer. From silky sauces to hearty stews, you’ll enjoy fast, even cooking, precise temperature control and hands-free agitation—without the scorching, sticking or operator fatigue common to stock pots.
Why You’ll Love It
- 304 stainless steel kettle liner with deep-drawn LOW-RIM™ design for easy paddle access and cleaning.
- Full 304L stainless steel jacket rated 50 psi, surrounded by 3" of Insulated for Safety™ mineral wool.
- 79,900 BTU (natural gas) burner system with electronic ignition and safety pilot.
- Thermostatic control from 150 °F – 260 °F; maintains set point automatically.
- Legion Kettle Protection System—pressure relief valve, air eliminator, low-water cutoff & indicator light.
- Self-locking, permanently lubricated worm-gear tilt mechanism for smooth, controlled pouring.
- Reinforced tubular stainless frame with adjustable flanged feet—no floor sleeve required.
- Factory-mounted twin-shaft MV mixer: 2 speeds (23 & 46 RPM main / 60 & 120 RPM beater) for light or heavy batters.
- Nylon scraper blades continuously clean the kettle wall to prevent burn-on and improve heat transfer.
- Bayonet-mounted agitator and beater remove without tools for sink-side cleaning.
Technical Specifications
| Capacity | 30 gal | 114 L |
|---|---|
| Energy Source | Natural gas – 79,900 BTU / hr Propane rating: 83,100 BTU / hr |
| Gas Connection | 3/4" IPS, supply pressure 5–7" W.C. NG | 12–14" W.C. LP |
| Electrical | 120 V, 1 ph, 1 A (mixer & ignition) |
| Temperature Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Jacket Rating | Full-jacket, 50 psi ASME |
| Tilt Clearance (pour height) | 17.6" (C1 dimension) |
| Overall Width (F) | 51.1" |
| Overall Height (G) | 42.5" |
| Shipping Weight | Approx. 640 lb |
| Certifications | ASME, NSF, CSA, UL (controls) |
Integrated MV Twin-Shaft Mixer
- Anchor-style main agitator hugs the kettle wall for uniform heat distribution.
- Counter-rotating secondary beater breaks up lumps and accelerates emulsification.
- Actuator-assisted bridge lift and positive rim-lock keep the mixer perfectly aligned when tilting.
- Safety interlock prevents high-speed starts or operation when the bridge is raised.
Popular Options (Call to Configure)
- 2" or 3" sanitary draw-off valve (compression or ball type).
- Single or double pedestal fill faucet with 12" or 18" swing nozzle.
- 48" vinyl or stainless spray hose assembly.
- Electronic timer with audible buzzer.
- Flexible 1/2" gas quick-disconnect hose.
- Lift-off or actuator-assisted cover, basket inserts, measuring strip, kettle care kit and more.
Warranty & Support
Includes Legion’s standard 12-month parts and labor warranty. Extended coverage up to 3 years available. All units are factory-tested and shipped fully assembled with 6' power cord & plug.
Product Weight:
965.0 lbFrequently Asked Questions
